A2PS B/S-POP Bubble Flow Monitoring System

Overview

The A2PS B/S-POP Bubble Flow Monitoring System is a high-precision, single-optical-probe instrument engineered for real-time characterization of gas–liquid two-phase bubbly flows in industrial and research environments. It operates on the principle of internal back-reflection photometry — a proprietary optical sensing methodology developed over two decades of fundamental and applied research in multiphase flow metrology. Unlike conventional transmission-based optical probes or laser Doppler anemometry (LDA), the B/S-POP does not require light to propagate through the flowing medium. Instead, it detects changes in reflected intensity at the probe tip interface as bubbles or gas inclusions pass across the sensing zone. This design eliminates dependence on fluid transparency, refractive index matching, or bubble morphology, enabling robust operation in opaque, turbid, or highly scattering media — including slurries, foams, and aerated viscous liquids.

Key Features

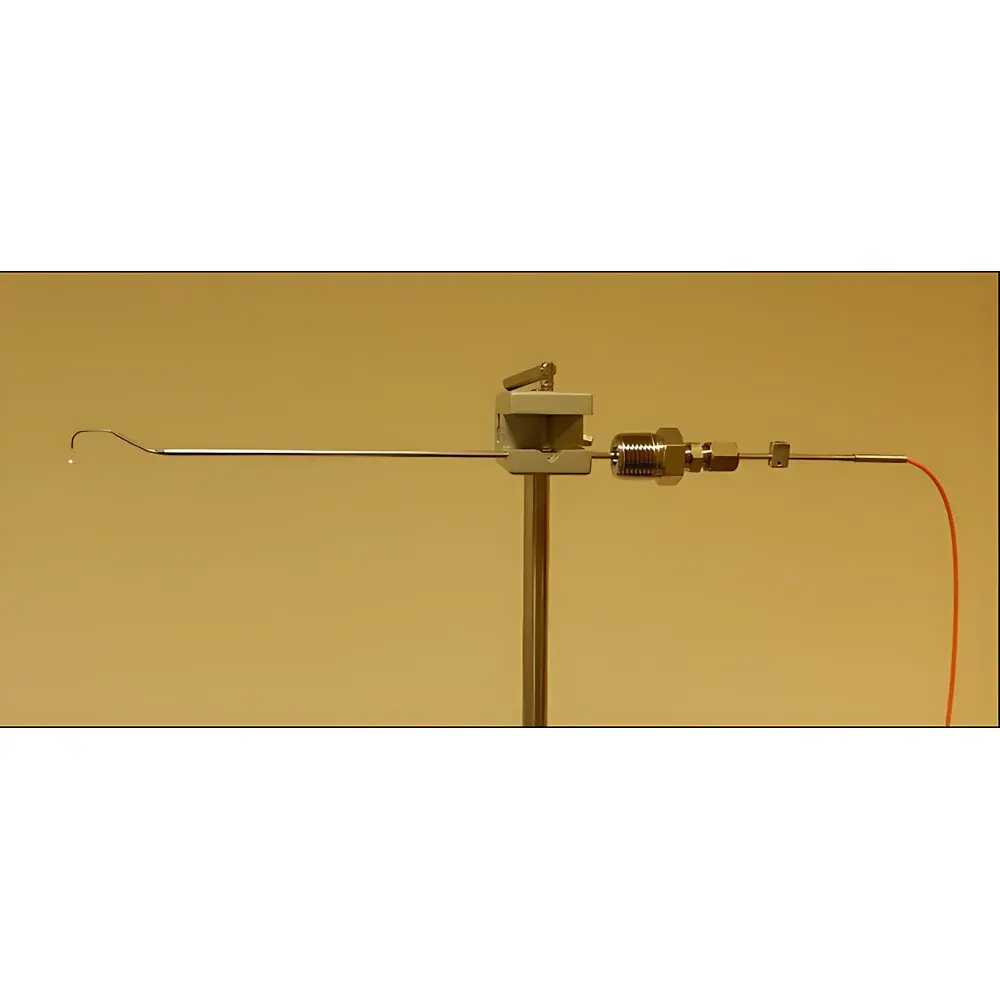

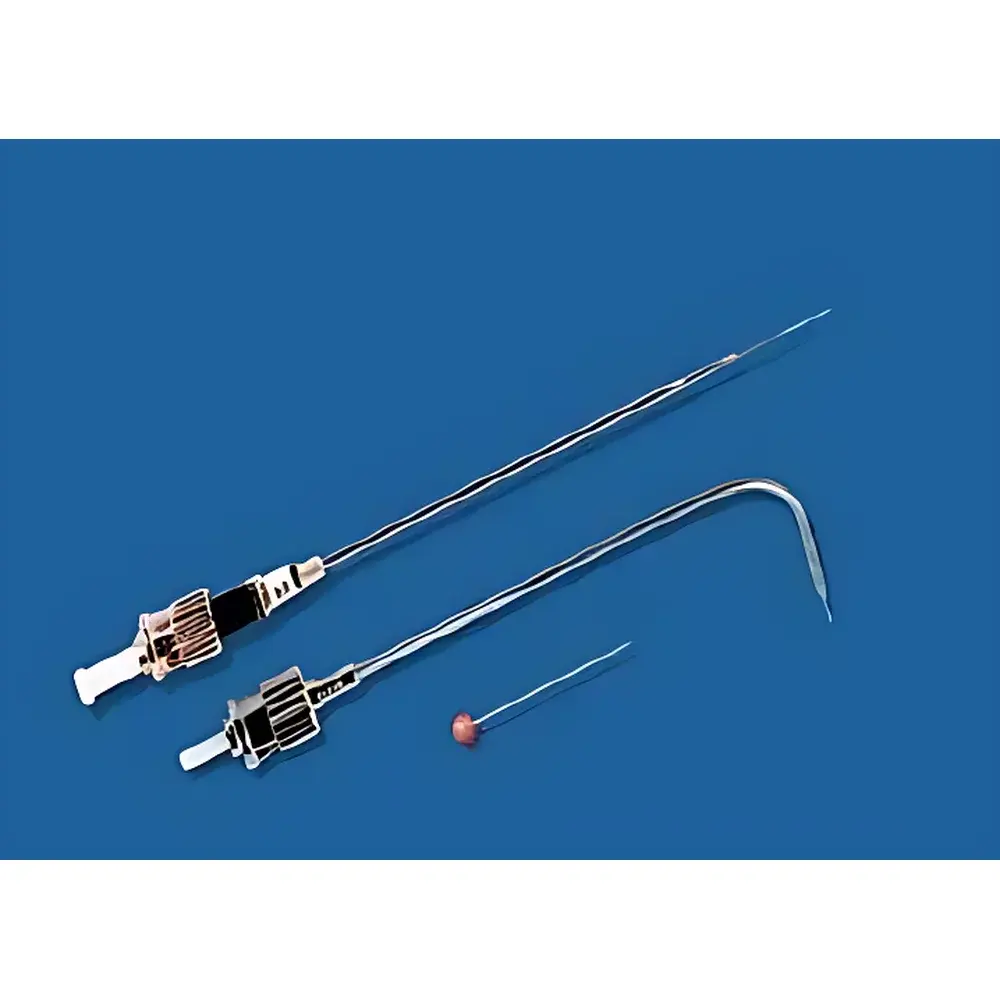

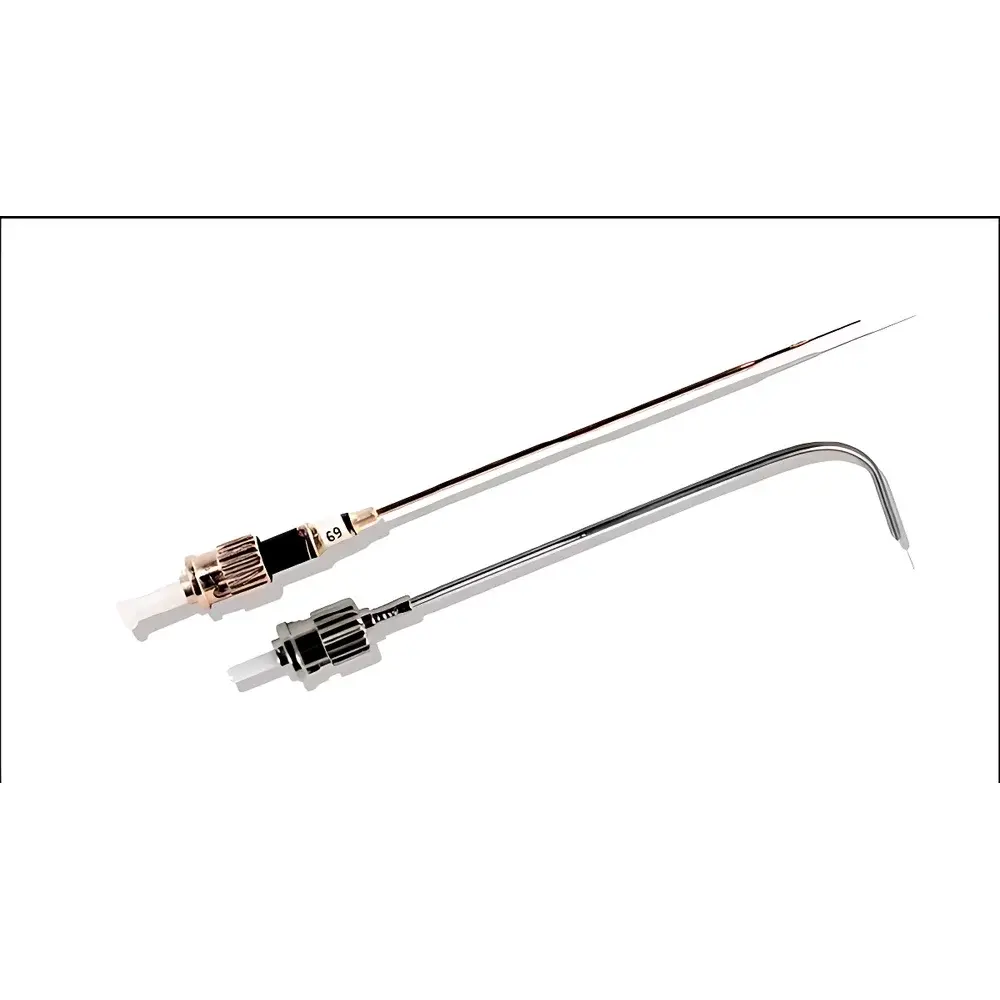

• Single-point, non-intrusive optical probe with stainless-steel or Hastelloy housing for chemical and mechanical durability in harsh process environments.
• Internal back-reflection detection principle — insensitive to liquid opacity, suspended solids, or bubble shape deviation from sphericity.
• Real-time acquisition of three primary hydrodynamic parameters: local void fraction, bubble velocity, and chord length distribution (with post-processing conversion to equivalent spherical bubble diameter).
• Operational velocity range: 0.1–25 m/s (extendable to higher velocities via optional firmware and calibration packages).
• Minimum detectable bubble chord length: ≥500 µm (sub-500 µm capability available with complementary instrumentation such as high-speed imaging or dual-probe correlation systems).
• Probe tip geometry optimized for minimal flow disturbance and repeatability under turbulent and transitional flow regimes.

Sample Compatibility & Compliance

The B/S-POP is compatible with a broad spectrum of gas–liquid systems, including air–water, CO₂–beer, steam–condensate, and nitrogen–polymer solutions. Its optical architecture supports measurements in pressurized vessels (up to 20 bar, depending on probe configuration), elevated temperatures (up to 150 °C), and aggressive chemical environments. The system complies with IEC 61000-6-2 (EMC immunity) and IEC 60079-0 (explosion protection fundamentals). When integrated into validated process monitoring workflows, it supports alignment with ISO 5167 (flow measurement standards) and ASTM D3498 (standard practice for characterization of dispersed-phase systems). Full traceability documentation, including factory calibration certificates and uncertainty budgets (k=2), is provided per probe unit.

Software & Data Management

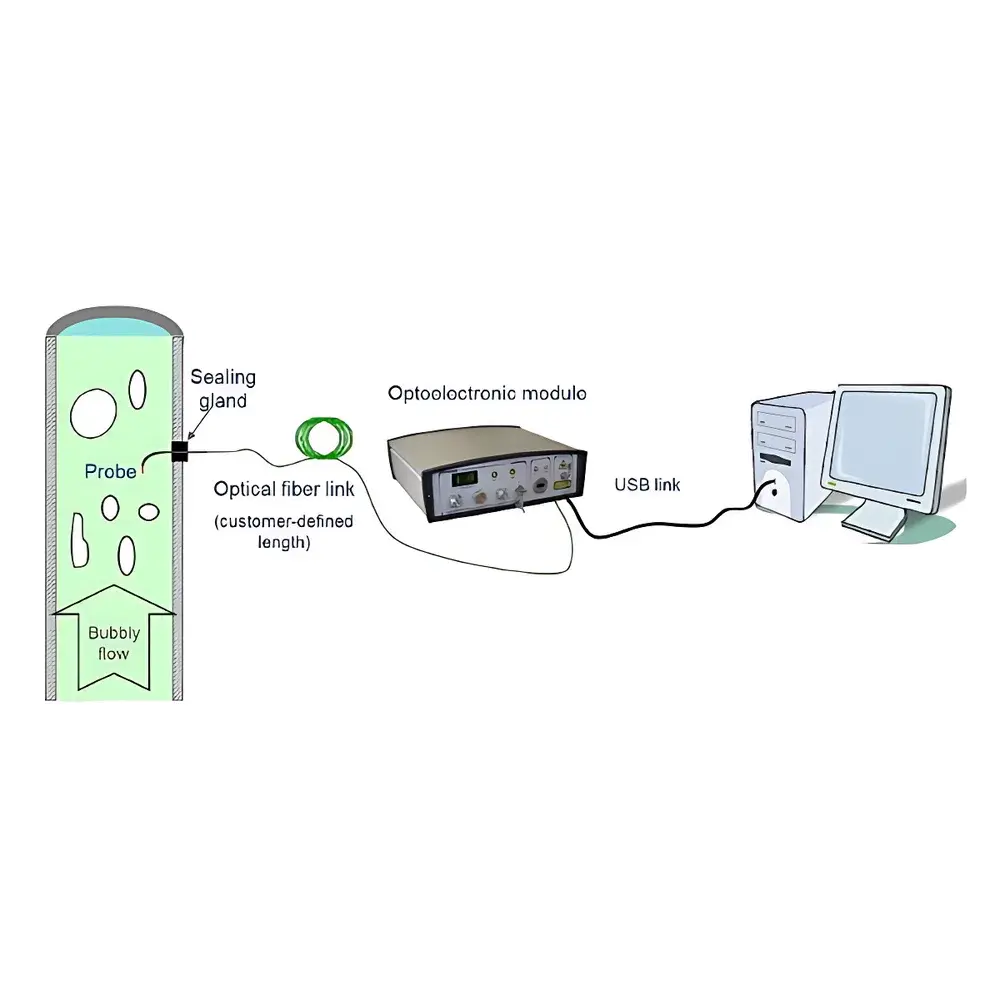

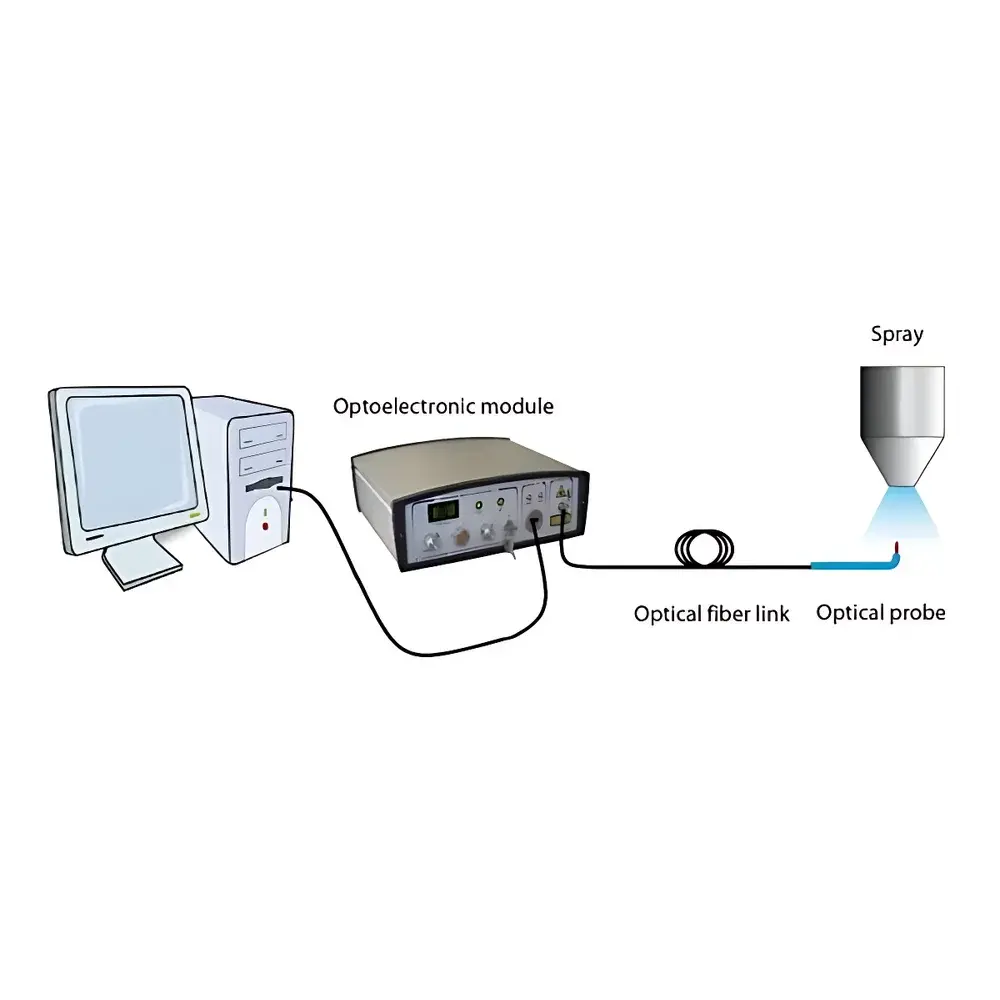

Data acquisition and analysis are performed using A2PS’ proprietary FlowAnalyzer™ software suite, which runs on Windows-based industrial PCs. The software provides synchronized time-series logging of raw photometric signals, automatic event detection (bubble passage identification), and real-time computation of void fraction, chord-length histograms, and local velocity distributions. Advanced modules support chord-to-diameter transformation under spherical assumption, relative slip velocity estimation, and cross-correlation analysis for multi-probe configurations. All data files adhere to HDF5 format for long-term archival integrity and interoperability with MATLAB, Python (via h5py), and LabVIEW. Audit trails, user access control, electronic signatures, and 21 CFR Part 11–compliant data security features are available in the GxP Edition for regulated pharmaceutical and nuclear applications.

Applications

• Validation and optimization of bubble column reactors in biochemical and fine chemical synthesis.
• Void fraction profiling in nuclear reactor coolant loops and steam generator feedwater systems.
• In-line monitoring of gas holdup and bubble size evolution during fermentation, wastewater aeration, and flotation processes.
• CFD model validation in oil–gas pipeline flow assurance studies, particularly for slug and bubbly flow regimes.
• Research on interfacial dynamics, coalescence/breakup kinetics, and turbulence modulation by dispersed gas phases.

FAQ

What physical principle does the B/S-POP use to detect bubbles?

It relies on internal back-reflection photometry at the optical probe–fluid interface, where changes in reflected light intensity correlate with bubble transit events.
Can the B/S-POP measure in opaque or particle-laden fluids?

Yes — its operation does not require light transmission through the bulk fluid, making it suitable for opaque, colored, or solid-loaded media.
Is spherical bubble assumption mandatory for data interpretation?

The standard chord-length-to-diameter conversion assumes sphericity; however, the raw chord distribution remains valid regardless of shape, and advanced correction models can be applied upon request.
Does the system support integration with existing SCADA or DCS platforms?

Yes — OPC UA and Modbus TCP interfaces are available for seamless integration into industrial automation architectures.
What calibration services are offered?

Factory calibration includes traceable reference measurements in air–water and glycerol–air test rigs; on-site verification and periodic recalibration are supported globally via A2PS-certified service partners.
