AADCO 737-12 Zero Air Generator

Overview

The AADCO 737-12 Zero Air Generator is a precision-engineered laboratory and field-deployable system designed to produce ultra-pure zero air for calibration, instrumental blanking, and reference gas dilution in environmental monitoring and analytical chemistry applications. It operates on a multi-stage purification principle: compressed ambient air is sequentially treated through catalytic oxidation (to convert CO and hydrocarbons to CO₂ and H₂O), high-efficiency particulate filtration, desiccant drying, and dual-bed chemical scrubbing (targeting residual ozone, nitrogen oxides, sulfur compounds, halocarbons, and trace organics). This architecture ensures consistent delivery of zero air meeting stringent regulatory thresholds—specifically <1 ppb total hydrocarbon equivalent (THCE) and sub-ppb levels across all listed interferents—without reliance on high-pressure cylinders. The system is widely deployed by U.S. EPA-certified ambient air monitoring stations, state environmental laboratories, federal research facilities (e.g., NIST-affiliated labs), and industrial QA/QC labs requiring trace-level gas metrology traceability.

Key Features

• Stable, continuous zero air output at 12 L/min nominal flow, adjustable via integrated needle valve with ±0.2 L/min resolution
• Dual-stage catalytic converter and proprietary multi-sorbent purification train delivering <1 ppb purity for O₃, CH₄, NO/NOₓ, H₂S, SO₂, COS, CO, CO₂, SF₆, and fluorocarbons
• Integrated dew point control achieving -50°C at 80 PSI output pressure, minimizing condensation risk in downstream analyzers

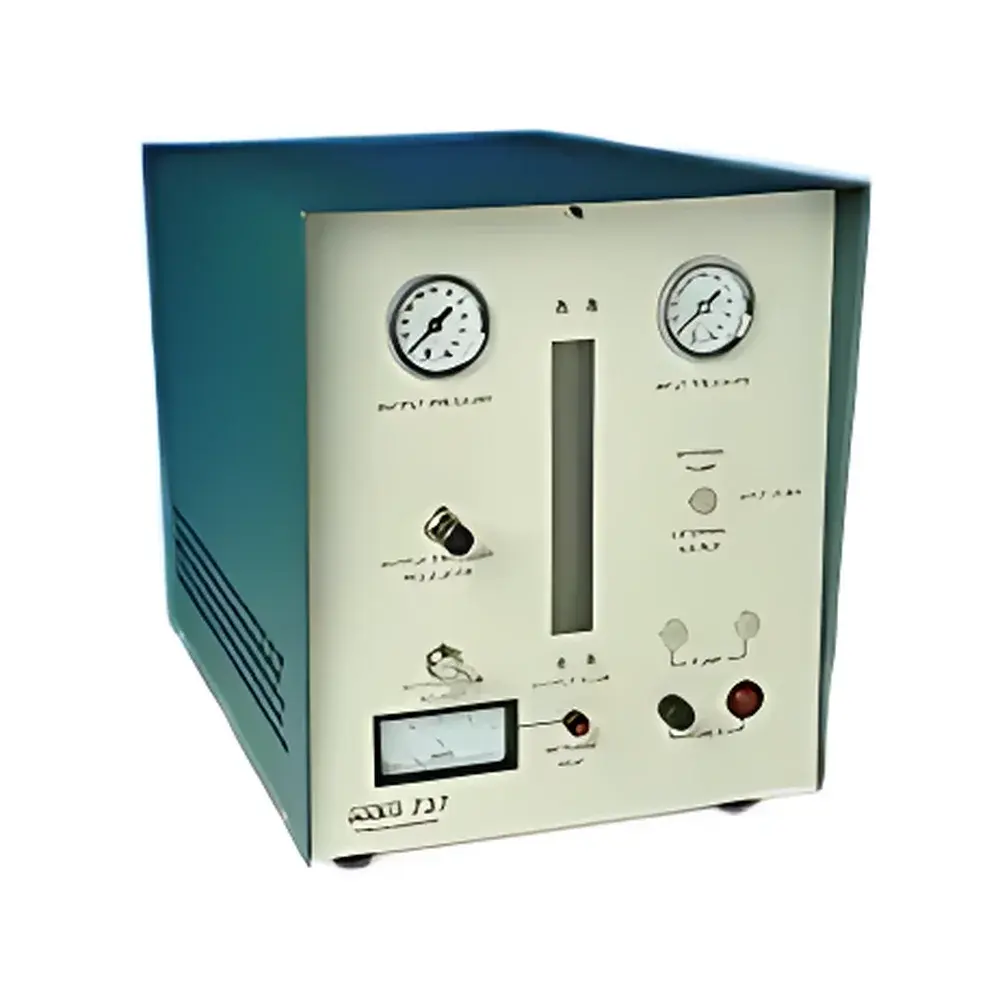

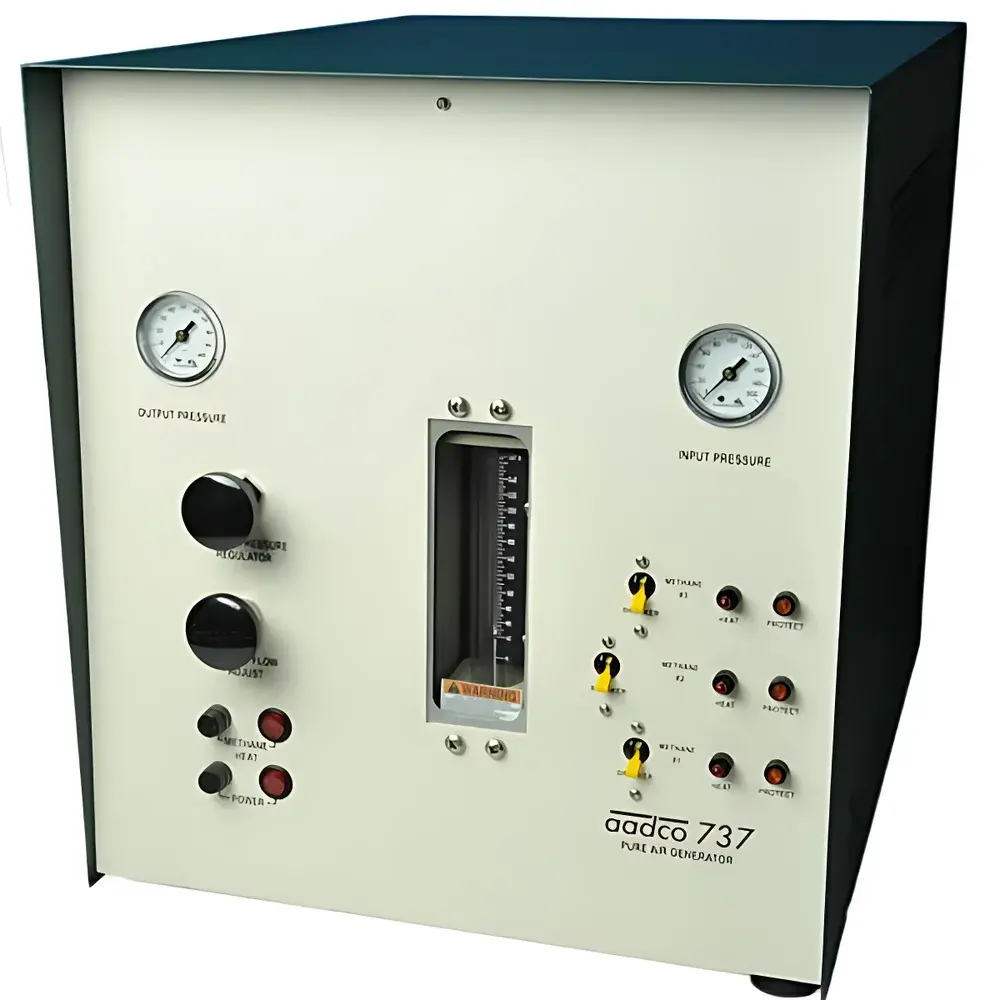

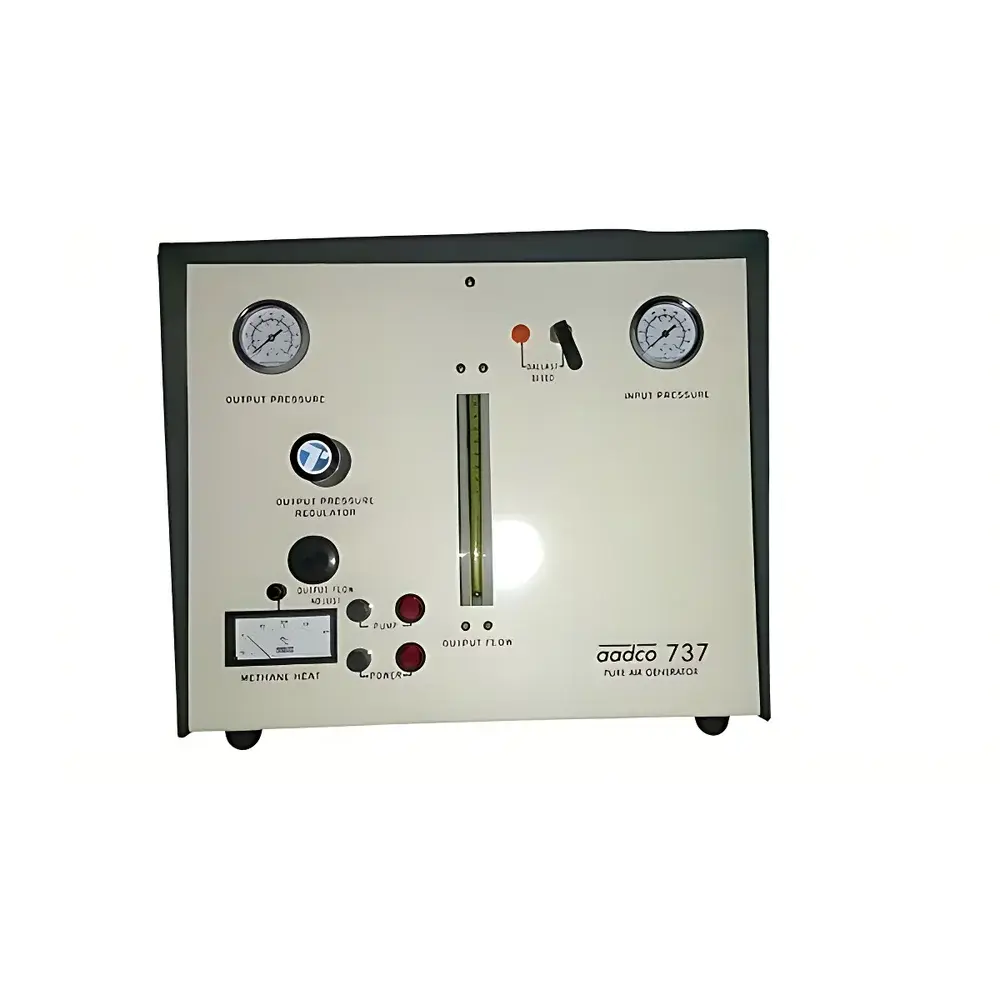

• Front-panel analog pressure gauges for inlet and outlet monitoring, plus LED digital flow indicator (optional rotor meter available)
• Robust stainless-steel and anodized aluminum construction rated for continuous 24/7 operation in controlled laboratory or sheltered outdoor environments
• Modular design supports benchtop or rack-mount installation; compatible with optional external air compressors (oil-free, <0.01 mg/m³ oil aerosol)

Sample Compatibility & Compliance

The AADCO 737-12 is validated for use with EPA Methods 25A, 25B, TO-14A, TO-15, and ASTM D6420 for VOC and criteria pollutant analyzer calibration. Its output meets the zero air specifications defined in 40 CFR Part 53 (for PM and gaseous pollutant monitors) and ISO 8573-1 Class 0 for particulate, water, and oil content. All internal wetted materials comply with USP Class VI biocompatibility standards, and the system supports GLP/GMP audit readiness via optional logging of operational parameters (flow, pressure, runtime). It is not intended for use with reactive or corrosive feed gases—only clean, oil-free compressed air (<5 µm particulates, <1 ppm oil vapor) may be supplied as input.

Software & Data Management

While the 737-12 is a hardware-only, analog-controlled generator (no embedded microprocessor or firmware), it integrates seamlessly into automated monitoring networks via optional 4–20 mA analog outputs for flow and pressure telemetry. When paired with third-party SCADA or LabVantage LIMS platforms, operational logs—including cumulative runtime, maintenance intervals, and pressure differential trends across filter stages—can be archived for FDA 21 CFR Part 11-compliant electronic records. A dedicated maintenance logbook (provided with unit) supports scheduled replacement tracking for catalyst cartridges (recommended every 12 months at 12 L/min continuous duty) and desiccant beds (every 6 months under high-humidity conditions).

Applications

• Calibration and span verification of chemiluminescence NO_x analyzers, UV fluorescence SO₂ analyzers, and FTIR-based multi-gas monitors
• Zero-gas background generation for GC-FID, GC-ECD, and PTR-MS systems performing ambient VOC speciation
• Blank matrix generation in EPA Method 24 (coating VOC content) and Method 25 (total gaseous organic emissions)
• Reference air supply for photometric ozone generators and permeation tube calibrators
• Continuous zero-air purge for cavity ring-down spectroscopy (CRDS) and laser absorption analyzers requiring ultra-low baseline drift

FAQ

What feed air quality is required for optimal performance?

Clean, oil-free compressed air with ≤5 µm particulate filtration, ≤1 ppm oil aerosol, and ≤10 ppm moisture (at inlet) is mandatory. Use of an upstream coalescing filter and refrigerated dryer is strongly recommended.
How often must consumables be replaced?

Catalyst cartridge: annually at rated flow; desiccant bed: semi-annually in humid climates; particulate pre-filter: quarterly or per pressure drop >5 PSI.
Can the 737-12 be used for indoor air quality (IAQ) chamber purging?

Yes—its -50°C dew point and <1 ppb purity enable stable baseline conditions in dynamic IAQ test chambers per ASTM E2912 and ISO 16000-23 protocols.
Is remote monitoring supported out of the box?

No native Ethernet or USB interface exists; however, analog signal outputs (4–20 mA) allow integration with PLCs or data loggers for remote status tracking.
Does this unit meet EPA equivalency requirements for regulatory compliance?

Yes—the 737-12 has been independently verified by multiple EPA Region-certified test labs against 40 CFR Part 53 Appendix A and is listed in the EPA’s Certified Equipment List (CEL) for zero air generation.
