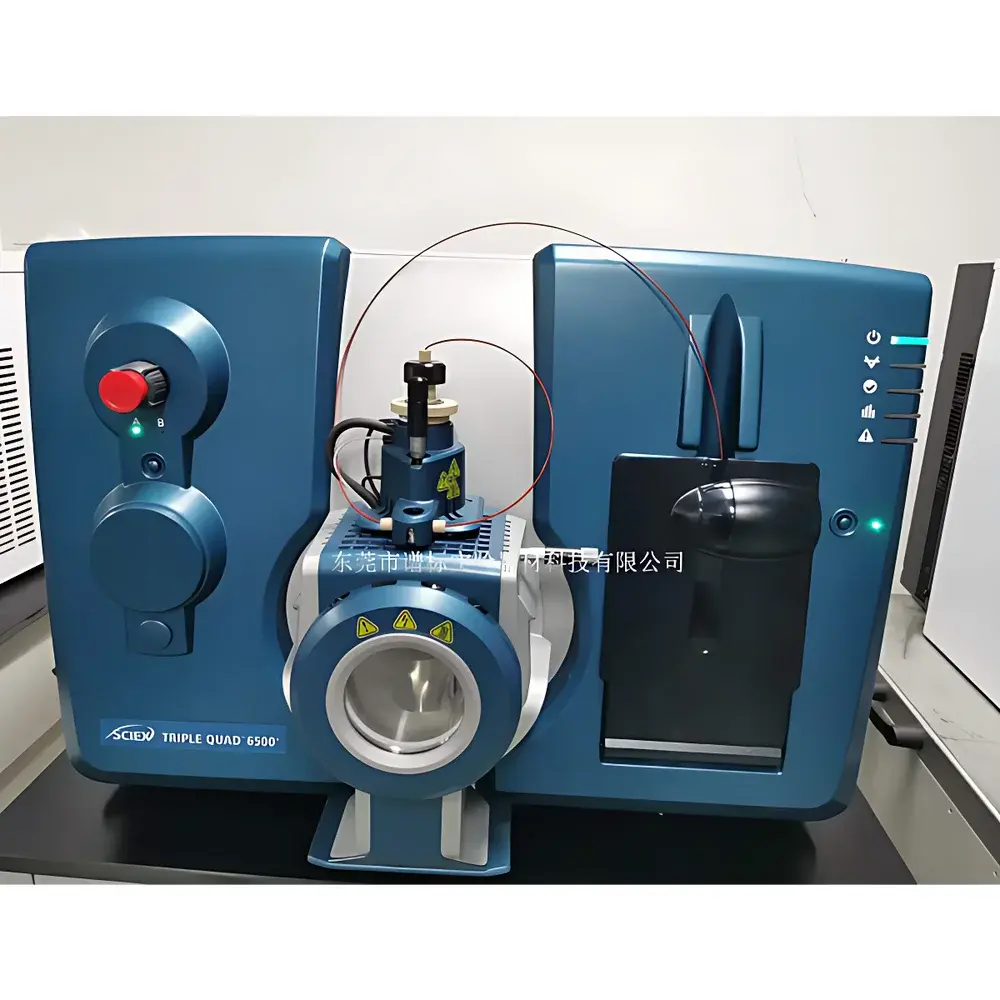

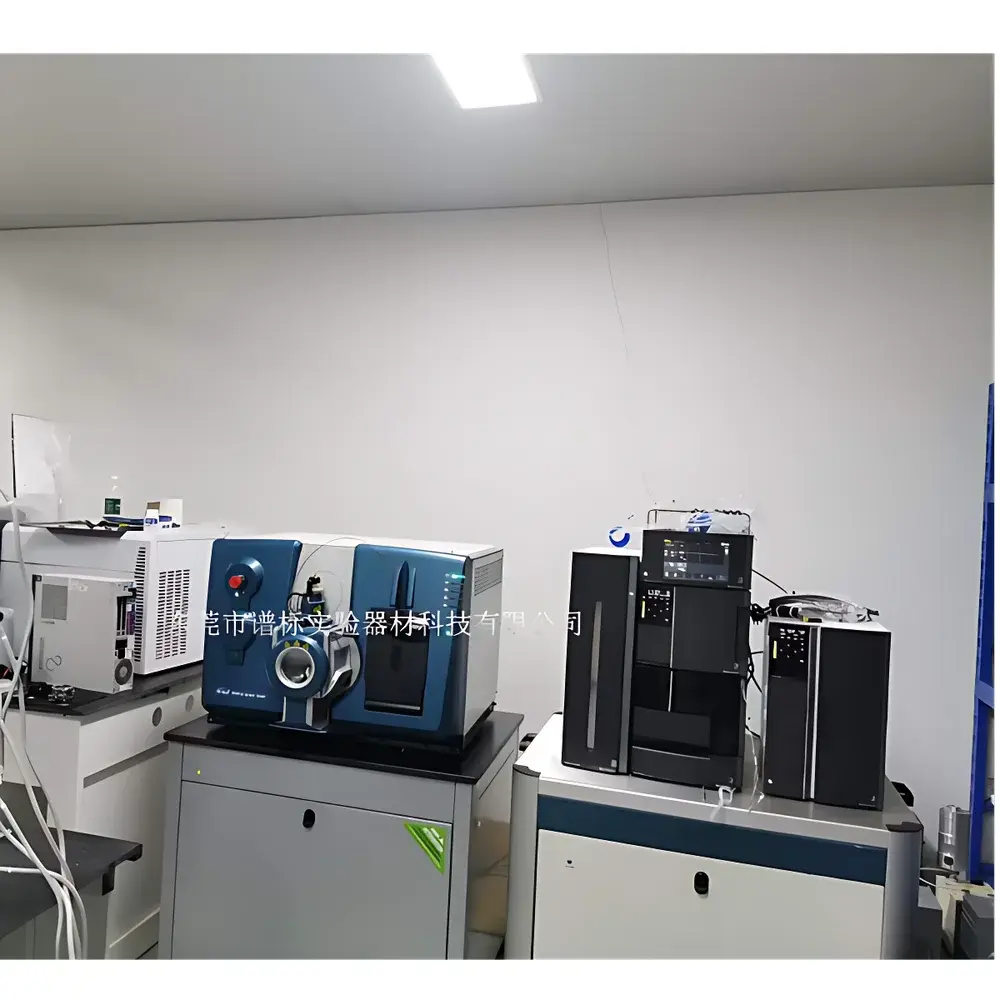

AB SCIEX Triple Quad 6500+ LC-MS/MS System with Shimadzu Nexera LC-40BX3 HPLC

Overview

The AB SCIEX Triple Quad 6500+ LC-MS/MS system, integrated with the Shimadzu Nexera LC-40BX3 ultra-high-performance liquid chromatograph, delivers a robust, high-sensitivity platform for quantitative and qualitative analysis of small molecules in complex biological, environmental, and pharmaceutical matrices. This tandem mass spectrometry system operates on the principle of electrospray ionization (ESI) or atmospheric pressure chemical ionization (APCI), coupled with triple quadrupole mass filtering and multiple reaction monitoring (MRM). The core architecture leverages IonDrive™ technology across the entire ion pathway—ion source, ion optics, and detector—to maximize ion transmission efficiency, signal stability, and dynamic range. Designed for compliance-driven laboratories, the system supports trace-level quantitation down to sub-femtogram levels, enabling rigorous adherence to regulatory requirements in bioanalysis (e.g., FDA Guidance for Industry on Bioanalytical Method Validation), environmental monitoring (EPA Method 1694), and residue testing (EU SANTE/11312/2021).

Key Features

• IonDrive™ Turbo V™ ion source: Optimized gas dynamics and heater configuration enhance ionization efficiency across wide flow rate ranges (5 µL/min to 3 mL/min), ensuring compatibility with capillary, analytical, and UHPLC columns.
• IonDrive™ QJet® ion guide: Multi-stage RF-only design improves ion capture capacity and collisional focusing, increasing transmission efficiency for both low- and high-mass analytes (m/z up to 2,000).
• IonDrive™ high-energy detector: Delivers extended linear dynamic range (>20-fold increase vs. prior-generation detectors) while maintaining pulse-counting fidelity at high count rates.
• Ultrafast polarity switching: 20 ms transition between positive and negative ion modes enables comprehensive dual-polarity MRM assays within a single run.
• Scan speed: Up to 12,000 Da/sec supports high-resolution UHPLC peak sampling (≥12 data points per chromatographic peak at 0.2–0.3 sec peak width).
• Shimadzu SIL-40 autosampler: 5-second injection cycle time; <0.001% carryover; programmable temperature-controlled sample compartment with airflow management to prevent condensation.

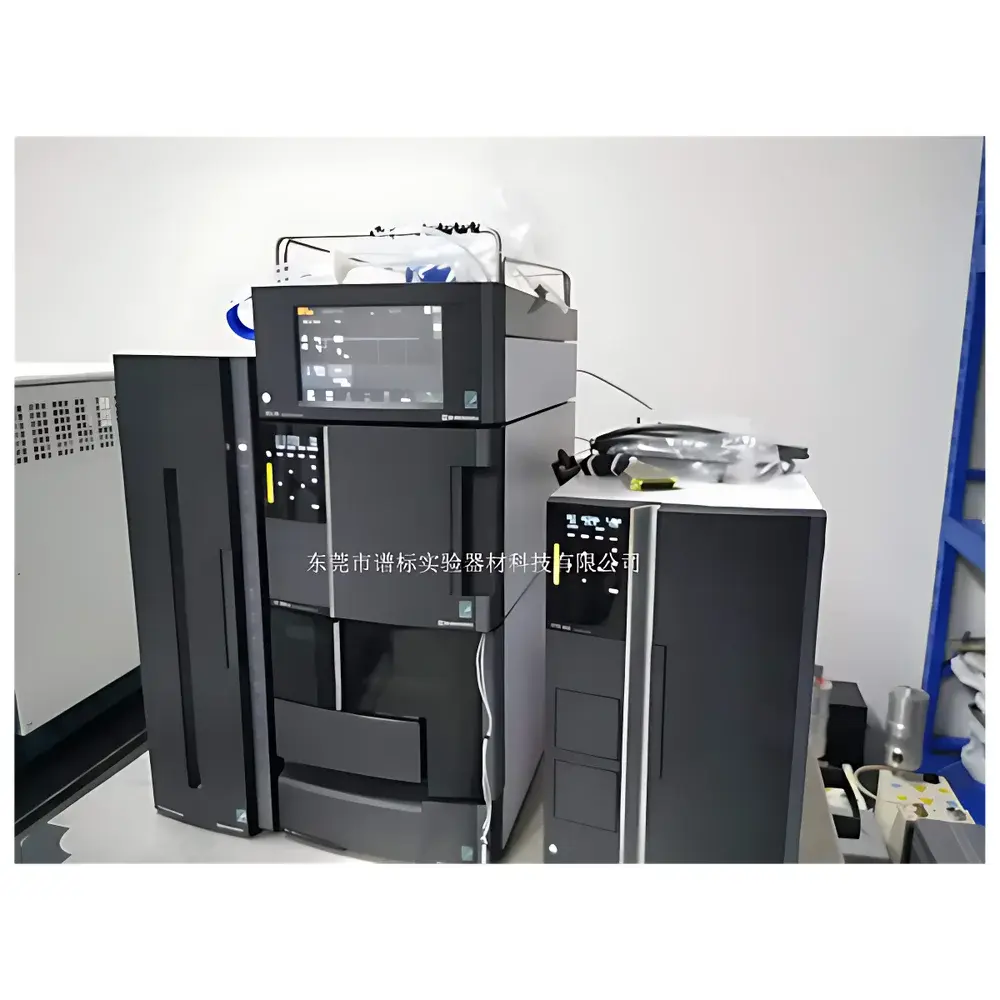

• Energy-efficient Nexera LC-40BX3: Reduces standby power consumption by >68% versus previous generations; features dual-injection capability for parallel method development or orthogonal analysis workflows.

Sample Compatibility & Compliance

The integrated LC-MS/MS platform accommodates diverse sample types—including plasma, serum, urine, tissue homogenates, plant extracts, and wastewater—without requiring hardware modification. It is validated for use in GLP- and GMP-regulated environments, supporting full audit trails, electronic signatures, and 21 CFR Part 11–compliant data integrity protocols when operated with SCIEX OS software and LabSolutions LCMS v5.10 or later. Method transfer from legacy SCIEX Triple Quad systems (e.g., 5500, 6500) is facilitated via standardized calibration and tuning procedures aligned with ISO/IEC 17025:2017 requirements for analytical competence.

Software & Data Management

SCIEX OS software provides instrument control, acquisition, processing, and reporting in a unified interface. It includes built-in MRM optimization tools, scheduled MRM acquisition, and automated calibration verification. Raw data files (.wiff) are stored in vendor-neutral formats compatible with third-party platforms such as SimGlycan, Skyline, and Compound Discoverer. All acquisition parameters, processing methods, and report templates are version-controlled and exportable for internal SOP documentation. Audit trail functionality logs user actions, method changes, and result modifications with timestamps and operator IDs—essential for regulatory submissions to EMA, PMDA, or Health Canada.

Applications

• Clinical pharmacokinetics and toxicokinetics (PK/TK): Quantitation of drugs and metabolites in human or animal matrices under FDA/ICH M10 guidelines.
• Residue analysis: Multicomponent pesticide, veterinary drug, and mycotoxin screening in food and feed per EU Maximum Residue Level (MRL) regulations.
• Endogenous biomarker discovery: Targeted quantitation of steroids, amino acids, acylcarnitines, and bile acids in metabolic phenotyping studies.
• Environmental contaminant monitoring: Detection of PFAS, pharmaceuticals, and personal care products (PPCPs) in surface water and wastewater at ng/L levels.
• Method validation support: Full compliance with USP <1225>, ICH Q2(R2), and CLSI EP26-A for precision, accuracy, linearity, and ruggedness assessment.

FAQ

Is this system supplied with original factory calibration certificates and service history?
Yes—each unit undergoes full functional verification and includes documented calibration records, maintenance logs, and OEM-certified refurbishment reports.
Can the system be configured for SelexION™ differential mobility separation?
Yes—the Triple Quad 6500+ platform is natively compatible with SelexION™ add-on modules for enhanced isomeric separation and background reduction.
What level of technical support is available post-installation?
Comprehensive remote diagnostics, application troubleshooting, and on-site service contracts are available through authorized SCIEX and Shimadzu service partners in North America, EMEA, and APAC regions.
Does the LC-40BX3 support gradient delay compensation for MS-coupled methods?
Yes—integrated dwell volume measurement and automatic gradient delay correction ensure precise retention time alignment between LC and MS acquisition.
Are consumables and spare parts still available for long-term operation?
All critical consumables—including Turbo V™ source components, QJet® lenses, detector assemblies, and Nexera LC pump seals—are actively stocked and supported under SCIEX and Shimadzu’s global supply chain.
