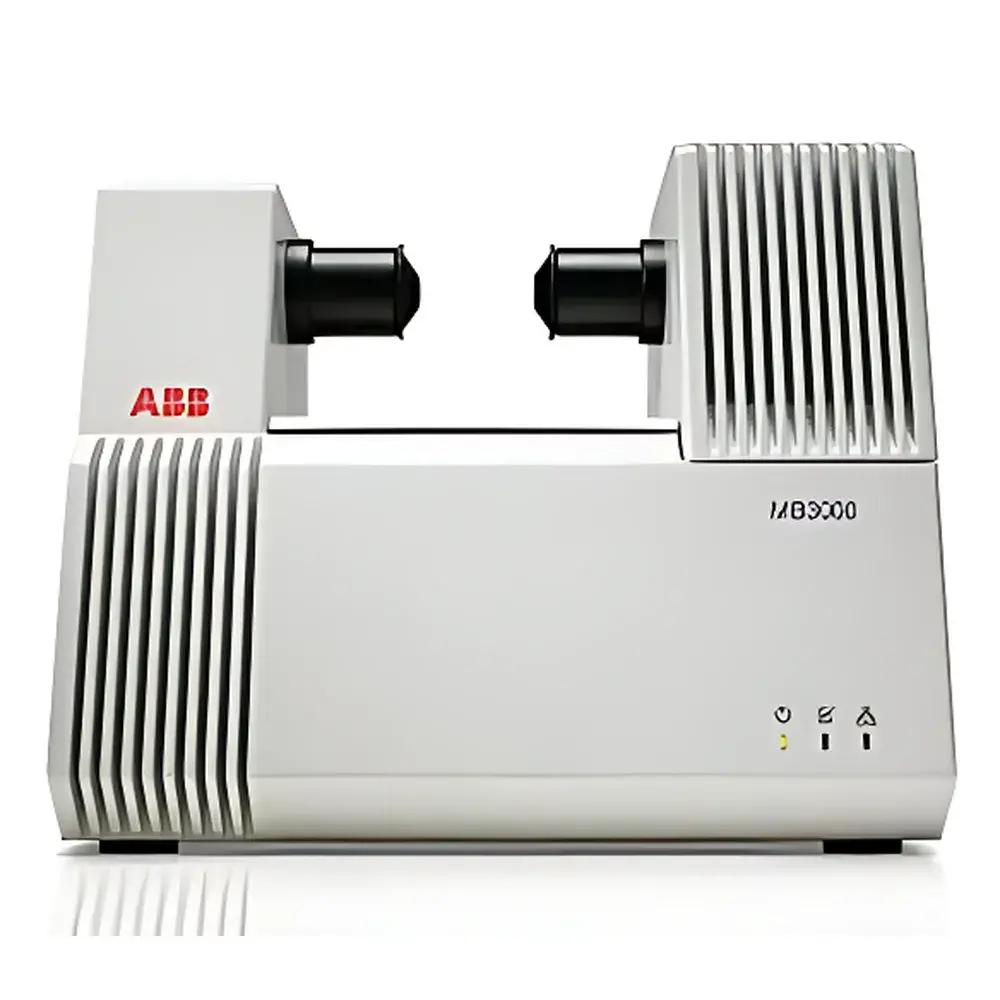

ABB MB3000 Fourier Transform Infrared (FTIR) Spectrometer

Overview

The ABB MB3000 Fourier Transform Infrared (FTIR) Spectrometer is a laboratory-grade analytical instrument engineered for high-fidelity mid-infrared spectral acquisition across a broad wavenumber range (490–8500 cm⁻¹). Based on the Michelson interferometer principle, it employs a dual-pivot optical architecture to ensure mechanical stability, minimal alignment drift, and consistent optical path difference generation—critical for long-term measurement reproducibility. The system utilizes a solid-state reference laser for precise interferogram sampling and a thermoelectrically stabilized DTGS detector for robust signal detection under ambient laboratory conditions. Its compact footprint (0.1 m²), cast-metal chassis, and fully integrated optics eliminate routine optical realignment, making it suitable for regulated environments where operational continuity and minimal downtime are essential.

Key Features

• High-stability dual-pivot Michelson interferometer with all-optical components pre-aligned and sealed within the instrument housing
• ZnSe beam splitter offering low hygroscopicity and extended lifetime in standard lab humidity conditions (5–80% RH, non-condensing)
• 24-bit analog-to-digital conversion enabling wide dynamic range and low-noise spectral digitization
• Adjustable spectral resolution from 1 to 64 cm⁻¹ in binary increments (2× steps), supporting both rapid screening and high-resolution molecular fingerprinting
• Optimized thermal management with <1 %/°C wavenumber drift over operating temperature range (10–35 °C)
• Integrated hardware-level instrument health monitoring—including laser status, detector baseline stability, and interferometer mirror position feedback
• Compact form factor (435 × 280 × 372 mm; 24 kg) with ergonomic metal frame and integrated carry handles for safe relocation within shared lab spaces

Sample Compatibility & Compliance

The MB3000 features an open, dry-sample compartment (20 × 14 cm sample plate area, 8.7 cm beam height) designed for universal integration with industry-standard FTIR accessories—including transmission cells, ATR crystals (ZnSe, diamond, Ge), gas cells, and reflectance stages. Its modular mounting interface (3-point pin alignment) ensures repeatable accessory positioning without recalibration. The instrument complies with CSA C22.2 No. 61010-1, RoHS Directive 2011/65/EU, and CE marking requirements under the EU Electromagnetic Compatibility and Low Voltage Directives. While not pre-certified for 21 CFR Part 11, its HORIZON MB™ software architecture supports audit-trail-enabled user authentication, electronic signatures, and data integrity protocols required for GLP/GMP-aligned workflows when deployed with appropriate IT infrastructure controls.

Software & Data Management

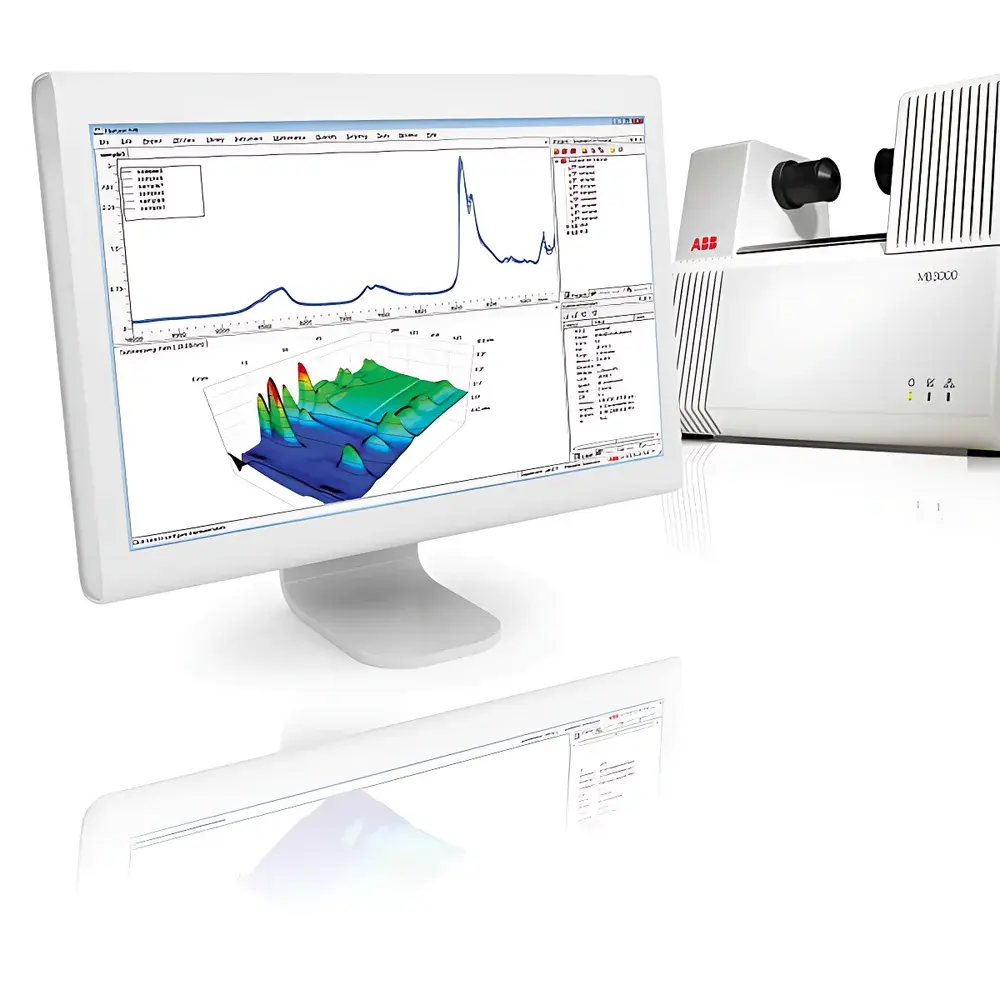

Standard operation is enabled by HORIZON MB™ FTIR Software—a Windows XP Professional-compatible application providing intuitive spectral acquisition, real-time FFT processing, baseline correction, peak identification, and quantitative analysis via classical least-squares or PLS regression. Optional modules extend functionality: HORIZON QA™ adds automated performance verification (e.g., NIST-traceable polystyrene film validation), while the Pharma Pack integrates with LIMS systems and enforces electronic record retention policies. All spectral data are stored in vendor-neutral .spa format (compatible with OPUS, GRAMS/AI, and MATLAB), and raw interferograms are retained alongside processed spectra for full traceability. Network connectivity via 10/100 Mbps Ethernet allows centralized instrument monitoring and remote data export without physical media transfer.

Applications

• Pharmaceutical raw material identification and polymorph screening per USP and ICH Q5A guidelines
• Chemical identity confirmation and impurity profiling in QC laboratories following ASTM E1252 and ISO 18384 standards
• Polymer composition analysis—including additive quantification, degradation assessment, and co-polymer ratio determination
• Surface contamination detection on metallic or semiconductor substrates using reflection-absorption techniques
• Environmental monitoring of volatile organic compounds (VOCs) via gas-phase FTIR with multipass cells
• Academic research in catalysis, surface science, and molecular spectroscopy requiring high wavenumber accuracy (<0.01 cm⁻¹) and repeatability (<0.001 cm⁻¹)

FAQ

What detector technology does the MB3000 use, and is liquid nitrogen cooling required?
The MB3000 employs a deuterated triglycine sulfate (DTGS) pyroelectric detector operating at ambient temperature. No cryogenic cooling is necessary, reducing operational complexity and consumable costs.

Can the MB3000 be integrated into an automated production line or LIMS environment?
Yes—via Ethernet communication and OPC UA-compatible drivers (available through optional Pro Pack), the spectrometer supports scheduled acquisitions, metadata tagging, and direct spectral upload to enterprise databases.

Is the ZnSe beam splitter susceptible to moisture damage in humid labs?
Unlike KBr or CsI optics, ZnSe exhibits negligible hygroscopicity. No desiccant purging or environmental enclosure is required for standard indoor laboratory use.

Does the instrument support spectral library searching out-of-the-box?
HORIZON MB™ includes a foundational spectral library. Expanded libraries (e.g., polymer, pharmaceutical, or environmental compound sets) are available as licensed add-ons.

What maintenance is required beyond routine cleaning of optical windows?
None. The solid-state laser, ceramic IR source (10+ year half-life), and sealed interferometer require no scheduled maintenance, calibration, or consumable replacement under normal operating conditions.
