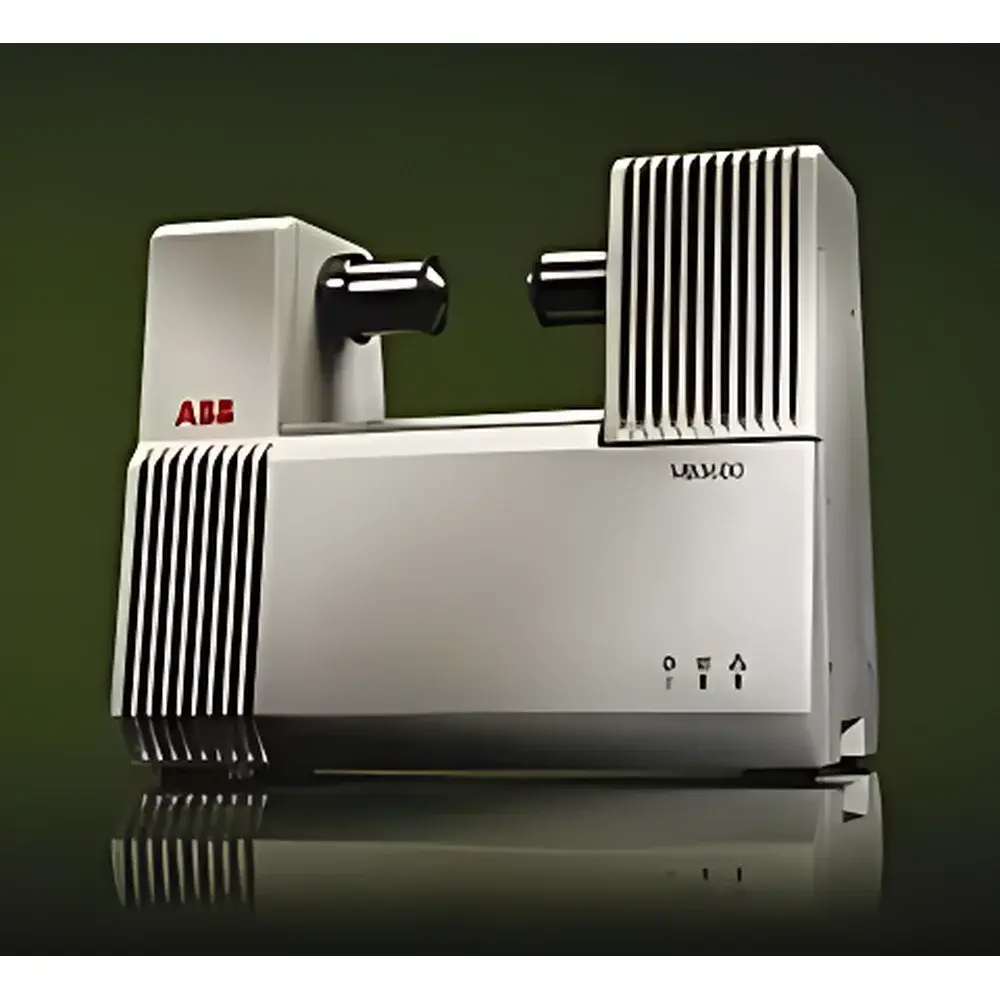

ABB MB3600-CH10 Fourier Transform Near-Infrared Spectrometer for Oil & Fat Analysis
| Brand | ABB |
|---|---|
| Origin | Canada |
| Model | MB3600-CH10 |
| Instrument Type | Laboratory FT-NIR Spectrometer |
| Principle | Fourier Transform Near-Infrared (FT-NIR) |
| Wavelength Range | 3800–14000 cm⁻¹ |
| Data Sampling Interval | < 0.7 cm⁻¹ |
| Measurement Mode | Transmission |
| Chemometrics Software | Horizon MB |
| Compliance | AOCS Cd 1e-01 (IV determination) |
Overview
The ABB MB3600-CH10 is a high-performance, laboratory-grade Fourier Transform Near-Infrared (FT-NIR) spectrometer engineered for rapid, non-destructive quantitative analysis of edible oils and fats. Leveraging interferometric optics and stabilized Michelson interferometer architecture, the instrument delivers high spectral resolution and long-term photometric stability—critical for calibration transfer across instruments and laboratories. Its core application domain centers on routine quality control and process support in oilseed processing, refining, hydrogenation, fractionation, and blending operations. Unlike dispersive NIR systems, the MB3600-CH10’s FT design ensures inherent wavelength accuracy, minimal stray light, and superior signal-to-noise ratio—enabling robust calibration models for complex lipid matrices with overlapping C–H, O–H, and C=O absorption bands in the 780–2630 nm (12820–3800 cm⁻¹) region.
Key Features
- Pre-validated, AOCS-recognized calibration models for iodine value (IV) per method Cd 1e-01, trans fatty acid content (% trans), acid value (AV), peroxide value (PV), moisture, and free fatty acids (FFA)—eliminating the need for user-developed calibrations.
- Transmission-mode measurement using disposable 8 mm pathlength glass vials—no cell cleaning, no solvent handling, and minimal operator intervention.
- Optimized optical throughput and detector thermal stabilization ensure reproducible performance under ambient lab conditions (15–30 °C, < 80% RH).
- Integrated reference beam monitoring and real-time interferogram diagnostics support GLP-compliant operation and automated system verification.
- Rugged monolithic interferometer design with sealed, dry-air purged optics minimizes maintenance and extends calibration stability over extended deployment cycles.
Sample Compatibility & Compliance
The MB3600-CH10 is validated for homogeneous liquid oils—including soybean, rapeseed (canola), sunflower, corn, palm, peanut, and blended cooking oils—as well as hydrogenated and interesterified fat systems. It accommodates samples with viscosity up to 150 cSt at 40 °C and requires no dilution or pretreatment. All preloaded calibrations are traceable to primary reference methods (e.g., AOCS Ti 1a-64 for IV, AOCS Cd 1c-85 for % trans) and comply with ISO/IEC 17025 requirements for method validation. The system supports audit-ready documentation aligned with FDA 21 CFR Part 11 (electronic records/signatures) when deployed with Horizon MB’s secure user management, electronic signature workflows, and immutable audit trails.
Software & Data Management
Horizon MB software provides full lifecycle chemometric workflow management: from spectral acquisition and preprocessing (baseline correction, multiplicative scatter correction, derivative filtering) to model deployment, outlier detection, and result reporting. It includes built-in tools for calibration transfer between MB3600 units via standardization samples, enabling consistent results across multi-site facilities. Data export conforms to ASTM E1382 and ISO 18393 standards for spectroscopic data interchange (JCAMP-DX format). All raw interferograms, spectra, and prediction reports are stored with metadata (operator ID, timestamp, instrument ID, sample ID) to satisfy GLP/GMP record retention requirements.
Applications
- Real-time endpoint determination during catalytic hydrogenation of unsaturated oils.
- Quality release testing of crude and refined oils prior to storage or shipment.
- In-process monitoring of palm oil fractionation (olein/stearin separation) via continuous IV and solid fat index (SFI)-correlated parameters.
- Verification of trans fat labeling compliance for retail products under EU Regulation (EC) No 1924/2006 and US FDA nutrition labeling rules.
- Batch consistency assessment across multi-source oil blending operations.
FAQ
What regulatory standards does the MB3600-CH10 support for iodine value analysis?
It implements AOCS Official Method Cd 1e-01, which is internationally recognized for FT-NIR-based IV quantification in edible oils.
Can Horizon MB software be configured for 21 CFR Part 11 compliance?
Yes—when installed with role-based access control, electronic signatures, and audit-trail logging enabled, it meets core Part 11 requirements for electronic records.
Is method transfer possible between different MB3600-CH10 units?
Yes—Horizon MB includes standardized instrument-to-instrument calibration transfer protocols using NIST-traceable polystyrene film standards.
What is the typical measurement repeatability for iodine value on this platform?
For IV ranges 0–120 g I₂/100g, repeatability is ≤ 0.15 g I₂/100g (1σ, n = 10, same operator, same vial, same day).
Does the system require external purge gas or climate-controlled housing?
No—the interferometer is sealed and internally purged with desiccated air; operation is specified for standard laboratory environments without supplemental conditioning.
