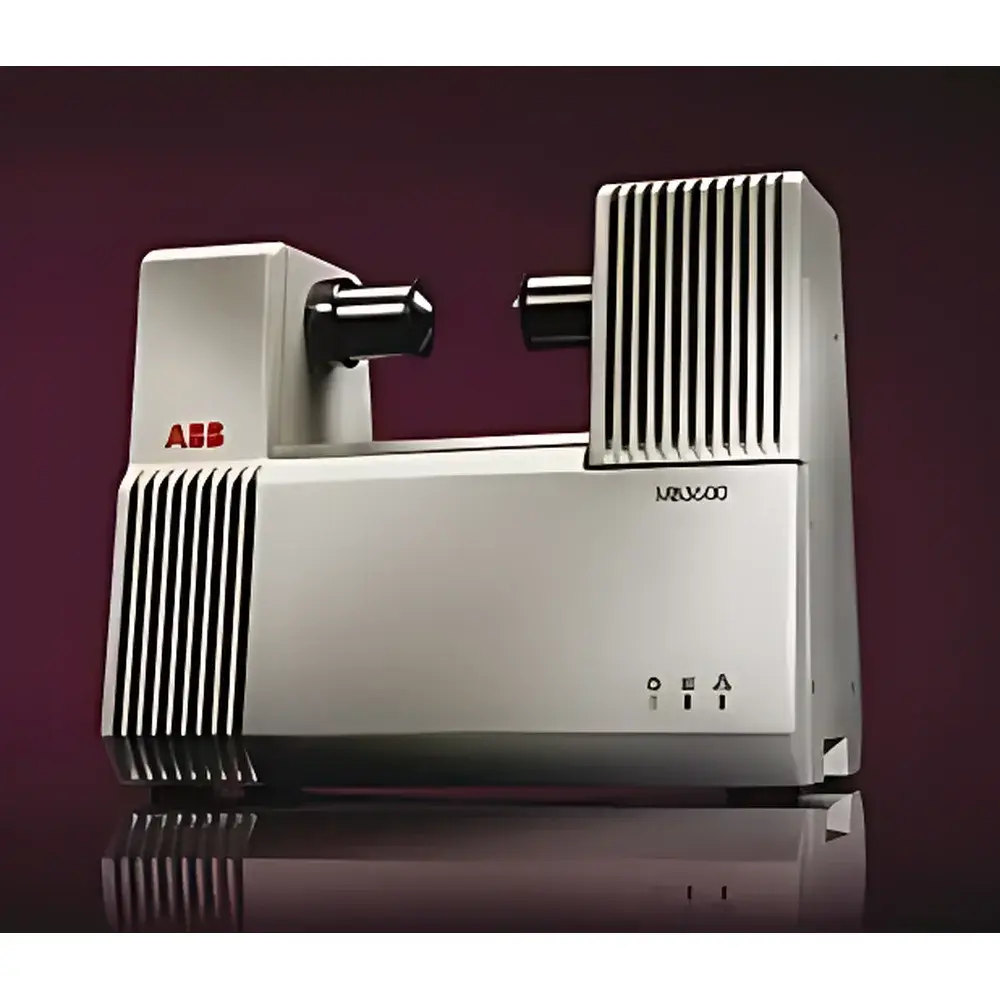

ABB MB3600-HP10 High-Performance FT-NIR Fuel Oil Analyzer

Overview

The ABB MB3600-HP10 High-Performance FT-NIR Fuel Oil Analyzer is a laboratory-grade Fourier Transform Near-Infrared spectrometer engineered for rapid, non-destructive quantitative analysis of hydrocarbon fuels. Leveraging high-stability interferometry and precision optical alignment, the instrument operates on the physical principle of molecular vibrational absorption in the near-infrared region (3800–14000 cm⁻¹), enabling direct correlation between spectral signatures and compositional parameters. Designed specifically for refinery QA/QC laboratories and petrochemical R&D centers, it delivers ASTM-compliant results for gasoline, diesel, naphtha, and reformate without requiring user-developed calibration models. Its robust optical architecture—featuring thermally stabilized Michelson interferometer, high-efficiency CaF₂ beam splitter, and InGaAs detector—ensures long-term photometric linearity and inter-instrument spectral reproducibility, a foundational requirement for seamless calibration transfer between laboratory and process analyzers.

Key Features

• Pre-installed, globally validated calibration models for gasoline (MB3600-HP10-G), diesel (MB3600-HP10-D), naphtha (MB3600-HP10-N), and reformate (MB3600-HP10-R), all developed from ABB’s multi-regional refinery database spanning >35 years of operational experience.
• Transmission-mode liquid cell with temperature-controlled cuvette holder and optional flow-through cell compatibility for routine batch or continuous sample introduction.
• Horizon MB chemometrics software suite supporting full model development, validation, and deployment—including PLS, PCR, and MLR algorithms—with built-in cross-validation, outlier detection, and residual analysis tools.
• ASTM-compliant performance across all preloaded models: R² ≥ 0.900–0.996; SECv (1σ) ≤ 0.05–2.2 units depending on parameter; measurement range coverage validated per ASTM D6299, D6300, D7153, and D7414 protocols.
• Hardware-level calibration portability: identical spectral response across ABB’s laboratory (MB3600-HP10) and online (e.g., MB3600-OP series) FT-NIR platforms enables direct model migration without re-standardization or spectral preprocessing.
• Comprehensive QA/QC workflow automation: guided sample loading, real-time spectral quality assessment, automatic report generation (PDF/CSV), and audit-trail logging compliant with FDA 21 CFR Part 11 requirements when configured with Horizon MB’s secure user authentication module.

Sample Compatibility & Compliance

The MB3600-HP10 accommodates liquid hydrocarbon samples in standard 10 mm pathlength quartz or sapphire transmission cells. It supports viscosity ranges up to KV40 = 396 cSt (diesel) and density up to API 15°, covering light distillates through heavy naphthas. All preloaded models are verified against reference methods per ASTM D2887 (distillation), D2622 (sulfur), D5292 (hydrocarbon types), D2699/D2700 (RON/MON), D4052 (density), D93 (flash point), and D2500 (cloud point). Instrument design adheres to IEC 61000-6-3 (EMC) and IEC 61010-1 (safety), with CE marking for EU laboratory use. Calibration model documentation includes full traceability to NIST-traceable reference materials and third-party validation reports available upon request.

Software & Data Management

Horizon MB provides an integrated environment for method lifecycle management—from raw spectrum acquisition and preprocessing (Savitzky-Golay smoothing, multiplicative scatter correction, derivative transformation) to model building, validation, and deployment. The software enforces GLP/GMP-aligned data integrity practices: electronic signatures, role-based access control, version-controlled method storage, and immutable audit trails for all calibration updates and result exports. Data export formats include ASTM E1382-compliant .jdx files, CSV for LIMS integration, and XML for enterprise MES connectivity. Optional Horizon MB Connect enables secure remote monitoring, centralized model repository synchronization, and automated firmware/software update deployment across multi-site laboratory networks.

Applications

• Routine QC testing of finished fuels against specification limits (e.g., benzene ≤ 1.0 v%, RON ≥ 91, cloud point ≤ −20 °C).
• Feedstock characterization for FCC, hydrotreating, and alkylation units using hydrocarbon class distribution (paraffins, isoparaffins, olefins, naphthenes, aromatics — PIONA).
• Blending optimization support via real-time prediction of blend properties (e.g., octane number, cetane index, distillation endpoints D5/D90/D95) prior to physical blending.
• Regulatory compliance reporting for EPA Tier 3, Euro 5/6, and GB 17930–2016 fuel standards.
• Method development for emerging biofuel blends (e.g., ethanol-gasoline, FAME-diesel) using Horizon MB’s model adaptation toolkit and transfer learning modules.

FAQ

Does the MB3600-HP10 require daily recalibration?

No. The instrument’s thermally compensated interferometer and sealed optical bench provide stable baseline performance over 72+ hours; verification checks using NIST-traceable polystyrene film are recommended weekly per ASTM E1655.
Can I develop custom calibrations for proprietary feedstocks?

Yes. Horizon MB includes full chemometrics tooling for PLS regression, variable selection (e.g., iPLS, VIP), and external validation against independent reference datasets.
Is model transfer from MB3600-HP10 to ABB’s online MB3600-OP analyzers guaranteed?

Yes. ABB’s Inter-Instrument Transfer Protocol (IITP) ensures spectral equivalence across platforms; documented transfer success rate exceeds 98% across 120+ global refinery deployments.
What sample preparation is required?

None beyond standard filtration (≤0.45 µm) and temperature equilibration to 25 ± 1 °C; no dilution, derivatization, or solvent addition is necessary.
Is Horizon MB compatible with LIMS and ERP systems?

Yes. Native ODBC/JDBC drivers and RESTful API support enable bidirectional integration with LabWare LIMS, Thermo Fisher SampleManager, and SAP QM modules.
