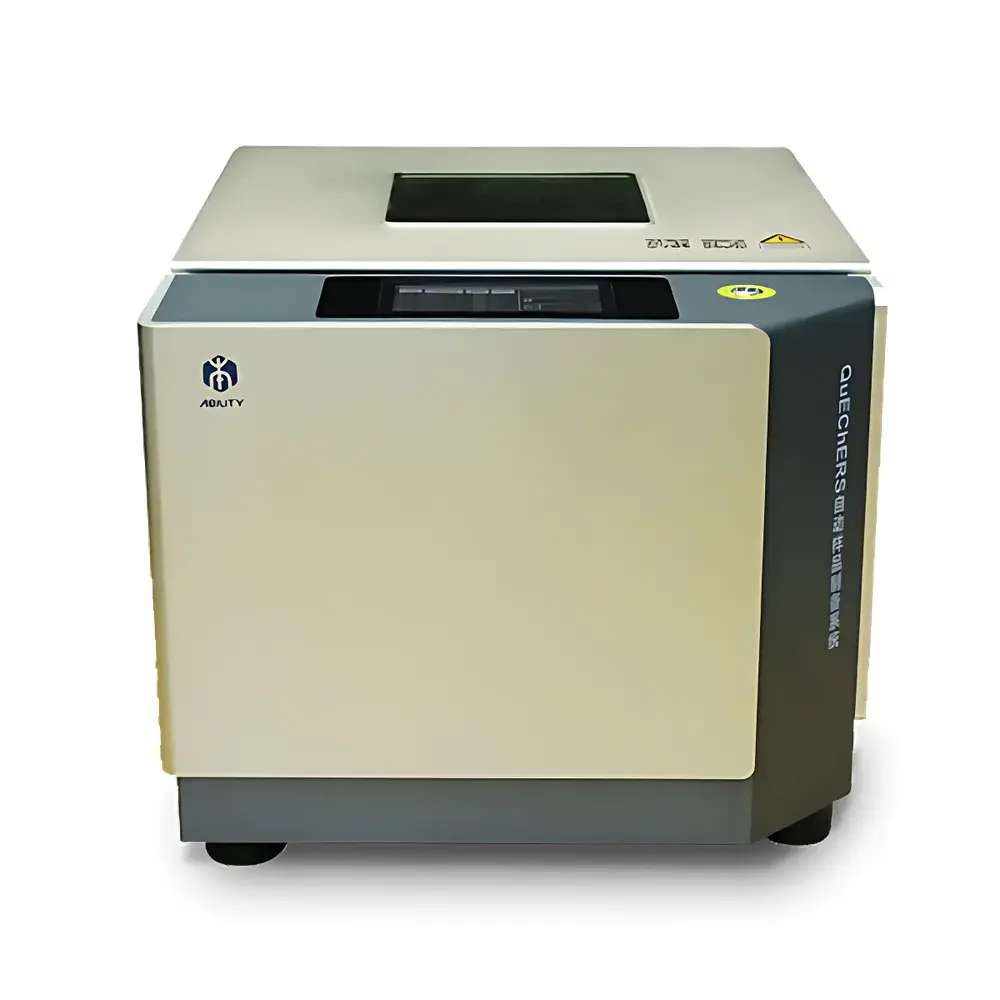

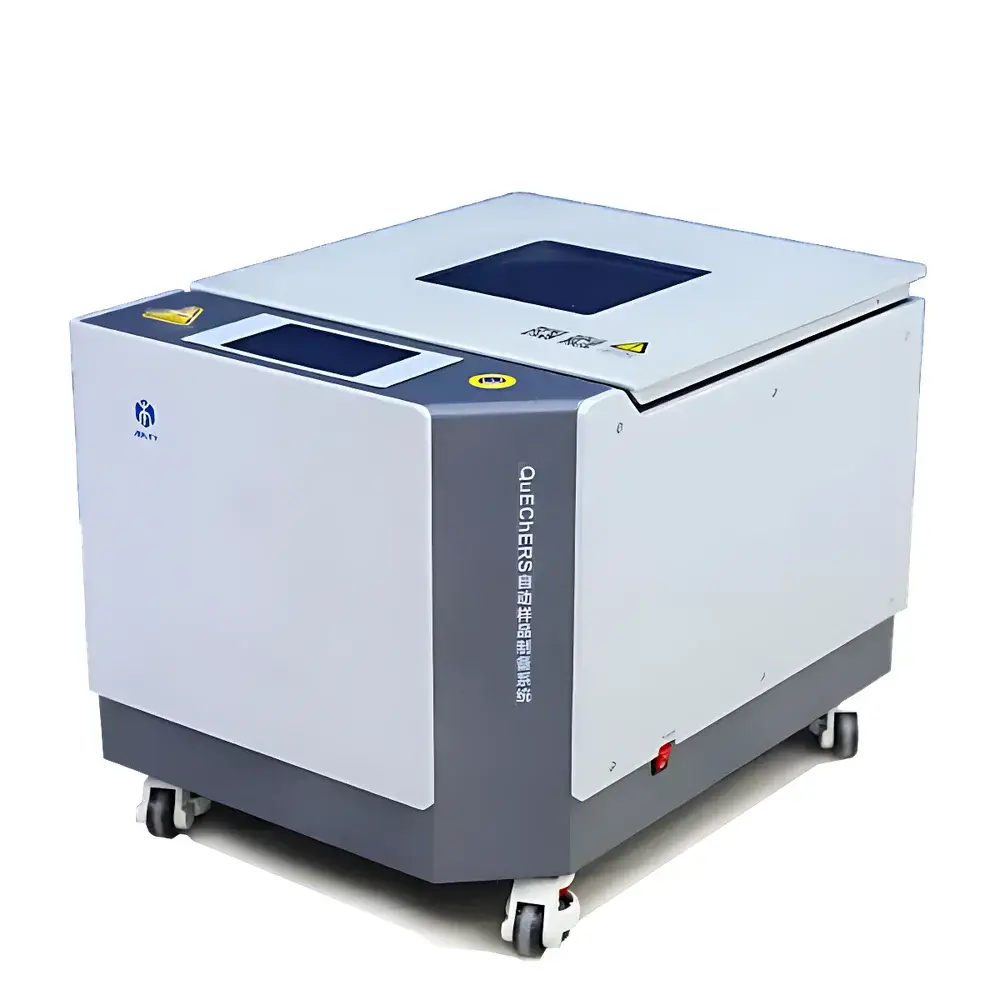

Ability Technology QuEChERS Automated Sample Preparation Workstation SiO-6512

Overview

The Ability Technology SiO-6512 Automated Sample Preparation Workstation is an integrated, programmable platform engineered for high-throughput, reproducible execution of QuEChERS (Quick, Easy, Cheap, Effective, Rugged, Safe) sample preparation protocols. Designed around the core principles of mechanical extraction and phase separation, the system combines three-dimensional figure-eight oscillation with centrifugal force generation in a single instrument architecture—eliminating manual transfer steps between homogenization, extraction, and cleanup stages. This dual-mode motion strategy enables controlled disruption of complex matrices (e.g., fruits, vegetables, seafood, soil, and biological tissues), followed by rapid phase partitioning of analytes into organic solvents while minimizing thermal degradation or analyte transformation. Unlike conventional vortex or bead-beating homogenizers, the SiO-6512’s synchronized oscillation–centrifugation cycle ensures consistent energy delivery across all sample positions, supporting method robustness required for regulatory compliance workflows including AOAC Official Method 2007.01 and CEN TS 15662:2018.

Key Features

• Integrated dual-function motion control: Simultaneous 3D figure-eight oscillation (amplitude: ±12 mm; frequency range: 0–300 rpm) and unidirectional centrifugation (max. 3000 × g) within one processing chamber
• Programmable protocol library: Pre-configured methods for QuEChERS extraction, mercury speciation (Hg²⁺, MeHg, EtHg), and tissue homogenization; user-defined sequences support multi-step timed cycles
• High-capacity sample handling: Accommodates up to 12 × 15-mL centrifuge tubes or 24 × 2-mL microtubes per run using interchangeable rotor plates
• Temperature-controlled operation: Optional ambient-to-10°C cooling module prevents heat-induced analyte degradation during extended extraction cycles
• Robust architecture: Stainless-steel housing, IP22-rated enclosure, and brushless DC motor drive ensure long-term stability under routine QC/QA laboratory conditions

Sample Compatibility & Compliance

The SiO-6512 supports diverse sample types including fresh/frozen produce, aquatic tissues, dairy products, environmental solids (soil, sediment), and clinical biospecimens. Its gentle yet effective mechanical action preserves labile species—critical for elemental speciation analysis where redox integrity must be maintained. The system complies with key international method frameworks: AOAC 2007.01 for pesticide residue analysis in food; CEN TS 15662:2018 for multiresidue determination; and EPA Method 1631E adaptations for methylmercury extraction from fish tissue. All operational parameters—including speed, duration, acceleration ramp profiles, and rest intervals—are fully traceable and exportable, enabling alignment with GLP/GMP documentation requirements and facilitating FDA 21 CFR Part 11–compliant audit trails when paired with validated LIMS integration.

Software & Data Management

The workstation operates via a dedicated Windows-based control interface featuring intuitive drag-and-drop protocol builder, real-time motion monitoring, and event-logged parameter tracking. Each run generates a timestamped metadata file containing rotor ID, tube position mapping, executed step sequence, and deviation alerts (e.g., imbalance detection, lid open event). Export formats include CSV and XML for seamless ingestion into laboratory information management systems (LIMS) or electronic lab notebooks (ELN). Software validation packages—including IQ/OQ documentation templates and cybersecurity configuration guides—are available upon request to support regulated environment deployment.

Applications

• QuEChERS-based multiresidue pesticide screening in food safety testing laboratories
• Mercury speciation workflows requiring non-oxidative extraction to preserve MeHg/EtHg integrity prior to HPLC-ICP-MS analysis
• High-throughput homogenization of mammalian, plant, or microbial biomass for metabolomics or proteomics sample input
• Soil and sediment extraction for persistent organic pollutants (POPs) and pharmaceutical residues
• Preparation of reference materials and proficiency testing samples under ISO/IEC 17043 guidelines

FAQ

Does the SiO-6512 support AOAC-certified QuEChERS kits?
Yes—the system is compatible with commercially available AOAC-validated QuEChERS kits (e.g., Agilent, Restek, Sigma-Aldrich), and its motion profile has been optimized to match the mechanical energy input specified in AOAC 2007.01 Annex A.
Can it be used for volatile organic compound (VOC) extraction without analyte loss?
When operated with chilled rotor plates and sealed tube adapters, the SiO-6512 maintains sub-10°C sample temperature throughout extraction, minimizing VOC volatility—validated for chlorinated pesticides and benzene-series compounds per EPA 8270D.
Is remote monitoring or network connectivity supported?
Standard Ethernet port enables remote status querying and firmware updates via HTTP API; optional OPC UA server module supports integration into industrial automation environments.
What maintenance is required for long-term operational reliability?
Scheduled calibration of oscillation amplitude and centrifugal force output every 6 months is recommended; rotor balancing verification should occur before each high-speed run.
Are consumables proprietary or third-party compatible?
All tube holders, rotor plates, and lid assemblies follow ISO 13485–aligned dimensional standards—no proprietary consumables are mandated.
