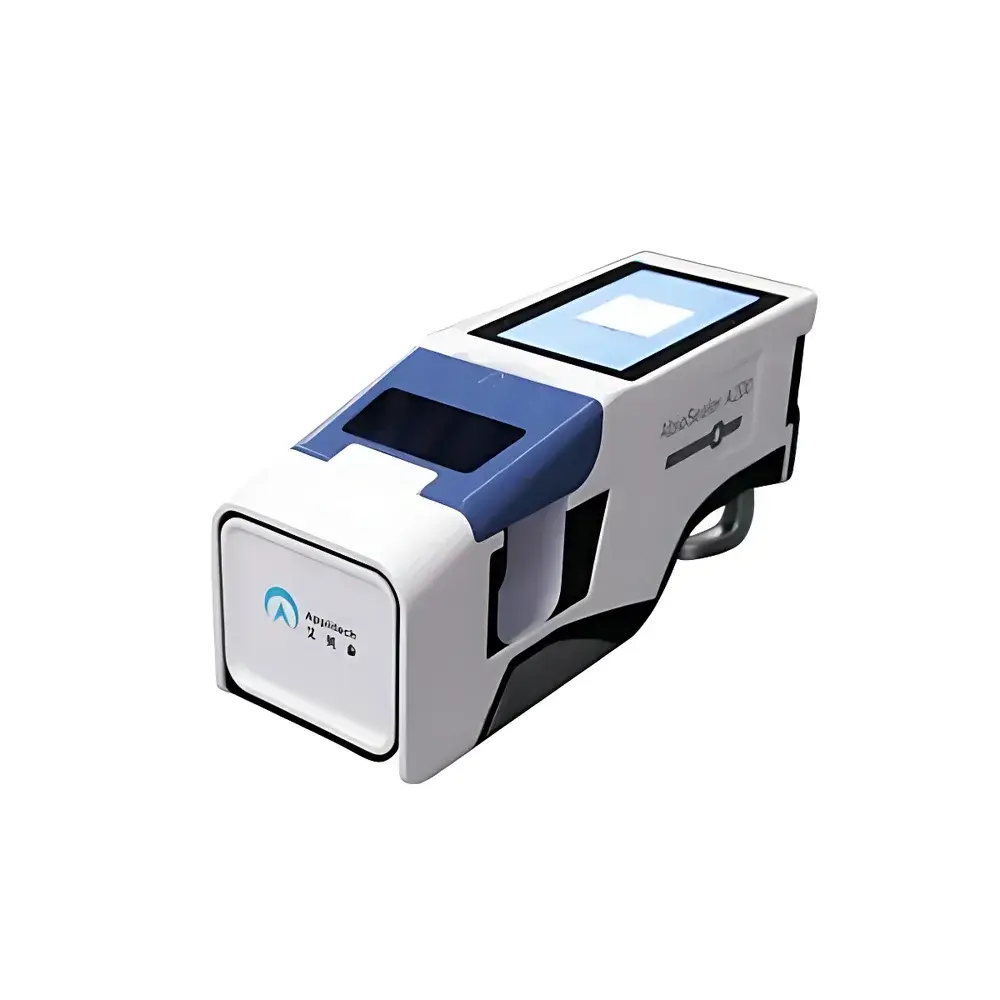

AbioSealer™ A200 Automated Thermoplastic Tubing Sealer
| Brand | Applitech |
|---|---|
| Origin | Guangdong, China |
| Manufacturer Type | OEM Manufacturer |
| Country of Origin | China |
| Model | A200 |
| Pricing | Upon Request |
Overview
The AbioSealer™ A200 Automated Thermoplastic Tubing Sealer is an engineered solution for aseptic sealing and controlled severance of thermoplastic elastomer (TPE) tubing in biopharmaceutical manufacturing processes. Designed specifically for single-use systems (SUS), it operates on the principle of resistive thermal sealing—applying precisely regulated heat and pressure to fuse TPE tubing ends without introducing particulates, leachables, or microbial ingress. Unlike mechanical crimping or solvent-based methods, this process ensures hermetic, pyrogen-free seals that maintain sterility integrity across process train transitions. The A200 is intended for use in cleanroom-adjacent environments (e.g., Grade C/D support areas), enabling aseptic disconnect operations outside classified zones while preserving the sterility assurance level (SAL) required for clinical- and commercial-stage biomanufacturing.
Key Features
- Universal compatibility with TPE tubing outer diameters ranging from 6.4 mm (1/4″) to 25.4 mm (1″), accommodating industry-standard wall thicknesses of 1.1–2.4 mm.
- Ergonomically optimized chassis with integrated handle and low center of gravity—weight under 12 kg—enabling safe, one-handed transport and flexible deployment on lab benches, isolator pass-throughs, or mobile carts.
- Automated self-calibration and system readiness verification upon power-on; full thermal cycle (heat → seal → cool → release) completed in ≤180 seconds per seal, supporting high-throughput batch processing.
- Reinforced dual-heater module with real-time temperature feedback control (±1.5 °C stability), ensuring consistent melt zone formation and minimizing thermal degradation of TPE polymers.
- Optically clear polycarbonate viewing window with anti-fog coating enables continuous visual monitoring of seal formation, alignment, and cooling phase—critical for operator verification and deviation investigation.
- Modular mounting interface supports both desktop placement and wall/hospital-rail suspension via included VESA-compatible bracket, adapting to diverse facility layouts and workflow configurations.
- 7-inch capacitive touchscreen with industrial-grade GUI—designed per IEC 62366-1 usability standards—offers intuitive parameter selection, multi-language support (EN/DE/FR/ZH), and firmware-upgradable logic for future TPE material profiles.
Sample Compatibility & Compliance
The A200 is validated for use with TPE tubing from major SUS suppliers including Sartorius, Thermo Fisher Scientific (HyClone™), Pall Corporation, and Saint-Gobain Life Sciences. It accommodates standard formulations such as SEBS- and TPU-based compounds meeting USP Class VI and ISO 10993-5 biocompatibility requirements. Device design and software architecture comply with FDA 21 CFR Part 11 for electronic records and signatures, featuring role-based user authentication (admin/operator/auditor), immutable audit trails (timestamped event logs for seal initiation, parameter changes, and error conditions), and encrypted CSV data export via USB 2.0 port. All mechanical and electrical components conform to IEC 61000-6-2 (EMC immunity) and IEC 61010-1 (safety for laboratory equipment).
Software & Data Management
Firmware v3.2+ includes embedded data logging with configurable retention (up to 10,000 seal events), automatic timestamping (ISO 8601 format), and traceable linkage to operator ID, tubing lot number (manually entered), and environmental ambient temperature (via optional external probe input). Audit trail entries record all critical actions—including parameter overrides, calibration resets, and emergency stop activations—with cryptographic hashing to prevent tampering. Data export supports GMP-aligned review workflows: files are structured for direct ingestion into LIMS or MES platforms via standardized schema mapping. Optional Ethernet connectivity (RJ45) enables remote diagnostics and centralized fleet management through Applitech’s SecureLink™ cloud portal—validated for use under Annex 11 and ALCOA+ data integrity principles.
Applications
- Aseptic disconnection of TPE manifolds between bioreactors and downstream purification skids.
- Terminal sealing of harvest bags prior to cold chain transport or cryogenic storage.
- Isolation of contaminated or out-of-specification process streams during troubleshooting or media preparation.
- Preparation of sterile connectors for closed-system transfers in fill-finish suites.
- Validation support for single-use system changeover protocols under ICH Q5D and Q5E guidelines.
FAQ
Does the A200 require consumables such as sealing tapes, blades, or replacement heating elements?
No—sealing is achieved solely through controlled resistive heating of the integrated ceramic heater plates. No consumables are required over the device’s operational lifetime.
Can the A200 be qualified under GMP for commercial manufacturing?
Yes—the platform supports IQ/OQ/PQ documentation packages aligned with ASTM E2500 and ISPE Baseline Guide Vol. 4. Full validation protocols, including thermal mapping and seal strength testing (per ASTM F88), are available upon request.
Is third-party TPE tubing qualification supported?
Yes—Applitech provides a Material Qualification Kit (MQK) with test parameters, acceptance criteria, and reporting templates for customer-led verification of non-standard TPE compounds.
What maintenance is required to ensure long-term performance?
Annual calibration verification using NIST-traceable temperature sensors and visual inspection of heater surface integrity. No lubrication or part replacement is scheduled within the first 5 years of operation.
