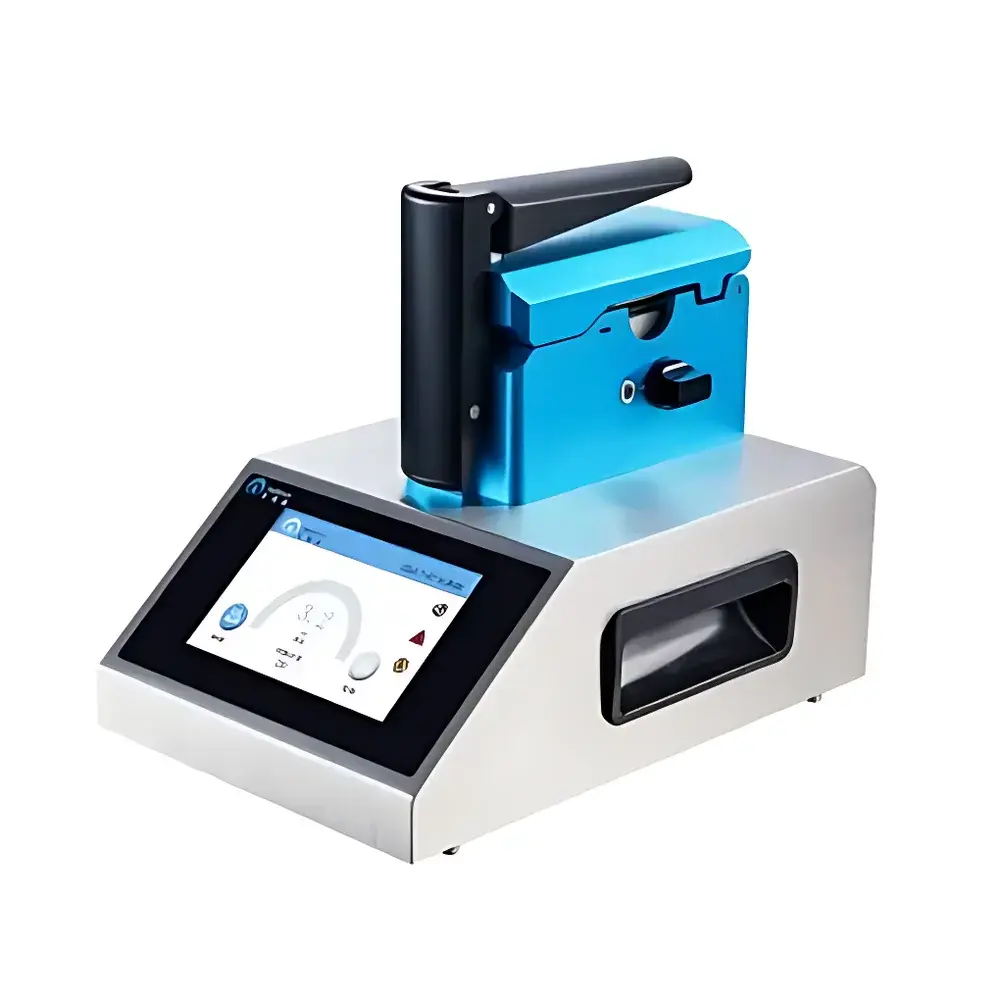

AbioSealer™ M500 Thermoplastic Tubing Sealer

Overview

The AbioSealer™ M500 Thermoplastic Tubing Sealer is an engineered solution for aseptic, non-sterile-environment thermal sealing and severing of thermoplastic elastomer (TPE) tubing in biopharmaceutical single-use systems. It operates on the principle of controlled resistive heating—using dual-phase stainless steel heating blades to deliver uniform thermal energy across the tubing cross-section—enabling reliable fusion bonding and clean mechanical separation without compromising sterility integrity. Designed specifically for integration into downstream processing workflows, the M500 supports closed-system operations compliant with current Good Manufacturing Practice (cGMP) requirements. Its architecture eliminates manual intervention during sealing cycles, thereby reducing human error risk and supporting ALCOA+ data integrity principles when paired with validated software protocols.

Key Features

• Automated, one-touch sealing and cutting cycle with real-time status feedback via integrated high-resolution capacitive touchscreen interface
• Dual-phase stainless steel heating elements engineered for rapid thermal response, achieving stable operating temperature within ±0.5 °C tolerance
• Precise temperature regulation via embedded PT1000 platinum resistance thermometer and closed-loop PID control algorithm
• Universal compatibility with TPE tubing outer diameters ranging from 6.4 mm (¼″) to 25.4 mm (1″), accommodating wall thicknesses typical of industry-standard single-use assemblies
• Process adaptability across empty, partially filled, and fully liquid-filled tubing conditions—validated under ISO 13485–aligned test protocols
• User-configurable thermal profiles (time, temperature, pressure) to accommodate material variance across TPE suppliers including Saint-Gobain, AdvantaPure®, and CPC BioPharma lines

Sample Compatibility & Compliance

The AbioSealer™ M500 is validated for use with medical-grade TPE compounds meeting USP Class VI and ISO 10993–1 biocompatibility standards. It supports tubing configurations commonly found in single-use bioreactors, mixing bags, harvest containers, and sampling manifolds. Device operation aligns with Annex 1 (2022) requirements for aseptic processing, particularly Section 5.72 on “sealing integrity of single-use systems.” While the instrument itself does not require sterile classification, its output—sealed and severed tubing ends—demonstrates ≤10⁻⁶ probability of microbial ingress per seal under worst-case challenge testing (per ASTM F1608). Full validation documentation—including IQ/OQ/PQ templates—is available upon request for GMP-regulated facilities.

Software & Data Management

The onboard firmware supports audit-trail-enabled operation logs, recording timestamp, operator ID (via optional RFID badge reader), setpoint parameters, actual thermal profile, and cycle completion status. All records are stored locally in encrypted binary format and exportable as CSV or PDF reports compliant with FDA 21 CFR Part 11 requirements when configured with electronic signature capability. Optional Ethernet/Wi-Fi connectivity enables remote monitoring and integration with MES or SCADA platforms using Modbus TCP or OPC UA protocols. Software updates follow IEC 62304 Class B medical device software lifecycle standards.

Applications

• Aseptic termination of feed lines from media or nutrient supplement bags prior to connection to bioreactors
• Controlled isolation and sealing of sample lines from process monitoring points (e.g., pH, DO, glucose sensors)
• Closed-system decoupling of storage bags after harvest or buffer preparation, maintaining sterility through final packaging
• Preparation of pre-sterilized tubing segments for aseptic connector assembly in cleanroom environments
• Integration into automated fill-finish modules where tubing segmentation must occur without environmental exposure

FAQ

Does the AbioSealer™ M500 require a cleanroom environment to operate?
No—it is designed for use in non-sterile support areas (e.g., equipment prep rooms, utility corridors), provided ambient particulate levels do not exceed ISO 8 (Class 100,000) and humidity remains below 60% RH.
Can it seal tubing containing viscous solutions such as cell culture supernatant or protein concentrates?
Yes—validated performance includes fluids with dynamic viscosities up to 15,000 mPa·s at 25 °C, provided flow is static during the sealing phase.
Is third-party calibration service available?
Yes—Appliteh provides traceable calibration against NIST-certified reference thermometers, with certificates issued per ISO/IEC 17025 requirements.
What maintenance intervals are recommended?
Heating blade inspection every 500 cycles; full preventive maintenance (including thermal sensor verification and firmware update) every 12 months or 5,000 cycles, whichever occurs first.
