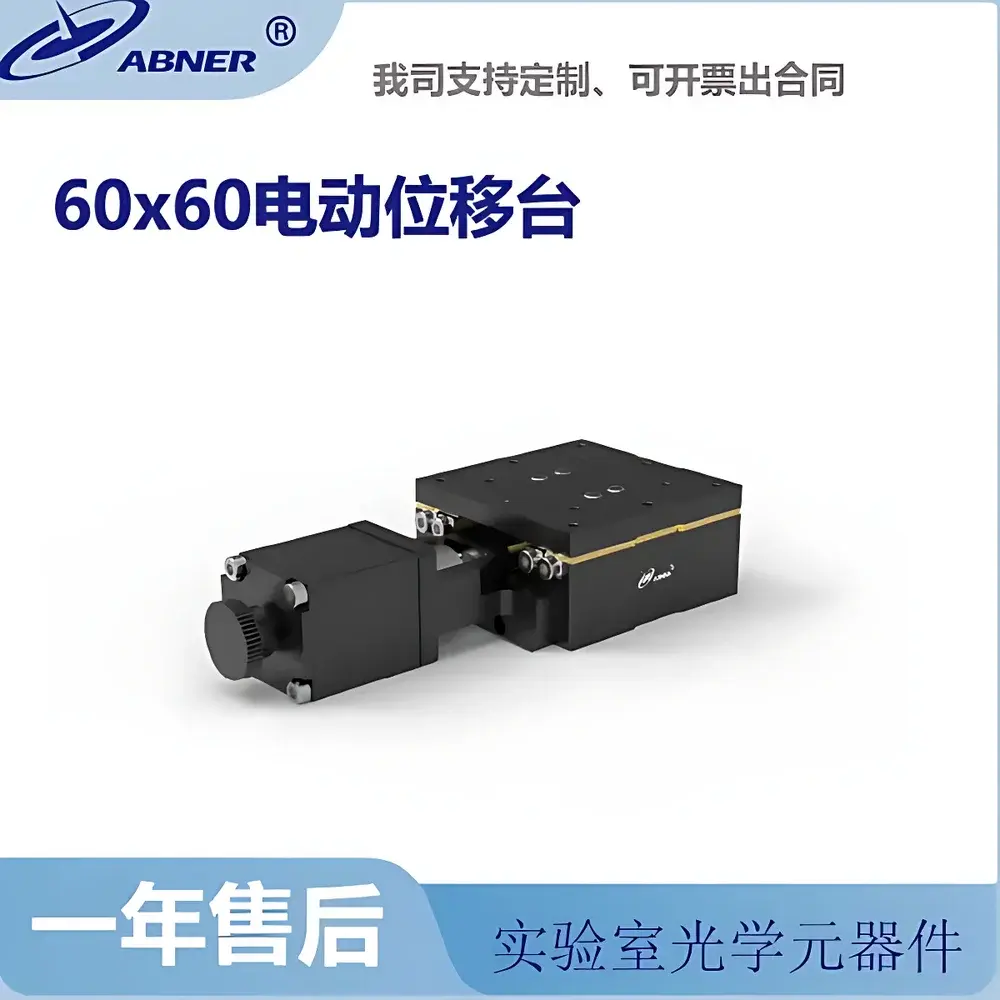

Abner ABN-6060 Electric Translation Stage

Overview

The Abner ABN-6060 Electric Translation Stage is a compact, high-precision linear motion platform engineered for demanding optical alignment, micro-positioning, and automated laboratory instrumentation applications. Based on the Couette-type mechanical architecture common to precision translation stages, it employs a preloaded ball screw drive coupled with crossed-roller linear bearings to eliminate backlash and ensure smooth, deterministic motion over its full 60 mm travel range. The stage’s monolithic aluminum alloy base and top plate are CNC-machined and anodized to ISO 7583 standards, delivering dimensional stability, thermal homogeneity, and resistance to oxidation in ambient lab environments—including controlled-humidity cleanrooms and vibration-isolated optical tables. Its low-profile design (height < 45 mm) and minimal footprint (60 mm × 60 mm mounting surface) enable seamless integration into multi-axis goniometers, confocal microscope stages, fiber coupling rigs, and OEM optomechanical subassemblies.

Key Features

• Monolithic anodized aluminum construction ensures long-term geometric stability and corrosion resistance per ASTM B580 Class II specifications.
• Crossed-roller bearing guide system provides straightness deviation < 5 µm over full stroke and angular deviation < 5 arcsec—critical for collimated beam path integrity.
• Precision-ground ball screw (lead accuracy ±5 µm/300 mm) with anti-backlash nut assembly guarantees repeatable positioning within ±1 µm under constant load conditions (≤ 2 kg).
• Standard motor interface supports NEMA 17 stepper motors or 40 mm servo motors with encoder feedback compatibility (optional incremental or absolute encoders).
• Integrated limit switch mounts (normally open/closed configurable) support safe homing and end-of-travel detection in automated sequences.
• Mounting pattern conforms to standard 60 mm × 60 mm optical breadboard grid (M3 and M4 tapped holes), enabling rapid mechanical interoperability with Thorlabs, Newport, and other industry-standard components.

Sample Compatibility & Compliance

The ABN-6060 is designed for passive sample carriage rather than direct material interaction; therefore, no sample-specific compatibility constraints apply. It complies with CE marking requirements for electromagnetic compatibility (EN 61326-1) and low-voltage safety (EN 61000-6-3). When integrated into regulated workflows—such as ISO/IEC 17025-accredited metrology labs or GLP-compliant optical testing protocols—the stage supports traceable calibration via external laser interferometry or capacitive displacement sensors. Its control firmware architecture allows audit-ready logging of position commands, execution timestamps, and error states when used with compliant host software (e.g., LabVIEW Real-Time modules configured for FDA 21 CFR Part 11 electronic record compliance).

Software & Data Management

The ABN-6060 operates natively with Abner’s open-protocol ASCII command set over USB virtual COM port or RS-232, enabling direct integration into Python, MATLAB, or C++ automation frameworks. Pre-built drivers are available for National Instruments LabVIEW (2018 SP1 and later), supporting both DAQmx-based motion control and shared variable deployment. For industrial PLC environments, Modbus RTU/TCP mapping tables are provided for register-level position readback and velocity setpoint updates. All motion parameters—including acceleration ramp profiles, microstepping resolution (up to 1/256 step), and dwell times—are programmable and persist across power cycles. No proprietary runtime or dongle licensing is required.

Applications

• Active alignment of single-mode optical fibers in photonic packaging stations.
• Sub-pixel registration of CCD/CMOS sensor arrays during camera calibration procedures.
• Z-axis focus scanning in custom-built Raman spectroscopy probe heads.
• Multi-degree-of-freedom positioning in adaptive optics wavefront correction systems.
• Automated wafer inspection stage for semiconductor mask alignment verification.
• Modular integration into robotic sample changers for high-throughput XRD or ellipsometry platforms.

FAQ

What is the maximum payload capacity at rated repeatability?
The ABN-6060 maintains ≤ ±1 µm repeatability with loads up to 2.0 kg when mounted horizontally; vertical orientation reduces this to 1.2 kg due to gravitational loading on the ball screw preload.
Can multiple ABN-6060 stages be synchronized for coordinated motion?
Yes—using Abner’s optional EtherCAT master module or third-party motion controllers (e.g., Galil DMC-4000 series), up to eight axes can achieve jitter-free synchronous movement with < 100 µs inter-axis timing skew.
Is vacuum-compatible version available?
A UHV variant (ABN-6060-V) is offered with stainless steel hardware, dry-lubricated bearings, and outgassing-certified anodization (per ASTM E595 TML < 0.5%), rated for 10⁻⁷ mbar operation.
Does the stage support closed-loop position verification without external sensors?
Only with optional integrated rotary encoder (1000 CPR) or linear scale (5 µm resolution); the base model operates in open-loop mode.
What is the typical lead time for custom multi-axis assemblies?
Standard XY or XYZ configurations ship within 10 business days; fully customized kinematic mounts with integrated cabling and firmware tuning require 3–4 weeks from order confirmation.
