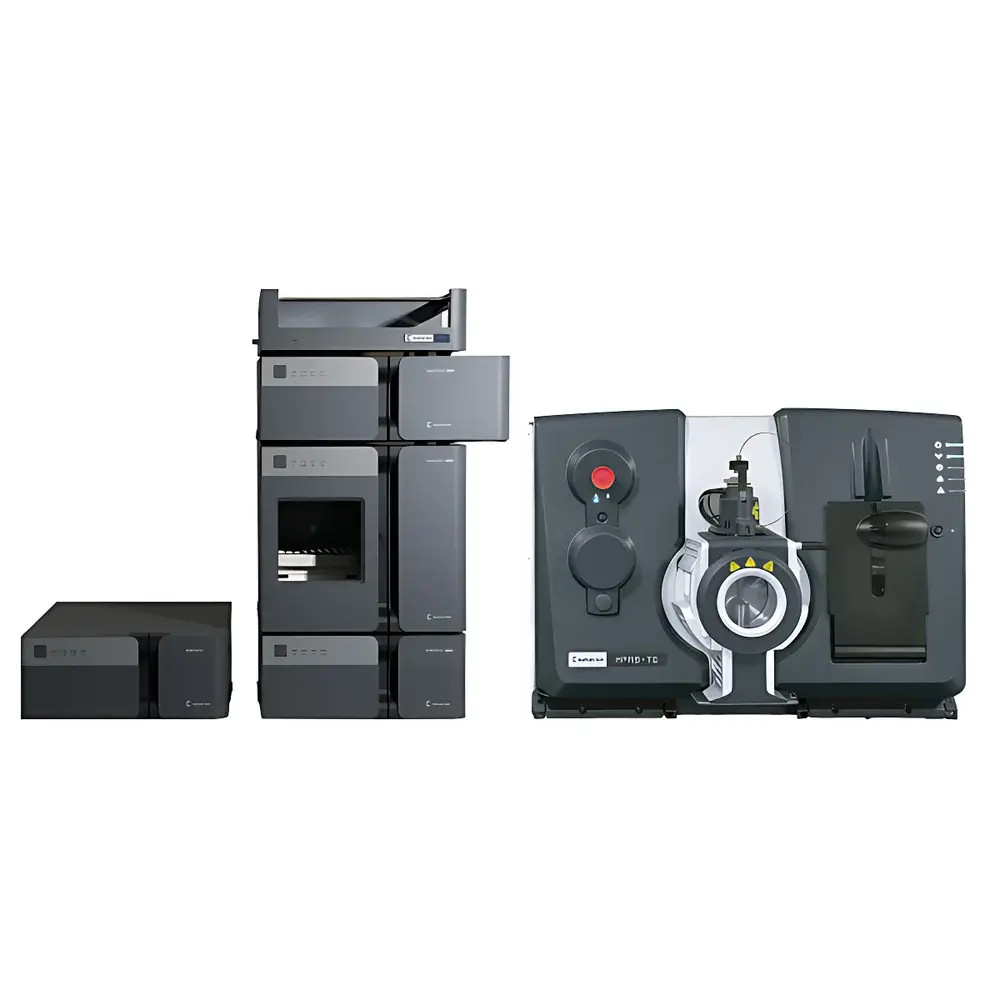

Acchrom-Tech Online Solid-Phase Extraction Liquid Chromatography-Tandem Mass Spectrometry System

Overview

The Acchrom-Tech Online Solid-Phase Extraction Liquid Chromatography–Tandem Mass Spectrometry System is an integrated analytical platform engineered for high-throughput, trace-level quantification of target analytes in challenging biological and environmental matrices. It implements a dual-mode operational architecture grounded in online solid-phase extraction (online SPE) coupled directly to ultra-high-performance liquid chromatography (UHPLC) and triple quadrupole tandem mass spectrometry (QqQ MS/MS). Unlike conventional offline SPE or large-volume injection-based online SPE systems—where method reconfiguration requires manual valve switching, column re-equilibration, and instrument downtime—this system employs a fully automated, software-synchronized 10-port/2-position switching valve manifold. This enables seamless, reproducible transitions between two independent analytical modes: (1) online SPE–UHPLC–MS/MS for automated sample cleanup and preconcentration, and (2) direct UHPLC–MS/MS analysis without SPE involvement. The architecture eliminates carryover risk through dedicated wash zones and pressure-regulated solvent delivery, ensuring robust performance across diverse sample types including plasma, urine, wastewater, algal bloom extracts, and soil leachates.

Key Features

• Modular online SPE module with programmable trap-and-elute cycles, compatible with C18, mixed-mode, and ion-exchange sorbents (2.1 × 20 mm format)
• Integrated UHPLC subsystem featuring binary gradient pumping (0.001–2.0 mL/min), low-dead-volume flow cell, and column oven (5–80 °C)
• Triple quadrupole mass spectrometer interface with electrospray ionization (ESI) source, optimized for quantitative MRM transitions
• Vendor-agnostic front-end control layer enabling synchronization with third-party QqQ instruments via analog/digital I/O and vendor SDKs
• Automated method switching: no hardware reconfiguration required between online SPE and direct injection workflows
• Full GLP-compliant audit trail generation, including valve position logs, solvent consumption records, and sequence execution timestamps

Sample Compatibility & Compliance

The system supports aqueous, semi-aqueous, and protein-rich samples without prior derivatization or extensive manual pretreatment. It has been validated for use in forensic toxicology (e.g., amphetamines, benzodiazepines), environmental monitoring (EPA Method 1694–compliant multi-residue pesticide screening in surface water), food safety (veterinary drug residues in milk and muscle tissue), and emerging contaminant surveillance (per- and polyfluoroalkyl substances, microcystins, pharmaceutical metabolites). All hardware components meet CE marking requirements and are constructed from inert, non-leaching materials (e.g., PEEK, stainless steel with electropolished finish). Data acquisition and processing comply with FDA 21 CFR Part 11 requirements when operated with validated LIMS-integrated software packages.

Software & Data Management

Control and data handling are managed through Acchrom Control Suite v3.2—a Windows-based application built on .NET Framework with role-based access control (RBAC), electronic signature support, and full 21 CFR Part 11 audit trail functionality. The suite includes embedded method templates for EPA 1694, EU SANTE/11312/2021, and Chinese GB standards (e.g., GB 23200.113–2021). Raw data files are stored in open-format mzML, enabling interoperability with third-party quantitation tools (e.g., Skyline, MultiQuant, Compound Discoverer). Sequence scheduling supports batch-level QC integration (blank, calibration, QC, and replicate injections), with automatic flagging of retention time drift or peak area deviation exceeding user-defined thresholds.

Applications

• Quantitative bioanalysis of small-molecule therapeutics and metabolites in human plasma and cerebrospinal fluid
• Multi-analyte residue testing in drinking water and wastewater treatment effluents per regulatory action limits
• Rapid forensic toxicology screening in postmortem blood and hair specimens
• Monitoring cyanobacterial toxin dynamics during algal bloom events using real-time SPE-enriched LC-MS/MS
• Verification of veterinary drug withdrawal periods in livestock tissues under national residue control plans
• Forensic investigation of illicit chemical dumping via targeted screening of industrial solvents and plasticizers in sediment pore water

FAQ

Can this system be retrofitted to an existing triple quadrupole mass spectrometer?
Yes—the platform provides standardized analog TTL and RS-232 interfaces, along with documented API libraries for major OEM instruments (Waters, Thermo Fisher, Sciex, Shimadzu). Integration typically requires ≤3 days of on-site commissioning.
Does the online SPE module support method development for new analytes?
Yes—method development kits include six sorbent chemistries, three loading/elution solvent gradients, and pre-validated protocols for >120 compounds listed in the Acchrom SPE Method Library.
Is validation documentation provided for regulated laboratories?
Yes—each system ships with IQ/OQ documentation templates, installation verification checklists, and a comprehensive Performance Qualification (PQ) protocol aligned with ISO/IEC 17025 Annex A.2.
What maintenance intervals are recommended for the online SPE valves and columns?
Valve lifetime exceeds 250,000 cycles under typical operation; trap columns are rated for ≥500 injections with proper sample filtration (0.22 µm); routine column regeneration is performed automatically during each sequence’s equilibration step.
