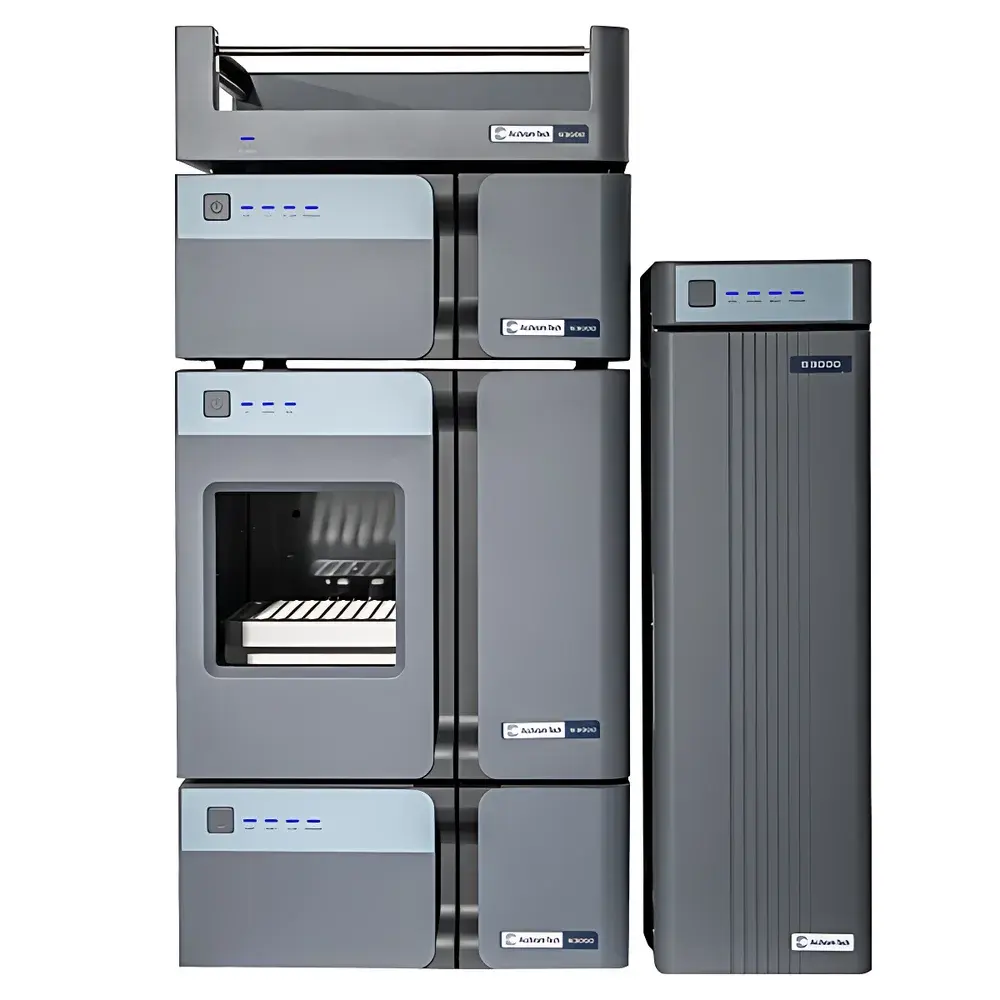

Acchrom-Tech S3000 High-Performance Liquid Chromatograph

Overview

The Acchrom-Tech S3000 is a fully integrated, general-purpose high-performance liquid chromatograph engineered for precision, robustness, and operational reliability in routine and method-development laboratories. Based on classical reversed-phase, normal-phase, and ion-exchange chromatographic principles, the system employs isocratic or quaternary gradient elution modes to resolve complex mixtures across pharmaceutical, environmental, food safety, and academic research applications. Its modular architecture supports seamless integration of pump, autosampler, column oven, and UV-Vis detector modules — all synchronized via embedded real-time control firmware. Designed to meet baseline requirements for GLP-compliant workflows, the S3000 delivers consistent retention time stability (<0.1% RSD), pressure regulation accuracy (±0.5 bar), and flow rate reproducibility (±0.1% RSD at 1.0 mL/min), making it suitable for method transfer, QC release testing, and regulatory submissions where instrument qualification (IQ/OQ/PQ) is required.

Key Features

• Quaternary Gradient Pump System: Precision dual-piston reciprocating pump with curved-cam camshaft drive mechanism minimizes pulsation (<0.05% RMS) and ensures long-term flow stability across 0.001–10.000 mL/min range; real-time pressure feedback loop dynamically adjusts motor speed to maintain setpoint accuracy under variable backpressure conditions.
• Two-Stage Serial Valve Architecture: Inlet and outlet check valves arranged in tandem configuration reduce solvent compressibility effects and suppress micro-leakage, enhancing gradient fidelity and baseline flatness during low-concentration organic solvent transitions.
• Low-Residue Direct-Injection Autosampler: Needle-in-loop design integrates sample needle directly into fluidic path, eliminating transfer dead volume and reducing carryover to <0.005% (measured with caffeine standard); high-torque stepper-motor-driven syringe actuation enables precise volumetric delivery from 0.1–100 µL with ±0.3% injection volume repeatability.
• Peltier-Controlled Column Oven: Vertical-mount chamber accommodates up to three 300 mm columns simultaneously; air-circulation system with pre-heating coil ensures uniform thermal distribution (±0.2°C stability at 40°C) and minimizes temperature gradients across column length, improving peak symmetry and resolution for late-eluting compounds.
• UV-Vis Detector with Dual-Beam Optics: Solid aluminum optical bench fabricated via monolithic CNC machining ensures dimensional stability across ambient humidity (30–80% RH) and temperature (15–35°C) ranges; reference beam path compensates for lamp intensity drift and optical component aging, enabling <1 × 10⁻⁵ AU/hr baseline noise at 254 nm (1 s response time).

Sample Compatibility & Compliance

The S3000 supports standard 4.6 mm × 50–300 mm analytical columns packed with C18, C8, phenyl-hexyl, HILIC, or ion-exchange phases. It is compatible with aqueous/organic mobile phases containing up to 100% acetonitrile or methanol, and tolerates buffers with pH 2–9 (e.g., phosphate, acetate, ammonium formate). The system meets mechanical and electrical safety requirements per IEC 61010-1:2010 and electromagnetic compatibility (EMC) standards EN 61326-1:2013. While not pre-certified for FDA 21 CFR Part 11, its firmware architecture supports audit trail logging, user access levels (admin/operator/analyst), and electronic signature readiness — enabling validation to GMP/GLP environments when deployed with compliant LIMS or CDS software.

Software & Data Management

Control and data acquisition are managed through AcchromChrom v3.x — a Windows-based chromatography data system supporting method creation, sequence definition, real-time monitoring, peak integration (with ISO 17025-aligned algorithms), and report generation. Raw data files adhere to ANDI/NetCDF format for third-party processing interoperability. Audit trail functionality records all critical events (method edits, run starts/stops, integration changes) with timestamps, operator IDs, and IP addresses. Optional add-ons include CSV export modules for ELN integration and PDF/A-1b report archiving compliant with ISO 19005-1.

Applications

The S3000 serves as a foundational platform for quantitative analysis of active pharmaceutical ingredients (APIs) per USP , residual solvents (ICH Q3C), pesticide residues (AOAC 2007.01), mycotoxins (EN 14132), and nutritional markers (e.g., vitamins, amino acids). Its gradient flexibility and thermal control support method development for challenging separations including enantiomers (chiral columns), oligonucleotides, and polar metabolites. Academic users employ it for teaching chromatographic theory, calibration curve construction, and retention modeling (e.g., Snyder–Soczewiński equations).

FAQ

Is the S3000 compatible with third-party chromatography data systems (CDS)?

Yes — via vendor-neutral drivers (ODBC, .NET API) and ANDI/NetCDF raw data export, enabling integration with Thermo Chromeleon, Waters Empower, or OpenLab CDS.
What column dimensions and maximum backpressure does the pump support?

It accommodates columns up to 300 mm in length and 4.6 mm ID; maximum system pressure rating is 400 bar (5800 psi) at 1.0 mL/min.
Does the UV detector offer wavelength scanning capability?

No — it is a fixed-wavelength or selectable single-wavelength detector (200–400 nm range, 1 nm increments); full-spectrum PDA detection requires optional upgrade module.
Can the column oven be configured for active cooling below ambient?

No — the Peltier unit provides heating and passive cooling only; minimum operating temperature is ambient +5°C.
Is preventive maintenance documentation available in English?

Yes — comprehensive English-language PM guides, spare parts catalogs, and calibration protocols are provided with each system shipment and updated quarterly via Acchrom-Tech’s secure customer portal.
