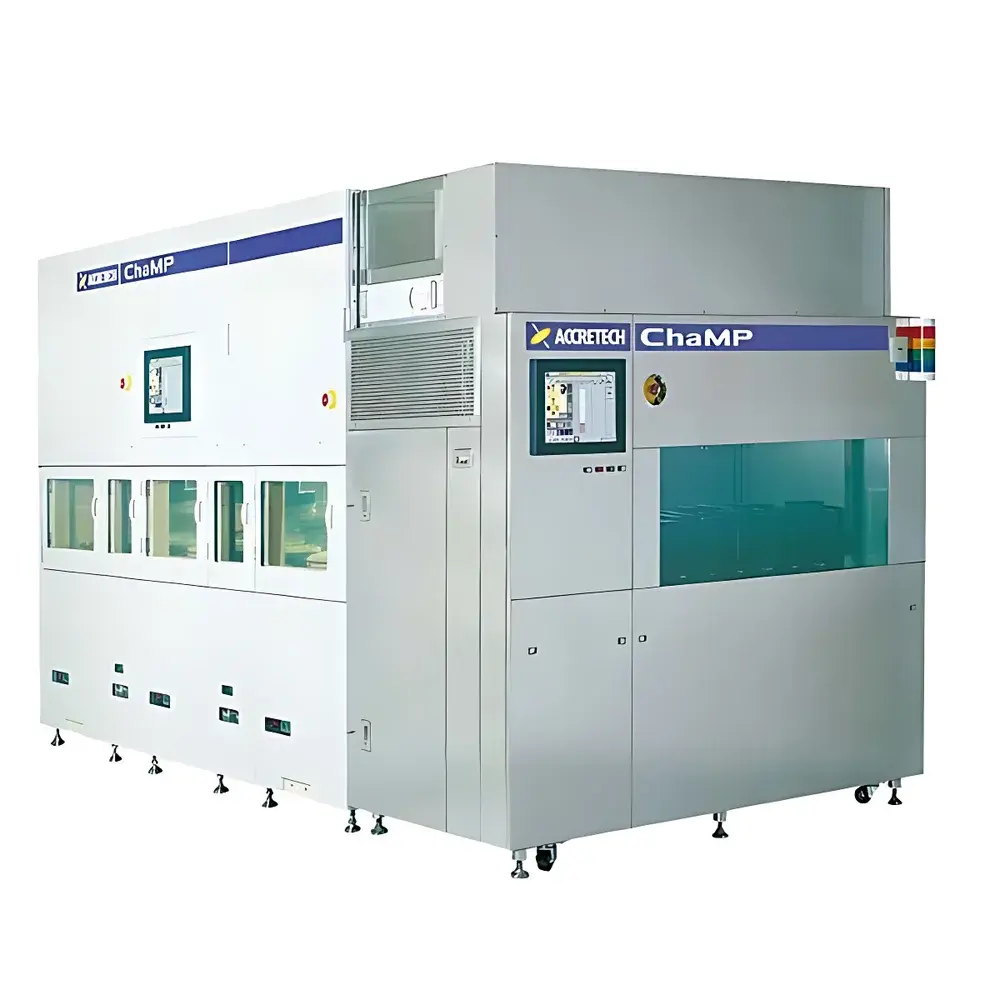

Accretech ChaMP-232 Chemical Mechanical Polishing System

Overview

The Accretech ChaMP-232 Chemical Mechanical Polishing (CMP) System is an engineered platform for precision planarization of silicon wafers in semiconductor front-end fabrication. Based on the Couette-flow polishing mechanics principle—where controlled relative motion between a rotating wafer and a chemically active, compliant polishing pad generates material removal via synergistic chemical dissolution and mechanical abrasion—the ChaMP-232 delivers repeatable, nanoscale surface uniformity across Φ100 mm, Φ150 mm, and Φ200 mm substrates. Developed by Tokyo Seimitsu Co., Ltd.—a publicly listed Japanese precision engineering enterprise—the system integrates metrology-grade mechanical stability with process-critical fluidic and pneumatic control architectures. It is purpose-built for high-mix, low-volume pilot lines and technology development fabs requiring rapid process transfer, robust endpoint detection, and traceable process parameter logging under GLP-aligned operational protocols.

Key Features

• Pneumatic floating polishing head with multi-zone pressure regulation: Enables independent control of center, mid-radius, and edge zones to compensate for inherent wafer warp and improve within-wafer non-uniformity (WIWNU) below 3.5%.
• Sub-1 mm edge exclusion capability: Achieved through optimized retainer ring geometry and dynamic pressure balancing, ensuring functional die area maximization without compromising edge integrity.
• Optical endpoint detection subsystem: Utilizes real-time spectral reflectance monitoring at 400–800 nm wavelength range to identify layer removal completion with ±2 nm thickness resolution, compatible with oxide, nitride, and copper-based film stacks.
• Integrated ChaMP wet cleaning station: Features dual-stage deionized water rinse, megasonic agitation (≥950 kHz), and N₂ dry-blow modules to remove residual slurry particles and prevent post-CMP corrosion or micro-scratching.
• Quick-change retainer ring mechanism: Allows full retainer replacement in ≤60 seconds without disassembling the polishing head assembly—minimizing tool downtime during recipe transitions or consumable swaps.
• Modular pneumatic safety architecture: Includes redundant pressure-sensing circuits, fail-safe air-cushion isolation membranes, and independent annular pressure chambers for retainer clamping and wafer backside support.

Sample Compatibility & Compliance

The ChaMP-232 supports standard semiconductor wafer formats: bare and patterned silicon wafers (Φ100 mm, Φ150 mm, Φ200 mm), SOI substrates, and compound semiconductor wafers (e.g., GaAs, SiC) with compatible slurry chemistries. All fluidic pathways comply with SEMI F57 (Chemical Delivery Systems) and SEMI F21 (Particle Control in Wet Processing) standards. The system’s mechanical design conforms to ISO 14644-1 Class 5 cleanroom integration requirements. Data acquisition firmware supports audit trail generation per FDA 21 CFR Part 11 Annex 11 guidelines when operated with validated software configurations. No CE marking is applied; installation requires local electrical safety certification per IEC 61000-6-2/6-4 and national occupational health regulations.

Software & Data Management

The ChaMP-232 operates under Accretech’s proprietary CMPControl™ v4.x platform, a Windows-based HMI with deterministic real-time loop execution (<10 ms cycle time). Process recipes—including platen/wafer rotation speeds, downforce profiles, slurry flow rates, and endpoint trigger thresholds—are stored with SHA-256 hash integrity verification. All sensor logs (pressure, torque, temperature, optical intensity) are timestamped to UTC and archived in SQLite3 format with optional OPC UA server export for MES integration (SECS/GEM compliant). Audit trails record operator login/logout events, parameter modifications, and alarm acknowledgments with immutable user attribution—enabling full traceability for internal quality audits or external ISO 9001:2015 assessments.

Applications

• Interlayer dielectric (ILD) planarization in 0.35–0.18 µm node logic and memory processes.
• Copper damascene trench fill planarization for BEOL interconnect integration.
• Shallow trench isolation (STI) topography correction prior to gate patterning.
• Wafer-level packaging (WLP) substrate thinning and surface conditioning for TSV formation.
• R&D-scale polishing process development for novel barrier metals (e.g., Ru, Co) and low-k dielectrics (e.g., porous SiCOH).
• Calibration and qualification of in-line metrology tools (e.g., optical interferometers, ellipsometers) using reference wafers with known step heights.

FAQ

Is the ChaMP-232 qualified for production use in ISO-certified fabs?
Yes—when deployed with documented SOPs, preventive maintenance logs, and calibrated reference standards, the ChaMP-232 meets ISO 9001:2015 and IATF 16949 requirements for process equipment validation.
Does the system support remote diagnostics or predictive maintenance?
Remote access is available via secure TLS-encrypted VNC tunneling; predictive analytics require integration with third-party MES platforms using OPC UA data streams.
What slurry delivery options are available?
Standard configuration includes dual-channel peristaltic pumps with flow accuracy ±2% of setpoint; optional mass-flow-controlled slurry dispensers (MFC-SL) are available for high-precision applications.
Can the optical endpoint system be calibrated in-house?
Yes—calibration uses NIST-traceable SiO₂ reference wafers and follows a six-point spectral baseline protocol defined in Accretech Technical Note TN-CMP-EP-004.
Is training provided for operators and maintenance engineers?
Accretech-authorized distributors deliver on-site commissioning, two-day operator training, and five-day maintenance certification courses aligned with SEMI E10 and E147 standards.
