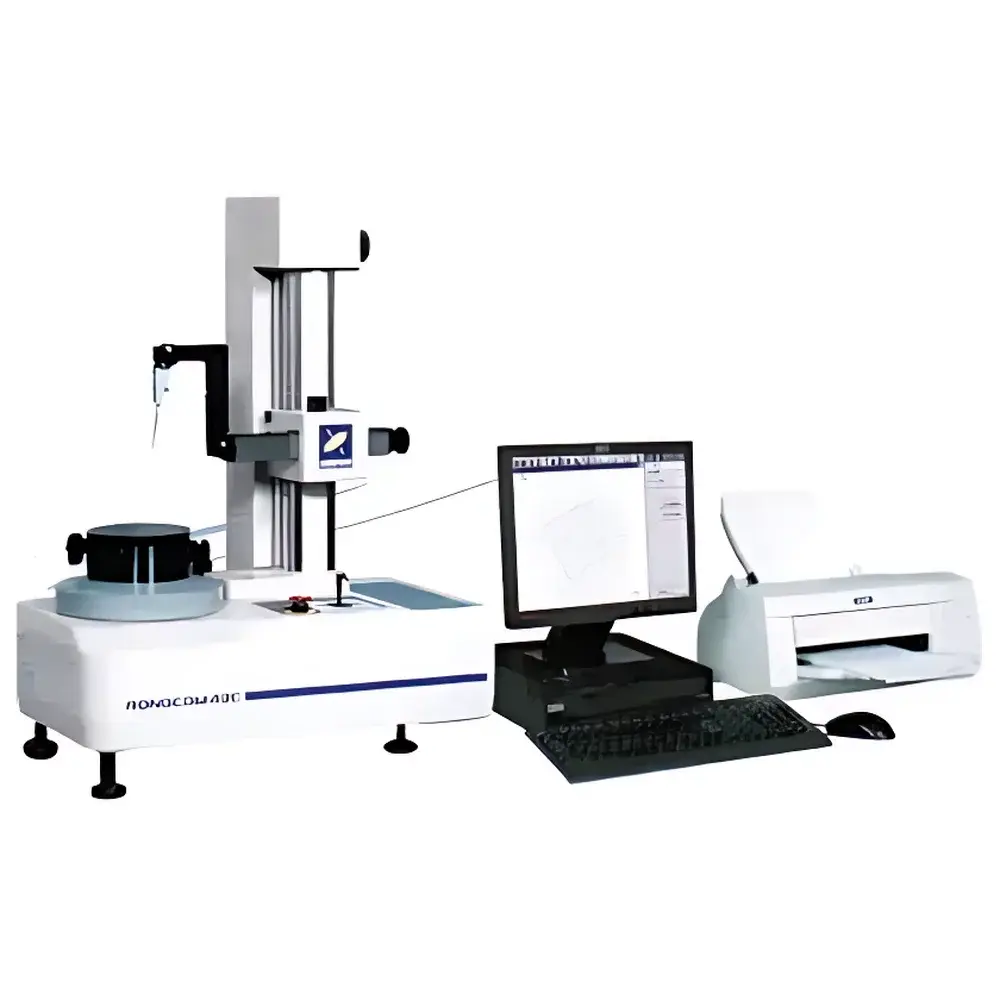

Accretech RONCOM 43C Roundness and Cylindricity Measuring Instrument

Overview

The Accretech RONCOM 43C is a high-precision roundness and cylindricity measuring instrument engineered for metrology laboratories, precision manufacturing QA/QC departments, and R&D facilities requiring traceable, repeatable geometric form analysis. Based on the principle of rotational axis deviation measurement—where a precision air-bearing spindle rotates the workpiece while a linearly traversing stylus traces its surface—the RONCOM 43C delivers sub-micron resolution in evaluating circularity, cylindricity, concentricity, parallelism, and related GD&T parameters. Its core architecture integrates a thermally stable granite base, hydrostatic air bearing spindle with certified rotational accuracy per ISO 4291 and JIS B7451, and a rigid vertical column supporting high-fidelity Z-axis motion. Designed for compliance-critical environments, the system supports measurement uncertainty evaluation in accordance with ISO/IEC 17025 requirements and facilitates audit-ready documentation for GLP/GMP-regulated industries.

Key Features

• High-accuracy hydrostatic air bearing spindle with certified rotational error of (0.02 + 6H/10000) µm—ensuring minimal mechanical hysteresis and long-term stability.
• Dual-axis precision motion system: 300 mm vertical (Z-axis) travel with programmable speed control (0.6–6 mm/s during measurement), and 125 mm radial (R-axis) traverse for comprehensive profile capture.
• ACCTee integrated measurement software—next-generation platform enabling intuitive setup, real-time waveform display, automated centering and tilt alignment, and multi-method form evaluation (MZC, LSC, MIC, MCC, N.C.).
• Comprehensive surface analysis suite including power spectral density (PSD), Fourier amplitude spectrum, and harmonic decomposition—essential for root-cause analysis of machining errors or tool wear signatures.
• Digital filtering with selectable 2RC and Gaussian algorithms; rotational filters configurable from 15 to 500 undulations/revolution; axial filters from 0.025 mm to 8 mm—fully compliant with ISO 1101 and ASME Y14.5 conventions.
• Robust stylus system featuring a Ø1.6 mm sintered carbide sphere with consistent 70 mN contact force—optimized for repeatability across hardened steels, ceramics, and aerospace alloys.

Sample Compatibility & Compliance

The RONCOM 43C accommodates workpieces up to Ø250 mm diameter and 520 mm in height (OD) or 300 mm (ID), with maximum loading capacity of 25 kg on its Ø148 mm precision rotary table. Centering adjustment range of ±2 mm and tilt compensation of ±10 arcminutes ensure rapid setup of asymmetric or off-center components. All measurements adhere to international standards including ISO 12181 (roundness), ISO 12180 (cylindricity), ISO 1101 (geometrical tolerancing), and JIS B 7451. The system’s traceable calibration chain—supported by optional NIST-traceable artifact kits—enables direct correlation to national metrology institutes. For regulated sectors, raw data files include timestamped audit trails, operator ID, environmental conditions (optional sensor integration), and full parameter logging—facilitating FDA 21 CFR Part 11 compliance when paired with validated ACCTee software configurations.

Software & Data Management

ACCTee software provides a unified interface for measurement planning, execution, and reporting. It supports hierarchical project structures, customizable report templates (PDF, CSV, XML), and direct export to statistical process control (SPC) platforms. All measurement sessions are logged with metadata including machine configuration, filter settings, stylus calibration status, and environmental drift compensation flags. Raw profile data is stored in vendor-neutral ASCII format, enabling third-party post-processing in MATLAB, Python (NumPy/Pandas), or Metrology-specific tools such as PolyWorks or Q-DAS. Version-controlled software updates follow IEC 62304 medical device software lifecycle guidelines, and validation documentation (IQ/OQ/PQ protocols) is available upon request for pharmaceutical and aerospace customers.

Applications

The RONCOM 43C serves critical inspection roles across multiple high-precision sectors: turbine blade root roundness verification in power generation; bearing raceway cylindricity certification per ABEC-7; hydraulic valve spool concentricity assessment under dynamic load simulation; orthopedic implant stem geometry validation per ASTM F2624; and semiconductor wafer chuck flatness mapping. Its ability to combine rotational and axial profiling makes it particularly suited for evaluating tapered rollers, cam lobes, and stepped shafts where coupled form deviations impact functional performance. In academic research, the instrument supports studies on ultra-precision turning dynamics, micro-texture propagation, and thermal deformation modeling of rotating systems.

FAQ

What standards does the RONCOM 43C comply with for roundness measurement?
It conforms to ISO 4291, ISO 12181-1, JIS B 7451, and ANSI/ASME B89.3.1, with spindle accuracy verified using master artifacts traceable to NMIJ (Japan) or PTB (Germany).
Can the system perform automated multi-layer cylindrical evaluation?
Yes—ACCTee supports programmed Z-axis stepping with synchronized rotational acquisition, enabling full 3D cylindricity reconstruction and zone-wise tolerance mapping.
Is the air bearing spindle maintenance-free?
Hydrostatic air bearings require continuous clean, dry, oil-free compressed air (0.35–0.7 MPa); periodic filter replacement and pressure regulation checks are recommended per Accretech’s preventive maintenance schedule.
Does the RONCOM 43C support GD&T evaluation per ASME Y14.5–2018?
Yes—software includes dedicated modules for datum establishment, feature-based tolerance stack-up, and composite frame reporting aligned with current ASME Y14.5 syntax.
What is the typical measurement uncertainty for roundness at Ø100 mm?
Under controlled lab conditions (20 ± 0.5 °C, vibration isolation), expanded uncertainty (k=2) is ≤0.05 µm for repeatability and ≤0.12 µm for reproducibility—including environmental and stylus tip radius correction terms.
