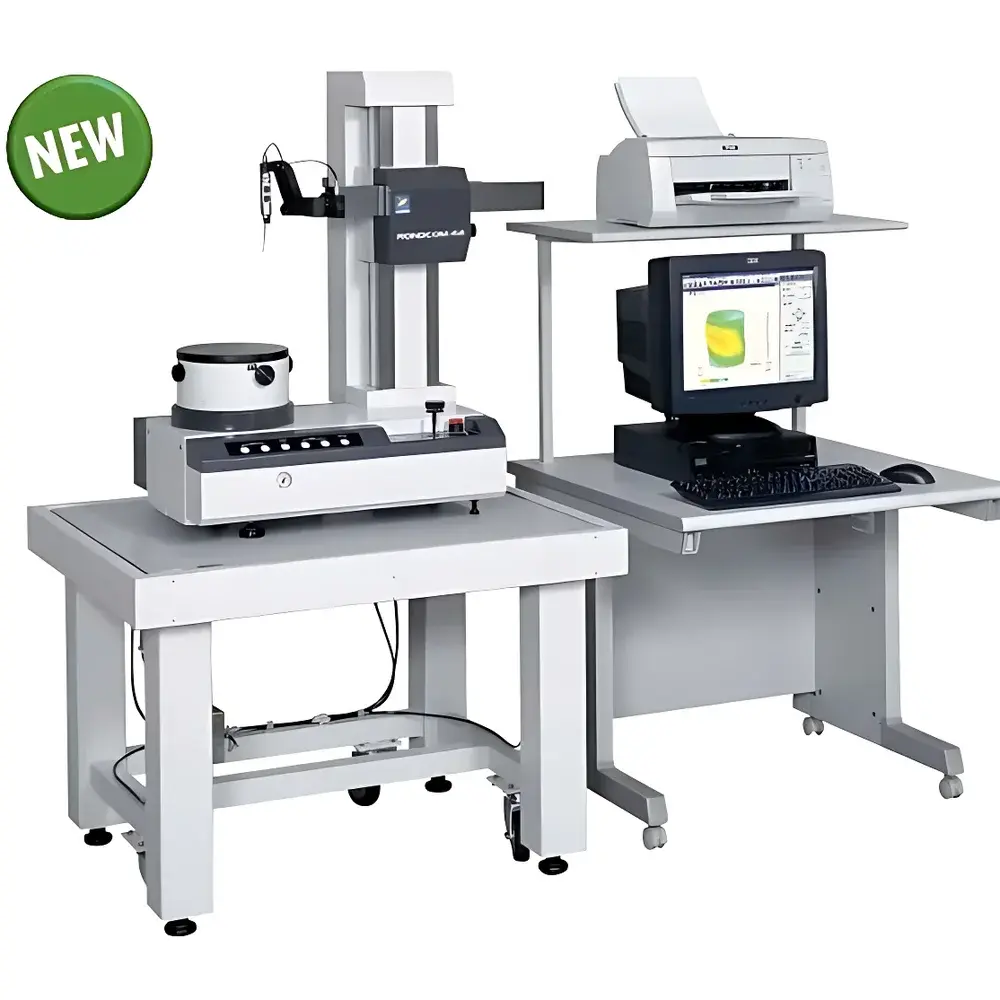

Accretech RONCOM 44DX Roundness and Cylindricity Measuring Instrument

Overview

The Accretech RONCOM 44DX is a high-precision roundness and cylindricity measuring instrument engineered for metrological-grade evaluation of rotational symmetry, axial form deviation, and surface geometry in precision mechanical components. Based on the principle of rotating-axis measurement with hydrostatic air bearing spindle technology, the system establishes a stable, near-frictionless reference axis against which radial displacement of a stylus-mounted transducer is recorded during full 360° rotation. This architecture enables traceable assessment of geometric tolerances per ISO 1101, ISO 12181 (roundness), ISO 12180 (cylindricity), and ASME Y14.5 standards. Designed for laboratory and high-volume quality control environments, the R44DX delivers calibrated form analysis for critical parts including bearing races, hydraulic pistons, fuel injector nozzles, gear blanks, and aerospace shafts—where deviations in roundness ≤ 0.05 µm or cylindricity ≤ 0.1 µm directly impact functional performance and fatigue life.

Key Features

• Hydrostatic air bearing spindle with certified radial accuracy of (0.02 + 4H/10000) µm — H denotes measurement height in mm — ensuring minimal thermal drift and long-term repeatability under continuous operation.
• Offset-type chuck configuration positions the stylus tip 80 mm below the R-axis extension line, eliminating probe interference during deep-hole or thick-wall internal diameter measurements without requiring repositioning or fixture modification.
• Dual-mode chuck options: Standard chuck enables single-step transition from outer diameter to top surface measurement; optional automatic chuck supports synchronized multi-feature acquisition (OD, ID, top/bottom surfaces, conical sections) with programmable stylus positioning.
• Intuitive manual centering and tilt adjustment via histogram-based visual feedback — eliminates reliance on trigonometric calculation and reduces operator training time.
• CNC measurement sequence recording: Full workflow — workpiece setup (manual on R44), scanning, data analysis, and report generation — is stored as a repeatable program. Subsequent identical parts require only physical fixturing and coordinate system alignment to execute automated measurement.
• Compact footprint design achieves 25% space reduction versus previous-generation Accretech platforms, optimizing floor utilization in constrained metrology labs and production cells.

Sample Compatibility & Compliance

The R44DX accommodates workpieces up to Ø300 mm × 400 mm (H), with optional extensions available for larger diameters. Its modular probe arm and interchangeable styli (including skidless diamond tips down to 2 µm radius) support measurement of hardened steel, ceramics, sintered metals, and polymer components. All measurement algorithms and reporting outputs comply with ISO/IEC 17025 requirements for calibration laboratories. Data integrity is maintained through audit-trail-enabled TIMS software, supporting GLP/GMP workflows with user-access controls, electronic signatures, and versioned report templates aligned with FDA 21 CFR Part 11 readiness.

Software & Data Management

TIMS (Tokyo Seimitsu Inspection & Measurement System) v8.x serves as the native analytical platform. Standard capabilities include roundness, cylindricity, flatness, concentricity, coaxiality, perpendicularity, straightness, and parallelism evaluation per GD&T standards. Advanced modules provide:

• Automatic groove masking: Identifies and excludes recessed features from primary form analysis using threshold-based edge detection or manual region selection.
• Fourier amplitude spectrum analysis: Quantifies harmonic content in roundness profiles to correlate specific frequency components (e.g., 3rd, 6th, 12th order) with machine tool vibration sources or grinding wheel wear patterns.
• Load curve and amplitude distribution analysis: Derives contact-area probability distributions and peak-to-valley load-bearing ratios to estimate wear resistance and service life expectancy.
• Slope (SLOPE) analysis module: Computes maximum–minimum deviation within user-defined angular sectors (0°–360°), outputting both polar-expanded plots and tabular sector summaries.
• Optional add-ons: Gear tooth tip roundness analysis, piston profile comparison against parametric CAD-derived nominal curves, and full 2D contour analysis with tolerance band overlay and deviation mapping.

All reports are exportable in PDF, CSV, and XML formats; custom report templates can be configured without programming, enabling multi-part comparative analysis on a single page.

Applications

The R44DX is deployed in Tier-1 automotive powertrain facilities for crankshaft journal certification, in medical device manufacturing for orthopedic implant stem geometry validation, and in precision bearing production for raceway waviness classification. Its resolution and stability make it suitable for incoming inspection of ground or lapped components where compliance with ISO 5725 (accuracy, trueness, precision) must be demonstrated. In R&D settings, it supports iterative process optimization — e.g., correlating cylindrical grinding parameters with resulting harmonics spectra — and serves as a reference instrument for verifying coordinate measuring machine (CMM) form measurement uncertainty budgets.

FAQ

What standards does the R44DX comply with for roundness and cylindricity measurement?
The system implements algorithms and filtering protocols conforming to ISO 12181-1 (roundness), ISO 12180-1 (cylindricity), ISO 1101 (geometrical tolerancing), and ANSI/ASME B89.3.4M.
Is the hydrostatic air bearing spindle field-serviceable?
Yes — Accretech provides certified recalibration and bearing maintenance services through authorized service centers; spindle air gap verification and pressure regulation diagnostics are accessible via built-in service mode.
Can TIMS software generate statistical process control (SPC) charts?
Yes — the SPC module exports time-series deviation data to external Minitab or JMP environments; native trend charts with control limits (X̄–R, X̄–S) are configurable per feature group.
Does the R44DX support integration with factory MES or QMS platforms?
Via OPC UA and TCP/IP interfaces, raw and analyzed data — including GD&T result tables and annotated profile images — can be pushed to enterprise quality databases using standard RESTful API adapters.
What is the typical measurement uncertainty for cylindricity at 100 mm diameter?
Under controlled environmental conditions (20 ± 0.5°C, vibration-isolated bench), expanded uncertainty (k=2) for cylindricity measurement is ≤ ±0.12 µm, validated per ISO/IEC 17025-compliant uncertainty budgeting procedures.
