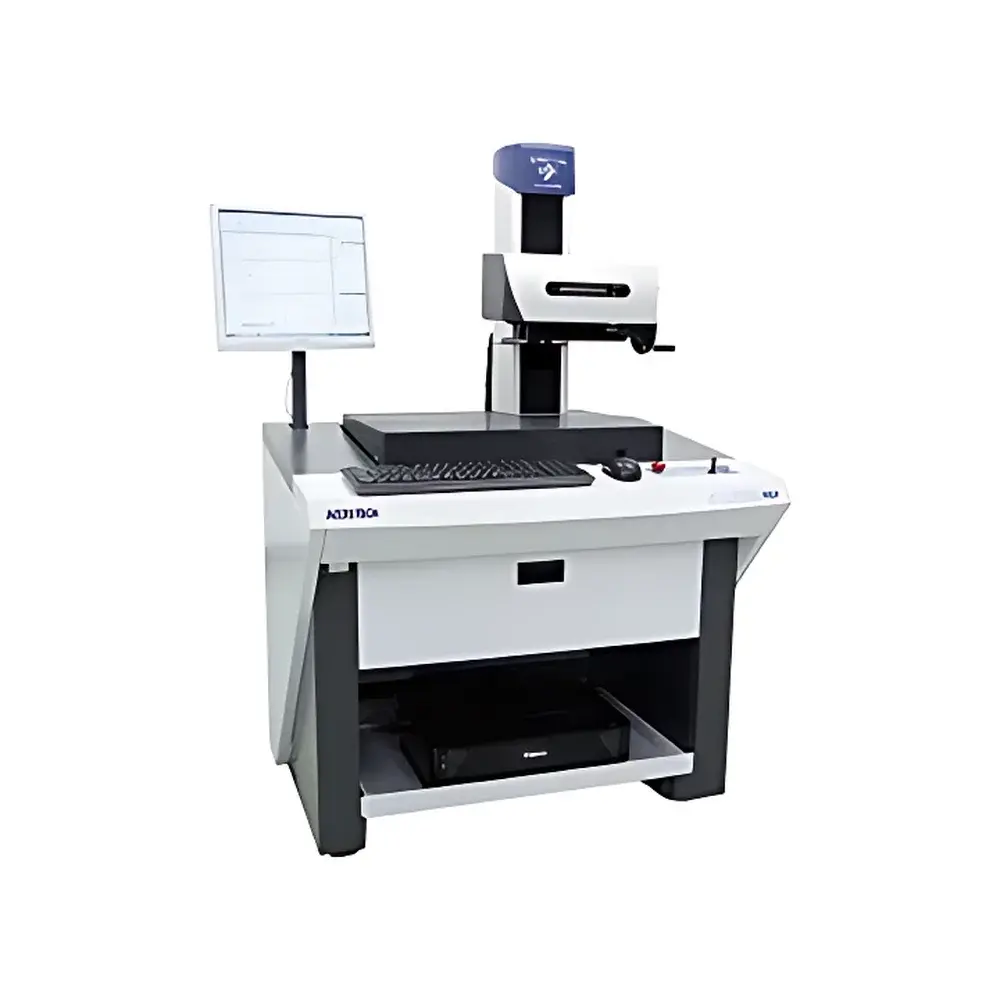

Accretech SURFCOM NEX 001 Contact Profilometer

Overview

The Accretech SURFCOM NEX 001 is a high-precision contact profilometer engineered for traceable, repeatable measurement of surface topography, roughness, and contour geometry in demanding R&D and quality control environments. It operates on the principle of stylus-based tactile scanning—where a diamond-tipped probe traverses the sample surface at controlled velocity, converting vertical displacement into analog voltage signals digitized at high sampling rates (≥100 kHz). Unlike optical or interferometric methods, this contact approach delivers direct, unambiguous height data with nanometer-level resolution under calibrated conditions, making it indispensable for applications requiring compliance with ISO 25178 (areal surface texture), ISO 4287/4288 (profile-based roughness), and ASME B46.1 standards. The system’s core innovation lies in its patented linear motor-driven X-axis stage—a departure from conventional ball-screw or belt-driven architectures—which eliminates mechanical backlash, gear-induced vibration, and thermal drift inherent in rotary-to-linear conversion systems.

Key Features

• Patented Linear Motor Drive: The X-axis employs a high-resolution, brushless linear motor directly coupled to an optical encoder scale—enabling sub-nanometer positioning repeatability and dynamic resolution stability across full travel (up to 100 mm standard). This architecture eliminates cumulative error from gear trains, lead screws, or timing belts.
• Thermal Stability via Integrated Compensation: An embedded temperature sensor network continuously monitors ambient and structural thermal gradients. Real-time compensation algorithms adjust positional gain and scaling factors, extending the certified accuracy envelope from the traditional 20 °C ± 2 °C to 20 °C ± 5 °C—critical for production-floor deployment without climate-controlled rooms.
• Zero-Maintenance Drive Mechanics: The guide rail system utilizes hardened ceramic-coated stainless steel surfaces paired with self-lubricating polymer bearing elements. No grease or oil replenishment is required during routine operation, reducing downtime and contamination risk—validated per JIS B 7451 and ISO 10360-2 long-term reliability protocols.
• Intelligent Stylus Coupling: A pneumatically actuated clutch disengages the manual coarse feed mechanism during automated scanning—preserving the ultra-low vibration integrity of the linear drive. Fine positioning is supported by a dual-mode jog dial (coarse/fine) and joystick interface, enabling sub-micron alignment without compromising measurement fidelity.
• High-Speed Areal Acquisition: Combined with optimized motion control firmware, the linear drive achieves acceleration rates >1 g and settling times <10 ms. For 3D roughness mapping (e.g., 100 × 100 µm area at 0.5 µm step), total acquisition time is reduced to ~10% of legacy systems—minimizing thermal drift artifacts and improving statistical confidence in batch measurements.

Sample Compatibility & Compliance

The SURFCOM NEX 001 accommodates flat, curved, and inclined samples up to 300 mm × 300 mm (with optional fixtures), supporting stylus tip radii from 2 µm to 12.5 µm (standard 5 µm diamond). It complies with international surface metrology standards including ISO 25178-2 (areal parameters), ISO 4287 (Ra, Rz, Rq), ISO 4288 (lay assessment), JIS B 0601 (Japanese roughness definitions), and ASME B46.1 (surface texture nomenclature). Its hardware and firmware architecture support audit-ready data capture aligned with GLP and GMP requirements—including electronic signatures, user access logs, and instrument calibration history tracking per FDA 21 CFR Part 11 guidelines when integrated with Accretech’s optional Metrology Management Software (MMS).

Software & Data Management

Accretech’s proprietary SURFPAK software (v9.x or later) provides full control over measurement planning, real-time waveform visualization, parameter calculation, and report generation. It supports automated multi-point measurement routines, cross-section extraction, filtering (Gaussian, S-filter, robust Gaussian), and areal parameter computation (Sa, Sq, Sz, Sdr, etc.). Raw profile data is stored in ASCII-compatible .SPF format with embedded metadata (timestamp, operator ID, environmental conditions, calibration certificate ID). Export options include CSV, PDF, DXF, and STEP AP214 for CAD integration. Optional MMS enables centralized instrument fleet monitoring, calibration scheduling, and version-controlled SOP enforcement across distributed labs.

Applications

The SURFCOM NEX 001 serves critical roles in precision manufacturing sectors where surface functionality dictates performance: evaluating machined bearing races and sealing surfaces in automotive powertrain components; verifying micro-textured optical mold inserts for LED light extraction efficiency; quantifying wear scar depth and material transfer in tribological testing per ASTM G133; assessing additive-manufactured part as-built roughness prior to post-processing; and validating wafer-level MEMS device topography in semiconductor packaging R&D. Its combination of traceable roughness metrology, contour fidelity, and operational robustness makes it suitable for ISO/IEC 17025-accredited laboratories performing third-party certification.

FAQ

What stylus options are available for the SURFCOM NEX 001?
Standard configurations include 2 µm, 5 µm, and 12.5 µm radius diamond tips with conical or spherical geometries. Custom stylus holders support lateral force compensation for soft or compliant materials.
Is the system compatible with cleanroom environments?
Yes—the drive mechanism generates no particulate emissions, and optional stainless-steel housing with IP54-rated enclosures meets Class 1000 cleanroom requirements per ISO 14644-1.
How often does the system require recalibration?
Accretech recommends annual traceable calibration against NIST-traceable step-height and roughness standards (e.g., NIST SRM 1962, 2100 series), with intermediate verification using certified reference specimens per ISO 21578.
Can the NEX 001 perform both 2D profile and 3D areal measurements?
Yes—it supports single-line profiling, multi-line grid scanning, and fully automated 3D surface reconstruction with automatic stitching and tilt correction algorithms.
Does the temperature compensation system require external sensors or user input?
No—the compensation is fully autonomous and internal; no external thermistors or manual offset entry is needed. The system self-calibrates thermal coefficients during warm-up cycles.
