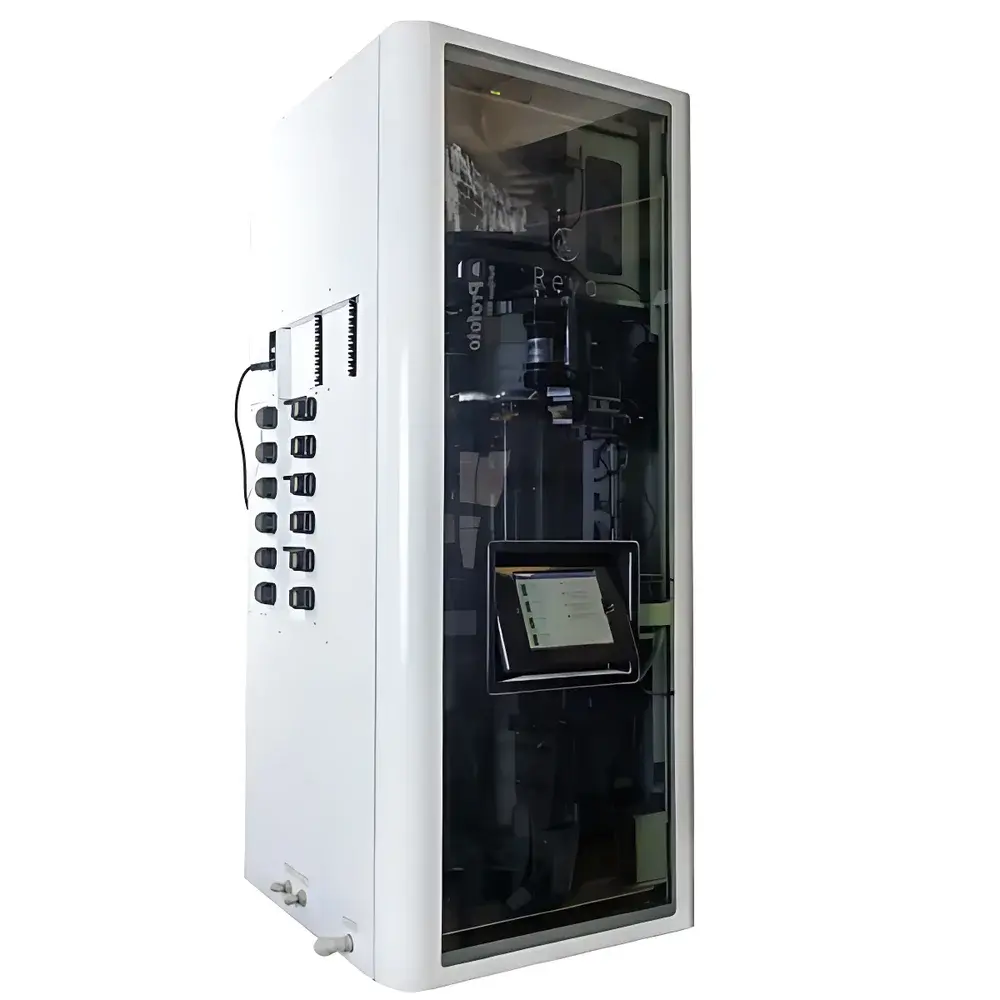

Accroma Buffer-Prep Automated Traceable Buffer Preparation System

Overview

The Accroma Buffer-Prep Automated Traceable Buffer Preparation System is an engineered solution for high-integrity liquid formulation in regulated life science laboratories. Designed around a closed-loop, gravimetric dispensing architecture, the system executes buffer preparation via precise mass-based addition of solid and liquid reagents—eliminating volumetric error sources inherent in manual or pump-driven systems. Its core operation relies on real-time feedback from calibrated load cells, integrated pH and conductivity sensors, and programmable peristaltic or diaphragm metering pumps to achieve target specifications within defined tolerances. This architecture ensures reproducible composition across batches, critical for applications ranging from cell culture media conditioning to chromatographic mobile phase preparation. As a Class I medical device–compatible platform (per ISO 13485 design principles), the Buffer-Prep is deployed in early-stage bioprocess development, QC release testing, and GMP-compliant manufacturing support environments where documentation integrity and process control are non-negotiable.

Key Features

• Gravimetric precision dispensing with ≤0.1% repeatability (RSD) for solid reagents and ≤0.2% for liquid reagents under standard operating conditions
• Integrated inline pH and conductivity monitoring with automatic titrant dosing to converge on user-defined setpoints
• On-board sterile-grade filtration module (0.22 µm PES membrane) compatible with single-use fluid paths
• Role-based access control with configurable user permissions (e.g., operator, supervisor, administrator) and session audit logging
• Full electronic signature capability compliant with 21 CFR Part 11 Subpart C requirements, including biometric or multi-factor authentication options
• Embedded time-stamped event log capturing all critical actions: reagent lot entry, weight verification, sensor calibration, recipe execution, and error recovery steps

Sample Compatibility & Compliance

The Buffer-Prep accommodates a broad range of common buffer components—including Tris, HEPES, phosphate salts, sodium chloride, and organic modifiers—across concentration ranges typical for analytical and process applications (e.g., 1 mM–1 M). All wetted materials meet USP Class VI and FDA 21 CFR 177.2600 compliance for food-contact polymers. The system supports dual-lot reagent tracking and expiration date enforcement at both inventory and batch levels. It conforms to ISO/IEC 17025:2017 clause 7.7 (sampling and handling) and aligns with ICH Q5E recommendations for consistency of buffer composition across development phases. Full validation documentation packages—including IQ/OQ/PQ protocols, risk assessments (FMEA), and traceability matrices—are available upon request to support internal qualification and regulatory inspections.

Software & Data Management

The embedded Buffer-Prep Control Software (v4.2+) provides a validated Windows-based interface with deterministic workflow execution. Recipes are structured as XML-based objects containing ingredient definitions, procedural logic (e.g., dissolution sequence, mixing duration, temperature hold), and acceptance criteria. All data—including raw sensor outputs, intermediate weights, and final batch reports—are stored in an encrypted SQLite database with write-once/read-many (WORM) archival mode. Export functions generate PDF/A-1b-compliant reports with embedded digital signatures and hash-verified metadata. Native RESTful API enables bidirectional synchronization with enterprise LIMS (e.g., LabWare, STARLIMS), ERP (SAP), and MES platforms. Audit trail records retain full context: who initiated, what changed, when, and why—with immutable linkage to associated electronic signatures and system events.

Applications

• Preparation of HPLC/UPLC mobile phases requiring strict pH and ionic strength control
• Formulation of cell culture media and transfection buffers with lot-to-lot consistency verification
• QC release testing of purified proteins and monoclonal antibodies where buffer composition directly impacts stability assays
• Support of process characterization studies under ICH Q5C guidelines, including buffer exchange validation
• Automated generation of calibration standards for spectrophotometric and electrochemical instrumentation

FAQ

Does the Buffer-Prep support custom buffer recipes not included in the default library?
Yes. Users may define new recipes via the graphical recipe editor, specifying reagent identities, mass/volume targets, mixing sequences, and pass/fail criteria—all subject to supervisor approval before activation.
How is calibration maintained across extended operation?
The system performs automated daily weight verification using NIST-traceable check weights and initiates sensor recalibration prompts based on configurable usage thresholds or drift detection algorithms.
Can the system be validated for use in a GMP environment?
Yes. Accroma provides a complete validation support package, including documented test scripts, evidence templates, and change control procedures aligned with Annex 15 and ASTM E2500-13 guidance.
Is offline operation permitted without network connectivity?
Yes. All recipe execution, data logging, and audit trail generation occur locally; network connection is required only for LIMS sync, remote diagnostics, or software updates.
What happens if a reagent lot expires during an active preparation cycle?
The system halts dispensing, triggers an alert, logs the event, and requires manual override with documented justification before proceeding—ensuring full adherence to expiry governance policies.
