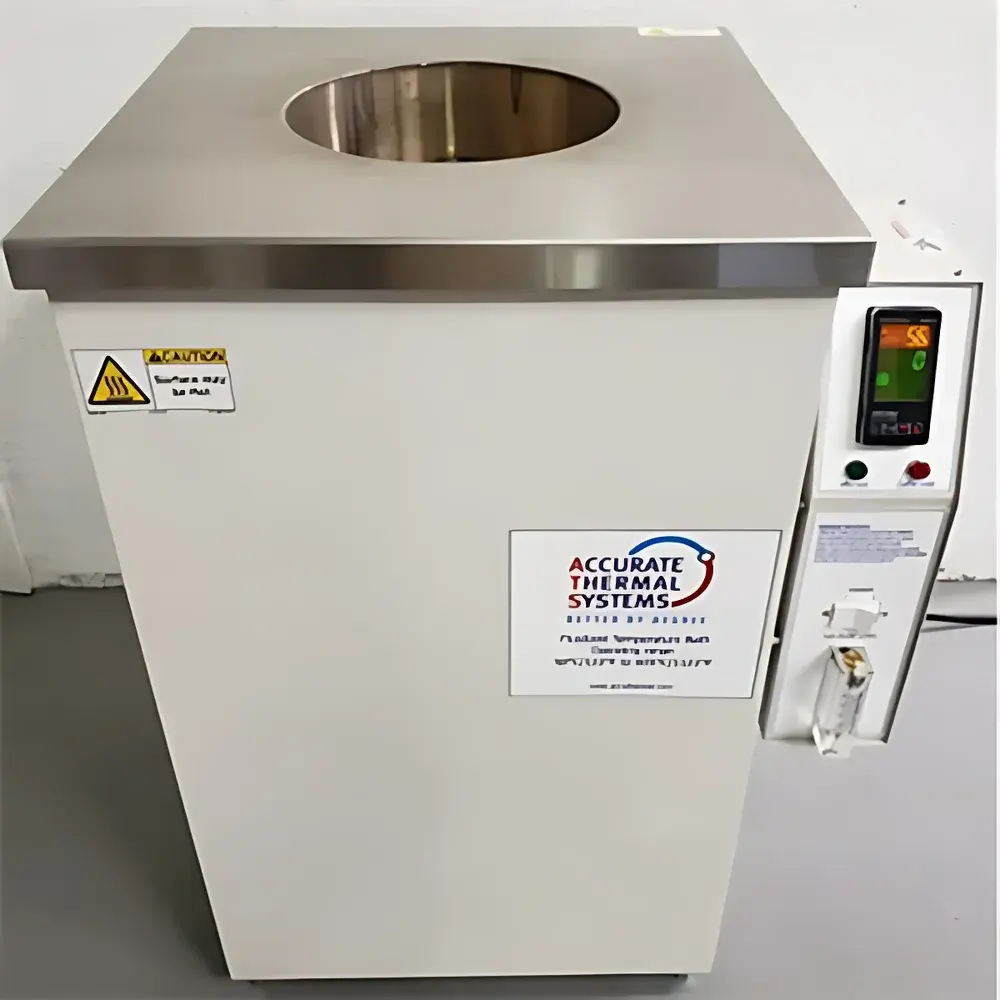

Accurate Thermal Systems FTBLL12W Fluidized Bed Thermal Cleaner

Overview

The Accurate Thermal Systems FTBLL12W Fluidized Bed Thermal Cleaner is an industrial-grade, electrically heated thermal cleaning system engineered for the controlled pyrolytic removal of organic residues—including thermoplastics, elastomers, coatings, adhesives, and cured resins—from metal tooling and process components. Unlike abrasive or solvent-based cleaning methods, this unit operates on the principle of fluidized bed heat transfer: finely graded alumina particles are suspended in a precisely regulated upward airflow, creating a homogeneous, high-thermal-capacity medium with gas-like flow properties and solid-like heat storage capacity. At operating temperatures up to 650 °C (1200 °F), organic contaminants undergo thermal decomposition (not combustion) into volatile hydrocarbons and inert carbonaceous char—leaving substrates clean, dimensionally stable, and metallurgically unaffected. Designed and manufactured in the United States, the FTBLL12W complies with UL 508A and carries CE marking for conformity with EU safety directives (2014/35/EU Low Voltage Directive and 2014/30/EU EMC Directive).

Key Features

• Automated fluidization air control with four-stage programmable airflow profiling—optimized for ramp-up, soak, cooldown, and standby phases to ensure uniform particle suspension and minimal thermal stress on parts
• Advanced quad-zone PID temperature controller with independent tuning per heating zone, enabling ±1.5 °C temperature stability across the full 50–650 °C operating range
• Dual redundant overtemperature protection: hardware-limited cutoff at 615 °C (1140 °F) plus software-monitored thermal fault detection with automatic heater disable
• Robust 6.8 kW heating capacity delivered via stainless-steel-sheathed Incoloy® heating elements embedded within the fluidized bed chamber
• Front-panel digital airflow meter and RS485 serial interface (Modbus RTU protocol) for integration with lab information management systems (LIMS) or supervisory control platforms
• Double-fused power circuitry and NEMA 12-rated enclosure for industrial environments with dust and light splash exposure

Sample Compatibility & Compliance

The FTBLL12W accommodates parts up to 312 mm (12.3 in) in diameter and 660 mm (26 in) in depth within its stainless-steel basket assembly. It is routinely deployed for cleaning extrusion dies, injection molds, spinnerets, breaker plates, screen packs, feed screws, nozzle assemblies, and filtration hardware used in polymer processing, aerospace composites manufacturing, and medical device production. The system supports Good Manufacturing Practice (GMP) workflows through audit-trail-capable temperature logging (when paired with optional data acquisition software) and meets requirements for non-destructive thermal cleaning under ASTM D3418 (Standard Test Method for Transition Temperatures of Polymers by Thermal Analysis) and ISO 11357-1 (Plastics — Differential Scanning Calorimetry). All internal wetted surfaces contact only USP Class VI-certified alumina media—free of binders, silicates, or heavy metals.

Software & Data Management

While the FTBLL12W operates as a stand-alone unit with intuitive front-panel controls, its RS485 interface enables remote monitoring and parameter configuration via PC-based terminal software (included). Optional firmware upgrades support time-stamped event logging—including setpoint changes, alarm triggers, and cycle completion—with export to CSV format for quality documentation. When integrated into validated environments, the system supports 21 CFR Part 11-compliant electronic records when used with qualified third-party SCADA or MES platforms that provide user authentication, audit trail generation, and electronic signature capability.

Applications

• Thermal cleaning of extrusion tooling: dies, adapters, screens, and breaker plates contaminated with polyolefins, PVC, TPU, or engineering resins
• Regeneration of filtration media including sintered metal filters and wire mesh screen packs exposed to high-viscosity melts
• Preventive maintenance of injection molding components such as hot runner nozzles, valve gates, and mold cavities
• Removal of carbonized residues from fiber-spinning equipment (e.g., spinneret plates in acrylic or nylon production)
• Controlled ashing of composite layup tooling prior to re-coating or surface metrology inspection
• Thermal conditioning of metallic substrates prior to PVD/CVD coating or adhesive bonding operations

FAQ

What type of media does the FTBLL12W require, and how often must it be replaced?

The system ships with USP Class VI alumina fluidization media (particle size distribution: 100–200 µm). Under typical industrial use (2–3 cycles/day), media life exceeds 24 months; replacement is indicated only when fluidization efficiency declines or ash accumulation exceeds 5% by volume.
Is compressed air supply required—and what are the specifications?

Yes: clean, oil-free, dry air at 345 kPa (50 PSI) and up to 227 L/min (8.0 CFM) is mandatory for fluidization. A refrigerated dryer and coalescing filter are strongly recommended upstream of the inlet.
Can the FTBLL12W be installed in a fume hood or vented exhaust system?

Yes—the unit includes a standard 127 mm (5 in) exhaust port compatible with ducted venting to external scrubbers or thermal oxidizers. Local exhaust ventilation must comply with OSHA 1910.1200 and ANSI Z9.2 standards.
Does Accurate Thermal Systems provide installation support and validation documentation?

Yes: factory-trained field service engineers offer turnkey installation, IQ/OQ protocol development, and on-site operational qualification support. Full traceable calibration certificates and FAT/SAT reports are available upon request.
