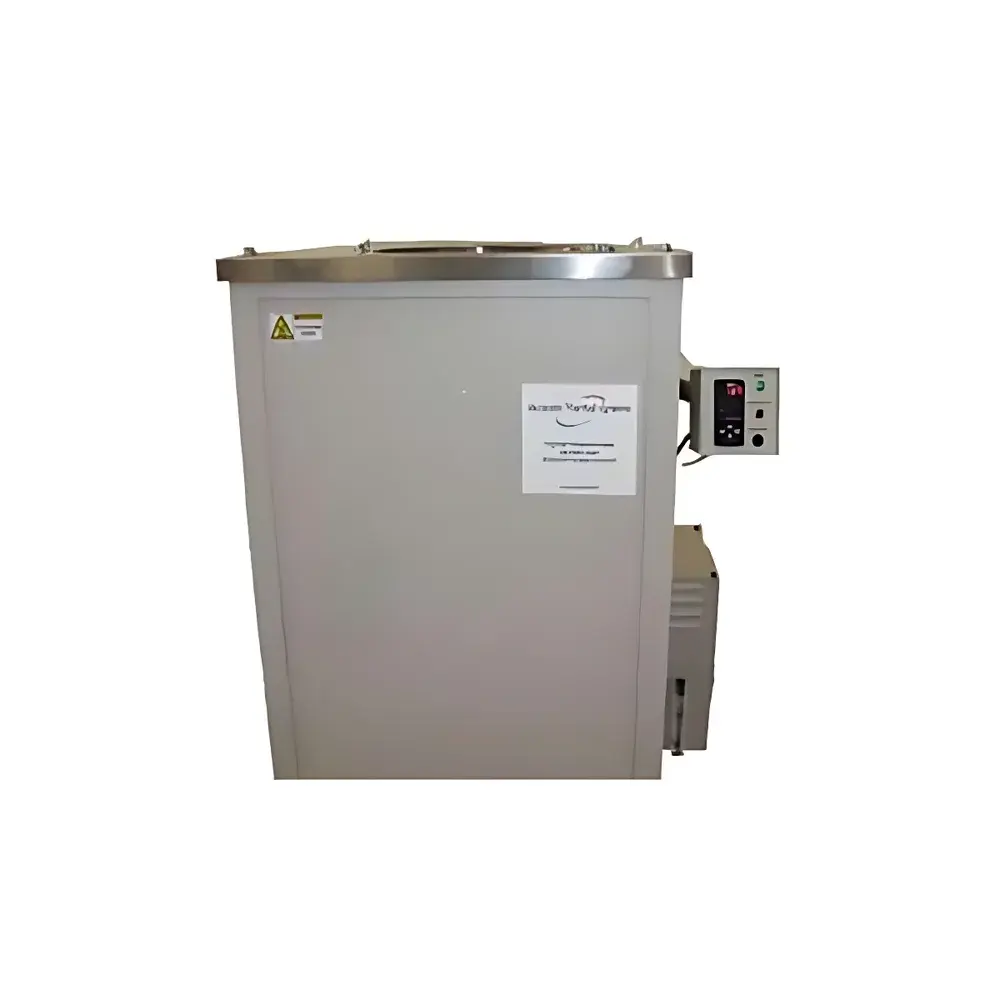

Accurate Thermal Systems FTBLL47 Fluidized Bed Temperature Bath
| Brand | Accurate Thermal Systems |
|---|---|
| Origin | USA |
| Manufacturer Type | Authorized Distributor |
| Product Origin | Imported |
| Model | FTBLL47 |
| Pricing | Upon Request |
Overview
The Accurate Thermal Systems FTBLL47 Fluidized Bed Temperature Bath is an industrial-grade thermal cleaning system engineered for the controlled, non-abrasive pyrolytic removal of organic residues—including thermoplastics, thermosets, paints, adhesives, resins, and elastomers—from extrusion tooling and precision components. Operating on the principle of fluidized bed heat transfer, the system suspends inert ceramic media (typically aluminum oxide or silicon carbide) in a vertically upward stream of heated, clean, dry air. This creates a homogeneous, high-heat-capacity pseudo-fluid medium with exceptional thermal uniformity (±3°C across working volume) and rapid heat transfer kinetics—enabling efficient thermal decomposition without mechanical wear or dimensional distortion. Designed and manufactured in the United States to meet rigorous North American and European safety standards, the FTBLL47 serves as a core thermal processing station in polymer processing, wire & cable manufacturing, and composite extrusion facilities where repeatable, residue-free tool maintenance is critical to uptime and product consistency.
Key Features

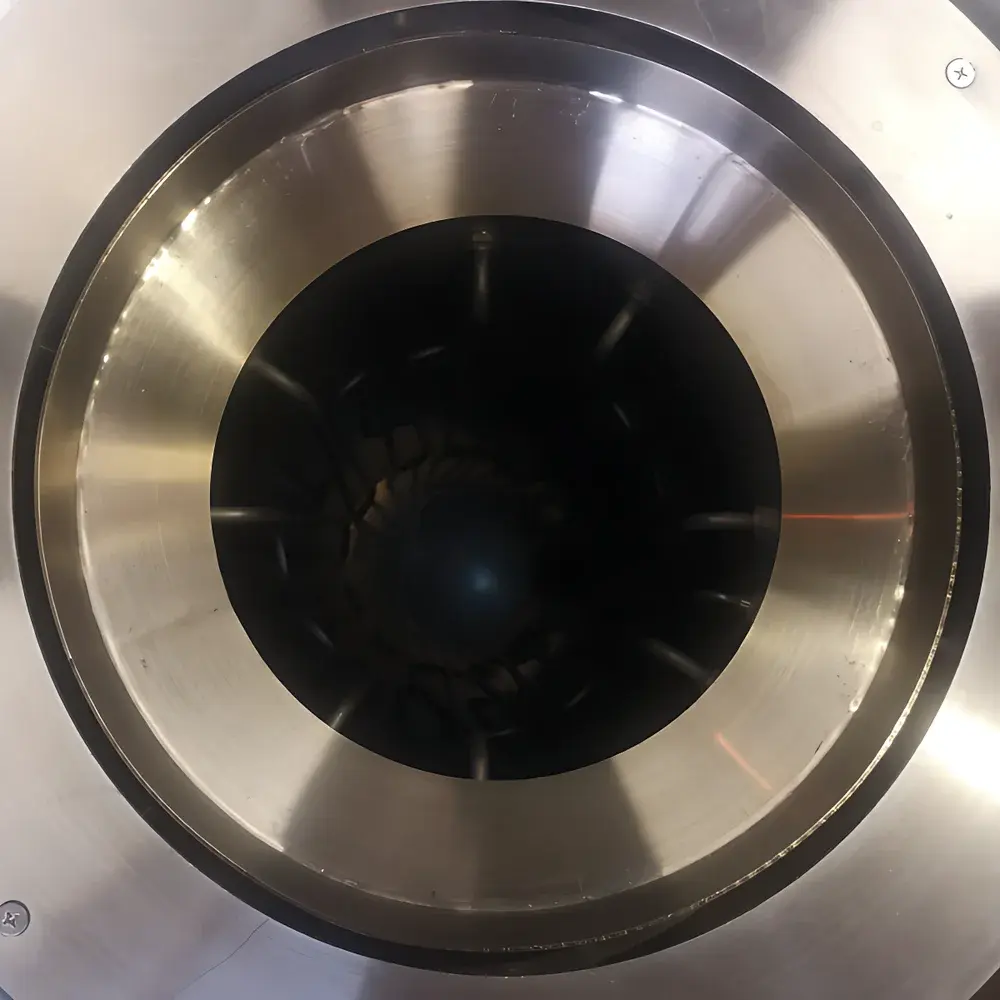

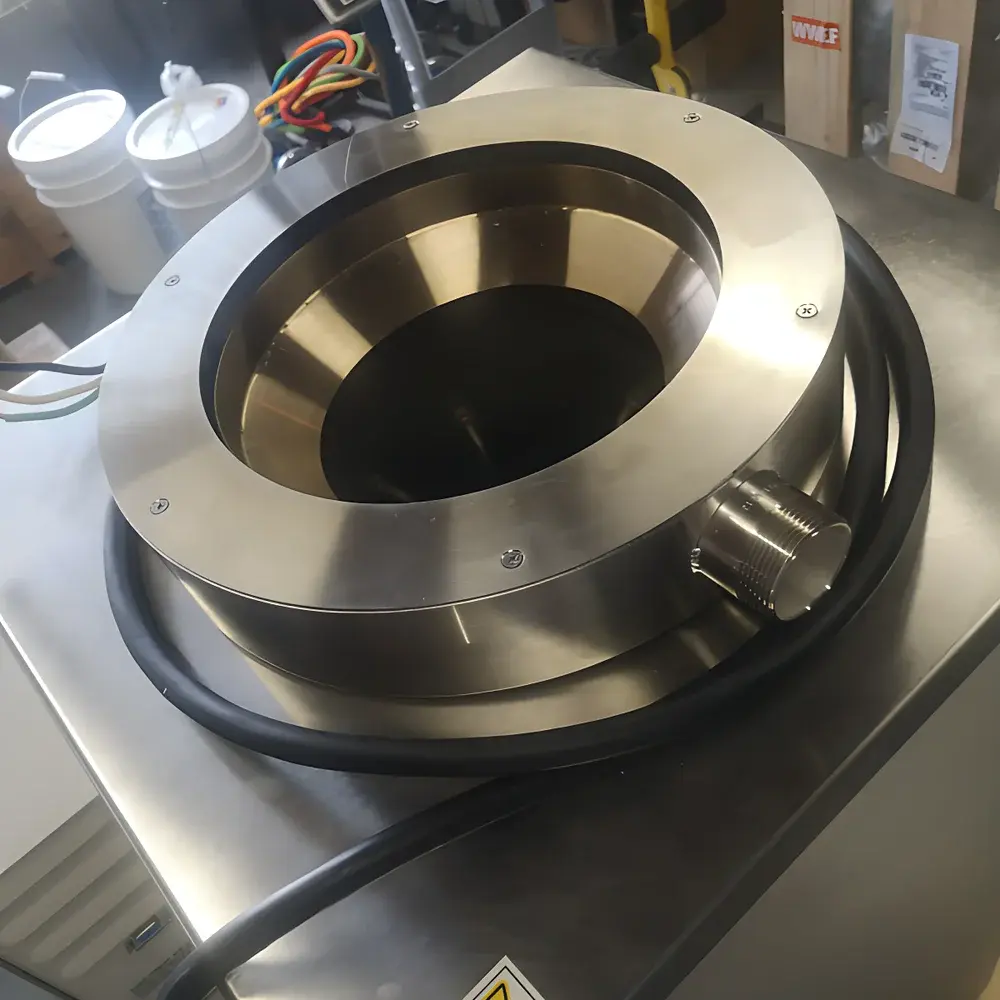

- High-capacity fluidized bed chamber: 47-inch depth with 15.8-inch internal basket diameter—accommodates large-diameter dies, multi-orifice nozzles, breaker plates, and full-length adapter flanges
- 18 kW heating capacity (480 VAC, 3-phase, wye-connected) enabling rapid ramp rates (up to 15°C/min) and stable setpoint hold within ±1.5°C
- Four-zone PID temperature controller with independent thermocouple inputs (Type K), programmable ramp-soak profiles, and real-time deviation alarms
- Automated fluidization air management: integrated pressure-regulated blower system with digital airflow monitoring (CFM display), auto-compensation for media bed density changes

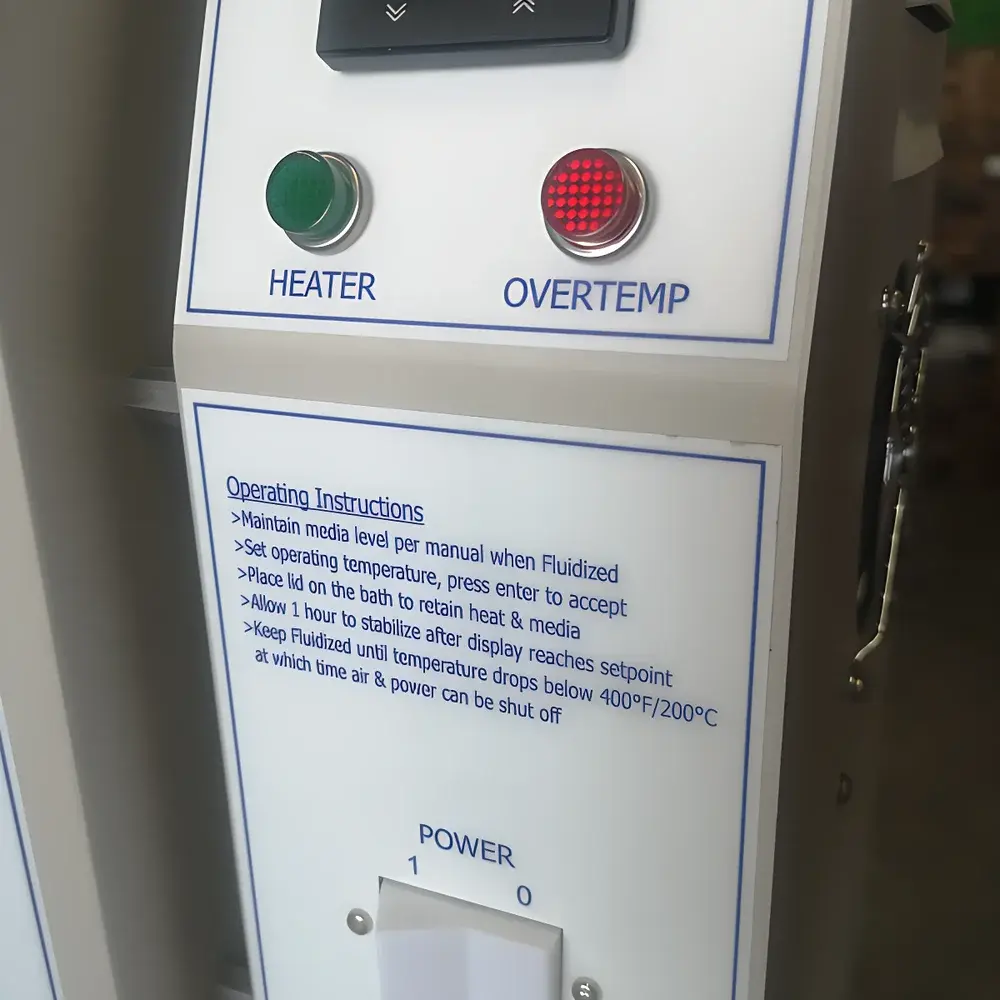

- Dual-redundant safety architecture: independent overtemperature cutoff at 610°C + low-air-pressure interlock (<60 PSI supply) disabling heater power
- Modular remote control cabinet with articulated arm mounting—adjustable in pitch, yaw, and elevation for ergonomic access and line-of-sight observation
- RS485 serial interface (Modbus RTU protocol) for PC-based logging, remote parameter adjustment, and audit-trail-enabled operation via downloadable software
Sample Compatibility & Compliance
The FTBLL47 is validated for thermal cleaning of metal tooling components including hardened steel breaker plates, tungsten-carbide-coated dies, stainless-steel screens and filters, brass or Inconel nozzle tips, and bolted flange assemblies. It complies with CE marking requirements under EU Machinery Directive 2006/42/EC and Electromagnetic Compatibility Directive 2014/30/EU. All electrical enclosures meet NEMA 12/IP54 ingress protection ratings. The system supports GLP/GMP-aligned workflows through configurable event logging (temperature, airflow, runtime, fault codes) and optional electronic signature capability when integrated with compliant LIMS or MES platforms. Exhaust ducting must connect to a certified fume extraction system meeting local occupational exposure limits (e.g., OSHA PELs for VOCs and particulates).
Software & Data Management
The included PC software (Windows-compatible, downloadable from Accurate Thermal Systems’ secure support portal) provides full bidirectional communication with the FTBLL47’s controller. Users can define multi-step thermal cycles, export time-stamped CSV logs (with ISO 8601 timestamps), generate PDF reports with operator ID and batch metadata, and configure alarm thresholds. Audit trail functionality records all parameter changes, manual overrides, and system faults with user attribution and timestamp—supporting FDA 21 CFR Part 11 compliance when deployed with validated Windows OS configurations and domain-authenticated login. Firmware updates are delivered via signed binary packages with SHA-256 verification.
Applications
- Extrusion tooling reclamation: rapid depolymerization of LDPE, HDPE, PP, PVC, and engineering polymers from die lips and mandrels
- Wire coating die refurbishment: removal of crosslinked silicone, fluoropolymer, and polyurethane residues without surface oxidation
- Composite pultrusion equipment maintenance: cleaning glass-fiber impregnation dies and resin injection manifolds
- R&D lab-scale thermal degradation studies: controlled pyrolysis of polymer formulations under inert fluidized conditions
- Pre-plating or pre-anodizing surface preparation: complete organic contaminant elimination prior to metallurgical finishing
FAQ
What types of bath media are compatible with the FTBLL47?
Aluminum oxide (Al₂O₃), silicon carbide (SiC), or zirconia (ZrO₂) granules with particle size distribution between 100–300 µm are recommended. Media must be low-volatility, chemically inert above 600°C, and free of organic binders.
Is exhaust gas treatment required?
Yes. A dedicated fume hood or ducted abatement system rated for thermal decomposition byproducts (e.g., CO, VOCs, and submicron char particles) is mandatory per OSHA 1910.1200 and local air quality regulations.
Can the FTBLL47 operate on 380 VAC / 50 Hz?
Yes. The unit supports dual voltage (380 VAC or 480 VAC), 50/60 Hz, three-phase input with wye configuration. Current draw is 27.2 A per phase at 380 VAC.
What is the typical cycle time for standard extrusion tooling?
Most breaker plates, screen packs, and single-orifice dies achieve full polymer removal in 45–60 minutes at 480–520°C, depending on residue thickness and polymer type.
Does the system include validation documentation?
Factory calibration certificates for temperature sensors and airflow transducers are provided. IQ/OQ documentation templates aligned with ASTM E2500 and ISO 9001 are available upon request for site-specific qualification.
