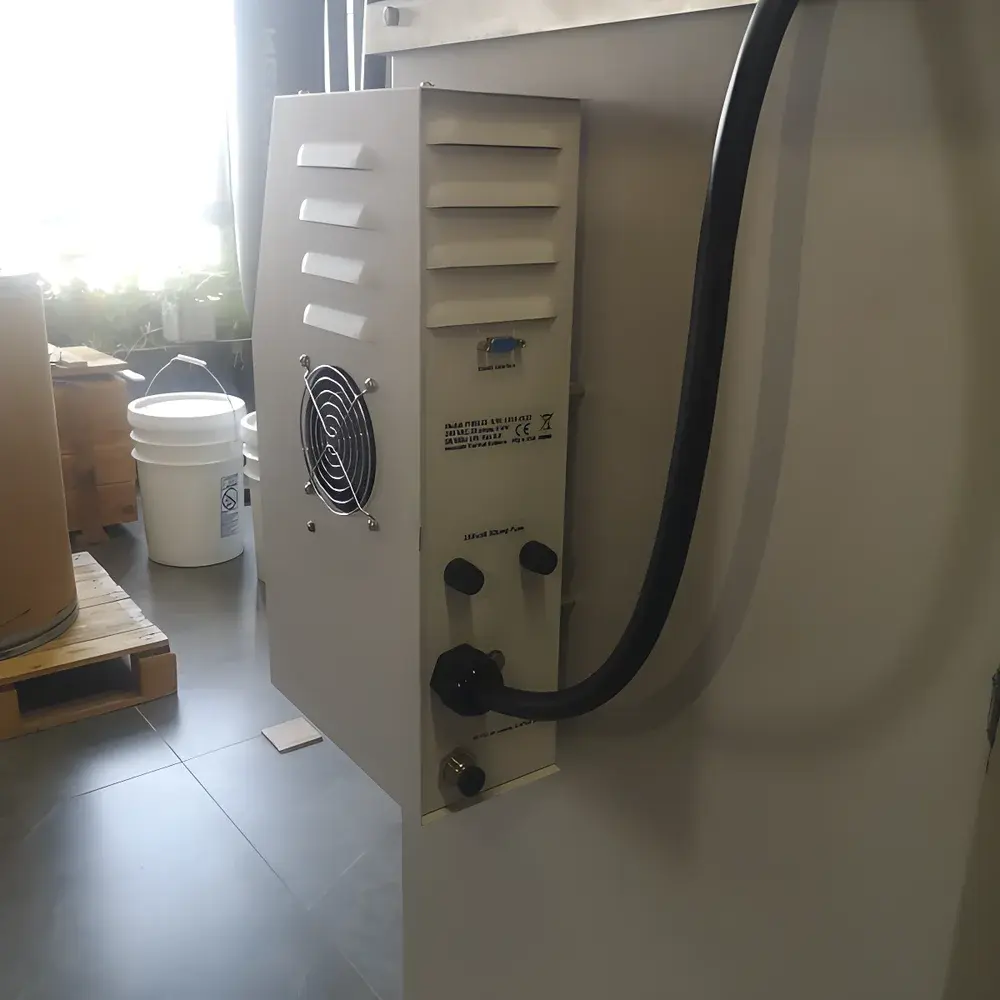

Accurate Thermal Systems FTBSL25 Fluidized Temperature Bath

Overview

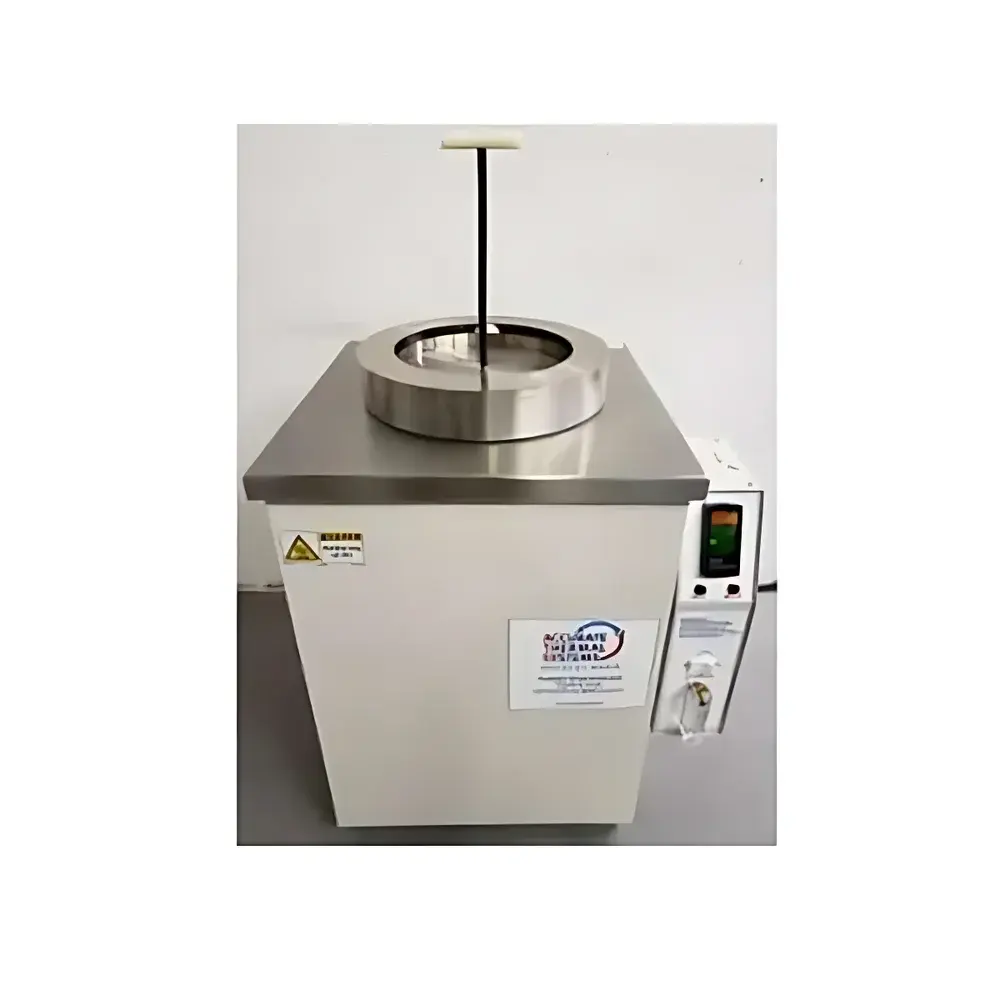

The Accurate Thermal Systems FTBSL25 Fluidized Temperature Bath is an industrial-grade, open-top thermal processing system engineered for high-reproducibility heat treatment of medical devices, metallic alloys, sensors, and electronic components. Unlike conventional salt baths or forced-air ovens, the FTBSL25 employs fluidized bed technology—where finely graded aluminum oxide (Al₂O₃) particles are suspended in a controlled upward airflow—to generate a thermally homogeneous, low-thermal-mass environment. This principle enables rapid thermal response (2–3× faster than convection ovens), minimal thermal shock during quench-in or quench-out cycles, and precise control over surface heat transfer coefficients. Designed and manufactured in the United States, the FTBSL25 meets CE marking requirements and adheres to electromagnetic compatibility (IEC 61000-6-3) and immunity (IEC 61000-6-2) standards, supporting integration into ISO 13485-certified medical device manufacturing workflows and GLP-compliant laboratory environments.

Key Features

• 6000 W high-power heating system delivering rapid ramp rates and stable operation up to 700 °C (dependent on media selection and dwell time)

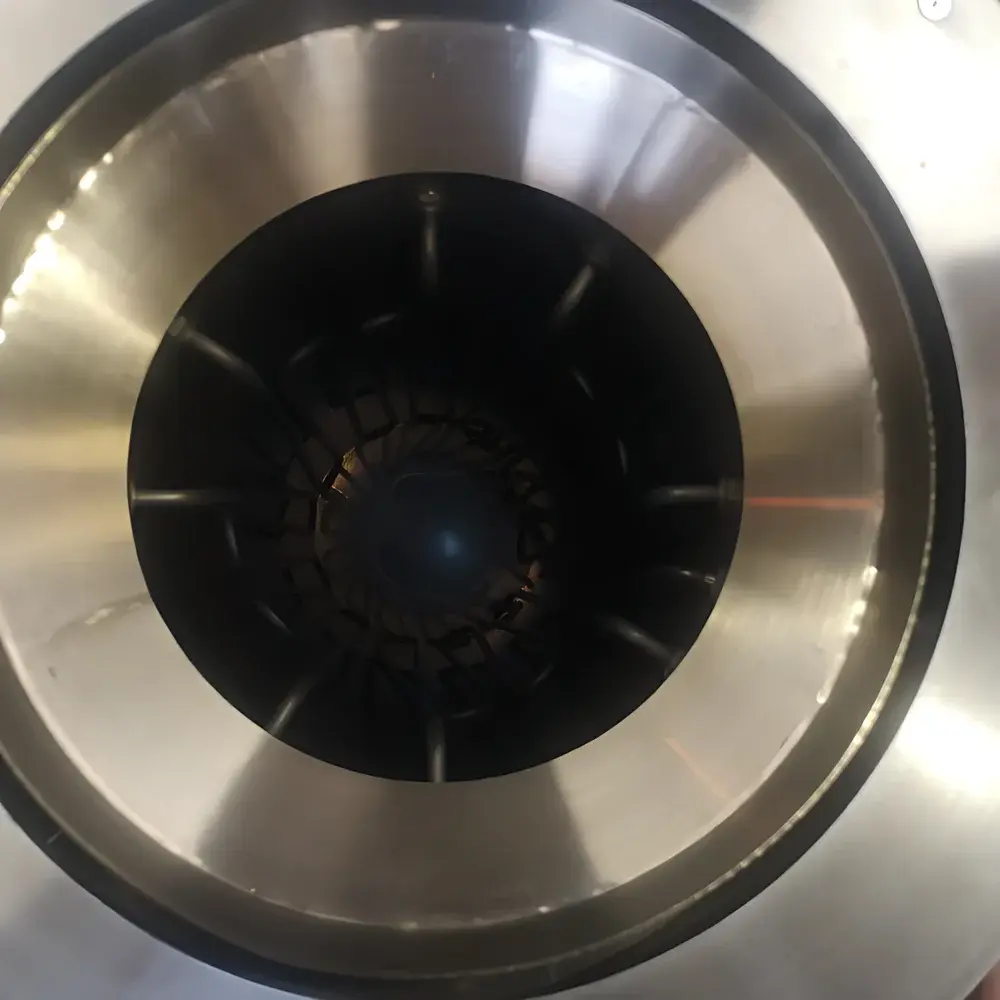

• Large-volume fluidized chamber: 7.3 in (185 mm) internal diameter × 15 in (381 mm) usable height × 25 in (635 mm) total depth—optimized for batch processing of stents, catheter components, and calibration reference blocks

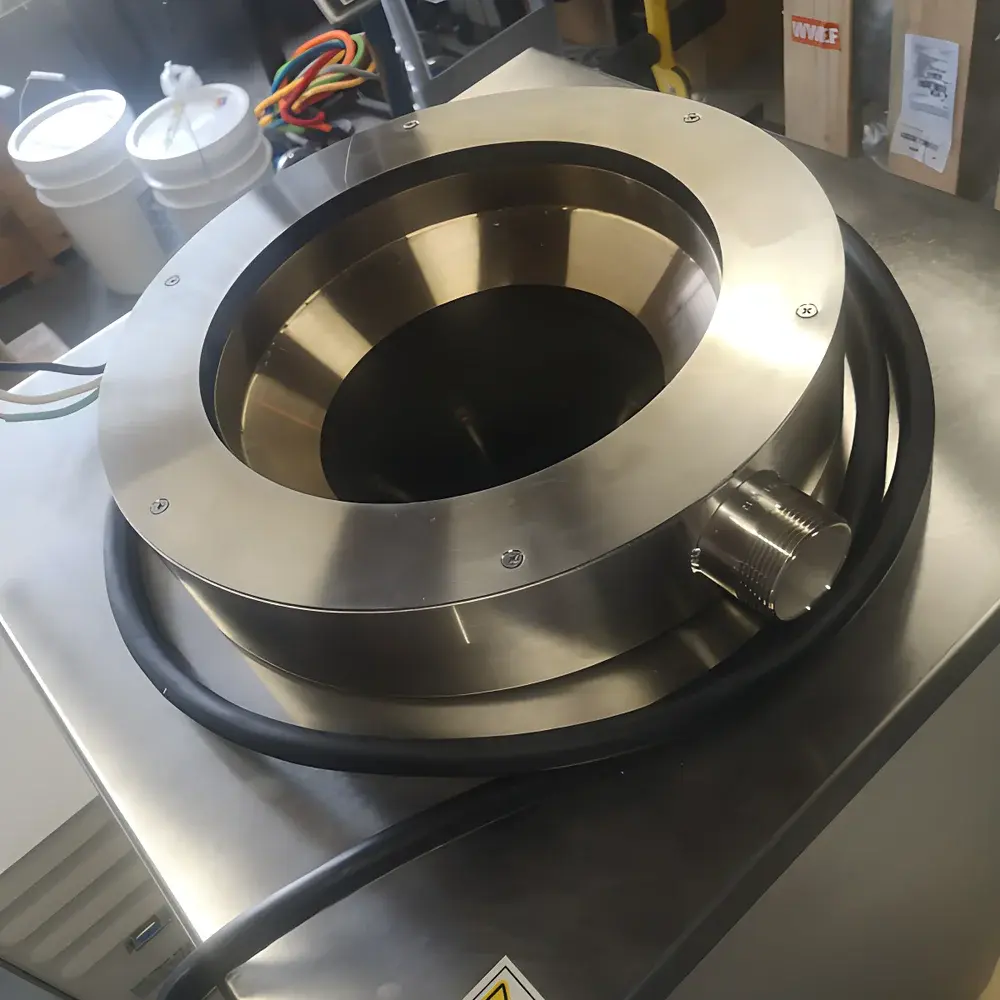

• Integrated lid assembly with elevated handle and modular mounting interface—enables user-customized suspension of fixtures, mandrels, or immersion probes without tooling
• Dual-path particle containment system: top-mounted lid physically blocks airborne media egress, while flanged edge directs overflow particles toward a recirculation channel; combined with a micro-particulate exhaust ring, centrifugal separator, and dedicated blower, it achieves >99% particle retention per ASTM F2457-22 guidance for cleanroom-adjacent operation
• Stainless steel construction with high-temp insulation and dual-stage overtemperature protection (mechanical and electronic)
• Pre-installed thermowell port for multi-point sensor insertion—supports NIST-traceable calibration of RTDs, thermocouples, or thermal imaging validation tools

Sample Compatibility & Compliance

The FTBSL25 accommodates a broad range of sample geometries—including wire forms, tubular scaffolds, PCB subassemblies, and bulk calibration standards—without requiring vacuum sealing or inert gas purging. Its open architecture supports direct immersion of temperature-sensitive instrumentation (e.g., thermocouple wires, MEMS sensors) and facilitates real-time thermal profiling via external data loggers. The system complies with FDA-relevant design controls for equipment used in USP thermal validation studies and aligns with ASTM E220, E77, and ISO/IEC 17025 requirements for temperature calibration infrastructure. Media replenishment protocols and particle loss logs are compatible with 21 CFR Part 11 audit trail documentation when paired with validated third-party data acquisition software.

Software & Data Management

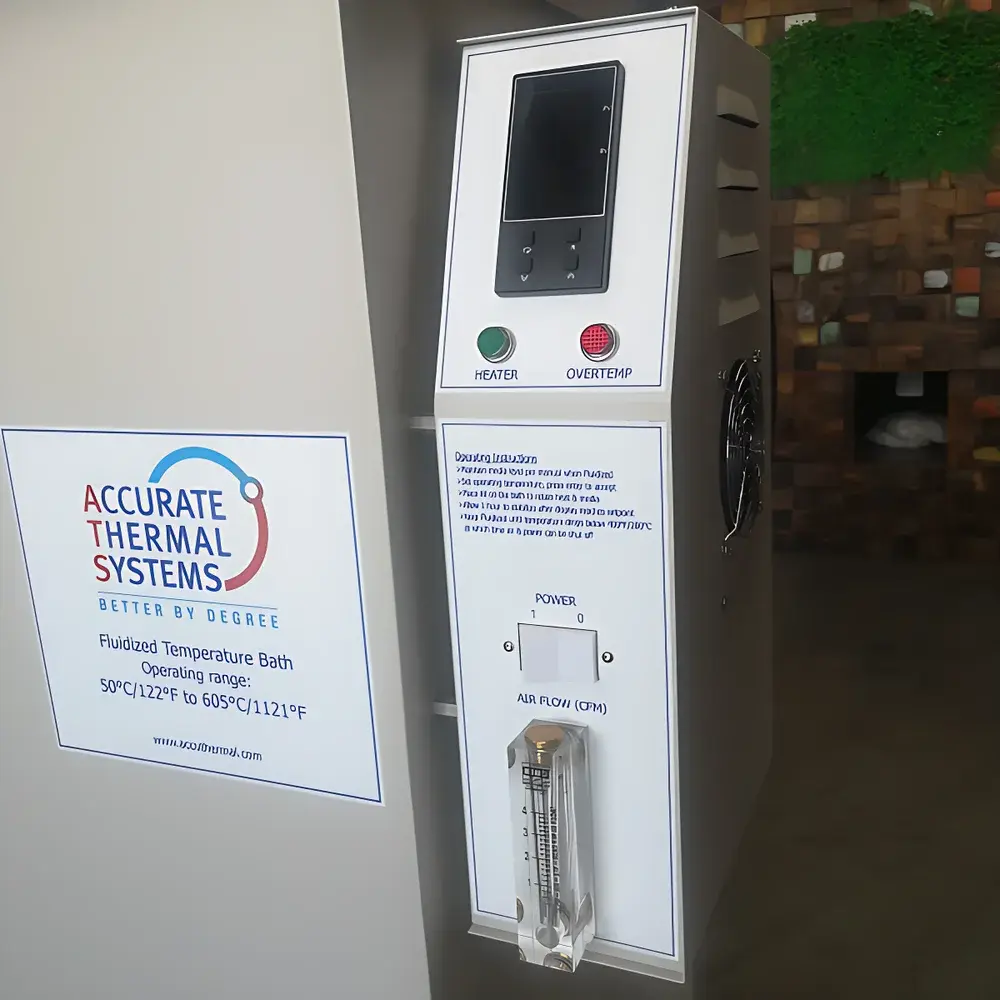

While the FTBSL25 operates via analog front-panel controls (dual PID controllers for airflow and heater zones), its analog outputs (0–10 VDC for temperature and airflow) are fully compatible with industry-standard SCADA platforms (e.g., Siemens Desigo, Ignition SCADA) and LabVIEW-based validation suites. Optional digital retrofit kits provide Modbus RTU/TCP interfaces for centralized monitoring, alarm logging, and automated cycle reporting—enabling full traceability for GMP production records. All thermal profiles generated during qualification runs (IQ/OQ/PQ) may be exported as CSV or PDF for inclusion in regulatory submissions.

Applications

• Nitinol stent shape-setting and annealing under controlled oxidative atmosphere
• Thermal cycling and aging studies of polymer-coated implants per ISO 14607
• Calibration of contact and non-contact temperature sensors against fixed-point references
• Thermal stress screening of hybrid circuit boards and flex assemblies
• Accelerated life testing of battery cell thermal management components
• Heat soak validation of sterilization packaging materials (ISO 11140-1)

FAQ

What fluidization media is supplied with the FTBSL25?
Accurate Thermal Systems ships the FTBSL25 with a pre-qualified batch of spherical aluminum oxide (Al₂O₃) media, 100–150 µm nominal particle size, certified for thermal stability and low dust generation.
Can the FTBSL25 be operated continuously at 650 °C?
Continuous operation at 650 °C is permissible with appropriate media selection and periodic airflow calibration; however, sustained use above 600 °C requires documented thermal aging assessment of insulation and gasket materials per ASTM C165.
Is the system compatible with nitrogen inerting?
Yes—the FTBSL25’s air inlet manifold accepts alternative gas feeds; nitrogen purging is supported with optional flow metering and O₂ monitoring modules.
Does the lid assembly support custom fixture mounting?
Yes—the lid features standardized 1/4″-20 threaded inserts and a reinforced perimeter rail, enabling secure attachment of user-designed jigs, rotary stages, or sensor arrays without structural modification.
What maintenance intervals are recommended?
Daily visual inspection of media level and exhaust filter loading; quarterly calibration of airflow sensor and temperature controller; annual replacement of high-temp gaskets and blower motor lubrication per OEM service bulletin V21-11/24.
