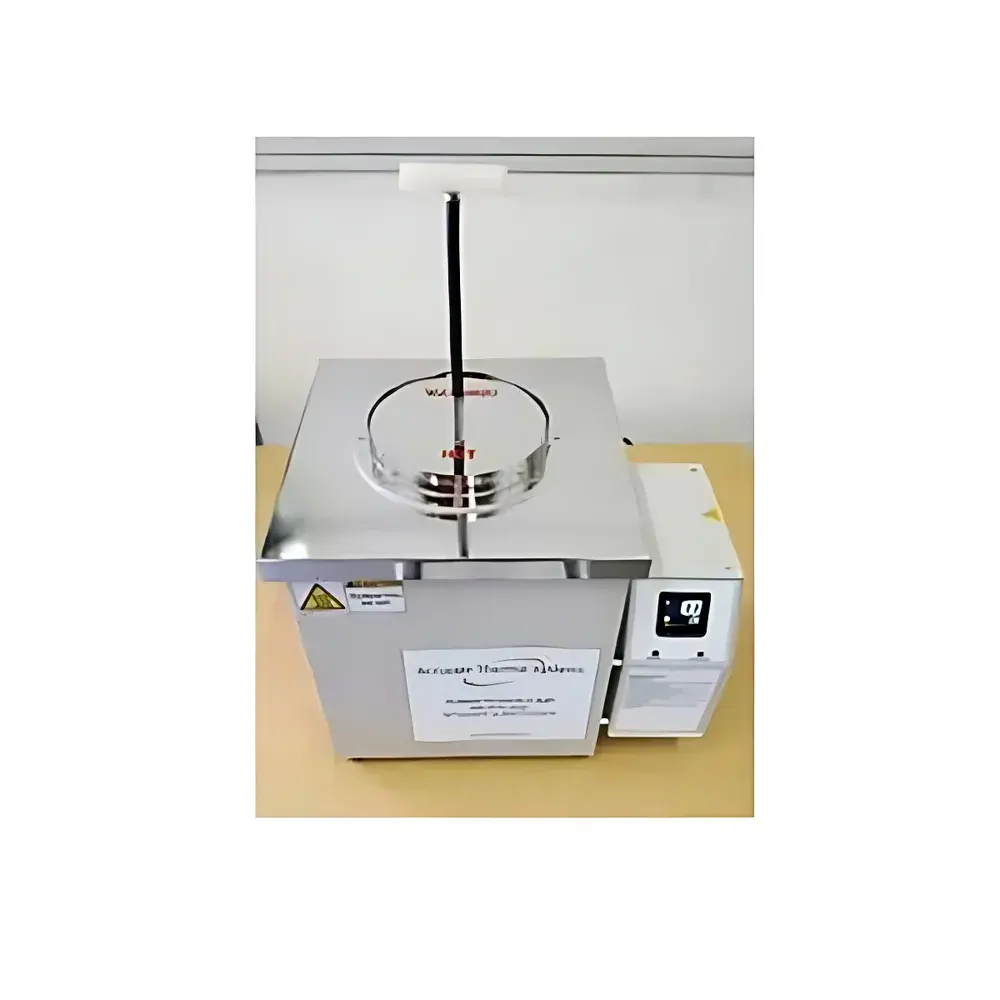

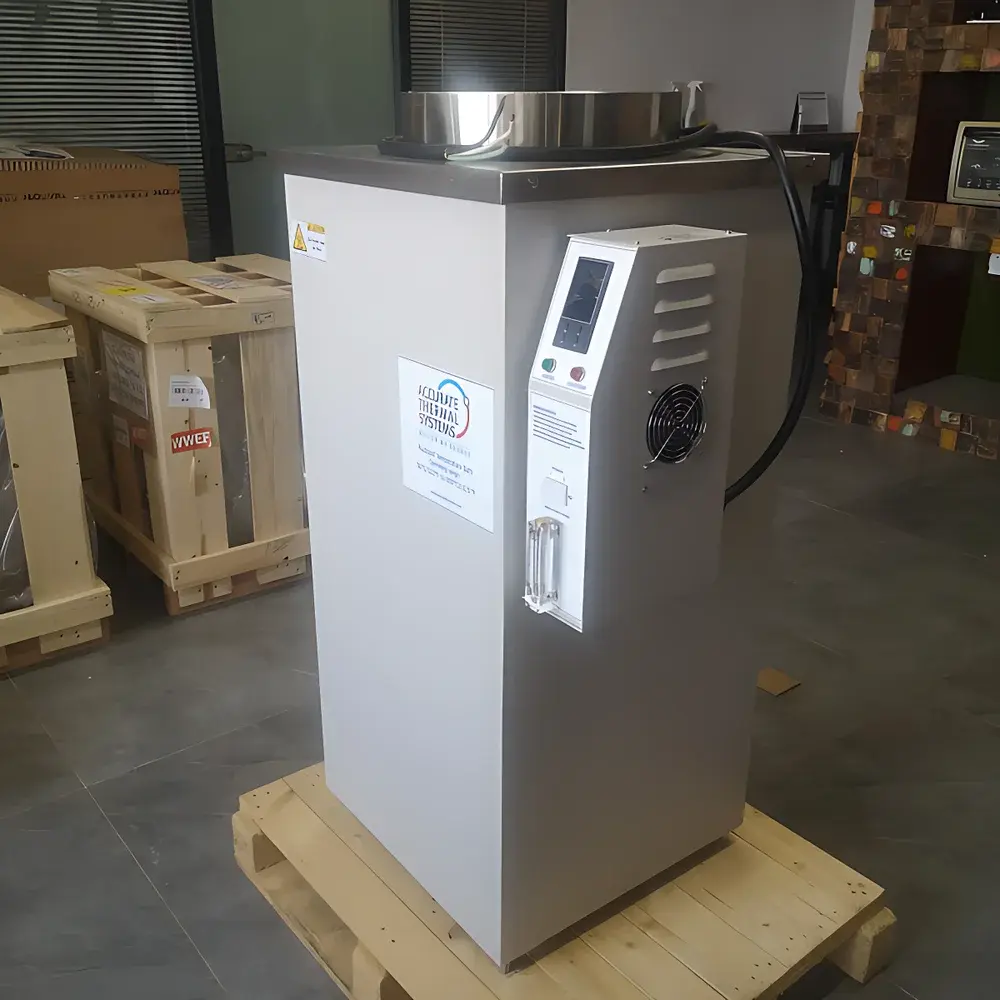

Accurate Thermal Systems FTBSL6 Fluidized Bed Temperature Bath
| Brand | Accurate Thermal Systems |
|---|---|
| Origin | USA |
| Manufacturer Type | Authorized Distributor |
| Origin Category | Imported |
| Model | FTBSL6 |
| Pricing | Available Upon Request |
Overview
The Accurate Thermal Systems FTBSL6 Fluidized Bed Temperature Bath is an engineered thermal platform designed for rapid, uniform, and controllable heating of immersed components in laboratory and pilot-scale manufacturing environments. Unlike conventional oil baths, salt baths, or convection ovens, the FTBSL6 utilizes fluidized alumina sand—fluidized by precisely regulated clean, dry air—to establish a highly responsive, low-thermal-mass heat transfer medium. This principle leverages gas-solid fluidization dynamics to achieve near-liquid thermal conductivity while eliminating risks associated with molten salts (corrosion, decomposition, fume generation) and minimizing thermal lag inherent in forced-air ovens. With over 30 years of proprietary development in fluidized bed thermal systems, the FTBSL6 delivers repeatable temperature control across its operating range (typically ambient +15 °C to 650 °C), making it a preferred solution for time-sensitive thermal processing where minimal thermal shock and negligible quenching effects are critical.
Key Features

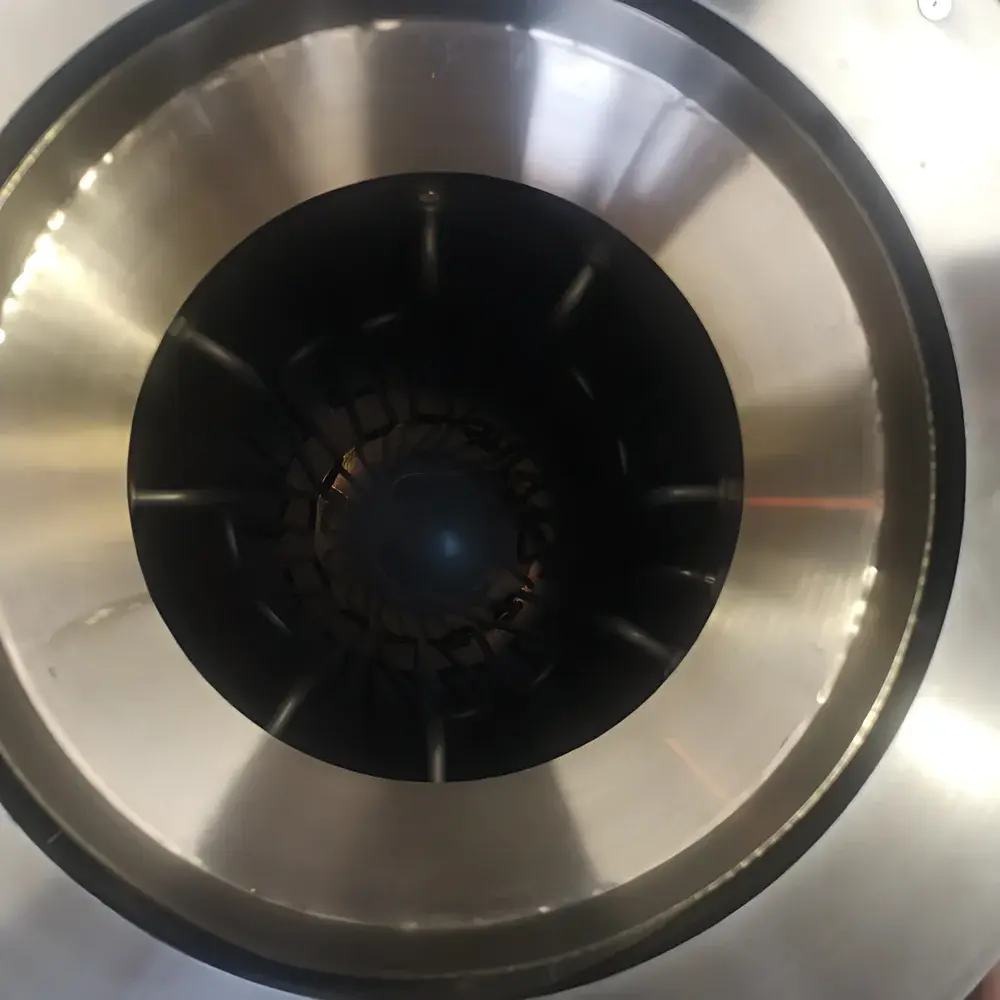

- Compact chamber dimensions: 5.3 in (135 mm) diameter × 6 in (152 mm) depth — optimized for benchtop integration without compromising usable volume
- Portable system mass: 45 lb (20.4 kg) including pre-loaded 20 lb (9.1 kg) high-purity alumina fluidization medium

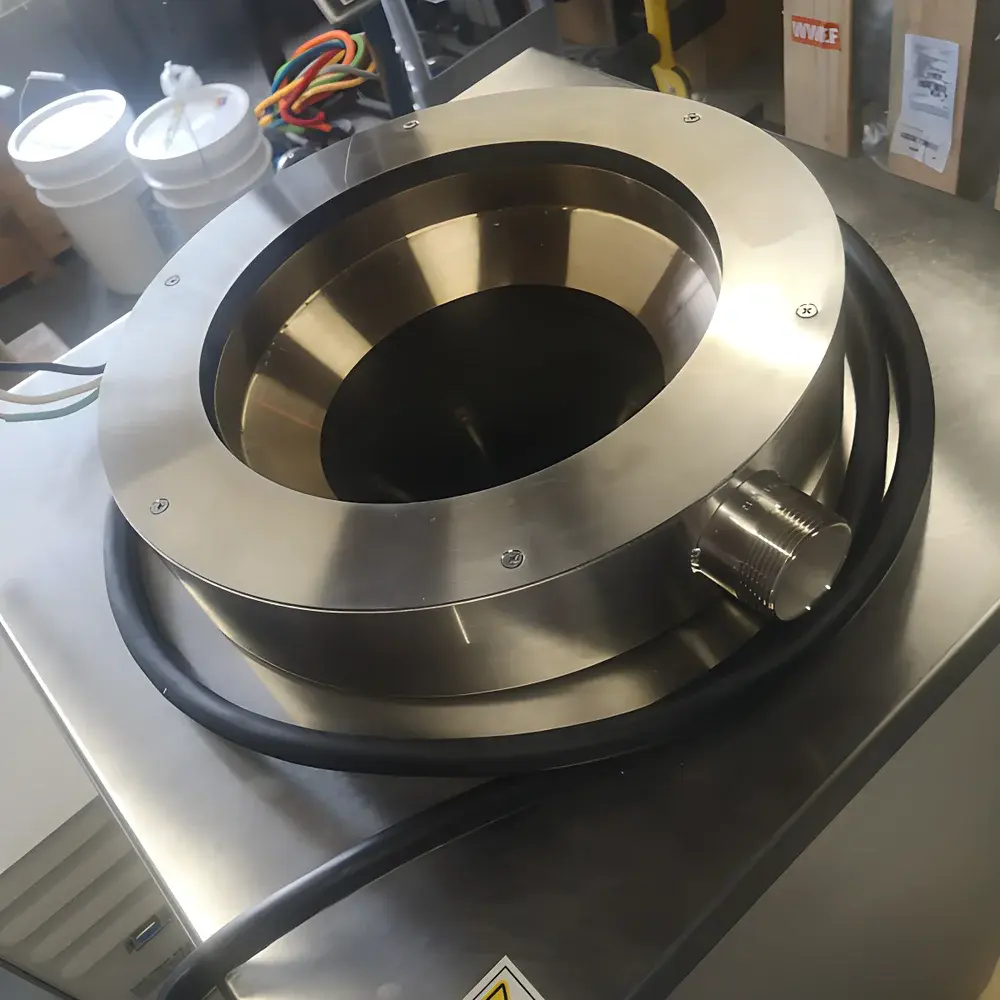

- Engineered dual-function lid assembly: Sealed top cover minimizes media loss during operation; removable handle-equipped lid enables direct immersion of calibration probes, sensor assemblies, or small tooling fixtures
- 1900 W heating capacity with PID-controlled solid-state relays, supporting stable setpoint maintenance within ±0.5 °C under steady-state conditions
- Dual-voltage compatibility: Operates on either 120 V AC, 50/60 Hz, 20 A or 240 V AC, 50/60 Hz, 10 A — configurable at time of installation
- CE-marked design compliant with EN 61000-6-3 (EMC) and EN 61000-6-2 (immunity); constructed and tested in the United States per UL 61010-1 requirements for laboratory equipment safety
Sample Compatibility & Compliance
The FTBSL6 accommodates a wide range of thermally sensitive or geometrically constrained samples—including polymer processing tools (e.g., mini-extrusion dies, rheometer barrels, melt indexers), nitinol stent mandrels, RTD/thermocouple calibration standards, microreactor cartridges, and MEMS sensor housings. Its inert alumina medium (Al2O3, ≥99.5% purity) ensures non-reactive exposure up to 650 °C. The system supports GLP-compliant workflows through traceable temperature validation protocols and is routinely deployed in ISO 13485-certified medical device manufacturing facilities and ASTM D1238/D3641-compliant polymer testing labs. Air supply requirements—clean, oil-free, dry air at 30 PSI (207 kPa) and ≤1.8 CFM (51 L/min)—align with standard laboratory compressed air infrastructure.
Software & Data Management

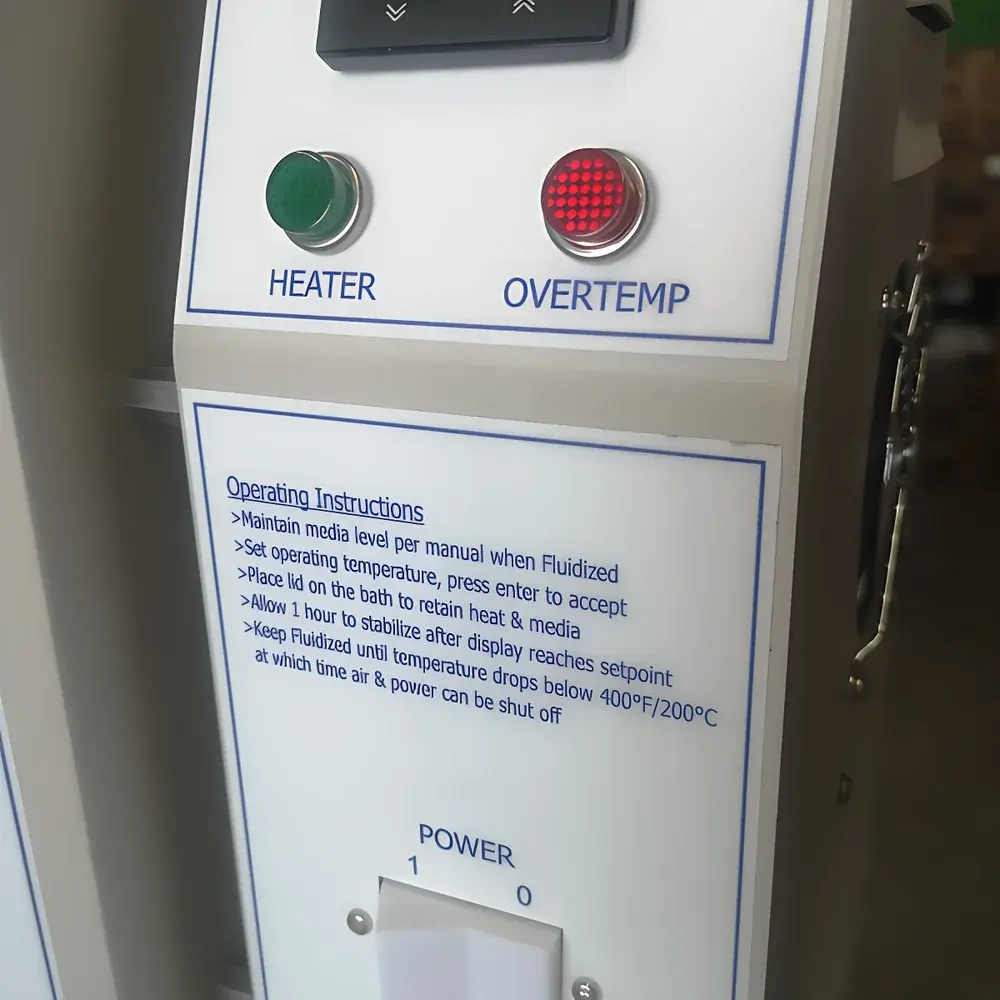

While the FTBSL6 operates via front-panel digital controller with real-time temperature display and programmable ramp/soak profiles, optional RS-485 or USB-to-serial interfaces enable integration with third-party data acquisition platforms (e.g., LabVIEW, MATLAB, or custom SCADA). Audit trails for setpoint changes, dwell times, and alarm events can be logged externally to satisfy FDA 21 CFR Part 11 requirements when paired with validated software and electronic signature controls. Firmware updates are delivered via secure firmware loader; configuration parameters are retained through power cycles.
Applications
- Thermal cleaning of polymer residue from small-diameter extrusion dies and rheological test cells
- Shape-setting of nickel-titanium (Nitinol) orthopedic and cardiovascular implants via controlled austenite finish (Af) temperature exposure
- In-situ calibration of contact temperature sensors (PRTs, thermistors, Type K/T thermocouples) using NIST-traceable reference standards
- Rapid preheating of reaction vessels and catalytic substrates prior to kinetic studies
- Controlled thermal cycling of microelectronics packaging materials to assess interfacial delamination thresholds
- Accelerated aging of elastomeric seals and gasket compounds under defined thermal stress profiles
FAQ
What air quality specifications are required for reliable fluidization?
Clean, oil-free, desiccated air at 30 PSI ±2 PSI and flow rate between 1.2–1.8 CFM is mandatory. Moisture content must be ≤−40 °C dew point; particulate filtration to 0.01 µm is recommended.
Can the FTBSL6 be used for cooling applications?
No — the system is designed exclusively for heating. Forced convective cooling requires external chilled-air manifolds or immersion in compatible cryogenic fluids, which are outside its operational scope.
Is custom lid machining supported for probe feedthroughs?
Yes — the aluminum lid is machinable onsite using standard lab-grade drill presses and taps. Accurate Thermal Systems provides dimensional drawings and tolerance guidance for user-modified configurations.
How often does the alumina medium require replacement?
Under normal use (≤600 °C, no organic contamination), the supplied 20 lb batch typically lasts >5 years. Replacement is indicated only if visible sintering, clumping, or elevated pressure drop across the distributor plate occurs.
Does the system support automated process sequencing?
Yes — via optional analog/digital I/O expansion modules that interface with PLCs or programmable logic controllers for multi-step thermal protocols with external trigger inputs and status feedback.
