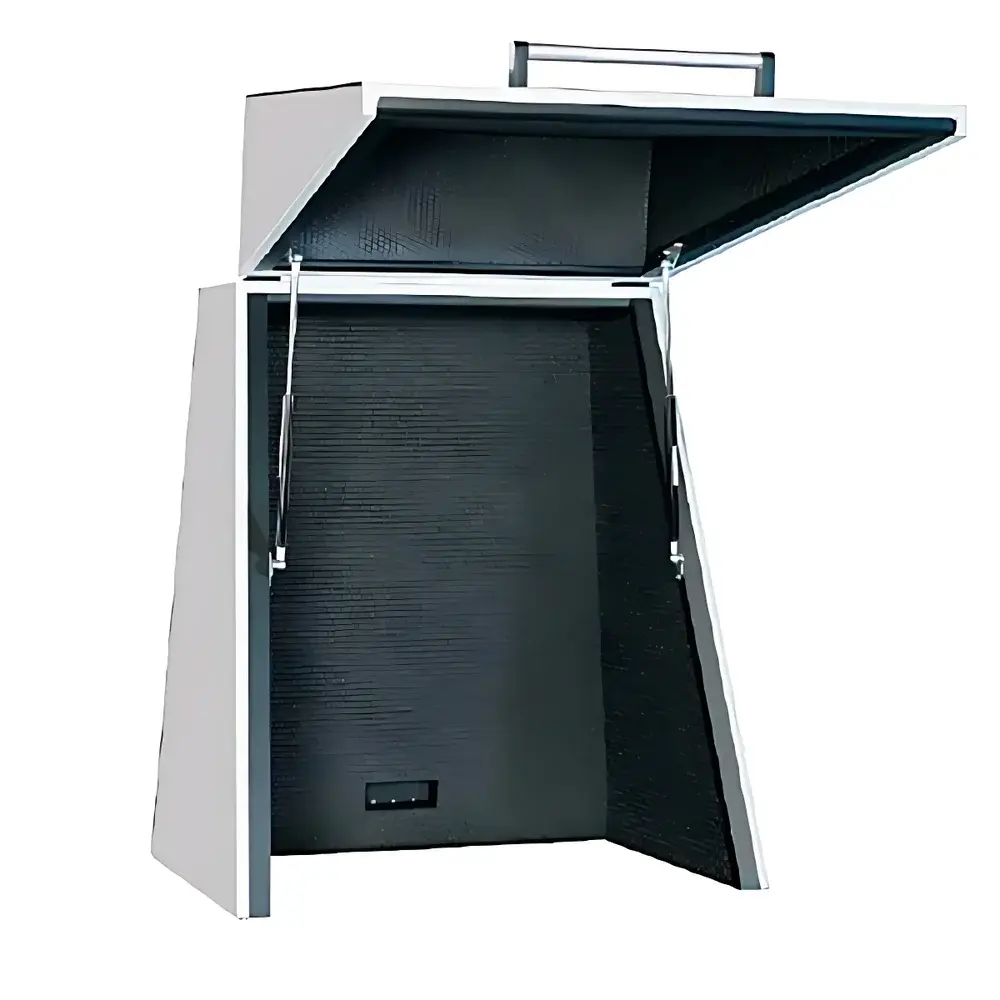

Accurion AE Series Acoustic Enclosure for Airborne Noise Isolation

Overview

The Accurion AE Series Acoustic Enclosure is a precision-engineered solution designed to suppress airborne noise in optical laboratory environments where high-sensitivity instrumentation—such as ellipsometers, interferometers, confocal microscopes, and 3D profilometers—operates. Unlike passive vibration isolation systems, which address mechanical ground-borne disturbances, the AE Series specifically targets acoustic excitation in the frequency range of 20 Hz to 10 kHz—the primary band responsible for air-coupled structural resonances, microphone interference, and thermal-acoustic drift in nanoscale optical measurements. Constructed with multi-layer composite panels featuring mass-loaded vinyl (MLV), constrained-layer damping, and acoustic foam absorption, the enclosure attenuates sound pressure levels by up to 45 dB(A) across critical mid-to-high frequencies while maintaining optical access via laminated borosilicate glass viewports (standard AR-coated). It is explicitly engineered for integration with Accurion’s active vibration isolation platforms (e.g., VarioBasic 40, i4 Large), forming a dual-layer defense: active 6-DOF motion compensation at the foundation level and broadband airborne noise suppression at the instrument envelope level.

Key Features

• Multi-layer acoustic barrier design: 3–5 mm steel outer shell + viscoelastic damping layer + high-density acoustic foam core + sealed gasketed joints
• Optically transparent front panel: 10 mm thick AR-coated borosilicate glass (transmission >92% @ 400–1100 nm), mounted on adjustable pneumatic hinges for repeatable alignment
• Modular footprint compatibility: Four standard internal dimensions (AE 200, AE 600, AE 780, AE 900) support instruments from benchtop ellipsometers to large-area surface metrology systems
• No internal power or vacuum requirements: Fully passive acoustic shielding; no fans, pumps, or active electronics inside the enclosure volume
• EMI-shielded cable ports: Conductive elastomer grommets and shielded feedthroughs for signal, power, and fiber-optic lines, compliant with EN 55032 Class B
• Integrated leveling feet with micrometer adjustment (±1.5 mm range) for precise horizontal alignment on optical tables or active isolators
• Tool-free panel removal: Quick-release latches enable rapid access without compromising acoustic seal integrity

Sample Compatibility & Compliance

The AE Series accommodates optical instruments requiring stable ambient acoustic conditions—including spectroscopic ellipsometers (e.g., Accurion i4 Large), laser Doppler vibrometers, white-light interferometers, and near-field scanning optical microscopes (NSOM). Internal clearances allow unobstructed beam paths and accommodate auxiliary stages, environmental chambers (up to 150 mm height), and motorized sample holders. All enclosures meet ISO 717-1:2015 for airborne sound insulation rating and are compatible with GLP-compliant lab infrastructure. When deployed alongside Accurion active isolators, the combined system satisfies ASTM E1777-22 (Standard Practice for Evaluating Vibration Isolation Systems) and supports audit-ready documentation per FDA 21 CFR Part 11 when integrated with validated data acquisition software.

Software & Data Management

While the AE Series itself is a passive hardware component, its performance validation and system-level qualification are supported through Accurion’s VarioControl Suite v3.2. This software enables synchronized logging of acoustic pressure (via optional external IEC 61000-4-3 compliant microphones), platform motion (from integrated accelerometers), and instrument output signals—enabling cross-correlation analysis of noise coupling pathways. Raw acoustic transfer function (ATF) data can be exported in HDF5 format for third-party spectral analysis (e.g., MATLAB, Python SciPy). Audit trails, user access logs, and configuration snapshots are retained for ISO/IEC 17025 traceability.

Applications

• Nanoscale thin-film characterization under low-noise conditions for semiconductor process control
• Low-coherence interferometry in MEMS packaging labs where HVAC-induced turbulence degrades fringe contrast
• In-situ optical monitoring of atomic layer deposition (ALD) reactors, where pump harmonics propagate via air conduction
• Quantitative phase imaging (QPI) in live-cell microscopy, where airborne vibrations induce phase noise indistinguishable from biological dynamics
• Calibration of reference photodetectors and radiometric standards requiring <0.05% intensity stability over 60-minute acquisitions

FAQ

Can the AE Series be used without an active vibration isolation platform?
Yes—it provides standalone airborne noise attenuation. However, optimal performance for sub-nanometer optical metrology requires concurrent suppression of both mechanical and acoustic disturbances; pairing with an active isolator is strongly recommended.
Are custom port configurations available for fiber-optic or vacuum feedthroughs?
Yes. Accurion offers OEM engineering services for non-standard apertures, including CF-35 vacuum flanges, SMA-905 optical connectors, and liquid-cooling line penetrations—subject to acoustic leakage modeling and pre-delivery transmission loss verification.
Does the enclosure affect thermal stability inside the chamber?
No. The multi-layer construction minimizes convective exchange while avoiding thermal bridging; internal temperature gradients remain ≤0.15 °C/h under steady-state lab conditions (23 ± 0.5 °C), verified per ISO 14644-1 Class 5 protocols.
Is acoustic transparency testing data provided for each unit?
Yes. Each shipped enclosure includes a certified acoustic insertion loss report (1/3-octave band, 50–10,000 Hz), measured per ISO 10140-2 in an accredited reverberation chamber.
