Overview

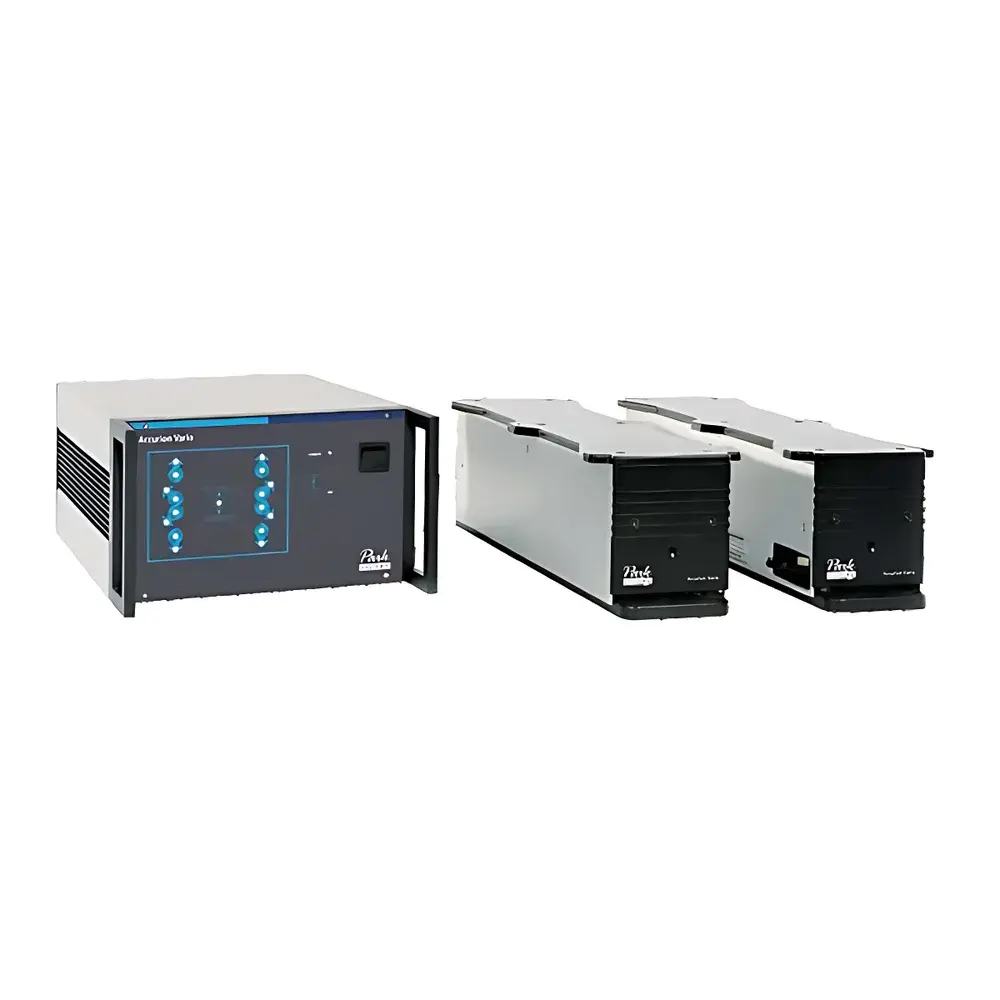

The Accurion VarioBasic Series is a modular, manually adjustable active vibration isolation system engineered for high-precision optical instrumentation operating in challenging laboratory environments. Unlike passive pneumatic or elastomeric isolation platforms, the VarioBasic employs real-time, closed-loop active control across all six degrees of freedom (6-DOF) — three translational (X, Y, Z) and three rotational (pitch, yaw, roll). Its core principle relies on high-sensitivity piezoelectric accelerometers that continuously monitor ground- and structure-borne vibrations (e.g., building sway: 5–30 Hz vertical, 0.5–10 Hz horizontal; machinery noise: 10–500 Hz; acoustic excitation: >20 Hz). Detected signals are processed by a dedicated digital control unit, which drives electromagnetic actuators to generate precisely timed counter-forces — effectively canceling incoming disturbances before they propagate to the supported payload. This architecture eliminates low-frequency resonance peaks inherent in passive systems and delivers broadband attenuation from as low as 0.6 Hz up to 200 Hz, making it especially suited for nanoscale metrology, interferometry, ellipsometry, and 3D surface profilometry where sub-nanometer positional stability is non-negotiable.

Key Features

• True 6-DOF active vibration cancellation with real-time feedback control
• No low-frequency resonance — stable performance down to 0.6 Hz (select models), surpassing pneumatic isolators’ fundamental limitations
• Exceptionally fast settling time: ≤ 0.3 seconds after step disturbance, enabling rapid instrument repositioning and throughput-critical workflows
• Modular design: VarioBasic 40, 60, and 90 modules accommodate payloads from 0–300 kg to 0–600 kg per unit, scalable via multi-module integration
• Compact footprint and tool-free mechanical integration — mounts beneath optical tables, microscope bases, or metrology stages without structural modification
• Zero compressed air dependency — operates solely on standard AC power, reducing facility infrastructure requirements and operational overhead
• Manual load adjustment mechanism ensures optimal actuator pre-load and dynamic range tuning for varying payload mass and center-of-gravity configurations
• High inherent stiffness at 1 Hz (20–30× greater than conventional passive isolators), minimizing drift and thermal drift-induced positional error

Sample Compatibility & Compliance

The VarioBasic Series is compatible with a broad spectrum of high-resolution optical instruments, including but not limited to spectroscopic ellipsometers (e.g., Accurion’s i4-Large), white-light interferometers, atomic force microscopes (AFM), scanning probe systems, and confocal 3D profilometers. Its mechanical interface adheres to ISO 20483-compliant mounting standards and supports M6/M8 threaded inserts for rigid coupling. While the system itself does not carry CE marking under EU Machinery Directive (as it functions as a component rather than standalone equipment), its control electronics comply with IEC 61000-6-3 (EMC emission) and IEC 61000-6-2 (immunity) standards. Integration into GxP-regulated environments (e.g., ISO 17025-accredited calibration labs or FDA-regulated R&D facilities) is supported through documented installation qualification (IQ) protocols and traceable calibration of sensor gain and actuator response curves — essential for audit readiness under 21 CFR Part 11 and GLP/GMP frameworks.

Software & Data Management

The VarioBasic controller includes embedded firmware with configurable filter profiles, gain scheduling, and real-time diagnostic monitoring via USB-C or RS-232 interface. Although the base model operates as a stand-alone “button-and-go” system (no PC required), optional firmware upgrades enable remote parameter configuration and vibration spectrum logging using Accurion’s open-protocol ASCII command set. Logged acceleration data (time-domain and FFT spectra) can be exported in CSV format for post-processing in MATLAB, Python (SciPy), or LabVIEW environments. Audit trails — including timestamped configuration changes and system health events — are stored in non-volatile memory and accessible via serial query, satisfying basic data integrity requirements for regulated laboratories. No proprietary cloud service or vendor-locked software is required for routine operation.

Applications

• Nanoscale thin-film characterization using imaging ellipsometry (e.g., i4-Large platform stabilization)
• Sub-angstrom surface topography mapping with optical 3D profilers under ambient lab conditions
• Long-integration-time interferometric measurements requiring <1 nm RMS positional stability over minutes
• Stabilization of laser-based metrology systems sensitive to floor-borne vibrations below 5 Hz
• Integration into cleanroom-compatible optical benches where compressed air lines are prohibited or impractical
• Multi-axis motion systems requiring simultaneous suppression of translational and rotational disturbances

FAQ

Does the VarioBasic require compressed air or external vacuum sources?
No — it operates exclusively on standard AC power (100–240 VAC, 50/60 Hz) and contains no pneumatic components.
Can multiple VarioBasic modules be synchronized for larger optical tables?
Yes — modules operate autonomously but maintain phase coherence when installed under a common rigid platform; no master-slave synchronization hardware is needed.
What is the recommended maintenance interval for the VarioBasic system?
No scheduled maintenance is required; periodic visual inspection of mounting interfaces and verification of sensor calibration (annually or after mechanical shock) is advised.
Is the system compatible with ISO Class 5 or higher cleanroom environments?
Yes — the fully enclosed actuator housing and absence of outgassing materials meet ISO 14644-1 particle emission requirements for Class 5 when installed with appropriate filtration of ambient airflow.
How is load capacity verified during installation?
Each module includes a calibrated manual preload indicator and a mechanical stop to prevent over-compression; final load verification is performed using static deflection measurement per ISO 20483 Annex B.
