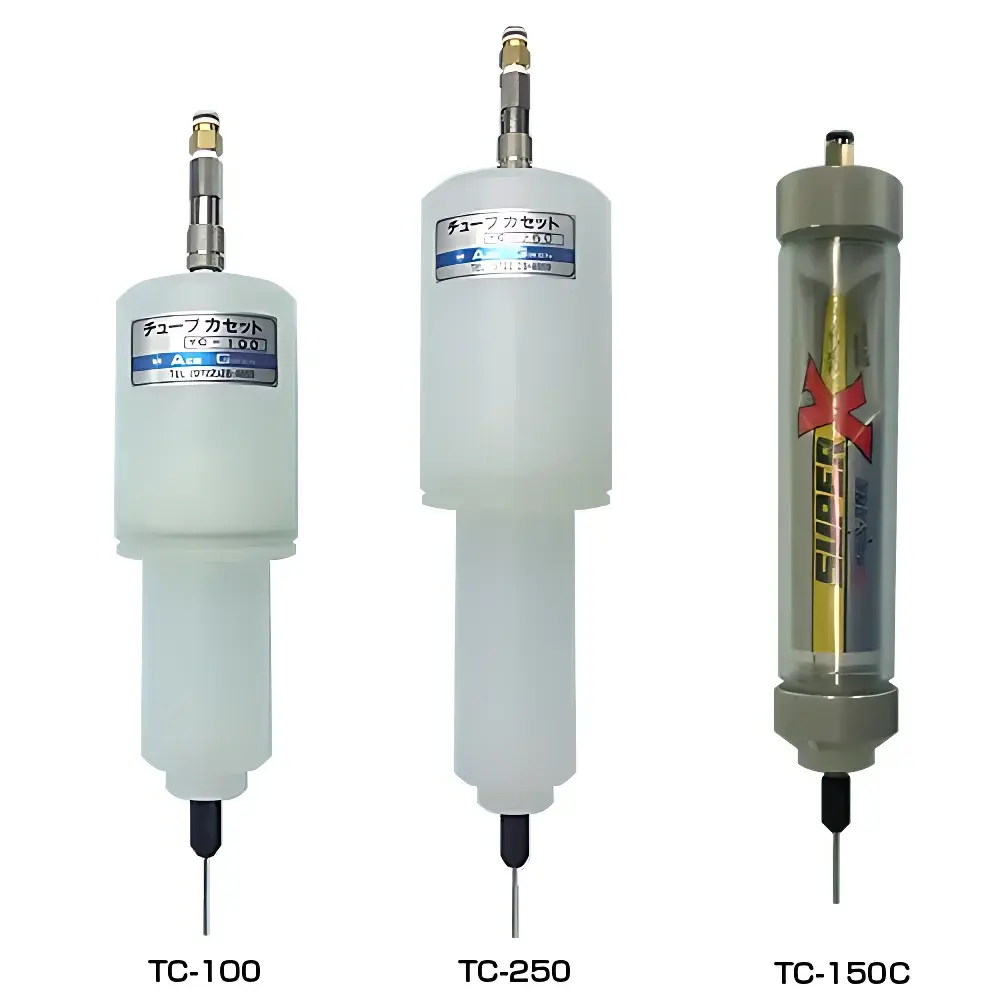

ACE GIKEN TC-100/TC-250/TC-150C Pneumatic Cartridge Dispenser System for Sterile Bioprocessing

Overview

The ACE GIKEN TC-100/TC-250/TC-150C Pneumatic Cartridge Dispenser System is an engineered solution designed for precise, contamination-controlled dispensing of viscous biological reagents—including cell culture media supplements, hydrogels, encapsulation polymers, and sterile adhesives—in aseptic bioprocessing environments. Unlike manual or peristaltic dispensing methods, this system operates on regulated compressed air pressure applied uniformly to the cartridge base, enabling consistent volumetric extrusion from the root upward—minimizing air entrapment, shear-induced denaturation, and residual material waste. Its construction from electropolished SUS314 stainless steel ensures compatibility with repeated vacuum sterilization cycles (up to 121 °C, 20 min), meeting ISO 13485-aligned cleanroom handling requirements for Class A/B environments. The system is not a standalone reactor but a critical ancillary unit integrated into closed-system cell therapy workflows, particularly for automated loading of hydrogel-based 3D scaffolds, microcarrier suspensions, or cryopreservation formulations into bioreactor cartridges or cryovials.

Key Features

• Root-driven pneumatic dispensing architecture eliminates tip clogging and ensures complete cartridge evacuation—critical for high-value biologics where residual volume must be < 0.5 %.
• Modular cartridge interface compatible with standard Luer-lock and ISO 8536-4 compliant 100 g, 150 g, and 250 g sterile single-use cartridges—no adapters or tooling required.
• SUS314 stainless steel body with passivated surface finish (Ra ≤ 0.4 µm) resists pitting corrosion in chloride-rich buffers and withstands repeated autoclave-compatible vacuum sterilization.
• Ergonomic lever-free actuation: pressure regulation via external 0–4 bar precision regulator (not included) enables reproducible flow rates across viscosity ranges from 100 to 100,000 mPa·s (Brookfield LV spindle @ 12 rpm).
• No internal seals or O-rings in contact with product path—eliminates extractables risk and simplifies validation under ICH Q5A and USP .

Sample Compatibility & Compliance

The TC-series accommodates non-Newtonian and shear-thinning formulations commonly used in regenerative medicine, including alginate, gelatin-methacryloyl (GelMA), fibrinogen-thrombin mixtures, and recombinant laminin solutions. All wetted surfaces comply with ASTM F899-22 for surgical stainless steel and meet EU Directive 2002/72/EC for food-contact materials—providing traceability for GMP-compliant documentation packages. Vacuum sterilization validation follows ISO 17665-1:2019 protocols; full cycle reports (including chamber temperature mapping and Bowie-Dick testing logs) are supported during IQ/OQ execution. The system is routinely deployed in facilities operating under FDA 21 CFR Part 11-compliant electronic batch records when paired with validated pressure transducers and time-stamped dispensing logs.

Software & Data Management

As a hardware-only dispensing platform, the TC-100/TC-250/TC-150C does not include embedded firmware or digital interfaces. However, it is fully interoperable with third-party process control systems via analog 4–20 mA pressure feedback loops or discrete 24 VDC trigger inputs. Integration with SCADA platforms (e.g., Siemens Desigo CC, Rockwell FactoryTalk) enables audit-trail generation for dispensing events—including timestamp, applied pressure setpoint, and cumulative runtime—supporting ALCOA+ data integrity principles. Optional pressure data loggers (e.g., Omega DP25B) can be installed upstream to generate CSV-exportable records compliant with Annex 11 and EU GMP Annex 11 requirements.

Applications

• Precise loading of thermosensitive hydrogels into biodegradable microcarriers prior to hMSC expansion in stirred-tank bioreactors.
• Controlled deposition of fibrin glue onto decellularized cardiac patches during tissue engineering assembly.
• Low-shear transfer of cryoprotectant cocktails into controlled-rate freezers for iPSC-derived cardiomyocyte banking.
• Reproducible dosing of enzyme inhibitors (e.g., dispase, collagenase IV) into dissociation workflows without foaming or activity loss.
• Fill-finish operations for clinical-grade exosome isolation kits using size-exclusion chromatography columns.

FAQ

Is the TC-100/TC-250/TC-150C certified for use in ISO Class 5 cleanrooms?
Yes—when assembled with certified sterile cartridges and subjected to full-cycle vacuum sterilization per ISO 13485 Annex B, the unit meets ISO 14644-1 Class 5 particulate limits post-sterilization.
Can it dispense non-sterile industrial adhesives?
While technically capable, ACE GIKEN specifies its intended use exclusively for pharmaceutical-grade and biologics applications; off-label use voids warranty and regulatory compliance statements.
What vacuum sterilization parameters are validated?
Validated cycle: 121 °C, 20 minutes, minimum chamber vacuum of –95 kPa, with temperature uniformity ±0.5 °C across all contact surfaces.
Does the system support integration with robotic liquid handlers?
Yes—mechanical mounting brackets (M4 threaded inserts) and pneumatic quick-connect ports enable rigid coupling to UR5e or KUKA KR6 R900 robotic arms using ISO 9409-1-200-4-B flanges.
Are replacement cartridges supplied by ACE GIKEN or third parties?
ACE GIKEN provides OEM-certified cartridges with end-to-end sterility assurance (SAL 10⁻⁶); third-party cartridges are not qualified for GMP use and may compromise system validation status.
