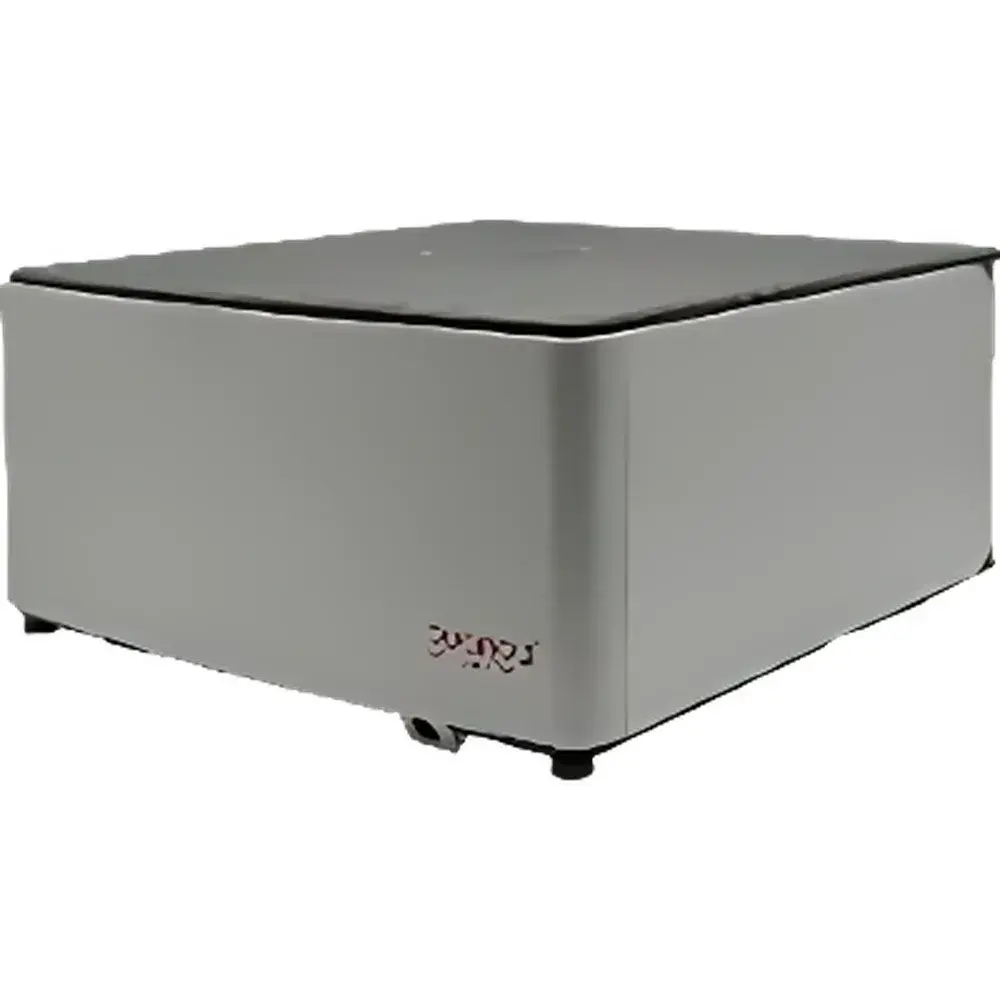

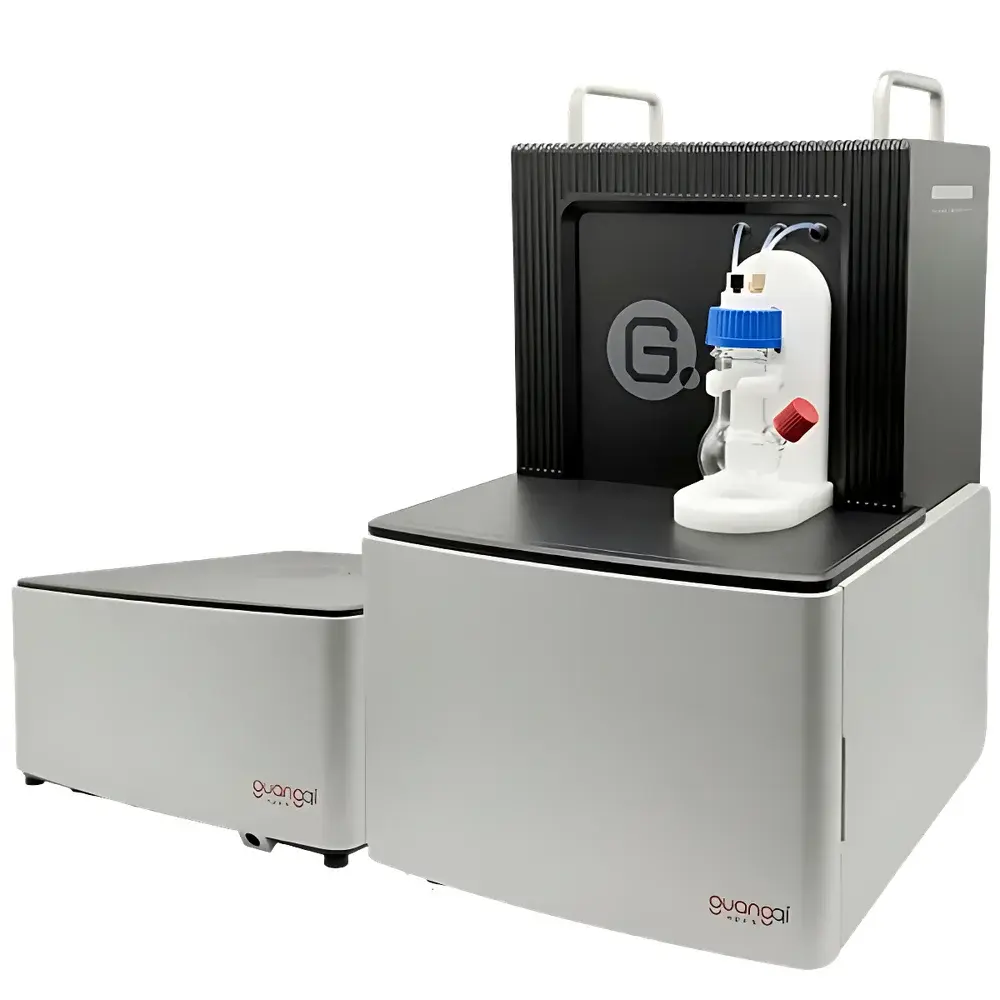

Acona A7000AD Optical Particle Counter

Overview

The Acona A7000AD Optical Particle Counter is an advanced, laboratory-grade particle sizing and counting instrument engineered for high-fidelity analysis of suspended particulates in liquid media. It operates on the Single Particle Optical Sensing (SPOS) principle — a direct, quantitative detection method where individual particles passing through a focused optical sensing zone are measured in real time via dual-mode photodetection: light extinction (for robust volumetric response across larger particles) and light scattering (for enhanced sensitivity to sub-micron species). This hybrid optical architecture enables simultaneous high-resolution sizing and absolute counting across an exceptionally wide dynamic range of 0.5–400 µm — a capability critical for applications demanding trace-level large particle detection (LPC), such as semiconductor slurry qualification, parenteral drug product stability assessment, and advanced material dispersion characterization.

Key Features

• Integrated Automatic Dilution System: Eliminates manual dilution errors and operator variability by dynamically adjusting sample concentration in real time. The system ensures optimal particle flux through the sensor aperture, maintaining measurement fidelity even for highly concentrated suspensions (e.g., CMP slurries, nanoparticle dispersions).
• Dual-Physics SPOS Detection: LE400 optical sensor combines extinction and scattering modalities within a single flow path, delivering balanced sensitivity for both fine (100 µm) particles without mode-switching artifacts or calibration discontinuities.
• Ultra-High Resolution Data Acquisition: 1024 independent size channels with 0.01 µm bin width enable true deconvolution of multimodal distributions — resolving discrete peaks from complex mixtures (e.g., 0.8 µm, 2 µm, and 5 µm reference standards) that conventional 8- or 16-channel instruments misrepresent as broad, overlapping envelopes.
• 10 ppt Sensitivity Threshold: Capable of detecting rare, large-particle events at ultra-low concentrations — essential for monitoring aggregation onset in biopharmaceutical formulations and verifying filtration integrity in cleanroom-fluid systems.
• Robust Fluidic Architecture: Precision-machined sapphire flow cell, low-dead-volume tubing, and programmable syringe pump delivery ensure repeatable hydrodynamic focusing and minimal carryover between runs.

Sample Compatibility & Compliance

The A7000AD supports aqueous and organic solvent-based suspensions, including water, saline, ethanol, IPA, and low-viscosity oils (≤50 cP). It is validated for use with ISO 21501-4 compliant reference materials and compatible with USP , , and EP 2.9.19 test protocols. Its hardware and firmware meet IEC 61000-4 electromagnetic compatibility requirements. All software modules comply fully with FDA 21 CFR Part 11: electronic records and electronic signatures — supporting role-based user authentication, immutable audit trails, automated database backups, and LIMS-integrated data export via secure API or CSV/Excel formats.

Software & Data Management

The embedded Acona Control Suite provides full 21 CFR Part 11 compliance out-of-the-box. It includes granular permission tiers (e.g., Operator, Supervisor, Administrator), configurable electronic signature workflows for report approval, and timestamped audit logs covering login sessions, parameter changes, calibration events, and report generation. Data integrity is enforced via write-once database architecture; historical datasets cannot be edited or deleted. Reports include Pass/Fail evaluation against user-defined specification limits, statistical summaries (D10/D50/D90, % >5 µm, etc.), and raw channel histograms — all exportable in PDF, PNG, or structured XML for regulatory submission.

Applications

• Pharmaceutical Quality Control: Quantitative LPC analysis in injectables, vaccines, and monoclonal antibody formulations per USP and EU Annex 1 requirements.
• Semiconductor Manufacturing: Monitoring particle contamination in chemical mechanical polishing (CMP) slurries, photoresists, and cleaning solutions.
• Advanced Materials R&D: Characterizing dispersion stability of nanocellulose, quantum dots, metal oxides, and polymer nanoparticles.
• Medical Device Testing: Evaluating extractables and leachables from silicone tubing, IV bags, and filter membranes.
• Academic & Government Labs: Supporting fundamental research in colloidal science, aerosol-to-hydrosol transfer mechanisms, and microplastic quantification in environmental samples.

FAQ

What regulatory standards does the A7000AD software support?
The system complies with FDA 21 CFR Part 11, EU Annex 11, and ISO/IEC 17025 documentation requirements for electronic records and signatures.
Can the instrument measure particles in opaque or highly colored solutions?
Yes — the dual-mode (extinction + scattering) optical design improves signal-to-noise ratio in challenging matrices where single-mode instruments fail.
Is method validation support available?
Acona provides IQ/OQ documentation templates, installation qualification checklists, and performance verification protocols aligned with ASTM E2456 and ISO 21501-4.
How is data integrity ensured during long-term deployment?
The system performs automatic daily database integrity checks, maintains redundant local backups, and supports scheduled encrypted cloud sync for disaster recovery.
Does the A7000AD require annual recalibration?
While no mandatory annual recalibration is required, Acona recommends biannual verification using NIST-traceable polystyrene latex standards (PSL) and documented performance qualification (PQ) per internal SOPs.
