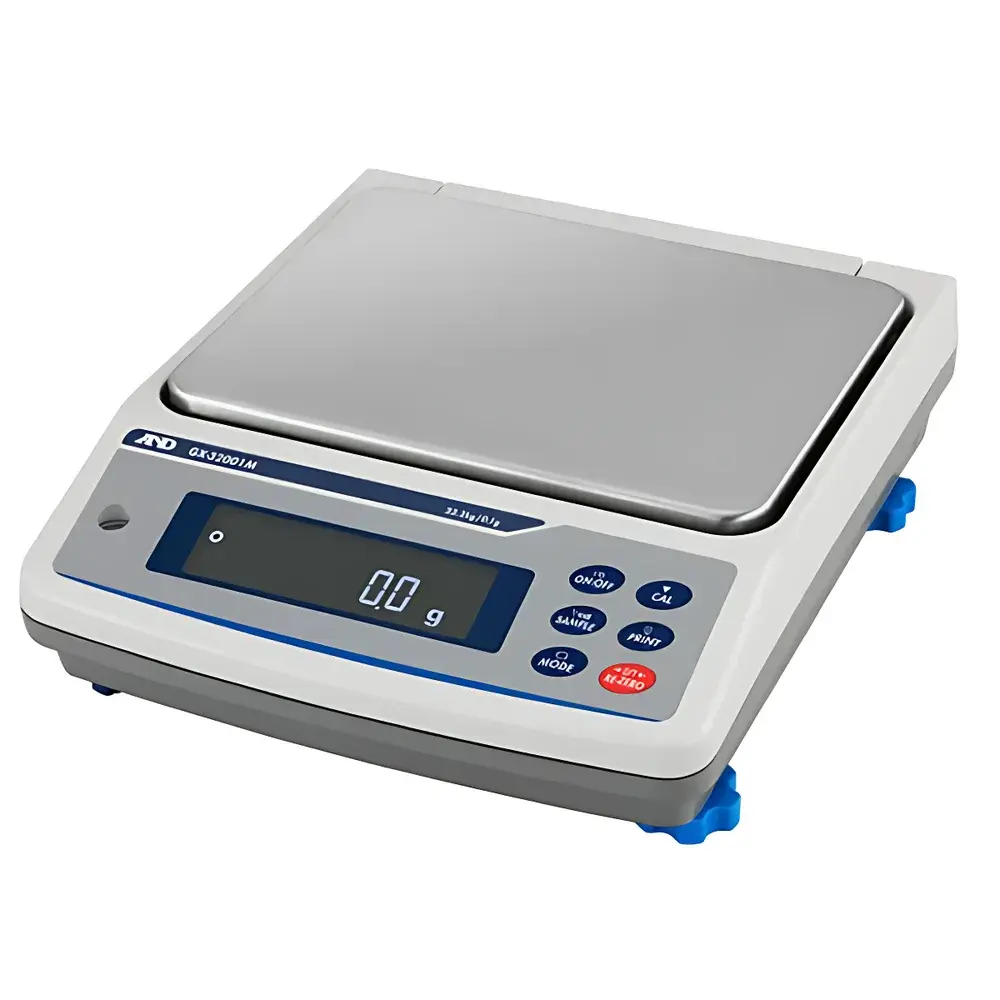

A&D GX32001M IP65 Dust- and Water-Resistant Industrial Precision Balance

Overview

The A&D GX32001M is an industrial-grade precision balance engineered for high-reliability operation in demanding production, quality control, and laboratory environments where dust ingress, moisture exposure, or routine washdown procedures are routine. Designed around A&D’s proprietary SHS (Super Hybrid Sensor) technology, the GX32001M delivers rapid stabilization—typically within 1.5 seconds—while maintaining consistent readability of 0.1 g across its full 32.2 kg capacity range. Its measurement principle relies on electromagnetic force compensation (EMFC), a proven method for achieving high linearity, low drift, and long-term stability in static and dynamic weighing applications. The integrated internal calibration system ensures traceable accuracy without external weights, while automatic environmental monitoring (GX-M series only) triggers recalibration in response to ambient temperature fluctuations—critical for maintaining metrological integrity in uncontrolled factory settings.

Key Features

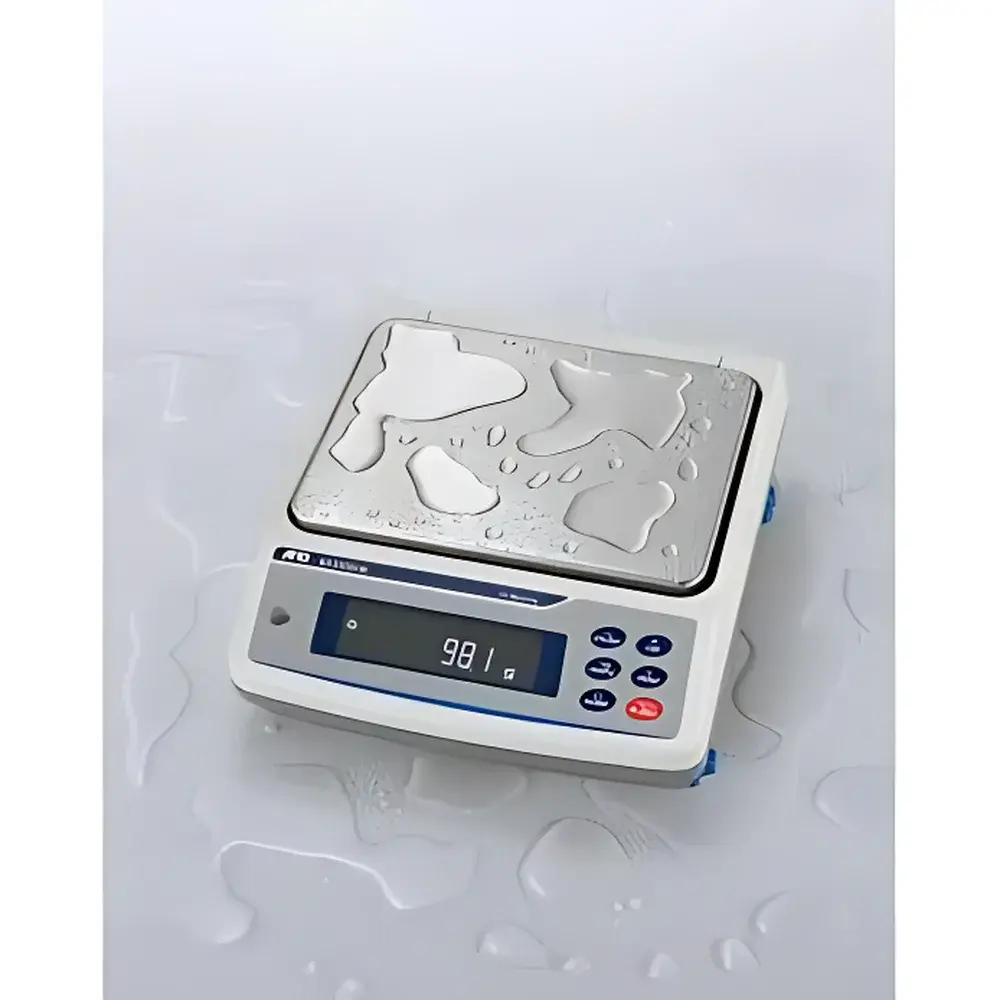

• IP65-rated enclosure with fully sealed electronics and SUS316 stainless-steel weighing pan—rated for high-pressure cleaning and resistant to corrosion from solvents, acids, and particulate-laden atmospheres.
• SHS sensor architecture delivering ≤1.5 s stabilization time and repeatability of ±0.1 g under standard operating conditions (per ISO 9001 and OIML R76).
• Intelligent Shock Detection (ISD) function logs and alerts on mechanical impact events—enabling root-cause analysis of scale disturbance during line-side use.
• Automatic Performance Assessment (APA) algorithm evaluates real-time repeatability and calculates minimum weight (MinW) per USP and EUR Pharm 2.1.6 guidelines.
• Flow Rate Display (FRD) mode computes mass flow velocity (g/s or kg/min) for continuous feeding, dosing, or filling operations—supporting closed-loop process control integration.
• Dual communication interface: simultaneous RS-232C and USB ports enable concurrent connection to printers, PLCs, LIMS, or PC-based data acquisition systems.
• Onboard memory stores up to 200 weighing records, 50 unit mass entries, 50 calibration logs, 20 tare values, and 20 upper/lower limit sets—fully timestamped and user-ID tagged.

Sample Compatibility & Compliance

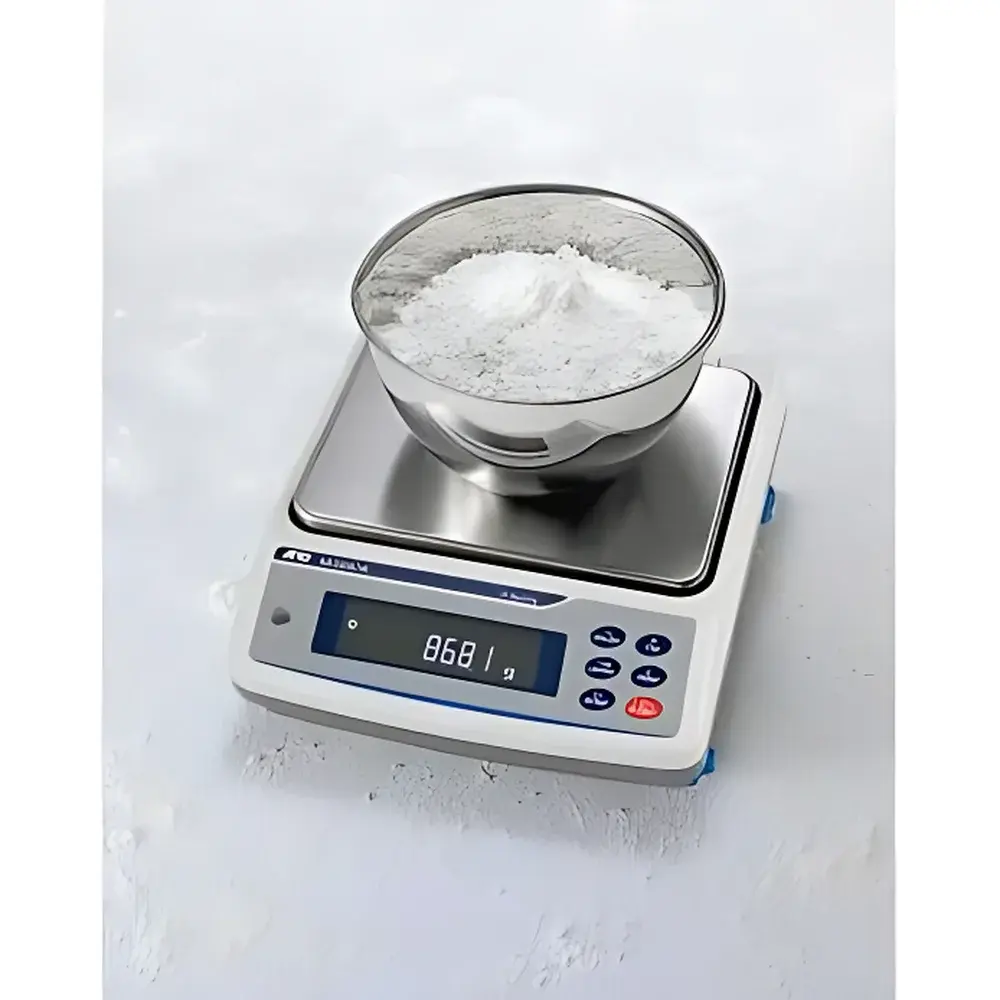

The GX32001M accommodates bulk solids, packaged goods, wet or oily components, and irregularly shaped objects up to 32.2 kg via its 270 × 210 mm SUS316 pan. Optional down-hanging hook (standard accessory) supports density determination and suspended load measurements. All firmware and data output modules comply with regulatory documentation requirements: GLP/GMP audit trails include operator ID, date/time stamps, calibration history, and event logs (e.g., ISD triggers, APA evaluations). Data export formats conform to ISO/IEC 17025 reporting standards and support FDA 21 CFR Part 11–compliant electronic signatures when deployed with validated software environments. The balance meets IEC 61000-6-2 (immunity) and IEC 61000-6-3 (emissions) for industrial electromagnetic compatibility.

Software & Data Management

No proprietary software installation is required—the GX32001M operates as a plug-and-play HID-compliant device over USB and supports ASCII protocol over RS-232C. Data transmission is configurable for auto-print, auto-send, or manual trigger modes. Built-in user permission levels (Admin / Operator / Guest) restrict access to calibration, configuration, and memory management functions—ensuring procedural integrity in multi-user facilities. All exported reports include mandatory metadata: instrument ID, serial number, calibration due date, environmental conditions at time of weighing, and digital signature fields for QA sign-off.

Applications

• Pharmaceutical manufacturing: raw material receipt inspection, batch dispensing verification, and in-process checkweighing of blister packs or vials.
• Food & beverage processing: portion control of wet ingredients, yield monitoring during mixing/blending, and post-wash validation of equipment cleanliness.
• Chemical and polymer production: catalyst dosing, additive batching, and drum-filling verification under humid or dusty conditions.
• Automotive and aerospace assembly: component sub-assembly weighing, torque tool calibration support, and ESD-safe material handling verification.
• Contract laboratories: ISO/IEC 17025-accredited testing where environmental robustness and audit-ready data traceability are mandatory.

FAQ

What does IP65 protection mean for daily operation?
IP65 certifies complete dust-tightness and resistance to low-pressure water jets from any direction—enabling safe use in wet zones, near steam lines, or under periodic high-pressure rinse cycles.
How often must the GX32001M be calibrated?
Internal calibration is performed automatically upon power-up and triggered by temperature shifts ≥1°C; manual calibration is recommended before first use, after relocation, or per facility SOP—typically every 24 hours in GMP environments.
Can this balance integrate with SCADA or MES systems?
Yes—via ASCII-compatible RS-232C or virtual COM port over USB, supporting Modbus RTU (with optional converter) and direct OPC UA gateway integration through third-party middleware.
Is the FRD (Flow Rate Display) function suitable for regulatory-controlled processes?
FRD provides real-time calculated flow values but does not replace certified flow meters; it serves as a secondary verification tool compliant with Annex 11 and ALCOA+ data integrity principles when logged with full metadata.
Does the GX32001M meet OIML R76 Class III requirements?
Yes—the GX32001M is type-approved to OIML R76-1:2021 Class III (for general-purpose industrial weighing up to 30,000 e division count), with verification scale interval d = 0.1 g and maximum capacity Max = 32,200 g.
