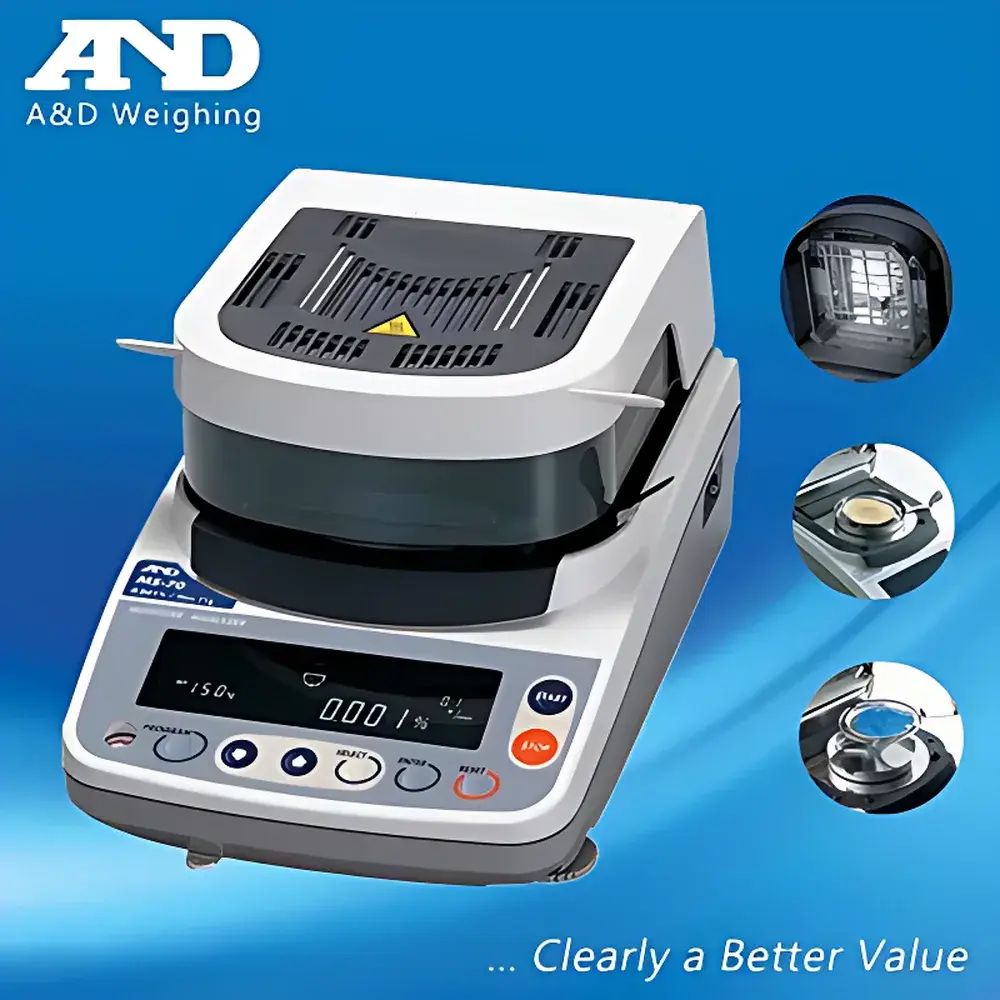

A&D MS-70 Halogen Moisture Analyzer

Overview

The A&D MS-70 Halogen Moisture Analyzer is a precision laboratory instrument engineered for rapid, gravimetric determination of moisture content in solid, semi-solid, and liquid samples using halogen lamp heating coupled with high-resolution analytical weighing. Based on the standardized loss-on-drying (LOD) principle—defined in ASTM E1064, ISO 11857, and USP —the MS-70 applies controlled thermal energy to drive off volatile components, primarily water, while continuously monitoring mass loss with an SHS (Super High Sensitivity) electromagnetic force compensation sensor. Its core innovation lies in the integrated SRA (Secondary Radiation Assist) system: a geometrically optimized reflector assembly surrounding a 400 W linear halogen lamp that ensures uniform radiant heat distribution across the sample surface, minimizing thermal gradients and reducing measurement time by up to 40% compared to conventional infrared or quartz-tube heaters. Designed and manufactured in Japan under strict ISO 9001 quality management systems, the MS-70 delivers traceable, repeatable results suitable for regulated environments including pharmaceutical QC labs, food safety testing facilities, and industrial R&D centers.

Key Features

• SHS ultra-micro weighing sensor with 0.0001 g readability and internal automatic calibration, enabling precise quantification of minute mass changes—even for sub-gram samples.
• SRA-enhanced 400 W halogen heating system with programmable temperature ramping (30–200 °C), delivering rapid, reproducible drying profiles without hot-spot formation.
• Five preconfigured measurement modes: Standard (adaptive precision), Automatic (termination based on Δm/min threshold), Quick (200 °C initial burst), Timer, and Manual—each configurable via intuitive front-panel navigation.
• Four drying program types: Standard, Progressive (stepwise ramp), Stepwise (multi-stage temperature sequencing), and Rapid (200 °C × 3 min preheat)—enabling method optimization for thermally sensitive or heterogeneous matrices.
• GLP/GMP-compliant data integrity: All measurements include embedded timestamps, operator ID, calibration history, and full audit trail exportable in CSV or PDF format per ISO/IEC 17025 and FDA 21 CFR Part 11 requirements.
• WinCT-Moisture software suite supporting real-time graphical plotting of moisture loss curves, derivative analysis (dm/dt), endpoint prediction, and method library management (up to 20 stored protocols).
• Ergonomic design features: Heat-resistant winged lid handle, removable Ø85 mm stainless-steel sample pan, and sealed halogen chamber for simplified cleaning and lamp replacement (rated lifespan: ≥5,000 h).

Sample Compatibility & Compliance

The MS-70 accommodates diverse physical forms—including powders, granules, pastes, films, fibers, suspensions, and low-viscosity liquids—without requiring sample homogenization or pre-treatment beyond standard LOD protocol guidelines. It meets critical regulatory benchmarks for moisture analysis: compliance with USP for pharmaceutical excipients and APIs; alignment with AOAC Official Method 952.03 for food commodities; and adherence to ISO 13726 for polymer and composite materials. The instrument’s temperature calibration function supports NIST-traceable verification using certified reference standards such as sodium tartrate dihydrate (certified moisture content: 15.66 % ± 0.2 % w/w), ensuring metrological traceability across global laboratories. All firmware and software operations are validated for GxP environments, with electronic signatures, user access levels, and immutable record retention configured per ALCOA+ principles.

Software & Data Management

WinCT-Moisture is a dedicated Windows-based application enabling bidirectional RS-232C communication for real-time data streaming, remote method deployment, and automated report generation. During analysis, the software plots absolute moisture loss (%) versus time, calculates first-order derivative curves to identify inflection points, and recommends optimal termination criteria based on statistical convergence (e.g., ≤0.1 mg/min mass change over 60 s). Measurement records—including raw mass vs. time datasets, calibration logs, environmental conditions (ambient T/RH), and user-defined metadata—are stored in encrypted local databases and exportable to LIMS-compatible formats. Audit trails meet FDA 21 CFR Part 11 requirements, with electronic signatures, role-based permissions, and version-controlled method archiving.

Applications

The MS-70 serves as a primary moisture verification tool across regulated and industrial sectors. In pharmaceutical manufacturing, it validates moisture levels in active ingredients, tablet granulations, lyophilized products, and medical device packaging materials per ICH Q5C stability guidelines. Food laboratories employ it for shelf-life modeling of snacks, dairy powders, spices, and pet foods—particularly where traditional oven methods risk thermal degradation. Chemical and polymer producers use it to monitor hygroscopicity of resins, catalysts, and battery electrode slurries. Environmental and academic users apply it to soil moisture profiling, sludge dewatering efficiency assessment, and biomass characterization per ASTM D2231 and ISO 11465 protocols.

FAQ

What reference standard is recommended for accuracy verification?
Sodium tartrate dihydrate (C₄H₄Na₂O₆·2H₂O), certified at 15.66 % ± 0.2 % moisture content, is the primary standard specified by A&D for routine performance checks.
Can the MS-70 comply with FDA 21 CFR Part 11 requirements?
Yes—when used with WinCT-Moisture v3.2+, the system supports electronic signatures, audit trail logging, and secure user authentication, fulfilling core Part 11 criteria for electronic records and signatures.
Is external temperature calibration supported?
Yes—the optional TC-100 temperature calibration kit enables NIST-traceable validation of heater block temperature uniformity and accuracy, with reports formatted for GLP/GMP documentation.
How many measurement results can be stored internally?
The instrument retains up to 100 complete measurement records with full metadata; additional storage is available via PC export or direct printer output.
Does the MS-70 require annual recalibration?
While no mandatory annual recalibration is stipulated, A&D recommends biannual verification using certified weights and sodium tartrate dihydrate, documented per ISO/IEC 17025 clause 6.5.
