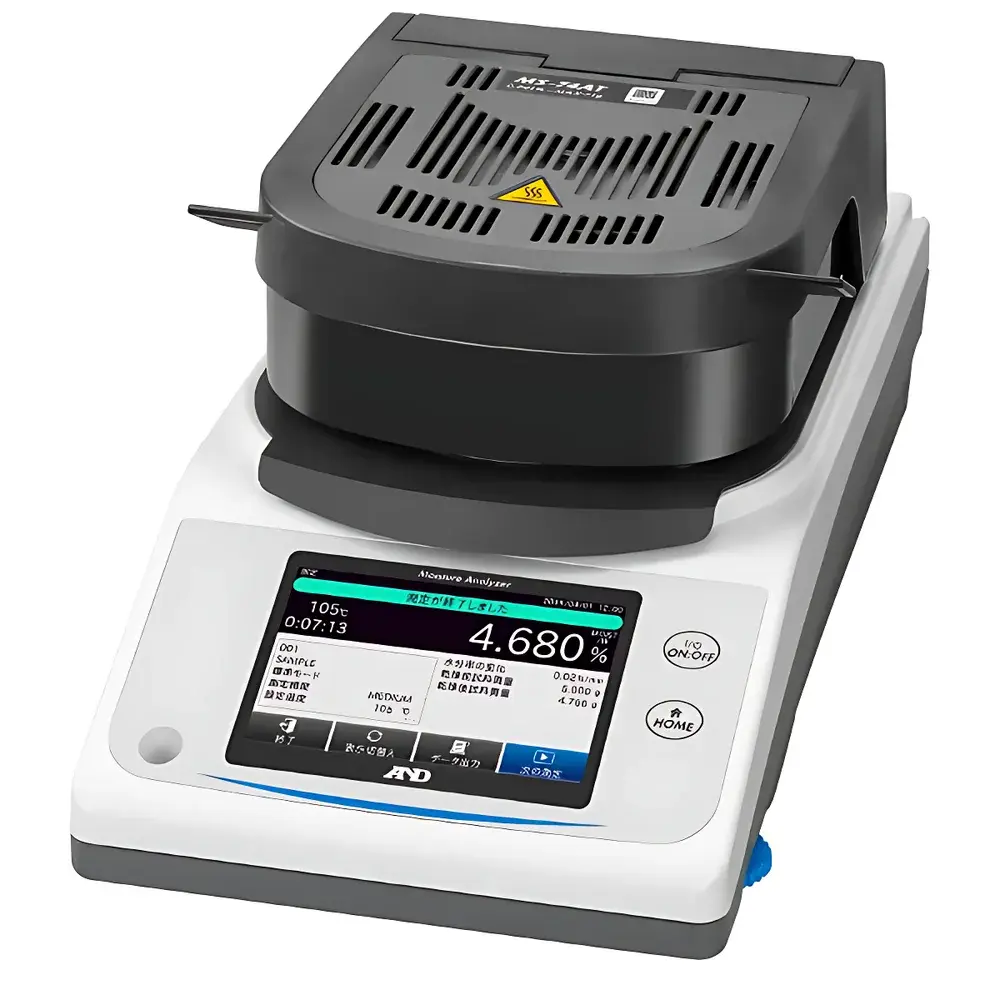

A&D MS-74AT Touchscreen Halogen Moisture Analyzer

Overview

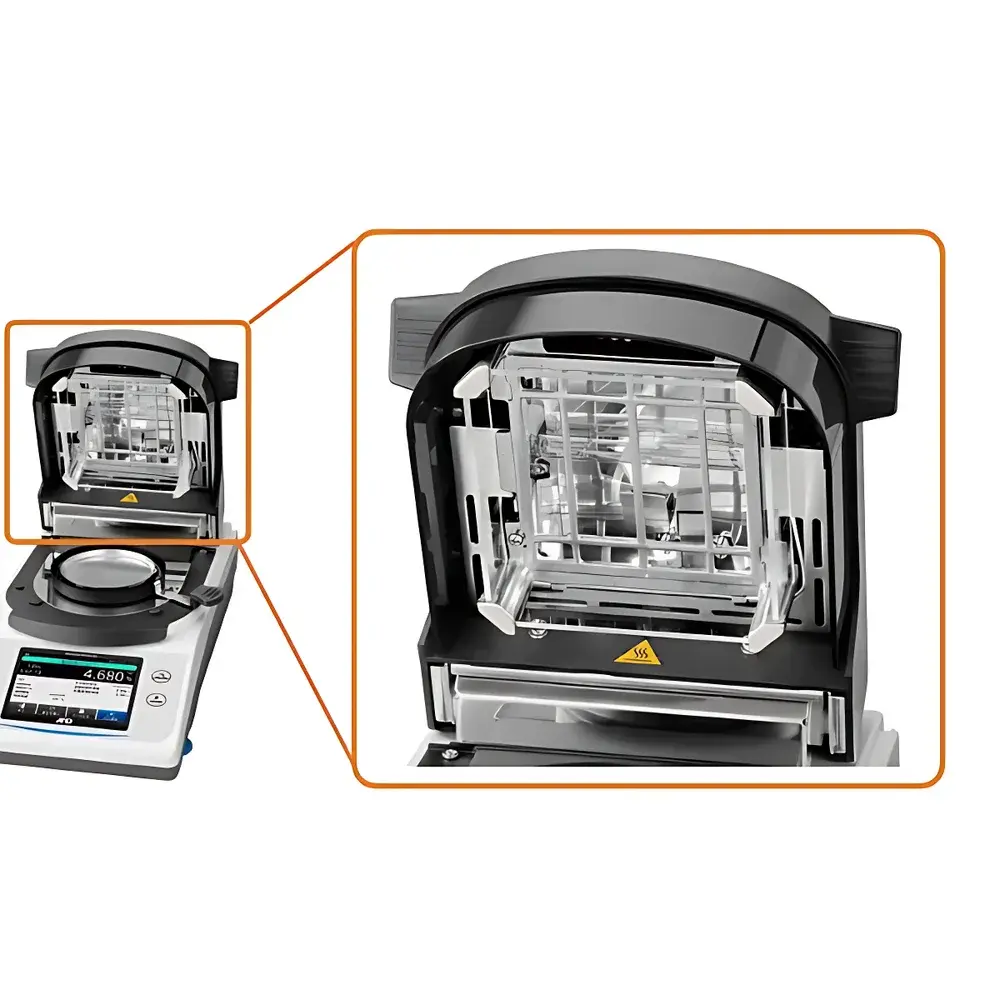

The A&D MS-74AT is a high-precision halogen moisture analyzer engineered for rapid, reproducible loss-on-drying (LOD) analysis in regulated and R&D laboratory environments. It employs a 400 W linear halogen lamp with A&D’s proprietary Smart Radiation Adjustment (SRA) technology — a thermally optimized irradiation system that ensures uniform energy distribution across the sample surface. Unlike conventional infrared or quartz heaters, SRA dynamically modulates radiant intensity and spatial profile to minimize thermal gradients and prevent localized overheating or charring, particularly critical for heat-sensitive polymers, pharmaceutical excipients, and fine chemical powders. The instrument integrates a high-resolution analytical balance (71 g capacity, 0.0001 g readability) with SHS (Super High-Speed) weighing architecture, enabling stable mass acquisition during active heating. Designed and manufactured in Japan under ISO 9001-certified production standards, the MS-74AT meets foundational requirements for method validation per USP , ASTM E1447, and ISO 1183-1 for solid-phase moisture quantification.

Key Features

• Smart Radiation Adjustment (SRA) technology delivering consistent 0.001% moisture resolution for samples ≥5 g, validated against gravimetric reference methods

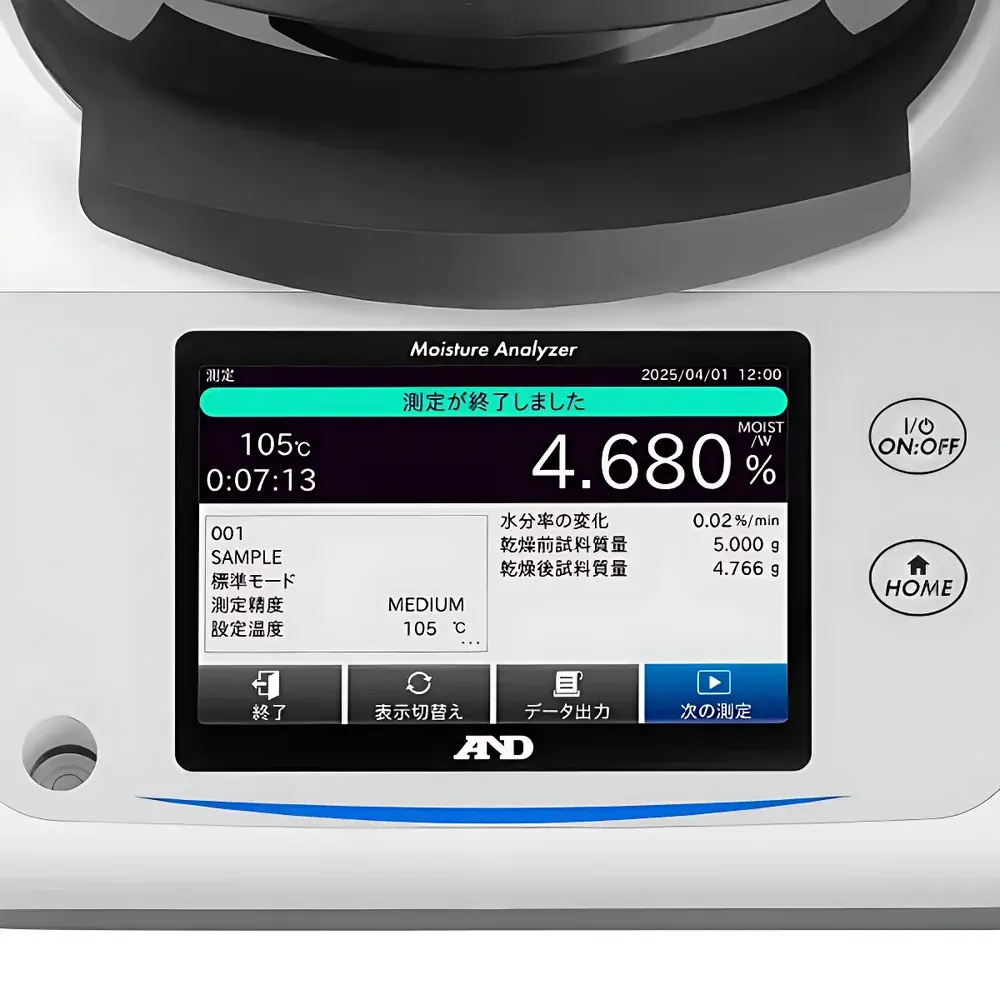

• Touchscreen interface with guided workflow navigation — icon-driven menus, real-time graphical moisture loss curves, and on-screen contextual help
• 300 programmable measurement methods with full metadata tagging: sample name, operator ID, batch number, image annotation, and timestamped version history
• Dual-mode heating control: selectable profiles including Standard, Gradual (for hygroscopic or low-Tg materials), Step (multi-zone temperature ramping), and Rapid (optimized for routine QC)
• Dedicated Plastic Moisture Guidance mode — algorithm-assisted parameter recommendation for resins with moisture content <1%, supporting custom weight input (0.1–20 g), temperature setpoint (30–200 °C), and dwell time configuration
• Automated daily verification protocol compliant with internal QA checklists; generates PDF audit log with pass/fail status, calibration drift indicators, and environmental condition stamps
• GLP/GMP-ready data management: full 21 CFR Part 11 compliance support via optional A&D LabX™ software integration, including electronic signatures, user access tiers, and immutable audit trails

Sample Compatibility & Compliance

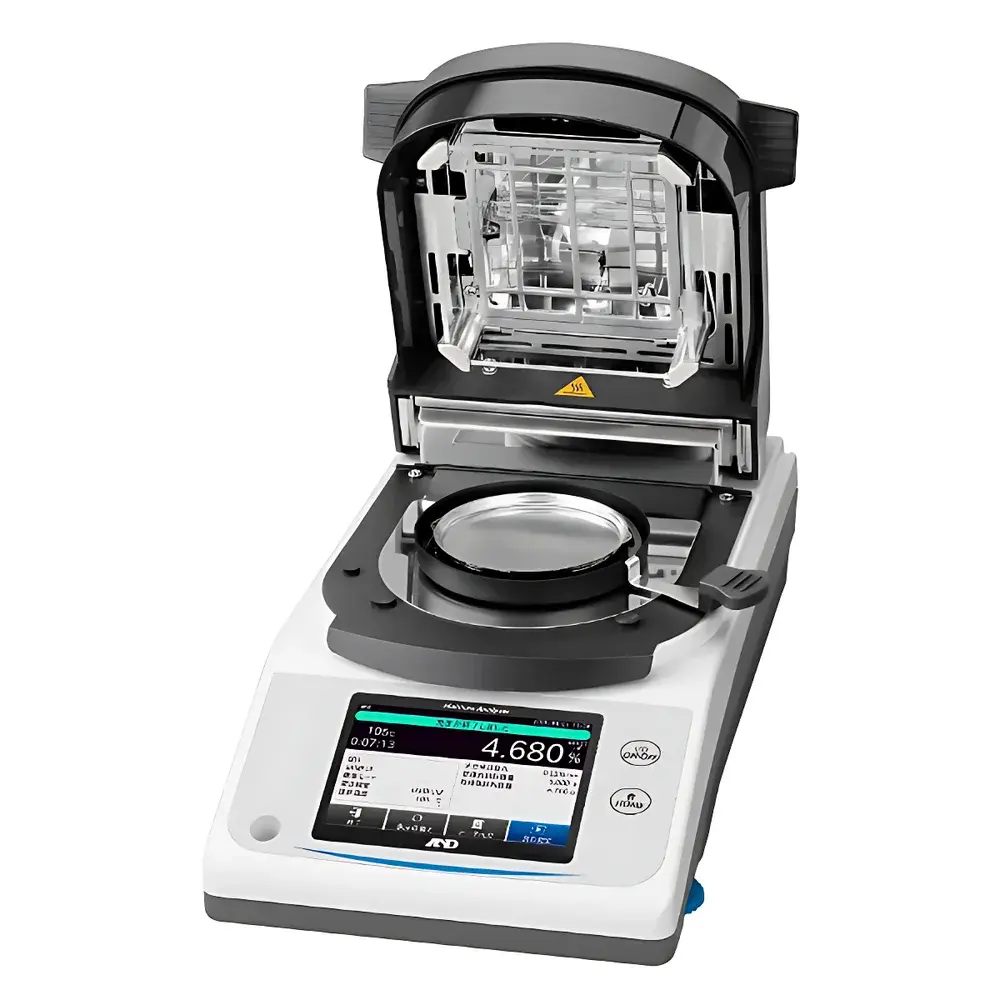

The MS-74AT accommodates a broad spectrum of solid and semi-solid matrices: thermoplastics (PP, PE, PET, ABS), pharmaceutical granules and tablets, food ingredients (starches, dairy powders, coffee), catalysts, ceramics precursors, and battery electrode slurries. Its Ø90 mm stainless-steel sample pan supports homogeneous spreading and efficient heat transfer. All measurement protocols adhere to internationally recognized drying principles defined in ISO 5530-1 (cereal products), ASTM D4442 (wood moisture), and ICH Q5C (biopharmaceutical stability). Device firmware includes built-in validation templates aligned with IQ/OQ documentation frameworks, facilitating qualification in GxP-regulated settings.

Software & Data Management

Local touchscreen operation requires no external PC. All measurement data — including raw mass vs. time series, derivative curves (dm/dt), endpoint detection logic, and final % moisture — are stored internally with UTC-synchronized timestamps. Export options include CSV (for LIMS ingestion), PDF reports (with embedded signature fields), and PNG charts. When connected to A&D LabX™ software (Windows-based), users gain centralized method deployment, remote monitoring, statistical process control (SPC) charting, and automated report generation with customizable headers/footers compliant with corporate branding guidelines.

Applications

• Quality control of polymer pellets prior to extrusion or injection molding to prevent void formation and hydrolytic degradation
• Stability-indicating moisture testing of lyophilized biologics and sterile APIs under accelerated storage conditions
• Batch release testing of food-grade thickeners and emulsifiers where water activity directly correlates with microbial shelf life
• Raw material verification of metal oxide catalysts, where residual hydration impacts catalytic turnover frequency
• Process development support for solvent recovery systems, correlating LOD results with Karl Fischer titration cross-validation

FAQ

What is the minimum detectable moisture level for the MS-74AT?
The instrument achieves 0.001% resolution (10 ppm) under optimal conditions: sample mass ≥5 g, homogeneous particle size, and use of SRA-optimized heating profile.
Does the MS-74AT comply with 21 CFR Part 11 requirements?
Yes — when used with A&D LabX™ software and configured with role-based authentication, electronic signatures, and audit trail archiving, it satisfies predicate rule requirements for electronic records and signatures.
Can I import existing Karl Fischer methods into the MS-74AT?
While direct method import is not supported, the 100 preloaded templates include KF-correlated protocols for common materials (e.g., ethanol, acetone, PEG), and users may replicate parameters manually using the Custom Mode editor.
Is calibration traceable to NIST standards?
Yes — internal calibration uses certified weights traceable to national metrology institutes; external balance calibration follows ISO/IEC 17025 procedures documented in the supplied Certificate of Conformance.
How often should the daily verification be performed?
It is recommended before first use each shift or daily in continuous operation, as mandated by internal SOPs aligned with ISO/IEC 17025 Clause 7.7 on equipment verification.
