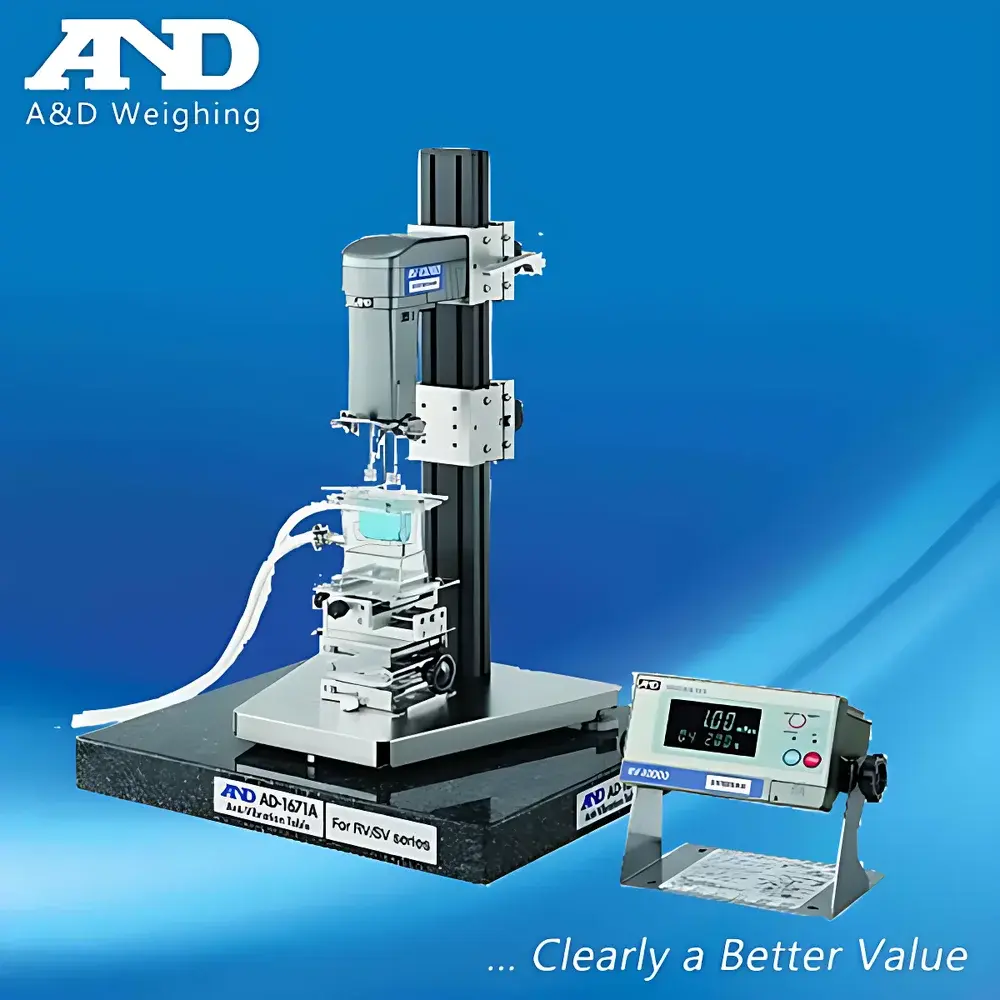

A&D RV-10000A Sinusoidal Vibrational Rheometer

Overview

The A&D RV-10000A Sinusoidal Vibrational Rheometer is an engineered solution for precise, rapid, and non-invasive viscosity characterization of low-viscosity Newtonian and near-Newtonian liquids. Unlike rotational or capillary-based systems, the RV-10000A employs a patented dual-tuning-fork vibrational principle: two titanium-coated sensor plates are driven at a fixed sinusoidal frequency of 30 Hz with sub-millimeter amplitude (<1 mm), inducing controlled oscillatory shear in the sample. The resulting damping force—directly proportional to dynamic viscosity—is measured via electromagnetic feedback circuitry with high signal-to-noise ratio. This method eliminates mechanical bearing wear, avoids sample disturbance from rotor immersion, and enables continuous real-time monitoring without sensor exchange across its full 0.3–25,000 mPa·s range. Its compact, benchtop architecture and minimal thermal mass (<0.5 J/K per sensor plate) ensure negligible heat transfer to temperature-sensitive formulations—critical for pharmaceutical injectables, biopolymer solutions, and thermally labile cosmetic emulsions.

Key Features

• Fixed-frequency (30 Hz), amplitude-controllable vibrational excitation for consistent shear-rate definition and reproducible rheological profiling
• Titanium-coated sensor plates providing chemical resistance to organic solvents, acidic/basic media, and sterilizing agents—validated per ISO 10993-5 cytotoxicity screening protocols
• Integrated real-time display showing simultaneous viscosity (mPa·s), sample temperature (°C), and calculated shear stress (Pa) with 0.1 °C resolution
• Onboard USB interface enabling direct export of time-stamped CSV datasets and JPEG trend plots—no proprietary software required for basic operation
• User-initiated calibration routine using certified deionized water (viscosity = 0.890 mPa·s at 25 °C), traceable to NIST SRM 270B

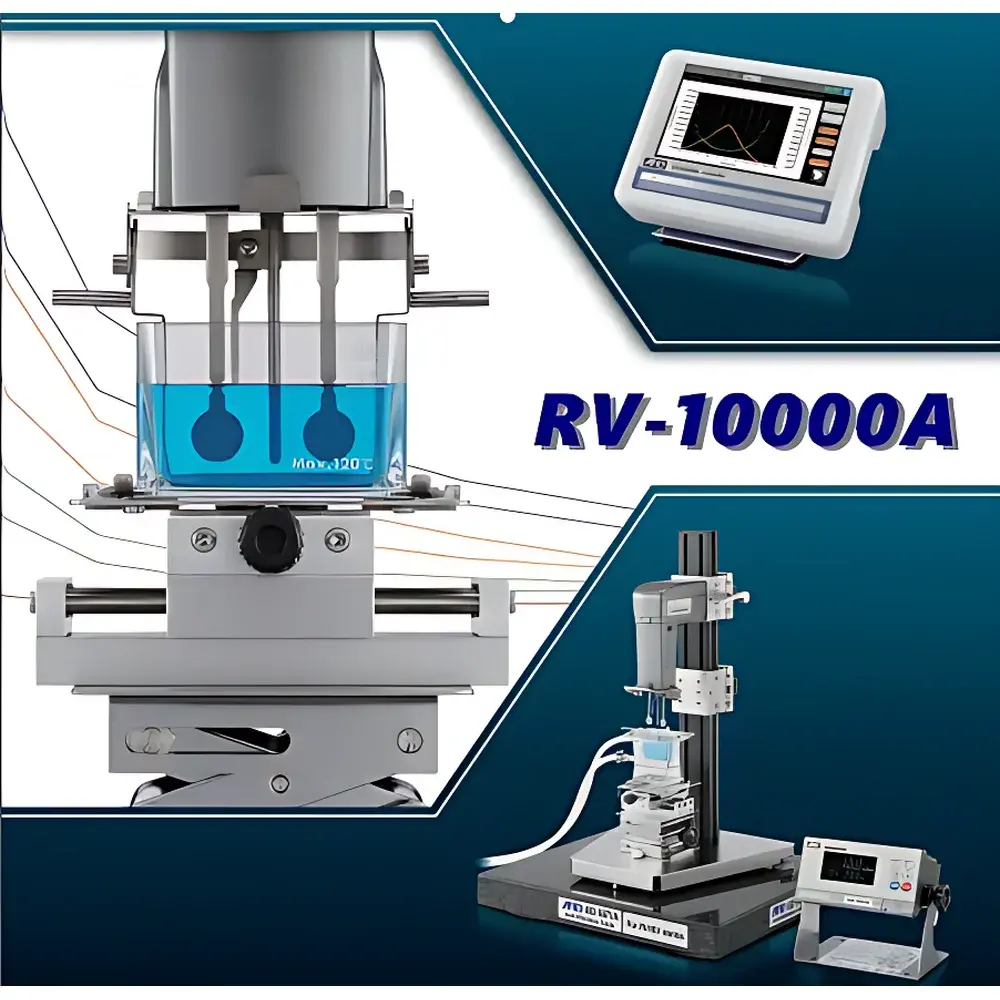

• Modular mounting system including X-Y-Z precision alignment stage, vibration-damping platform, and optical sample positioning guide for repeatable meniscus-level placement
• Thermal integration support for external temperature control units (e.g., A&D AX-SV-37 circulating bath), enabling ISO 2555-compliant isothermal measurements from 5 °C to 60 °C

Sample Compatibility & Compliance

The RV-10000A is optimized for homogeneous liquid-phase samples with no suspended particles >5 µm and no yield stress behavior above 0.1 Pa. It routinely characterizes aqueous and organic solutions used in food processing (e.g., fruit juice blends, dairy whey filtrates), pharmaceutical manufacturing (sterile saline, PEG-based excipients, ophthalmic solutions), and industrial coatings (low-solids acrylic dispersions, UV-curable monomer mixtures). Its design aligns with key regulatory expectations: data integrity conforms to ALCOA+ principles; USB-stored records include operator ID, timestamp, instrument serial number, and environmental metadata—supporting FDA 21 CFR Part 11 readiness when paired with controlled-access file management. While not a GMP-certified device per se, its documentation package (including IQ/OQ templates and calibration logs) facilitates qualification under ISO/IEC 17025-accredited laboratories.

Software & Data Management

Operation requires no host PC: all measurement logic, signal conditioning, and display rendering occur onboard. However, optional A&D RheoLink™ PC software (v3.2+) extends functionality by enabling multi-parameter batch analysis, statistical process control (SPC) charting, and automated report generation compliant with ASTM D2196 Annex A1. Raw CSV files contain columns for elapsed time (s), viscosity (mPa·s), temperature (°C), shear stress (Pa), and internal sensor voltage (V)—structured for import into MATLAB, Python (pandas), or LIMS platforms. Audit trails record every calibration event, parameter change, and firmware update with digital signature hashing, satisfying GLP traceability requirements for QC labs operating under ISO 9001 or ICH Q5C guidelines.

Applications

• Batch release testing of low-viscosity pharmaceutical intermediates (e.g., ethanol-based tinctures, glycerin dilutions)
• In-line viscosity trending during continuous mixing of functional beverages and plant-based milk alternatives
• Stability assessment of solvent-borne adhesives pre- and post-shear aging
• Quality control of heat-transfer fluids in semiconductor wafer cleaning processes
• Rapid screening of polymer solution concentration gradients in R&D labs developing hydrogel precursors
• Validation of cleaning-in-place (CIP) rinse efficiency via residual surfactant concentration tracking

FAQ

Is the RV-10000A suitable for non-Newtonian fluid characterization?
No—it provides single-point dynamic viscosity values under defined oscillatory conditions and does not generate flow curves or viscoelastic moduli (G′, G″). For such analysis, rotational rheometers with controlled shear rate sweeps are recommended.
Can it measure samples with particulates or air bubbles?
Particulates >5 µm cause signal noise and erroneous damping readings; degassing is required for volatile or foaming systems prior to measurement.
What temperature accuracy is achievable with the AX-SV-37 bath integration?
When coupled with the AX-SV-37 (±0.02 °C stability), system-level temperature uncertainty is ±0.15 °C over 20–40 °C, verified per ASTM E77.
Does the instrument support 21 CFR Part 11 compliance out-of-the-box?
The hardware enables Part 11–capable workflows (electronic signatures, audit trails), but formal validation requires site-specific risk assessment and documented SOP implementation.
How often must the titanium sensor be recalibrated?
Annual recalibration against NIST-traceable standards is recommended; user verification with deionized water is advised before each daily shift.
