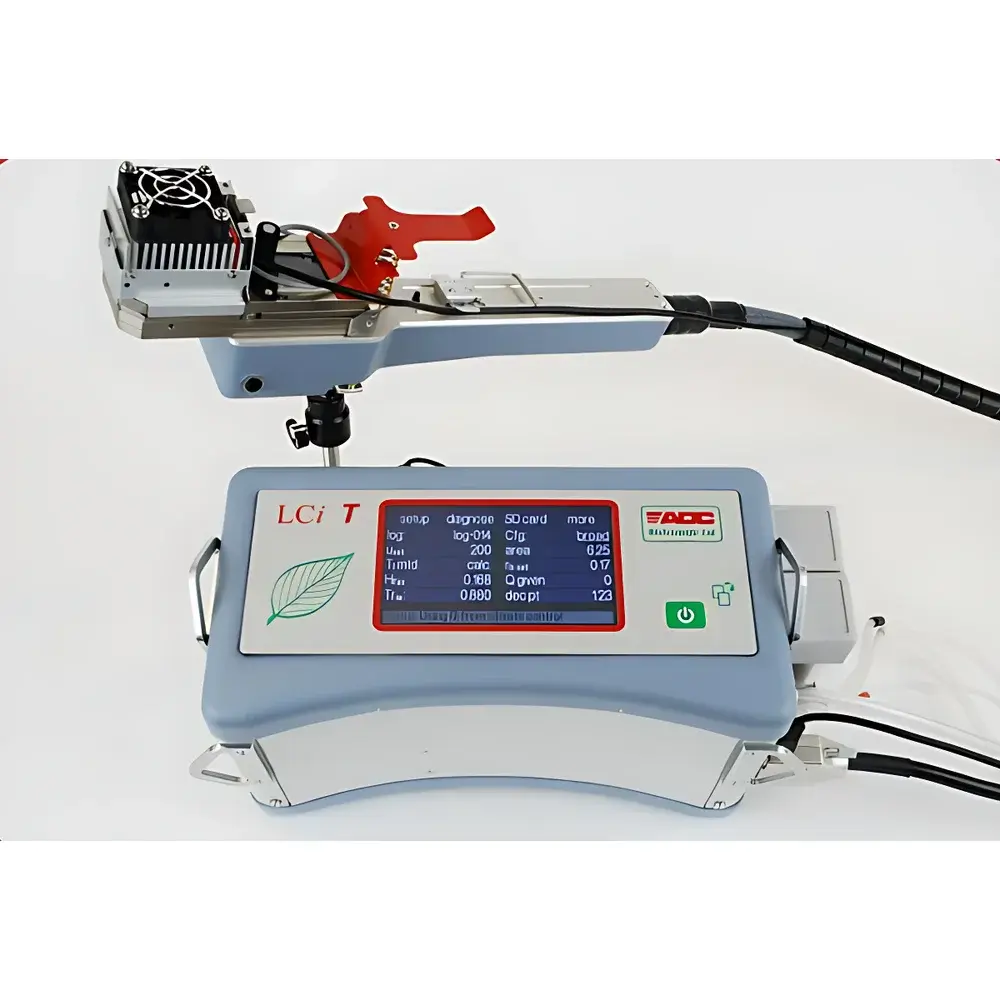

ADC Bio LCi-T Portable Photosynthesis System

Overview

The ADC Bio LCi-T Portable Photosynthesis System is a field-deployable, high-fidelity gas exchange instrument engineered for precise, real-time quantification of leaf-level photosynthetic and transpirational physiology. It operates on the principle of differential open-path infrared gas analysis (IRGA), simultaneously measuring CO₂ and H₂O vapor concentration differentials across a leaf chamber with sub-second response time. The integrated micro-IRGA sensor is housed directly within the measurement handle—minimizing gas path length and eliminating transport lag—thereby ensuring high temporal fidelity in dynamic environmental conditions. Designed for rigorous ecological and agronomic fieldwork, the LCi-T maintains metrological integrity under high humidity (>95% RH) and particulate-laden atmospheres, validated through extended deployments in polar, alpine, and semi-arid ecosystems—including documented use in Antarctic algal physiology studies by the University of Cambridge Department of Plant Sciences. Its modular architecture supports seamless integration with fluorescence, spectral, thermal, and soil respiration modules, enabling multi-parameter physiological phenotyping aligned with FAO, IPCC, and GLP-compliant experimental frameworks.

Key Features

• Compact ergonomic design: 2.4 kg total mass; dimensions 240 × 125 × 140 mm—optimized for single-operator field surveys and student-led instruction.
• Dual-sensor IRGA system: Differential open-path CO₂ detection (0–2000 ppm, 1 ppm resolution) with automatic zero calibration, pressure-compensated temperature correction, and TDLAS-based H₂O sensing (0–75 mbar, 0.1 mbar resolution).
• Real-time environmental monitoring: Onboard PAR sensor (0–3000 µmol·m⁻²·s⁻¹), dual thermistors for leaf and chamber temperature (−5 to 50 °C, ±0.2 °C accuracy), barometric pressure, and airflow (68–340 mL/min, ±2% full-scale accuracy).
• Integrated GPS module: Geotagged data logging compliant with ISO 11464:2022 (soil and plant sampling protocols) and essential for spatially explicit carbon flux mapping.
• WQVGA color touchscreen (480 × 272 pixels): Ambient-light adaptive brightness control extends battery life; supports intuitive menu navigation and live parameter plotting (e.g., A/Ci curves, light-response kinetics).

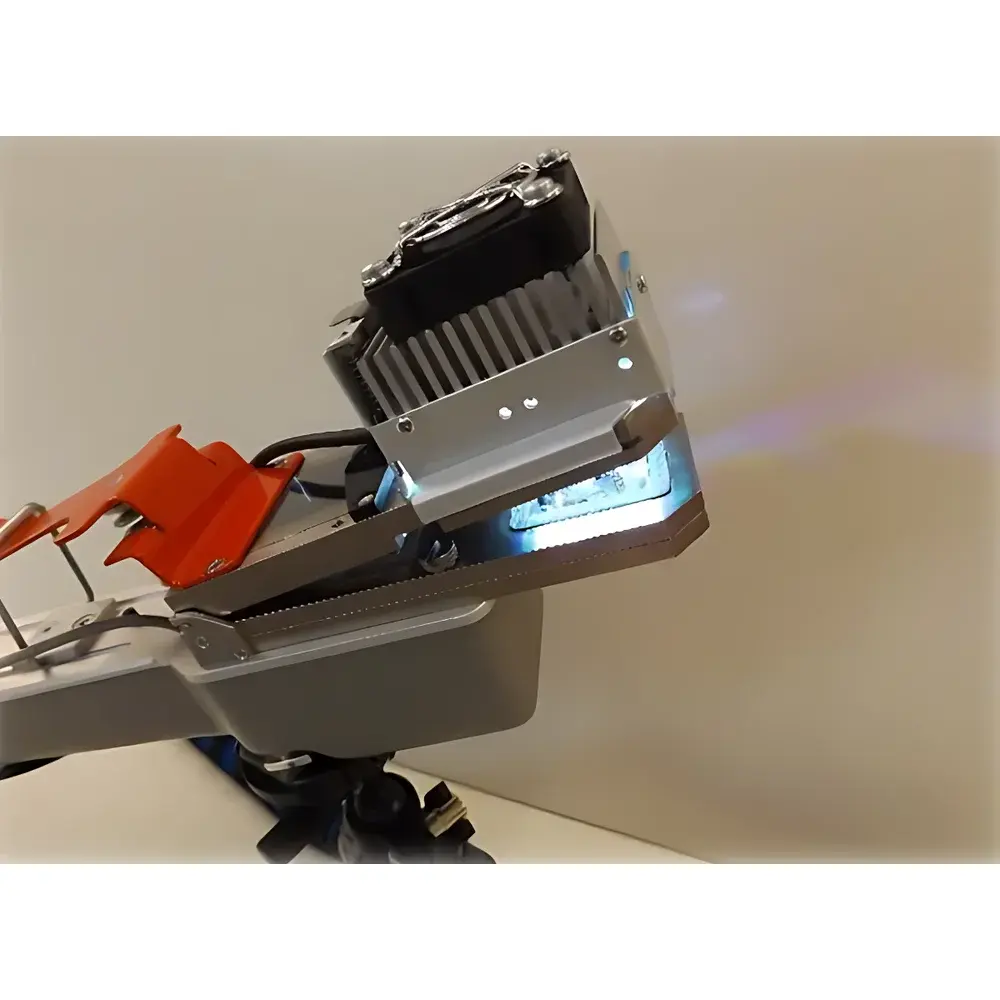

• Expandable leaf chamber ecosystem: Nine interchangeable chamber types—including broadleaf, narrowleaf, coniferous, soil respiration, canopy, fruit, and fluorescence-compatible configurations—each fabricated from low-permeability, CO₂- and H₂O-inert polymers to preserve measurement integrity.
• Low-power architecture: 12 V / 2.8 Ah sealed lead-acid battery delivers ≥10 hours continuous operation; mini-USB and RS232 interfaces support offline data export and firmware updates.

Sample Compatibility & Compliance

The LCi-T accommodates diverse botanical morphologies via application-specific leaf chambers certified to ASTM E2912-21 (Standard Practice for Field Testing of Portable Gas Analyzers) and ISO 17025:2017 (General Requirements for Competence of Testing and Calibration Laboratories). Chamber materials—selected for minimal CO₂ adsorption and water vapor diffusion—meet USP analytical instrument qualification standards for environmental stability testing. The system supports GLP-aligned audit trails when paired with optional FluorPen or FluorCam fluorescence modules, enabling concurrent PSII quantum yield (ΦPSII), non-photochemical quenching (NPQ), and OJIP transient analysis per OECD Test Guideline 208 (Terrestrial Plant Toxicity). All firmware and data handling routines comply with FDA 21 CFR Part 11 requirements for electronic records and signatures when configured with timestamped, user-authenticated SD card logging.

Software & Data Management

Data acquisition and visualization are managed via embedded firmware supporting CSV export and time-synchronized multi-channel recording (up to 16 simultaneous parameters). SD card storage (up to 32 GB) retains >16 million discrete measurements with metadata tagging (GPS coordinates, operator ID, chamber ID, ambient conditions). Optional PC software (LCi Desktop Suite v4.x) enables automated A/Ci curve fitting using Farquhar-von Caemmerer-Berry model parameters, light-response curve derivation (non-rectangular hyperbola), and statistical comparison across treatment groups. Exported datasets conform to ISA-Tab metadata standards, facilitating interoperability with FAIR-aligned repositories such as TRY Plant Trait Database and ICOS Carbon Portal. Firmware updates include ISO/IEC 15408 (Common Criteria)-validated cryptographic signing to ensure traceable, tamper-evident software integrity.

Applications

The LCi-T serves as a primary measurement platform across terrestrial biosphere research domains requiring high-resolution, in situ physiological phenotyping. Key use cases include: (1) drought and heat stress screening in crop breeding programs (e.g., triticale, maize, pomegranate), where stomatal conductance (gₛ) and intrinsic water-use efficiency (iWUE = A/gₛ) serve as selection indices; (2) carbon sequestration assessment in afforestation and green roof studies, integrating soil respiration chambers with canopy-level assimilation metrics; (3) climate change impact modeling via long-term monitoring of photosynthetic acclimation (e.g., seasonal A/Ci shifts in Rhododendron ferrugineum); (4) ecophysiological trait mapping across elevation or latitudinal gradients; and (5) educational laboratories demonstrating core principles of plant gas exchange, energy balance, and stress physiology under controlled or field conditions.

FAQ

What calibration procedures are required prior to field deployment?
The LCi-T performs automatic zero-point calibration upon power-up using internal reference gas cells. Span calibration with certified CO₂/N₂ and H₂O/N₂ standards is recommended every 30 days or after exposure to extreme humidity (>90% RH) or dust loading.
Can the LCi-T operate unattended for extended periods?
While designed for handheld operation, the system may be mounted on tripods or custom frames for semi-automated measurements; however, it lacks built-in telemetry or solar charging—external power management is required for >10 h deployments.
Is the fluorescence module compatible with third-party imaging systems?
Yes—the optional handheld fluorometer includes TTL trigger outputs and analog voltage signals synchronized to IRGA sampling, enabling hardware-level triggering of FluorCam or hyperspectral cameras per IEEE 1588-2019 precision time protocol.
How does the LCi-T handle condensation in high-humidity environments?
The TDLAS H₂O sensor is inherently immune to liquid water interference, and chamber seals utilize hydrophobic fluoropolymer gaskets; optional desiccant cartridges can be installed upstream of the air inlet for prolonged tropical deployments.
Are firmware and software updates provided free of charge?
All security patches, calibration algorithm refinements, and minor feature enhancements are delivered at no cost via ADC Bio’s secure customer portal; major version upgrades require annual maintenance subscription.
