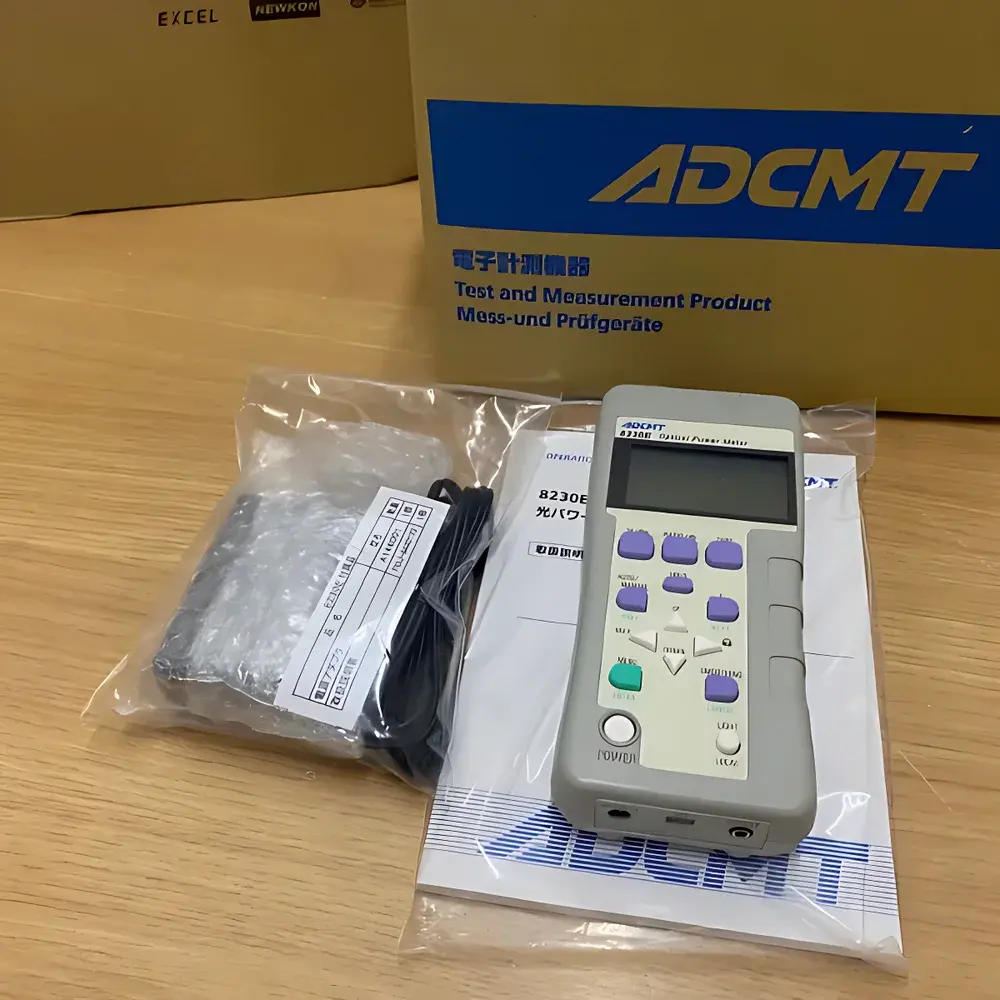

ADCMT 8230E Handheld Optical Power Meter with 82313B Sensor

Overview

The ADCMT 8230E is a precision handheld optical power meter engineered specifically for high-throughput production environments in optical disc manufacturing—particularly CD and DVD drive assembly, laser diode (LD) characterization, and optical pickup unit (OPU) verification. It operates on the principle of calibrated photodetector-based power measurement, where incident optical radiation is converted into a proportional electrical signal via a thermopile or silicon photodiode sensor (depending on configuration), then digitized and displayed with traceable accuracy. The system’s core architecture prioritizes repeatability, thermal stability, and rapid response—critical for inline QA/QC during high-speed LD burn-in, focus/track actuator testing, and write-power calibration. Its compact, ergonomic form factor enables one-handed operation on factory benches or within confined test jigs, while its robust mechanical design meets industrial handling requirements.

Key Features

• High-power measurement capability up to 200 mW using the included 82313B cylindrical sensor—optimized for high-output CD/DVD writing lasers and blue-violet LDs used in legacy and hybrid optical drives.
• 4½-digit resolution with 0.01 dB minimum display increment, enabling precise relative power tracking across multiple test points in production sequences.
• Dual-wavelength calibration at 650 nm and 780 nm—aligned with industry-standard CD (780 nm) and DVD (650 nm) laser emission bands—ensuring metrological relevance without external recalibration.
• 1 nm step wavelength sensitivity correction function (enabled via firmware option on compatible sensors), extending spectral validity from 400 nm to 1100 nm for cross-platform validation of multi-laser modules.
• Standard USB 2.0 interface compliant with CDC ACM class—enabling direct data streaming to host PCs without proprietary drivers; supports CSV export for integration with MES or SPC software platforms.
• Thermally stabilized sensor housing minimizes drift over extended measurement cycles (>8 hours continuous operation), reducing need for frequent zeroing in ambient factory conditions.

Sample Compatibility & Compliance

The 8230E platform is validated for use with standard CD/DVD optical components including 650 nm red-laser diodes, 780 nm infrared LDs, and collimated pickup assemblies. Its 82313B sensor features a cylindrical aperture geometry optimized for alignment with common OPU output ports and fiber-coupled test fixtures. All sensors undergo individual NIST-traceable calibration at the manufacturer’s ISO/IEC 17025-accredited facility in Japan. While not certified to IEC 61326-1 (EMC) or IEC 61010-1 (safety) as a standalone instrument, the 8230E conforms to typical Class I industrial equipment requirements when operated within specified ambient temperature (15–35 °C) and humidity (30–80% RH non-condensing) ranges. It supports GLP-compliant documentation workflows when paired with timestamped USB data logs.

Software & Data Management

The 8230E requires no dedicated PC software—the USB interface enumerates as a virtual COM port, allowing seamless integration with LabVIEW, Python (pySerial), MATLAB, or custom SCADA systems. Raw measurement data—including absolute power (mW/dBm), relative delta (dB), timestamp (UTC-sync capable via host), and sensor ID—is transmitted in ASCII format at user-configurable baud rates (9600–115200). Optional firmware upgrade (OPT+20) enables auto-ranging and real-time statistical reporting (mean, std dev, min/max) over serial stream. Audit trails are maintained externally via host-side logging; the device itself does not store historical records or support FDA 21 CFR Part 11 electronic signature functionality.

Applications

• Final-test verification of write-power output in DVD±R/RW and CD-R/RW drive modules.
• LD aging and threshold-current monitoring during burn-in stations.
• Optical pickup alignment validation prior to final assembly.
• Calibration reference for benchtop power meters in Tier-2 supplier labs.
• Field service diagnostics for optical drive repair centers requiring portable, production-grade metrology.

FAQ

Is the 8230E compatible with modern Blu-ray or UHD BD lasers?
The base 82313B sensor is calibrated for 650/780 nm only; for 405 nm violet-laser measurements, the optional 82323B sensor (sold separately) must be used—though it does not extend the 200 mW range to that wavelength.
Does the unit include factory calibration documentation?
Yes—each shipped unit includes a Japanese-language calibration certificate traceable to NMIJ/AIST, listing uncertainty values per wavelength and power level; English translation available upon request.
Can the USB interface be used for remote triggering?
No—USB provides read-only data streaming; external trigger input is not supported on the 8230E platform.
What is the recommended recalibration interval?
ADCMT recommends annual recalibration under normal production use; more frequent intervals (every 6 months) are advised if exposed to >50 mW average power >4 hrs/day or mechanical shock events.
Is battery operation supported?
No—the 8230E is AC-powered only via included switching adapter (100–240 VAC); no internal battery or DC input option exists.
