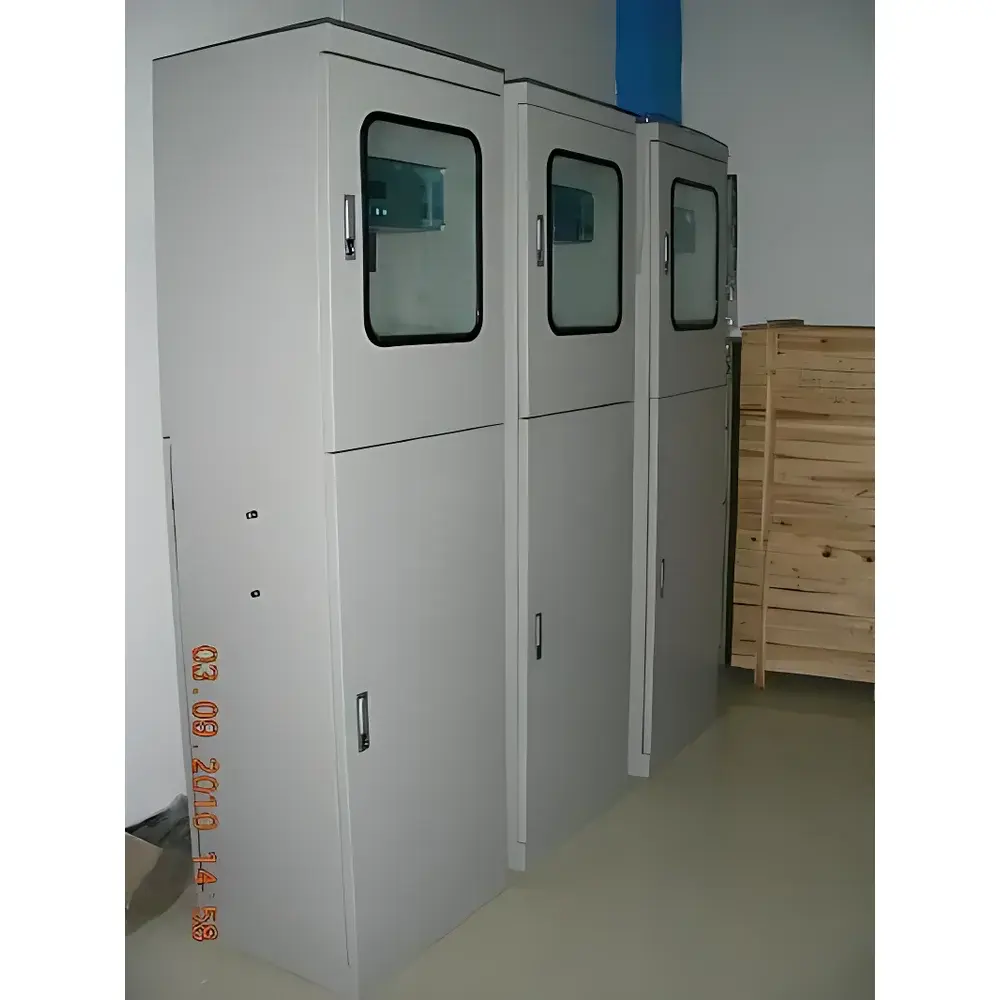

ADEV 7600 Integrated Coke Oven Gas & Blast Furnace Gas Oxygen and Combustible Gas Analyzer
| Brand | ADEV |
|---|---|
| Origin | Beijing, China |
| Model | 7600 |
| Measurement Gases | O₂ (0–5% vol), CO (0–85% vol), H₂ (0–15% vol) |
| Accuracy | ≤±1% FS for O₂ |
| Response Time | ≤15 s |
| Dust Tolerance | ≤600 g/Nm³ |
| Operating Temp. | 20–500 °C |
| Pressure Range | −10 to +10 kPa |
| Filtration Precision | 0.1 µm |
| Auto-Cleaning | Yes (pneumatic probe & filter blowback) |
| Output Signals | 4–20 mA analog + relay alarm (1 A, dry contact) |
| Compliance | Designed for GLP-aligned industrial process safety monitoring in metallurgical environments |
Overview
The ADEV 7600 Integrated Gas Analyzer is a turnkey, cabinet-mounted process gas analysis system engineered for continuous, real-time monitoring of oxygen (O₂), carbon monoxide (CO), and hydrogen (H₂) concentrations in high-dust, high-temperature, and high-humidity industrial coal gas streams. It is specifically optimized for metallurgical applications—including coke oven gas, basic oxygen furnace (BOF) gas, blast furnace top gas, semi-water gas, and generator gas—where precise oxygen control is critical for explosion prevention, combustion efficiency optimization, and compliance with industrial safety protocols. The system operates on the principle of electrochemical (O₂, CO) and thermal conductivity (H₂) sensing technologies, selected for their proven stability, low drift, and immunity to cross-interference under harsh process conditions. Unlike laboratory-grade analyzers, the 7600 integrates robust sample conditioning—comprising heated probe extraction, multi-stage particulate filtration (0.1 µm final stage), condensate separation, pressure regulation, and zero-air purging—enabling reliable operation even at dust loadings up to 600 g/Nm³ and process temperatures up to 500 °C.
Key Features
- Turnkey cabinet design: Pre-integrated sampling unit, conditioned gas train, analyzer modules, PLC-based control logic, and calibration subsystem—all factory-assembled, wired, and functionally tested.
- High-reliability sampling architecture: Electrically heated semi-hot dry extractive probe with automatic pneumatic blowback cleaning for probe tip, sampling line, and primary filter—reducing manual maintenance intervals to >180 days.
- Multi-gas measurement capability: Simultaneous quantification of O₂ (0–5% vol), CO (0–85% vol), and H₂ (0–15% vol) using certified electrochemical and thermal conductivity sensors, all traceable to NIST-maintained reference standards.
- Process-critical safety interlocks: Real-time O₂ concentration monitoring with configurable alarm thresholds; immediate dry-contact relay output (1 A capacity) triggered upon O₂ exceedance to interface directly with furnace hood lift controls, induced draft fan shutdowns, or gas recovery system isolation valves.
- Environmental resilience: Rated for ambient installation in non-classified areas; internal cabinet climate control maintains sensor operating temperature stability; compressed nitrogen (0.4–0.6 MPa, oil- and moisture-free) used exclusively for purge and blowback—eliminating reliance on plant instrument air.
- Modular hardware configuration: Core analytical components—including electrochemical cells, vacuum sampling pump, PLC controller, and solenoid valve manifold—sourced as original OEM imports; structural, housing, and auxiliary components manufactured to ISO 9001-certified domestic specifications.
Sample Compatibility & Compliance
The ADEV 7600 is validated for use across the full spectrum of coal-derived process gases encountered in integrated steelworks and coking plants. It meets functional requirements specified in GB/T 16157–1996 (Chinese standard for stationary source exhaust gas sampling), and its safety-oriented architecture aligns with IEC 61511 (Functional Safety of SIS) principles for SIL-1 capable gas monitoring loops. While not intrinsically safe (no ATEX/IECEx certification), the system is designed for installation in Zone 2/Class I Div 2 environments when paired with appropriate barrier-protected signal interfaces. All gas-handling wetted materials comply with ASTM A269 TP316L stainless steel specifications for corrosion resistance against acidic condensates. Calibration traceability follows ISO/IEC 17025 guidelines via documented span-gas verification using certified N₂/O₂/CO/H₂ blends (±1% uncertainty).
Software & Data Management
The embedded PLC executes deterministic cyclic scanning (scan interval configurable from 10–120 s), digitizes analog inputs at 16-bit resolution, applies linearization and temperature compensation per sensor-specific algorithms, and outputs time-stamped 4–20 mA signals with HART capability. Local HMI provides real-time trend display, alarm event logging (with timestamp, gas channel, and setpoint deviation), and manual override functions for blowback initiation or zero/span calibration. Data export is supported via RS-485 Modbus RTU protocol for integration into DCS/SCADA platforms (e.g., Siemens PCS7, Honeywell Experion). Audit trail functionality records all operator actions, parameter changes, and calibration events—supporting GLP/GMP-aligned record retention where required by internal QA procedures.
Applications
- Basic Oxygen Furnace (BOF) gas recovery: Continuous O₂ monitoring at cold-side induced draft fan outlet to prevent explosive mixtures during gas switching between recovery and flaring modes.
- Coke oven battery off-gas analysis: Quantifying residual O₂ and H₂ in raw coke oven gas prior to desulfurization and compression—critical for downstream compressor safety and tar condensation control.
- Blast furnace top gas cleaning loop: Verifying O₂ breakthrough across scrubber and electrostatic precipitator stages to safeguard TRT (top gas recovery turbine) integrity.
- Coal gasification syngas quality assurance: Tracking CO/H₂ ratio stability in fixed-bed or fluidized-bed gasifier exit streams for downstream Fischer–Tropsch or methanol synthesis feedstock qualification.
- Gas holder inlet/outlet safety monitoring: Enforcing O₂ < 1.0% vol threshold before gas admission to wet or dry-type holders per NFPA 56 and GB 50160 requirements.
FAQ
What gas species does the ADEV 7600 measure, and what are their respective ranges?
It measures O₂ (0–5% vol), CO (0–85% vol), and H₂ (0–15% vol) simultaneously using electrochemical and thermal conductivity detection principles.
Is the system suitable for high-dust environments typical of metallurgical off-gas?
Yes—engineered for continuous operation at dust loadings up to 600 g/Nm³, incorporating heated probe extraction, multi-stage cyclonic and sintered metal filtration, and automated pneumatic blowback.
How frequently does the system require maintenance?
Scheduled maintenance interval exceeds 180 days under typical coke oven or BOF gas conditions; filter element replacement and sensor verification are the primary periodic tasks.
Does the analyzer support regulatory compliance reporting?
While not certified for EPA Method 3A or EN 15267, its measurement uncertainty (≤±1% FS for O₂), audit-trail logging, and calibration traceability support internal QA/QC and third-party process safety audits per ISO 45001 and GB/T 28001 frameworks.
Can the ADEV 7600 be integrated into an existing DCS?
Yes—via standard 4–20 mA analog outputs with HART, or digital communication through RS-485 Modbus RTU; PLC logic is configurable to accept external start/stop commands and forward alarm states.
