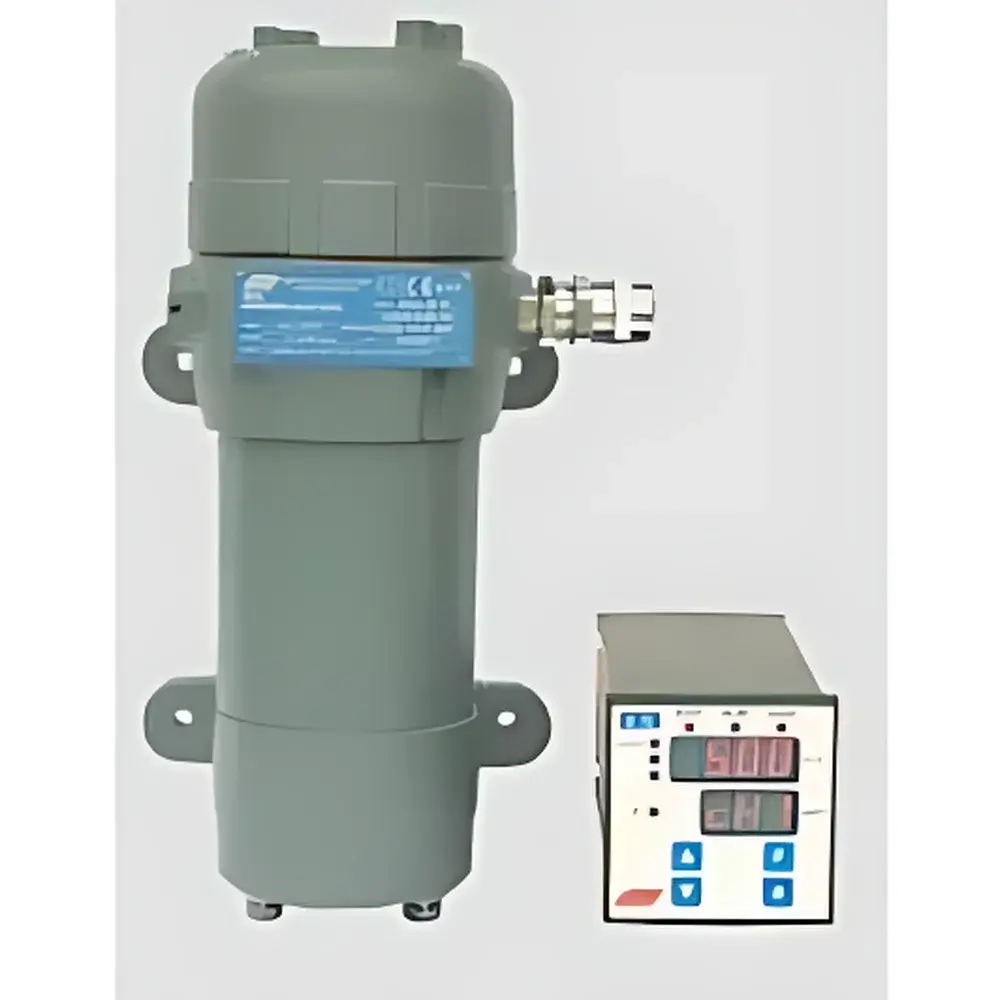

ADEV 8866 Industrial Online Hydrogen Analyzer for Petrochemical Applications

Overview

The ADEV 8866TR is a certified intrinsically safe, explosion-proof thermal conductivity gas analyzer engineered for continuous, real-time hydrogen (H₂) concentration monitoring in demanding petrochemical, power generation, and industrial process environments. Based on the fundamental physical property of thermal conductivity—where H₂ exhibits significantly higher thermal diffusivity than common background gases such as N₂, CO₂, Ar, or air—the 8866TR delivers stable, drift-resistant measurements without consumables or catalytic elements. Its robust TCD sensor architecture ensures long-term stability under variable pressure, temperature, and flow conditions typical in hydrogen-cooled generators, syngas streams, ammonia synthesis loops, and refinery off-gas lines. Designed specifically for Zone 1/Zone 2 and Class I hazardous locations, the analyzer complies with ATEX 94/9/EC Directive and CSA standards, enabling direct installation in classified areas without external purging or remote sampling systems.

Key Features

• ATEX-certified EEx d II C T6 explosion-proof housing for direct mounting in hazardous area classifications (Zone 1 & Zone 2)
• IP66-rated enclosure ensuring protection against dust ingress and high-pressure water jets
• Multi-range configurability: standard H₂ spans from 0–1% up to 0–100%, including narrow high-purity bands (e.g., 95–100% H₂, 98–100% H₂) and mixed-gas modes (e.g., H₂ in CO₂, He in Ar, N₂ in Ar)
• Fast response kinetics: t₆₀ < 13 s for H₂; t₉₀ < 24 s; full-scale stabilization within 40 s
• High metrological integrity: ±1% full-scale accuracy, ≤0.3% FS repeatability, and ≤1% FS linearity error across calibrated ranges
• Dual-power architecture supporting both 24–30 VDC (for sensor head) and universal AC input (115/220 VAC, 50 Hz, 150 VA)
• Four independent, galvanically isolated 4–20 mA analog outputs assignable to primary gas, secondary gas, temperature, or diagnostic status
• Standard RS232 and RS485 serial interfaces for integration into DCS, SCADA, or PLC-based control networks using Modbus RTU protocol

Sample Compatibility & Compliance

The ADEV 8866TR is validated for use with non-corrosive, dry, particle-free gas streams. It supports binary, ternary, and quaternary gas mixtures—including H₂/N₂, H₂/CO₂, He/Ar, Ar/CO₂, N₂/Ar, and CH₄/air—provided background composition remains stable during calibration. For applications involving moisture or condensable hydrocarbons, optional heated sample lines and particulate filtration are recommended upstream of the 1/4″ or 6 mm compression inlet. The analyzer meets ISO 13849-1 (PL e), IEC 61508 (SIL 2 capable), and EN 60079-0/-1/-11 for explosive atmospheres. Its design facilitates compliance with process safety management (PSM) requirements per OSHA 1910.119 and supports audit-ready documentation for GLP/GMP-regulated hydrogen purity verification in fertilizer, chlor-alkali, and semiconductor manufacturing facilities.

Software & Data Management

While the 8866TR operates as a standalone field instrument with local LED display and push-button configuration, its RS485 interface enables seamless integration with centralized asset monitoring platforms. Configuration, zero/span calibration, alarm threshold setting, and diagnostic logging are accessible via ASCII command set or optional PC-based configuration utility (Windows-compatible). All calibration events, sensor diagnostics, and output status changes are timestamped and retainable for ≥30 days onboard. When integrated into FDA-regulated environments (e.g., hydrogen supply for pharmaceutical excipient drying), the system supports 21 CFR Part 11-compliant audit trails when paired with validated SCADA historian software. No firmware updates require physical access—remote parameter adjustments and firmware upgrades may be performed via secure serial tunneling.

Applications

• Hydrogen purity monitoring in turbine generator cooling circuits (H₂ in air: 85–100%; H₂ in CO₂: 75–100%)
• Real-time H₂ concentration control in ammonia synthesis reactors and methanol reformers
• Syngas composition analysis in gasification and Fischer–Tropsch units
• Purity assurance for on-site H₂ generators supplying semiconductor fab tools
• Leak detection and purge verification in hydrogen storage and distribution infrastructure
• Process optimization in zinc/galvanizing lines and copper annealing furnaces
• He/Ar concentration verification in superconducting magnet cryogenic systems and air separation plants
• CH₄ and CO quantification in biogas upgrading and landfill gas conditioning

FAQ

Is the ADEV 8866TR suitable for measuring hydrogen in wet or corrosive gas streams?
No—sample gas must be dry and free of condensables, acids, or silicones. Optional heated sample conditioning systems are recommended for humid or trace-contaminant applications.
Can the 8866TR simultaneously measure more than one gas component?
It measures one primary gas per configuration (e.g., H₂ in N₂), but multi-range calibration allows rapid reconfiguration between up to four pre-programmed gas pairs without hardware change.
What maintenance intervals are recommended for routine operation?
Zero/span verification every 3–6 months is advised; no sensor replacement is required under normal operating conditions for ≥5 years.
Does the analyzer support HART communication protocol?
No—only RS232/RS485 Modbus RTU is natively supported. HART compatibility requires an external protocol converter.
How is calibration traceability documented?
Each unit ships with a factory calibration certificate referencing NIST-traceable standards; field calibration logs include operator ID, date, reference gas lot number, and deviation data.
