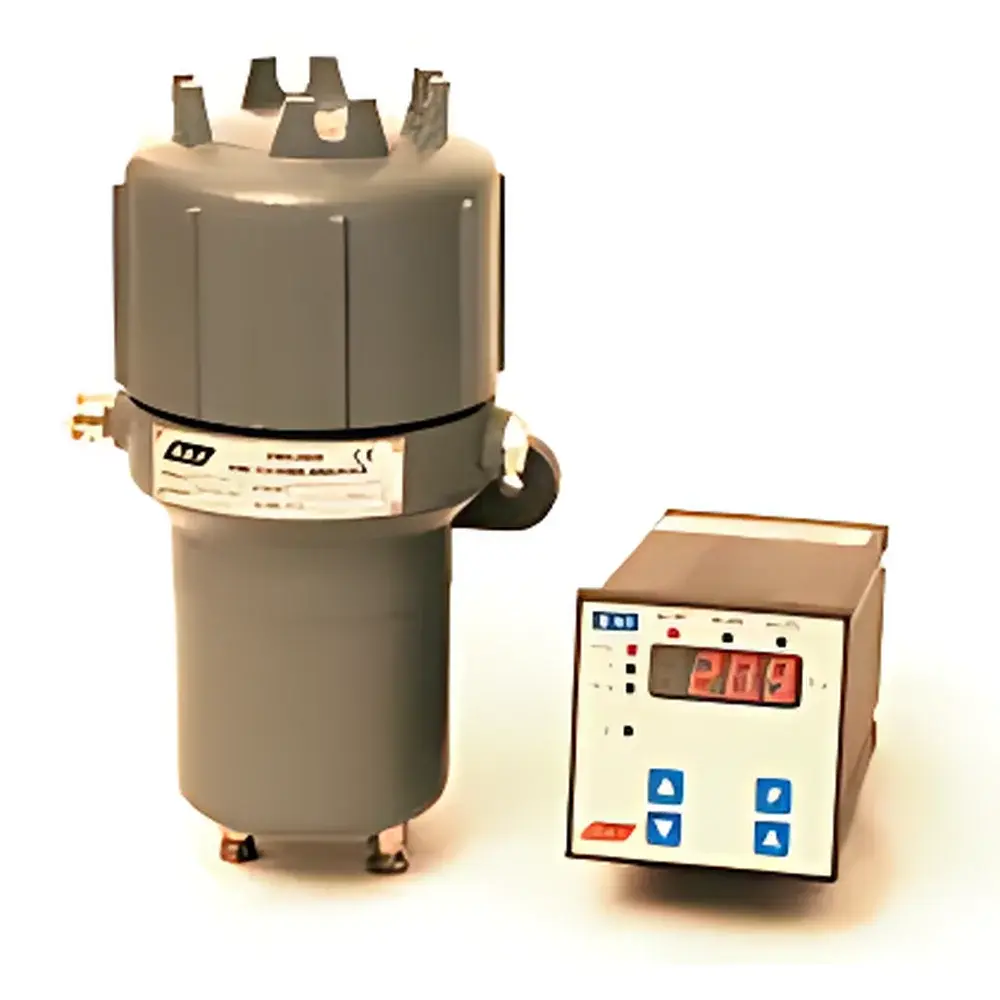

ADEV 8866TR Intrinsically Safe Thermal Conductivity Gas Analyzer for Helium and Multi-Component Gas Mixtures

Overview

The ADEV 8866TR is a certified intrinsically safe thermal conductivity gas analyzer engineered for continuous, high-stability concentration measurement of helium (He), hydrogen (H₂), methane (CH₄), argon (Ar), carbon dioxide (CO₂), sulfur dioxide (SO₂), and hydrocarbons in binary, ternary, or quaternary gas mixtures. Its operation relies on the fundamental physical property of thermal conductivity—specifically, the differential heat transfer rate between a reference gas (typically air or nitrogen) and the sample gas across matched thermistor-based sensing elements housed in separate, thermally isolated chambers. This dual-chamber architecture—comprising a precisely temperature-controlled reference cell and an active measurement cell—enables zero-based calibration and eliminates drift-induced baseline offset. Unlike catalytic or electrochemical sensors, the 8866TR requires no consumables, exhibits no cross-sensitivity to oxygen or inert gases, and maintains stable performance under wide-ranging pressure and humidity fluctuations typical in industrial process streams. It is specifically configured for helium purity verification in superconducting magnet systems, cryogenic infrastructure, and semiconductor purge environments—where trace-level He detection (down to 0.1% v/v) and robustness against explosive atmospheres are non-negotiable.

Key Features

• ATEX-certified explosion protection (II 2G Ex d IIC T6 Gb / II 2D Ex tb IIIC T85°C Db) for safe deployment in Zone 1 and Zone 21 hazardous areas per Directive 2014/34/EU
• Multi-range programmable configuration supporting both full-scale (0–100%) and narrow-band (e.g., 95–100% He) measurements without hardware modification
• Dual thermistor bridge design with active temperature compensation ensures long-term zero stability and repeatability ≤0.3% FS
• Modular internal wetted path constructed from 316 stainless steel, platinum–iridium alloy filaments, borosilicate glass capillaries, and fluoropolymer seals (PTFE/FKM) for chemical compatibility with aggressive process gases
• Real-time analog output (4–20 mA, up to four independent channels) synchronized with digital serial communication (RS232/RS485) for integration into DCS, PLC, or SCADA systems
• Response time optimized for critical applications: t₆₀ <13 s for H₂, t₉₀ <24 s; t₆₀ <23 s for CO₂, t₉₀ <45 s—validated per IEC 60079-29-1 methodology

Sample Compatibility & Compliance

The 8866TR accommodates gas streams with flow rates from 100 mL/min to 2 L/min and operates reliably across ambient temperatures of −20°C to +50°C. Its sample interface accepts standard 1/4″ Swagelok® or 6 mm compression fittings, enabling direct connection to process lines without external conditioning—provided inlet particulate filtration and moisture removal (e.g., via coalescing filter and desiccant trap) are implemented upstream per ISO 8573-1 Class 4 requirements. The analyzer complies with electromagnetic compatibility standards EN 61326-1 (industrial environment) and safety standard EN 61010-1. For regulated industries—including pharmaceutical hydrogen purge validation, nuclear coolant monitoring, and semiconductor fab gas delivery—it supports audit-ready operation when integrated with compliant data acquisition systems meeting FDA 21 CFR Part 11 requirements for electronic records and signatures.

Software & Data Management

While the 8866TR operates as a standalone field instrument with local LED display and push-button calibration, its RS232/RS485 interface enables bidirectional communication with host software such as ADEV’s proprietary GasConfig Suite or third-party platforms (e.g., Ignition SCADA, Siemens Desigo CC). Configuration parameters—including span gas selection, range assignment, damping factor, and alarm thresholds—are stored in non-volatile memory and retain settings after power cycling. All calibration events, zero/span adjustments, and fault logs are timestamped and exportable via serial dump, supporting GLP/GMP traceability protocols. No embedded operating system or cloud dependency is required; all firmware updates are performed offline using signed binary files verified via CRC-32 checksum.

Applications

• Helium purity monitoring in MRI and NMR superconducting magnet cooling circuits (≥99.995% He)
• Hydrogen concentration control in hydrogen-cooled turbo-generators (IEC 60034-27-2 compliance)
• Process gas analysis in ammonia synthesis loops (N₂/H₂ ratio verification)
• Inert gas blanketing verification in semiconductor CVD/PVD tool chambers
• Argon recovery efficiency assessment in air separation units (ASUs)
• CH₄ and CO₂ quantification in biogas upgrading and landfill gas treatment
• Safety-critical H₂ leak detection in electrolyzer skids and fuel cell test benches

FAQ

Can the 8866TR measure helium in nitrogen background at 100 ppm level?
No—the thermal conductivity differential between He and N₂ limits practical lower detection limit to approximately 0.1% (1000 ppm) under standard conditions. For sub-ppm He analysis, mass spectrometry or laser absorption techniques are recommended.
Is calibration required before each use?
Zero calibration with certified balance gas (e.g., synthetic air) is recommended prior to commissioning and after extended downtime. Span calibration using certified He-in-N₂ standard gas is required annually or per site QA protocol.
Does the analyzer support automatic temperature compensation for varying ambient conditions?
Yes—integrated Pt100 sensor continuously monitors housing temperature and dynamically adjusts bridge bias to maintain thermal equilibrium between reference and measurement cells.
Can multiple gas components be measured simultaneously with one 8866TR unit?
No—it performs single-component analysis per installation. Multi-gas capability requires either sequential sampling with valve manifolds or parallel analyzers configured for orthogonal gas pairs.
What maintenance intervals are specified for the thermal conductivity sensor?
No scheduled sensor replacement is defined. Routine inspection every 12 months includes verification of flow path integrity, electrical continuity, and response time against reference gas—per ADEV Technical Bulletin TB-8866-03.
