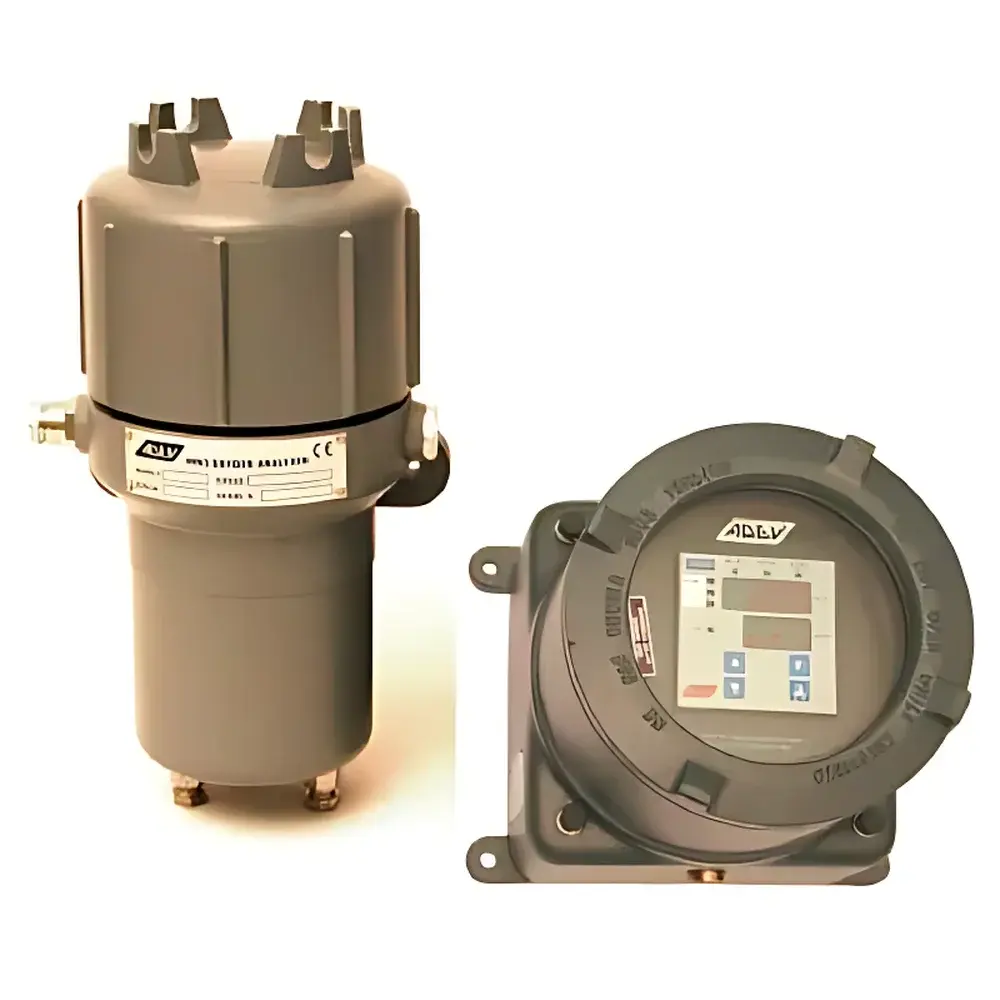

ADEV 8869 Intrinsically Safe NDIR Carbon Monoxide Analyzer

Overview

The ADEV 8869 is a certified intrinsically safe, online NDIR (Nondispersive Infrared) carbon monoxide analyzer engineered for continuous, high-selectivity measurement in demanding industrial and environmental monitoring applications. Utilizing dual-beam, multi-layer infrared detection architecture, the instrument achieves robust discrimination against spectral interferences—particularly from water vapor and other common combustion byproducts—without requiring complex gas conditioning systems. Its core optical path employs a stable, corrosion-resistant measurement cell with optimized path length and thermal management to ensure long-term signal stability. Designed to meet stringent safety requirements for hazardous locations, the 8869 carries ATEX II 2G Ex d IIC T6 Gb and CSA Class I, Division 2, Groups A–D certifications, permitting deployment in Zone 1 and Zone 2 classified areas where flammable gases may be present. The analyzer operates on a fixed single-gas configuration for CO, delivering trace-level quantification across user-selectable ranges—from 0–500 ppm up to 0–100% volume—with built-in temperature and pressure compensation to maintain metrological integrity under variable process conditions.

Key Features

• ATEX and CSA-certified explosion-proof enclosure (Ex d IIC T6) for safe operation in hazardous area classifications Zone 1/Zone 2 and Class I Div 2.
• True NDIR measurement principle with reference and active detector channels, enabling drift-resistant, high-reproducibility CO quantification.
• Automatic zero calibration using ambient air—eliminating the need for frequent zero gas cylinders and reducing operational overhead.
• Multi-layer IR detector design minimizes cross-sensitivity to H₂O, CO₂, and hydrocarbons, significantly improving measurement specificity in humid or mixed-gas streams.
• Modular, corrosion-resistant sample cell and optical components—designed for easy disassembly, solvent cleaning, and field maintenance without recalibration.
• Real-time digital signal processing with internal response time <1 s; total system T90 response ≤15 s (gas inlet to 90% output step change).
• Configurable dual-range capability (1:10 ratio) and scalable analog output (4–20 mA isolated) with Modbus RTU over RS-485 for integration into SCADA and DCS platforms.

Sample Compatibility & Compliance

The ADEV 8869 accepts raw or lightly conditioned sample gas within defined physical limits: flow rate 0.25–2 L/min, pressure ±0.5 to ±1.5 bar(g), temperature 0–50 °C, and humidity <90% RH (non-condensing). It does not require catalytic scrubbers or permeation dryers for typical ambient or stack applications, though particulate filtration (e.g., sintered stainless steel filter) is recommended upstream of the inlet. The analyzer complies with EN 60079-0, EN 60079-1, and UL 60079-0 for explosive atmospheres, and its measurement performance aligns with ISO 4037-3 (for low-concentration gas standards traceability) and EN 14625 (ambient air quality—CO determination). While not inherently GLP/GMP-compliant out-of-the-box, audit-ready data logging, timestamped calibration events, and configurable password-protected parameter access support validation under FDA 21 CFR Part 11 when deployed with compliant IT infrastructure.

Software & Data Management

The 8869 features an embedded firmware interface with plain-text menu navigation—no proprietary software required for basic setup, calibration, or diagnostics. All operational parameters—including span gas concentration, zero offset, alarm thresholds, and communication settings—are adjustable via front-panel keypad. Internal event logging records calibration timestamps, zero/span verification results, fault codes, and power cycle history for up to 30 days. Data export is supported via RS-485 (Modbus RTU register mapping provided in technical manual), enabling direct ingestion into historian systems (e.g., Ignition, Siemens Desigo, or OSIsoft PI). Optional OEM firmware extensions support 21 CFR Part 11-compliant electronic signatures and audit trail generation when integrated with validated third-party data acquisition servers.

Applications

• Continuous emission monitoring (CEM) of CO in boiler flue gas, incinerator stacks, and cement kiln exhausts.
• Safety-critical indoor air quality (IAQ) surveillance in parking garages, tunnels, and underground facilities.
• Process control in syngas production, hydrogen reforming, and Fischer–Tropsch reactors where CO concentration directly impacts catalyst efficiency.
• Environmental compliance reporting per EU Directive 2008/50/EC and U.S. EPA Method 10 for ambient CO monitoring networks.
• Leak detection and fugitive emission quantification in petrochemical refineries and LNG terminals operating under ATEX/IECEx jurisdiction.

FAQ

Does the ADEV 8869 require periodic calibration with certified span gas?
Yes—annual calibration with traceable CO standard gas (certified to ISO/IEC 17025) is recommended to maintain stated accuracy. Automatic zero correction using ambient air reduces dependency on zero gas but does not replace full span verification.
Can the analyzer measure CO in high-humidity or corrosive sample streams?
It is designed for moderate humidity (<90% RH); condensation must be avoided. For highly acidic or particulate-laden streams, a dedicated sample conditioning system (e.g., Nafion dryer + particulate filter) is advised prior to inlet.
Is Modbus RTU communication compatible with common industrial PLCs?
Yes—the RS-485 port implements standard Modbus RTU protocol with configurable slave ID, baud rate (up to 115.2 kbps), and parity; register maps are supplied in the installation manual.
What mechanical mounting options are available?
Three configurations: 19″ rack-mount (standard 3U height), front-panel cutout (with gasketed bezel), and benchtop stand—selected at time of order based on model suffix.
How is zero drift managed during extended unattended operation?
The auto-zero function executes daily (configurable interval) using filtered ambient air as reference; drift compensation algorithms adjust baseline in real time, limiting zero drift to ≤1% FS/month as verified per IEC 62282-3.
