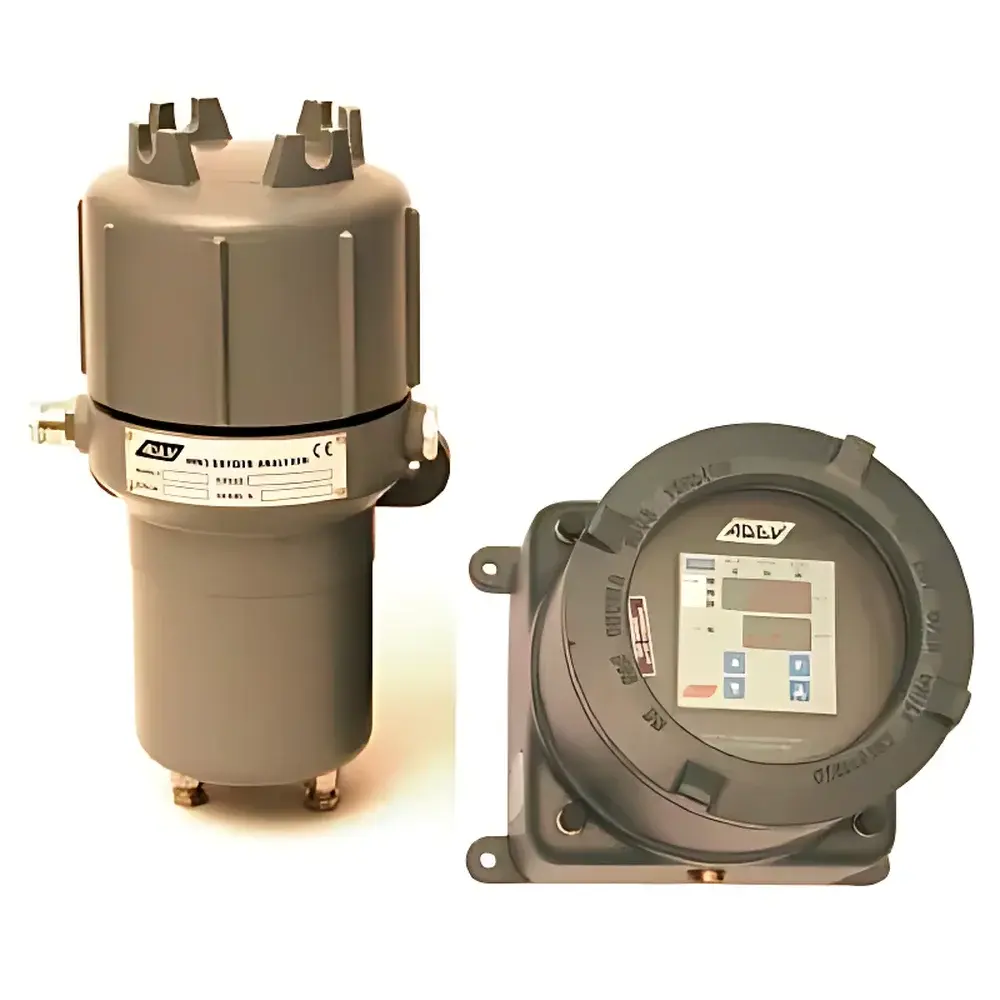

ADEV 886TR Explosion-Proof Online Hydrogen Analyzer for Generator Purge Monitoring

Overview

The ADEV 886TR is an intrinsically robust, explosion-proof online hydrogen analyzer engineered specifically for continuous, real-time monitoring of hydrogen concentration during generator purge operations in power generation facilities. Based on high-stability thermal conductivity detection (TCD), the instrument delivers rapid, drift-resistant quantification of H₂ in air (75–100% or 85–100%), H₂ in CO₂ (0–100%), and CO₂ in air (0–100%) — critical parameters for safe and compliant hydrogen-cooled turbine generator commissioning, maintenance, and emergency purging protocols. Its design complies with stringent safety requirements for installation in classified hazardous locations (ATEX Zone 1/2, CSA Class I Div 1), making it suitable for deployment directly at generator seal oil systems, purge gas manifolds, and hydrogen storage buffer lines without requiring external sample conditioning or remote analyzers.

Key Features

• Explosion-proof enclosure certified to ATEX Directive 94/9/EC (II 2G Ex d IIC T6 Gb) and CSA C22.2 No. 100 (Class I, Div 1, Groups A–D, T6)
• Thermal conductivity sensor with dual-range capability: optimized for high-concentration H₂ measurement with sub-second initial response and full-scale stabilization within 40 s (H₂) or 80 s (CO₂)
• Four independently configurable 4–20 mA analog outputs for integration with DCS, PLC, or safety shutdown systems (e.g., per IEEE Std 115 for generator testing)
• RS232/RS485 serial interface supporting Modbus RTU protocol for remote configuration, diagnostics, and data logging
• Wide operational flow range (100 mL/min to 2 L/min) accommodates both low-flow bypass sampling and high-flow direct-line installations
• IP66-rated aluminum alloy housing with stainless steel wetted parts ensures long-term reliability in harsh industrial environments including coastal power plants and chemical process areas
• No consumables, zero calibration gases required under normal operation; optional auto-zero function available via internal reference gas path

Sample Compatibility & Compliance

The 886TR is validated for use with dry, non-corrosive, particle-free gas streams typical of generator purge circuits — including H₂/N₂, H₂/CO₂, and CO₂/air mixtures. It is not intended for use with wet, acidic, or heavily particulate-laden samples without upstream filtration and drying (e.g., coalescing filter + desiccant dryer). The analyzer meets electromagnetic compatibility (EMC) requirements per EN 61326-1 and safety standards per EN 61010-1. Its certification portfolio supports compliance with international regulatory frameworks including IEC 60079-0/-1, UL 60079-0/-1, and ISO 8573-1:2010 Class 4 for compressed air quality when used with appropriate sample conditioning. For nuclear applications, documentation packages support ASME NQA-1 traceability and 10 CFR 50 Appendix B QA program alignment.

Software & Data Management

Configuration and diagnostics are performed via the ADEV Analyzer Configuration Utility (ACU), a Windows-based PC application accessible through the RS232 port. The utility enables full parameter setup (span, zero offset, alarm thresholds, output scaling), event log review, and firmware updates. All analog outputs support HART-compatible smart signal behavior, enabling device-level diagnostics via compatible asset management systems. Audit trails — including configuration changes, calibration events, and alarm activations — are timestamped and stored locally for GLP/GMP-relevant environments. Optional integration with ADEV’s centralized SCADA gateway allows aggregation of multiple 886TR units into a unified hydrogen safety dashboard aligned with ISA-84/IEC 61511 functional safety lifecycle documentation.

Applications

• Hydrogen purge verification in synchronous generators prior to startup or after maintenance (per IEEE Std 115 Section 8.3.3)
• Continuous monitoring of H₂ purity in sealed rotor cooling systems during operation
• CO₂ blanket gas concentration verification during inerting procedures
• Leak detection support in hydrogen supply and storage infrastructure
• Process gas composition control in metallurgical furnaces (e.g., copper annealing, steel decarburization)
• High-purity H₂ monitoring in semiconductor fab gas delivery systems (SEMI F57 compliant gas panel interfaces)
• On-site verification of hydrogen generator output for fuel cell or electrolyzer feedstock qualification

FAQ

What is the recommended sample gas conditioning for the 886TR in generator purge applications?
A coalescing particulate filter (≤1 µm) and desiccant dryer (dew point ≤ −20 °C) are strongly advised to prevent condensate formation and particulate fouling of the TCD cell.
Can the 886TR measure hydrogen in nitrogen backgrounds?
Yes — while calibrated for H₂ in air and H₂ in CO₂, its thermal conductivity algorithm supports user-defined span adjustments for H₂/N₂ mixtures using factory-provided correlation coefficients.
Is the 4–20 mA output intrinsically safe?
No — the analog outputs are non-IS but may be connected to IS barriers (e.g., Pepperl+Fuchs KFD2-STC4-Ex1) for use in Zone 0/1 installations.
Does the analyzer support automatic temperature compensation?
Yes — integrated Pt100 sensor continuously monitors ambient and sensor block temperature, applying real-time correction to thermal conductivity readings per ASTM D1946 Annex A1.
What documentation is provided for regulatory audits?
Each unit ships with EU Declaration of Conformity, ATEX Certificate of Conformity (TÜV Rheinland), CSA Certificate, calibration certificate (NIST-traceable), and full mechanical/electrical schematics for QA/QC review.
