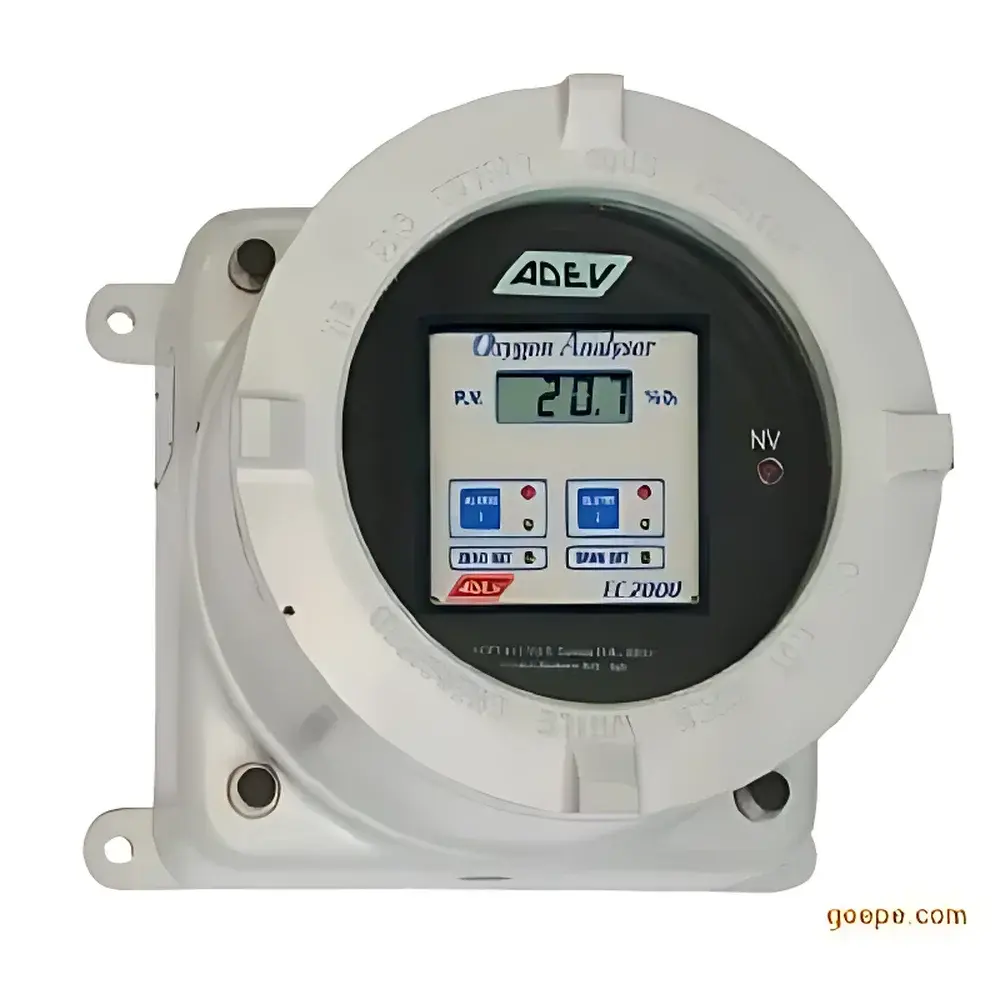

ADEV EC2000 Percent Oxygen Analyzer

Overview

The ADEV EC2000 Percent Oxygen Analyzer is a high-stability, electrochemical-based trace-to-bulk oxygen measurement instrument engineered for continuous, real-time monitoring in demanding industrial process environments. Utilizing a long-life, temperature-compensated galvanic or zirconia-based sensing cell (configuration dependent on application specification), the EC2000 delivers calibrated O₂ concentration data across an exceptionally wide dynamic range—from sub-ppm levels (0.01 ppm) up to 100% volume fraction—without manual range switching. Its auto-ranging digital display and intelligent signal conditioning architecture ensure metrological continuity across six decades of measurement, making it suitable for applications ranging from inert gas purity verification in semiconductor purge lines to safety-critical O₂ enrichment control in medical gas production and combustion optimization in thermal processing furnaces.

Key Features

• Multi-decade measurement capability: seamless transition from 0.01 ppm to 100% O₂ with automatic scaling and context-aware resolution (0.01 ppm at low trace levels; 0.001% in the 0.1–1% range; 0.1% between 10–99%; 1% above 100%)
• High-reproducibility electrochemical sensing platform with built-in temperature compensation and drift correction algorithms, achieving stability better than ±2% of full scale per month under standard operating conditions
• Fast T₉₀ response time ≤4 seconds at nominal sample flow (300 mL/min), enabling effective closed-loop feedback control in dynamic process streams
• Dual independent relay outputs with fully programmable alarm logic—including adjustable hysteresis (0–10% of setpoint), high/low/deactivated modes, and user-defined thresholds across the entire measurement span
• Isolated analog output (0–5 V or 4–20 mA) with field-configurable full-scale and zero-point values—supporting integration into legacy DCS, PLC, or SCADA systems without external signal conditioning
• Robust mechanical design featuring nickel-plated brass compression fittings (6 mm OD), optional stainless steel dual-clamp unions, and compatibility with sample gas temperatures up to 100 °C at the inlet port

Sample Compatibility & Compliance

The EC2000 is designed for use with non-corrosive, non-condensing process gases including nitrogen, argon, helium, hydrogen, CO₂, and clean compressed air. It is not recommended for use with halogenated compounds, sulfur-containing species, or highly reactive oxidizers beyond ambient O₂ concentrations without prior consultation with ADEV technical support. The analyzer meets CE marking requirements for electromagnetic compatibility (EMC Directive 2014/30/EU) and low-voltage safety (LVD Directive 2014/35/EU). While not intrinsically safe by default, explosion-proof enclosures or remote sensor configurations are available upon request to comply with ATEX/IECEx Zone 1/2 requirements. For regulated pharmaceutical or food-grade applications, the EC2000 supports audit-ready operation when paired with validated calibration logs and can be configured to meet basic GLP documentation expectations through its RS-232 interface and timestamped event logging.

Software & Data Management

Data acquisition and configuration are performed via the standard RS-232 DCE serial interface using ASCII command protocol—enabling direct integration with custom LabVIEW, Python, or C# applications for automated calibration scheduling, trend analysis, and alarm archiving. Although the EC2000 does not include embedded web server or cloud connectivity, its open communication protocol allows seamless ingestion into enterprise MES or Historian platforms (e.g., OSIsoft PI, Emerson DeltaV, Siemens Desigo CC) via OPC UA or Modbus RTU gateways. All analog and relay outputs are hardware-isolated to prevent ground loop interference, and the unit retains factory calibration coefficients in non-volatile memory—even after power loss—to ensure measurement continuity during scheduled maintenance cycles.

Applications

• Purity verification of blanketing gases (N₂, Ar) in metal heat treatment, glass annealing, and lithium-ion battery dry rooms
• Leak detection and integrity testing in vacuum chambers and sealed packaging lines
• O₂ trim control in fuel-rich combustion systems (e.g., ceramic kilns, incinerators, thermal oxidizers)
• Quality assurance in medical oxygen generation and blending stations compliant with ISO 8573-1:2010 Class 1 particulate/oil requirements
• Monitoring residual oxygen in modified atmosphere packaging (MAP) headspace analysis workflows
• Process validation support for sterilization cycles (e.g., ethylene oxide, hydrogen peroxide vapor) where O₂ residuals impact efficacy

FAQ

What sensor technology does the EC2000 employ?
The EC2000 utilizes either a long-life galvanic (electrochemical) cell or a high-temperature zirconia sensor, selected based on required range, response time, and sample gas composition. Sensor type is specified at time of order and cannot be field-upgraded.

Can the EC2000 measure oxygen in corrosive or humid gas streams?
No. The analyzer requires conditioned sample gas—free of condensable moisture, particulates, oil aerosols, and aggressive chemicals. Integration with ADEV-recommended coalescing filters, refrigerated dryers, and chemical scrubbers is strongly advised for challenging process environments.

Is the EC2000 compliant with FDA 21 CFR Part 11?
The base unit does not provide electronic signature, audit trail, or role-based access control required for Part 11 compliance. However, when connected to a validated third-party data acquisition system with appropriate SOPs, it may serve as a compliant measurement endpoint in GxP environments.

What calibration frequency is recommended?
ADEV recommends initial calibration upon installation, followed by quarterly verification using NIST-traceable certified gas standards. Drift assessment should be performed using zero (nitrogen) and span (certified O₂ in N₂) gases across the intended operating range.

Does the EC2000 support HART or Foundation Fieldbus communication?
No. The EC2000 features only RS-232 DCE serial output. For HART or Fieldbus integration, a protocol converter or gateway device is required.
