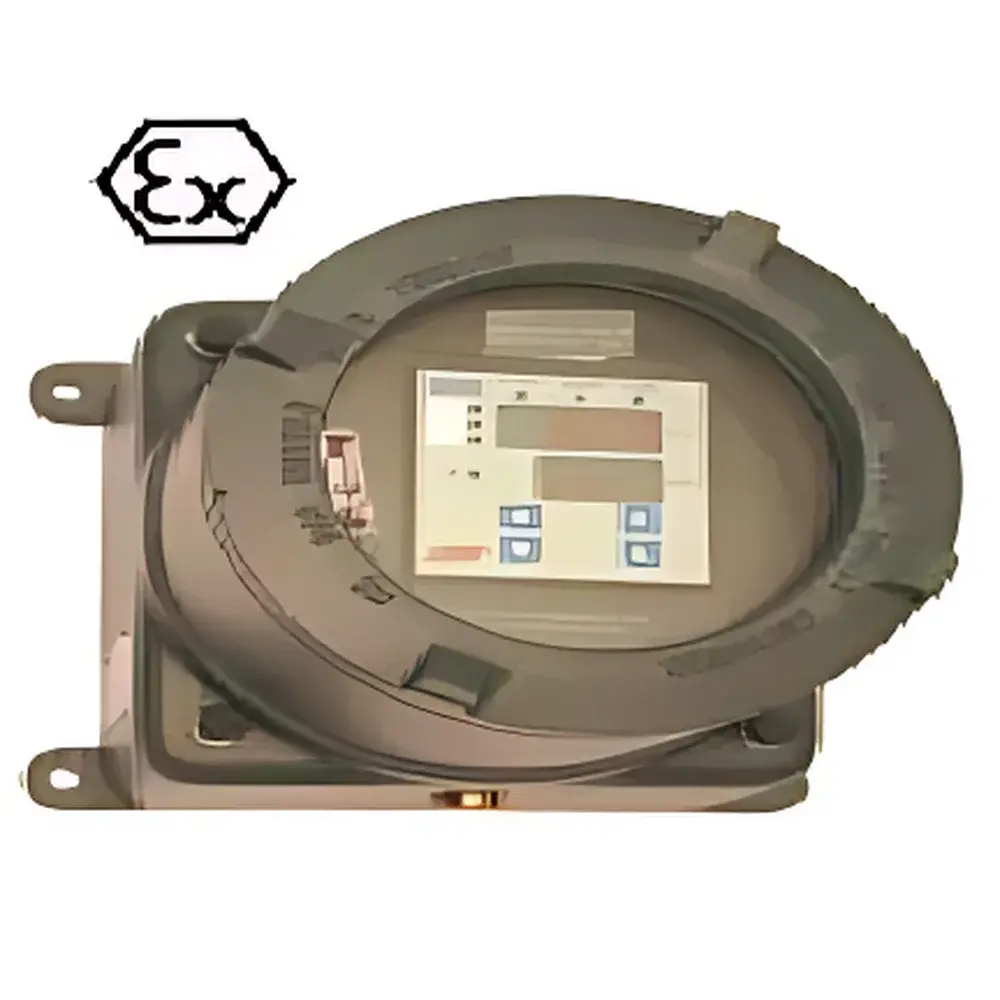

ADEV EC9600 Explosion-Proof Trace Oxygen Analyzer

Overview

The ADEV EC9600 Explosion-Proof Trace Oxygen Analyzer is an intrinsically robust, process-integrated analytical instrument engineered for continuous, high-stability measurement of trace oxygen concentrations in hazardous and chemically aggressive industrial environments. It employs ADEV’s proprietary electrochemical micro-fuel cell technology—marketed as the SUPERCELL® platform—which operates on a galvanic principle: molecular oxygen diffuses through a selective membrane into an aqueous electrolyte, where it undergoes reduction at the cathode, generating a current linearly proportional to the partial pressure of O₂. Unlike conventional zirconia or paramagnetic analyzers, this sensor architecture delivers true zero-point stability without drift compensation algorithms, eliminates the need for reference gas or purge air, and maintains metrological integrity across wide temperature gradients (0–100 °C) and dynamic flow conditions. Designed and certified to European ATEX Directive 2014/34/EU, the EC9600 is approved for installation in Zone 1 and Zone 2 classified areas—making it suitable for direct mounting in ethylene crackers, hydrogen purification loops, LNG liquefaction trains, and other hydrocarbon processing units where ignition risk mandates rigorous explosion protection.

Key Features

• ATEX-certified flameproof enclosure (Ex d IIC T6 Gb) with IP65-rated front panel and sealed internal electronics
• Patented SUPERCELL® A and B sensor variants: A-type optimized for inert and combustible gas matrices (e.g., H₂, He, Ar, C₂H₂); B-type formulated for CO₂-rich or acidic gas streams (≥0.5% CO₂), ensuring stable performance in syngas, biogas, and amine-treated natural gas
• True zero-point stability: no baseline drift over time; eliminates requirement for zero-gas calibration or periodic offset correction
• Auto-ranging detection capability spanning five decades—from 50 ppb (0.05 ppm) up to 25% O₂—with seamless range switching and consistent ±1% FS accuracy across all spans
• Fast T₉₀ response time <10 seconds, enabling real-time feedback for critical safety interlocks and purity control loops
• Calibration flexibility: supports single-point air calibration (20.95% O₂) or certified ppm-level O₂ standards; no auxiliary gases, pumps, or scrubbers required
• Integrated 5-digit LED display with intuitive touch-key interface; menu navigation designed for glove-compatible operation in field environments

Sample Compatibility & Compliance

The EC9600 is validated for continuous analysis in non-corrosive, dry sample streams containing hydrogen, nitrogen, argon, helium, acetylene, ethylene, propylene, butadiene, vinyl chloride, and other unsaturated hydrocarbons. Its SUPERCELL® B sensor variant extends compatibility to streams with up to 5% CO₂ and trace H₂S—common in refinery off-gas and coal gasification syngas—without cross-sensitivity or electrode poisoning. All configurations comply with IEC 60079-0 (general requirements for explosive atmospheres) and IEC 60079-1 (flameproof enclosures “d”). The analyzer meets electromagnetic compatibility (EMC) requirements per EN 61326-1 and functional safety guidelines aligned with IEC 61508 SIL 2 for safety-related applications. While not FDA 21 CFR Part 11–certified out-of-the-box, its analog outputs and RS232 interface support integration into validated DCS/SCADA systems operating under GMP/GLP-compliant audit trails.

Software & Data Management

The EC9600 operates as a standalone, embedded-system analyzer with no external PC dependency. Configuration, calibration, and diagnostics are executed locally via the front-panel interface. RS232 serial communication enables bidirectional data exchange—including real-time O₂ concentration, sensor status, temperature reading, and fault codes—for integration into plant-wide monitoring platforms (e.g., Emerson DeltaV, Honeywell Experion, Siemens Desigo). Optional Modbus RTU firmware upgrade (available upon request) supports protocol interoperability with PLC-based control architectures. All calibration events—including date, operator ID (if entered manually), span value, and deviation from nominal—are timestamped and retained in non-volatile memory for traceability. No cloud connectivity or remote access capabilities are implemented, preserving network isolation in security-sensitive process environments.

Applications

• Hydrogen purity monitoring in PEM electrolyzer outlets and fuel cell feed streams (O₂ ≤ 1 ppm specification)
• Inert gas blanketing control in pharmaceutical reactors and semiconductor wafer fabrication chambers
• Final product verification in cryogenic air separation units (ASU) for electronic-grade nitrogen (O₂ < 100 ppb)
• Safety interlock monitoring in ethylene oxide (EO) and vinyl chloride monomer (VCM) production lines
• Trace O₂ leak detection in LNG storage and transfer systems (preventing auto-refrigeration hazards)
• Process gas quality assurance in polyolefin plants, where residual O₂ catalyzes polymer degradation
• On-stream analysis of purified syngas prior to Fischer–Tropsch synthesis or methanol synthesis reactors

FAQ

Does the EC9600 require zero or span gas for routine calibration?
No. The SUPERCELL® sensor’s inherent zero-point stability allows reliable single-point calibration using ambient air (20.95% O₂) or certified ppm-level standards. No zero gas or carrier gas is needed.
Can the EC9600 measure oxygen in 100% hydrocarbon streams such as propane or butane?
Yes—specifically with the SUPERCELL® A sensor variant, which is validated for O₂ measurement in pure hydrocarbon matrices without signal suppression or catalytic interference.
What is the expected service life of the SUPERCELL® sensor under continuous operation?
Typical operational lifetime exceeds 24 months in clean, dry sample streams at ambient temperature; lifespan may be reduced in high-humidity or condensing conditions, necessitating upstream sample conditioning.
Is the EC9600 compatible with hazardous area zoning outside the EU?
The ATEX certification (II 2G Ex d IIC T6 Gb) is widely accepted under mutual recognition agreements (e.g., IECEx, UKEX); for North American Class I Div 1 installations, consult ADEV for UL/cUL-listed variants.
How does the EC9600 handle pressure fluctuations in the sample line?
It incorporates a precision pressure regulator and flow restrictor; inlet pressure must be maintained between 0.5–2.0 bar(g); deviations beyond this range require external pressure control.
