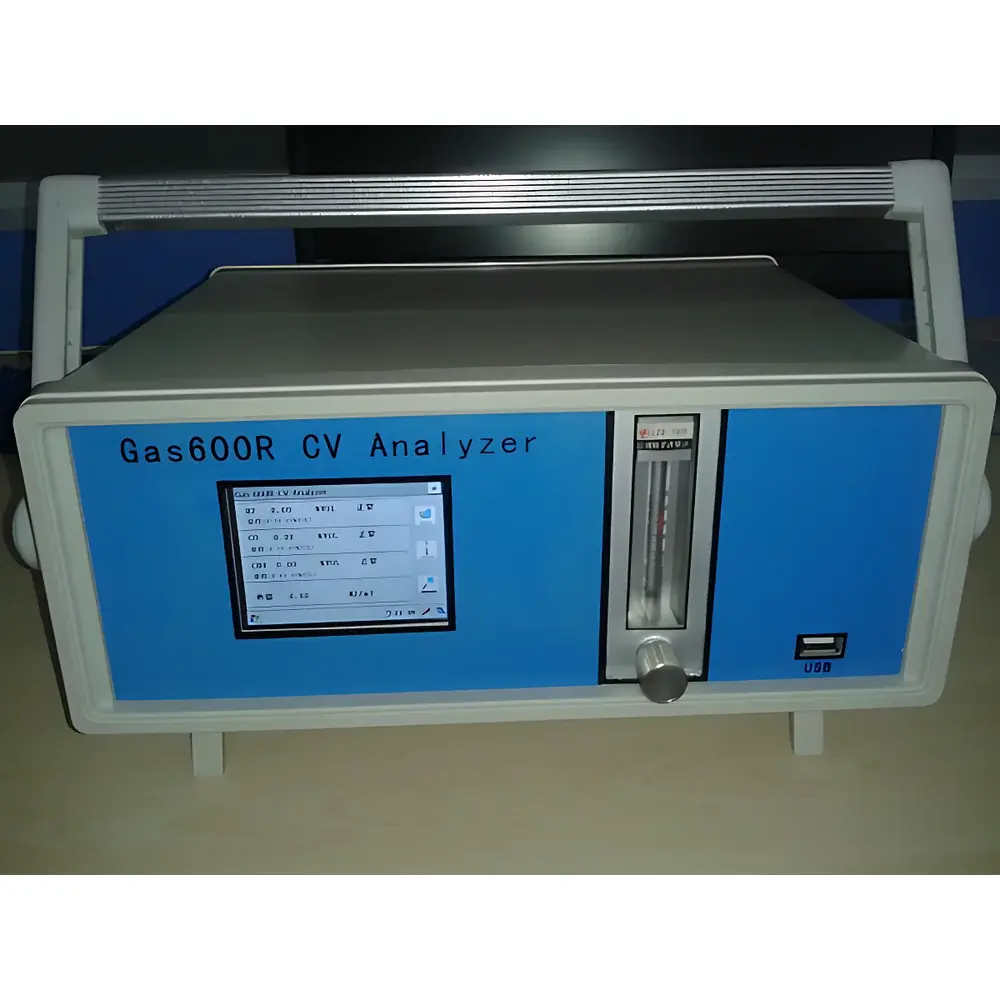

ADEV GAS600R Portable Calorific Value Analyzer for Coke Oven Gas and Blast Furnace Gas

Overview

The ADEV GAS600R Portable Calorific Value Analyzer is an engineered solution for real-time determination of higher heating value (HHV) and lower heating value (LHV) of industrial fuel gases—including coke oven gas (COG), blast furnace gas (BFG), basic oxygen furnace gas (BOFG), and natural gas—directly at the point of sampling. It operates on a multi-sensor hybrid architecture: non-dispersive infrared (NDIR) detection for CO, CO₂, CH₄, and hydrocarbons (CₙHₘ); thermal conductivity detection (TCD) for H₂; and electrochemical sensing for O₂. The instrument calculates gross calorific value using standardized stoichiometric algorithms aligned with ISO 6976 and ASTM D3588, incorporating real-time composition data, pressure, and temperature compensation. Its portable form factor enables rapid deployment across metallurgical plants, coking facilities, cement kilns, and chemical synthesis units where continuous thermal energy assessment informs combustion efficiency, furnace control, and emissions compliance.

Key Features

• Multi-component gas analysis: Simultaneous quantification of up to six components—CO, CO₂, CH₄, H₂, O₂, and CₙHₘ—with configurable sensor selection per application.
• High-fidelity calorific value computation: Embedded firmware applies EN 15403-compliant thermodynamic models, accounting for moisture content, pressure deviation, and gas-specific enthalpy contributions.
• Ruggedized field design: IP65-rated enclosure with integrated particulate and condensate filtration; capable of operation at sample temperatures up to 150 °C and pressures from −10 MPa to +15 MPa (e.g., upstream of desulfurization units).
• Low-drift sensor architecture: NDIR cells feature dual-beam optical referencing; TCD elements are temperature-stabilized; electrochemical O₂ sensors include built-in humidity compensation.
• Battery-operated autonomy: Internal lithium-ion battery supports ≥6 hours of continuous measurement; hot-swappable and chargeable via 12.6 V DC adapter without interrupting data acquisition.
• Real-time diagnostics and calibration logging: Onboard memory stores zero/span events, sensor health metrics, and environmental parameters for audit-ready traceability.

Sample Compatibility & Compliance

The GAS600R is validated for use with raw and cleaned syngas streams typical in iron & steelmaking, non-ferrous smelting, and coal gasification. It accommodates complex matrices containing NH₃ (≤6 g/m³), H₂S (≤6 g/m³), HCN (≤1.5 g/m³), benzene (≤334 g/m³), naphthalene (≤23 g/m³), and saturated tar (≤0.5 g/m³)—provided inlet conditioning removes particulates, free water, and aerosol oil. All sensor outputs meet linearity and repeatability criteria specified in IEC 62409 for portable gas analyzers. Data integrity protocols align with GLP and pre-GMP environments; optional firmware upgrade supports 21 CFR Part 11-compliant electronic signatures and audit trails when interfaced with ADEV’s PC-based configuration software.

Software & Data Management

The analyzer interfaces via RS-232 serial or isolated 4–20 mA analog output to distributed control systems (DCS), SCADA platforms, or local HMIs. ADEV’s proprietary PC utility (Windows-compatible) enables full parameter configuration, multi-point calibration, spectral baseline adjustment, and export of time-stamped CSV reports compliant with ISO/IEC 17025 documentation requirements. Firmware updates preserve calibration coefficients and historical logs. Raw sensor voltages, compensated concentrations, computed HHV/LHV (in MJ/Nm³ or BTU/scf), and diagnostic flags are timestamped at 1 Hz and stored onboard for ≥72 hours (expandable via microSD).

Applications

• Metallurgical process optimization: Monitoring BFG and COG calorific value before injection into blast furnaces or power boilers to maintain consistent thermal input and reduce coke rate variability.
• Coking plant quality control: Verifying hydrogen and methane content in coke oven gas to assess coal blend consistency and oven operating conditions.
• Emissions reporting support: Correlating O₂ and CO readings with stack flow rates to estimate combustion completeness and NOₓ precursor potential per EPA Method 3A guidelines.
• Energy accounting in captive power generation: Validating fuel energy density for billing reconciliation and efficiency KPI tracking under ISO 50001 frameworks.
• Startup/shutdown verification: Rapid validation of purge gas composition and residual combustibles prior to furnace re-lighting, supporting NFPA 86 safety protocols.

FAQ

What gas standards are required for calibration?
Certified reference gas mixtures traceable to NIST or equivalent national metrology institutes are recommended—specifically binary or ternary blends matching expected matrix composition (e.g., 50% H₂/30% CH₄/20% N₂ for COG simulation). Zero gas must be high-purity N₂ (≥99.999%).
Can the GAS600R measure biogas or landfill gas?
Yes—when configured with extended-range CH₄ (0–100%) and H₂S-tolerant filters, it meets ASTM D5504 requirements for biogas analysis; however, dedicated H₂S sensor integration requires factory modification.
Is pressure compensation automatic?
Yes—the integrated absolute pressure transducer continuously corrects NDIR absorbance and TCD thermal transfer models in real time per ISO 14687 Annex C.
How often is field calibration advised?
Under stable operating conditions, quarterly span checks against certified gas are sufficient; daily zero checks are recommended if ambient humidity or temperature fluctuates >10 °C.
Does the device support Modbus RTU communication?
Not natively—but RS-232 output can be converted to Modbus RTU via third-party protocol gateways compliant with IEC 61158.
