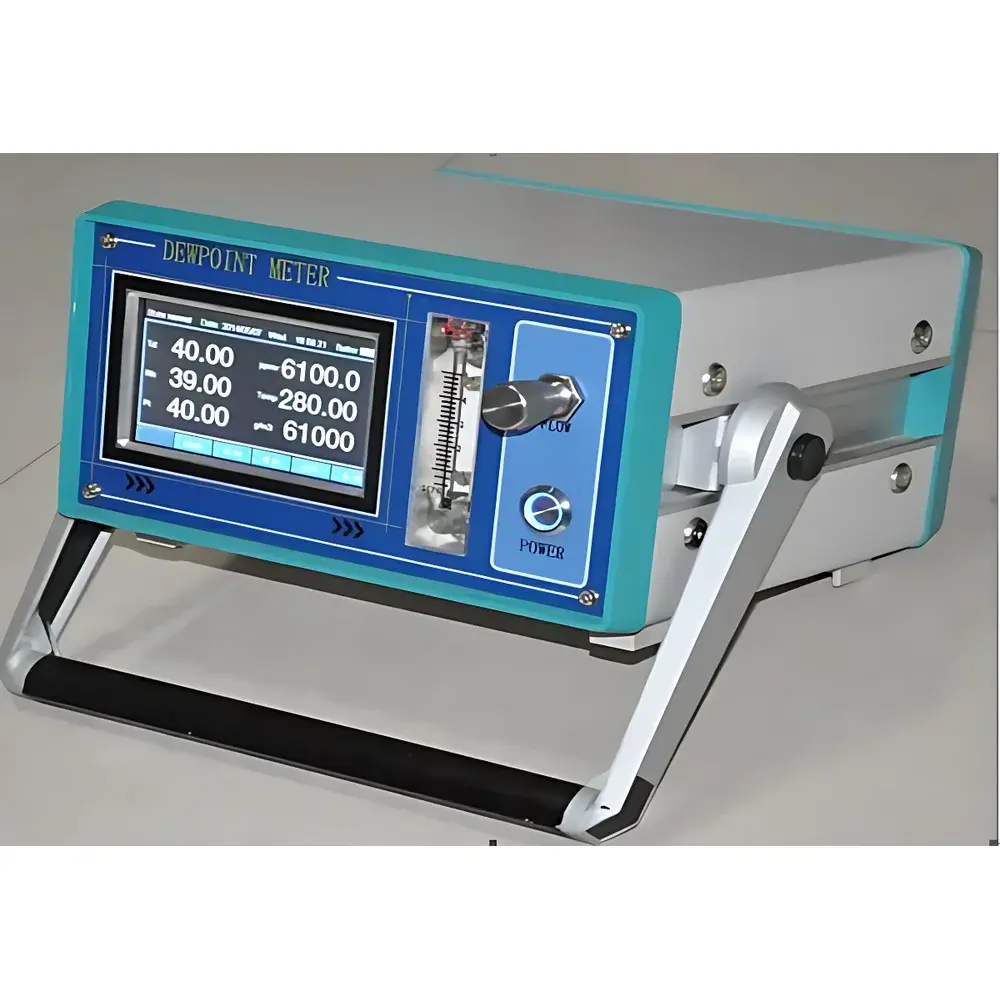

ADEV HSM810 Portable Electrolytic Dew Point Meter

Overview

The ADEV HSM810 Portable Electrolytic Dew Point Meter is a high-precision, field-deployable instrument engineered for trace moisture analysis in dry industrial gases. It employs a dual-electrode phosphorus pentoxide (P₂O₅) electrolytic sensor — a mature, NIST-traceable measurement principle widely accepted in metrology laboratories and regulated industries. Unlike capacitive or chilled-mirror alternatives, the electrolytic method delivers stable, linear response across ultra-low dew point ranges (–80°C to +20°C), with inherent immunity to condensation-induced drift and minimal sensitivity to non-condensable gas composition. The HSM810 is calibrated and validated per ISO 8573-3 for compressed air quality class verification and meets functional requirements for ASTM D6673 (moisture in SF₆ electrical insulation gas) and IEC 60480 (reused SF₆ specifications). Its compact, ruggedized chassis and integrated lithium-ion power system enable reliable operation in remote substations, gas cylinder filling stations, semiconductor fab utility corridors, and on-site pipeline commissioning.

Key Features

• Automatic zero-point calibration routine executed prior to each measurement cycle, minimizing baseline drift over extended field deployment
• Onboard data logging with FAT16 file system supporting real-time storage of dew point, temperature, pressure, flow rate, and timestamp metadata
• High-resolution graphical display (≥320×240 pixels) showing live trend curves, numeric readouts, and system status indicators
• Electrochemical probe protected by stainless-steel sintered filter (5 µm pore size), resistant to oil mist, particulates, and condensate ingress
• Multi-point and slope-based calibration support via external reference standards (e.g., NIST-traceable humidity generators)
• USB and RS232 interfaces enabling direct data export to LIMS or SCADA systems without proprietary drivers
• Intelligent power management with automatic AC/DC switchover, overcharge/overdischarge protection, and battery level monitoring
• Gas-selective flow optimization algorithms — dynamically adjusts sampling logic for H₂, SF₆, N₂, O₂, Ar, CO₂, and compressed air
• Robust mechanical design compliant with IP54 ingress protection and MIL-STD-810G shock/vibration profiles

Sample Compatibility & Compliance

The HSM810 is validated for quantitative water vapor analysis in inert, reactive, and high-purity process gases including hydrogen (H₂), sulfur hexafluoride (SF₆), nitrogen (N₂), oxygen (O₂), argon (Ar), carbon dioxide (CO₂), and instrument-grade compressed air. Its P₂O₅ sensor exhibits negligible cross-sensitivity to CO, CO₂, hydrocarbons, or halogenated compounds under typical operating conditions. The instrument conforms to electromagnetic compatibility (EMC) requirements per EN 61326-1 and safety standards per EN 61010-1. For regulated environments, its audit-ready data structure supports 21 CFR Part 11-compliant electronic records when paired with validated software platforms. Calibration certificates are issued with uncertainty budgets traceable to national metrology institutes (NMIs) in accordance with ISO/IEC 17025.

Software & Data Management

Data acquisition and reporting are facilitated through open-protocol serial communication (ASCII-based command set), enabling seamless integration into existing laboratory information management systems (LIMS), manufacturing execution systems (MES), or custom Python/Node.js scripts. Raw measurement files (.CSV) include column headers compliant with ASTM E2500-18 for raw data integrity. Internal memory retains ≥10,000 timestamped records with cyclic overwrite protection. Optional PC software provides GLP-compliant report generation (PDF/Excel), calibration history tracking, and statistical process control (SPC) charting — all without requiring administrative privileges or runtime dependencies.

Applications

• Monitoring moisture contamination in SF₆ circuit breakers and GIS systems to prevent dielectric failure per IEEE C37.122
• Verifying dryness of purge gases in semiconductor wafer fabrication tools (e.g., ALD, PECVD chambers)
• Validating dew point compliance during compressed air system qualification (ISO 8573-1 Class 0–4)
• Field verification of cryogenic air separation plant product purity (N₂/O₂ streams)
• Pharmaceutical lyophilizer chamber leak testing and inert gas blanketing validation
• Hydrogen fuel cell feed gas certification per SAE J2719 and ISO 14687-2
• Quality assurance of medical oxygen and nitrous oxide cylinders per USP and EP 2.2.42

FAQ

Does the HSM810 require periodic sensor replacement?
Yes — the P₂O₅ sensor has a finite service life dependent on cumulative exposure to moisture and sample gas chemistry. Typical replacement interval is 12–24 months under normal use; extended life is achievable with pre-filtration and low-humidity sample conditioning.
Can the instrument measure frost point instead of dew point?
Yes — below 0°C, the sensor reports frost point (ice saturation) by default, as thermodynamically appropriate for sub-zero water vapor equilibrium. This aligns with ISO 8573-3 Annex B guidance.
Is the USB interface compatible with modern Windows/macOS/Linux OS versions?
Yes — the device enumerates as a standard CDC ACM serial port. No driver installation is required on Windows 10/11, macOS 12+, or Linux kernels ≥5.4.
What pressure compensation method is used?
The HSM810 applies real-time pressure correction using an integrated piezoresistive transducer (0–1.0 MPa range) and the Magnus–Tetens approximation to convert measured dew point to standardized 101.325 kPa reference conditions.
How is measurement traceability maintained during field use?
Each unit ships with a factory calibration certificate referencing NIST-traceable humidity standards. Users may perform on-site verification using certified two-pressure humidity generators or chilled-mirror transfer standards, with results logged alongside operational metadata.
