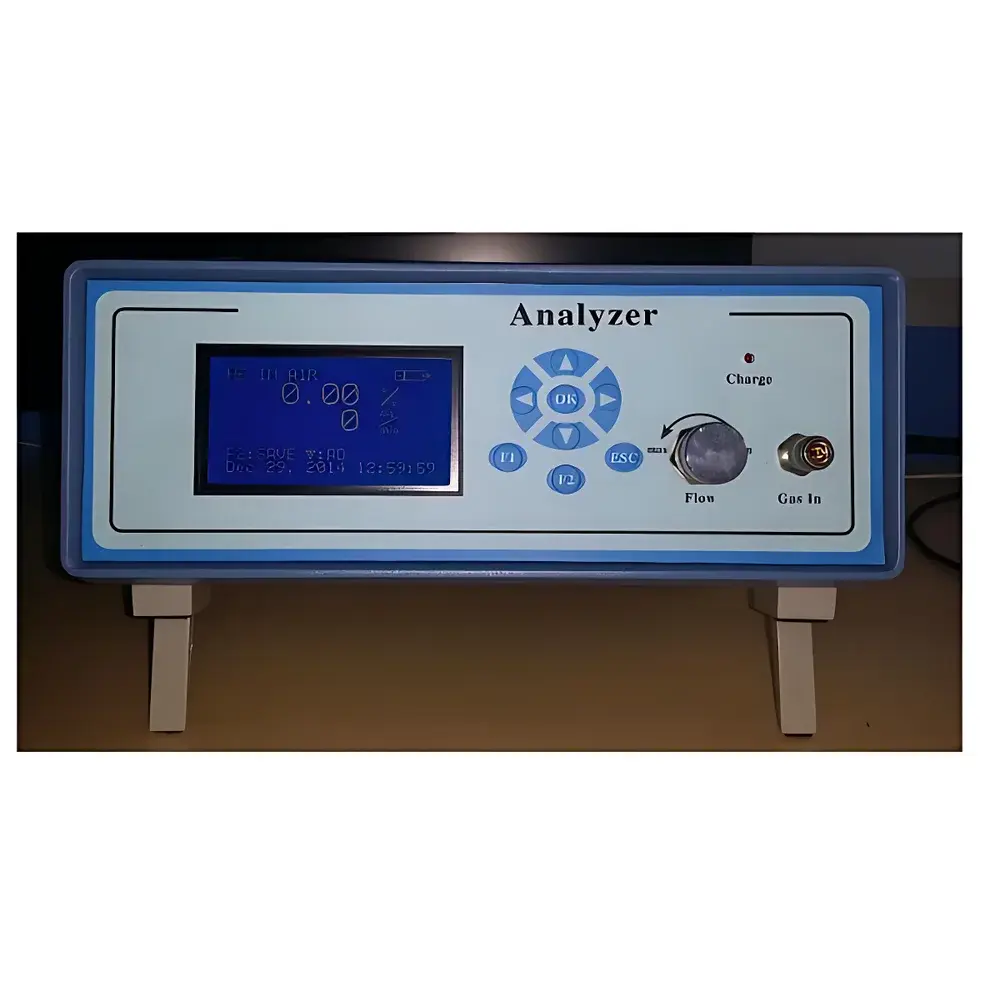

ADEV M860 Thermal Conductivity-Based SF₆ Purity Analyzer

Overview

The ADEV M860 Thermal Conductivity-Based SF₆ Purity Analyzer is an industrial-grade, portable gas analysis instrument engineered for precise, real-time quantification of sulfur hexafluoride (SF₆) concentration in binary or quasi-binary gas mixtures—primarily SF₆/N₂, SF₆/air, and SF₆/CF₄. It operates on the fundamental principle of thermal conductivity differential measurement: SF₆ exhibits significantly lower thermal conductivity (~1.7×10⁻³ W/m·K at 25 °C) compared to common background gases such as nitrogen (~2.6×10⁻² W/m·K) or air (~2.4×10⁻² W/m·K). The analyzer employs a temperature-compensated, micro-machined thermal conductivity sensor with proven long-term stability and minimal drift—enabling reliable operation over extended calibration intervals without recalibration dependency on ambient temperature fluctuations. Designed specifically for high-voltage electrical infrastructure maintenance, the M860 delivers trace-level resolution (0.1% SF₆) and metrologically validated accuracy (±0.2% full scale), independent of sample flow rate within its specified operating envelope. Its compact form factor, low power consumption, and robust mechanical architecture meet the operational demands of substation technicians, grid asset inspectors, and third-party commissioning engineers conducting on-site purity verification per IEC 60480 and CIGRE TB 276 guidelines.

Key Features

• Temperature-compensated micro-thermal conductivity sensor with >24-month baseline stability under field conditions
• Flow-independent measurement accuracy—eliminates need for active flow control during routine sampling
• Integrated sample conditioning system: precision pressure regulator, sintered stainless-steel particulate filter (5 µm retention), and calibrated laminar flow meter
• Wide operational temperature range (−30 °C to +50 °C) with maintained metrological performance—validated per ISO 17025-compliant environmental testing protocols
• High-contrast backlit LCD display with 0.1% SF₆ resolution and intuitive menu navigation in English and multilingual UI options
• Dual-power architecture: rechargeable lithium-ion battery (8 h typical runtime, cycle life >500 charges) + universal AC/DC input (100–240 VAC, 50/60 Hz)
• IP54-rated enclosure with MIL-STD-810G compliant shock-dampened transit case for off-grid and mountainous terrain deployment

Sample Compatibility & Compliance

The M860 is validated for use with dry, non-corrosive, particle-free SF₆-containing gas streams. It is not intended for direct analysis of humid, oil-contaminated, or chemically reactive process gases (e.g., SO₂, HF, or arcing by-products). Sample compatibility assumes pre-filtration to <5 µm and dew point ≤ −20 °C. The analyzer conforms to electromagnetic compatibility requirements per EN 61326-1:2013 and safety standards per EN 61010-1:2010. Calibration traceability is maintained to NIST-traceable SF₆/N₂ reference gas standards (certified per ISO 6141). Instrument documentation supports GLP-compliant data integrity workflows and satisfies technical prerequisites for ISO/IEC 17025 accredited laboratories performing SF₆ quality verification in accordance with IEC 60480 (re-use of SF₆) and IEEE C37.122.3 (gas-insulated switchgear maintenance).

Software & Data Management

The M860 includes embedded firmware supporting timestamped measurement logging (up to 10,000 records), configurable auto-zero cycles, and user-defined alarm thresholds (e.g., SF₆ < 95% triggers visual/audible alert). Data export is supported via USB-C interface to standard CSV format compatible with laboratory information management systems (LIMS) and Excel-based QA reporting. Firmware updates are performed offline using signed binary packages; no cloud connectivity or remote telemetry is implemented—ensuring full data sovereignty and compliance with utility cybersecurity policies (e.g., NIST SP 800-82, IEC 62443-3-3). Audit trail functionality records all configuration changes, calibration events, and battery status logs with immutable timestamps—meeting FDA 21 CFR Part 11 and EU Annex 11 expectations for electronic records in regulated environments.

Applications

• On-site purity verification of SF₆ before refilling GIS, circuit breakers, and current transformers
• Leak detection support through rapid comparative sampling upstream/downstream of suspected fault points
• Post-maintenance validation following gas reclamation or filtration processes
• Quality assurance during SF₆ cylinder acceptance testing per ASTM D2472 specifications
• Field training and competency assessment for HV maintenance personnel under EN 50110-1 supervision
• Third-party inspection services for TSOs and ISO-certified asset management contractors

FAQ

Does the M860 require periodic recalibration?
Yes—annual calibration is recommended using certified SF₆/N₂ reference gases; however, the built-in zero-stability monitor and temperature compensation reduce drift-related recalibration frequency relative to non-compensated TC sensors.

Can the M860 measure SF₆ in presence of moisture or decomposition products?
No. Moisture (>100 ppmv) and arc-by-products (e.g., SOF₂, SO₂F₂) may adsorb on the sensor surface and impair thermal conductivity response. Pre-conditioning via desiccant traps and chemical scrubbers is mandatory.

Is the instrument suitable for continuous unattended monitoring?
The M860 is designed for intermittent spot-checking and mobile diagnostics—not for fixed-installation, 24/7 process monitoring. For permanent monitoring, consider the ADEV F6S inline variant with 4–20 mA output and explosion-proof housing.

What is the expected service life of the thermal conductivity sensor?
Under normal field use (≤4 hrs/day, clean gas matrix), the sensor maintains specification compliance for ≥36 months; accelerated aging tests per IEC 60068-2-2 confirm MTBF >15,000 hours.

Does the M860 support multi-gas analysis?
No—it is factory-configured exclusively for SF₆ purity in binary mixtures. Cross-sensitivity to other gases (e.g., CO₂, CH₄) is not compensated and invalidates quantitative results.
