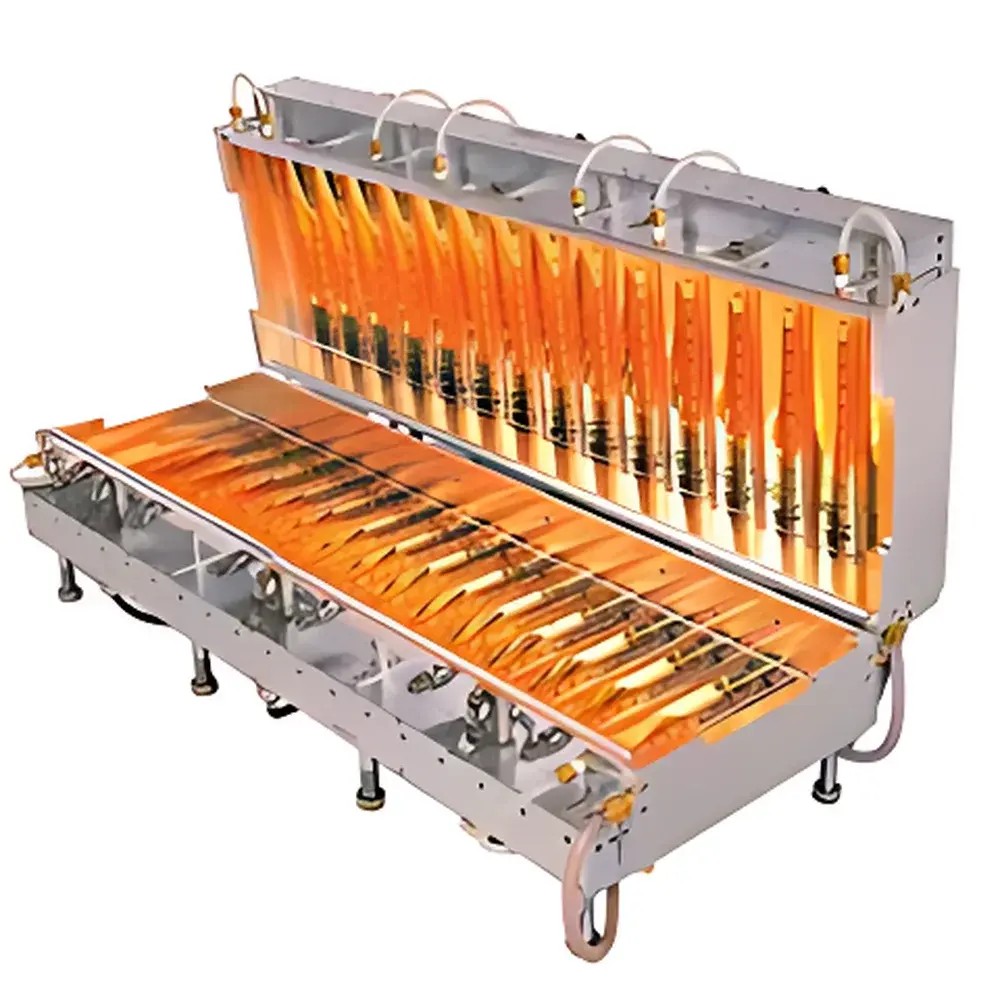

Advance Riko Industrial In-Line Infrared Rapid Heating Furnace

Overview

The Advance Riko Industrial In-Line Infrared Rapid Heating Furnace is a high-throughput, process-integrated thermal processing system engineered for continuous manufacturing environments. Unlike conventional resistive heating furnaces relying on conduction and convection, this furnace employs high-intensity, spectrally optimized near- to mid-infrared radiation emitted from planar gold-coated reflector arrays. The radiation profile is precisely matched to the absorption characteristics of common industrial substrates—including metals, polymers, and thin-film-coated glass—enabling rapid, volumetric, and contactless heating with minimal thermal inertia. Its design adheres to in-line integration standards for roll-to-roll, strip-processing, and wire-drawing lines, supporting seamless integration into existing PLC-controlled production workflows. With thermal efficiency approximately five times greater than equivalent resistance-heated systems, a 1-meter infrared furnace achieves thermal performance comparable to a 5-meter conventional furnace—significantly reducing footprint, energy consumption, and process cycle time while maintaining strict temperature uniformity (±3 °C across 300 mm width under steady-state operation).

Key Features

• Planar gold-coated infrared emitter/reflector assembly optimized for spectral emissivity matching and long-term stability under industrial operating conditions
• Modular, scalable furnace architecture: standard configurations available in 0.5 m to 3 m active heating zones; custom lengths and cross-sectional profiles supported
• Real-time, non-contact temperature monitoring via integrated dual-wavelength pyrometry with closed-loop feedback control
• Atmosphere-compatible design: operates in ambient air, inert gas (N₂, Ar), or high-vacuum environments (down to 10⁻⁵ Pa) with optional flange-mounted viewports and gas purge interfaces
• Robust mechanical construction with water-cooled housing and ceramic fiber insulation to ensure operator safety and thermal containment
• CE-compliant electrical architecture with integrated safety interlocks, emergency stop circuitry, and SIL2-rated thermal runaway protection

Sample Compatibility & Compliance

The furnace accommodates continuous feedstock including metallic strips (stainless steel, aluminum, copper alloys), polymer-coated wires, glass substrates (up to 600 mm width), and ceramic tapes. It supports both single-pass and multi-zone thermal profiles for differential heating strategies—e.g., preheating, soaking, and controlled cooling within one enclosure. Compliant with ISO 9001-certified manufacturing protocols, the system meets key industry requirements including ASTM E2847 (standard practice for calibration of infrared thermometers), IEC 61000-6-4 (EMC emission limits), and JIS B 8401 (Japanese industrial standard for industrial heating equipment). For regulated environments, optional audit-trail logging and user-access controls align with FDA 21 CFR Part 11 readiness when paired with validated software modules.

Software & Data Management

Control is executed via the Advance Riko IR-Process Suite—a Windows-based SCADA interface supporting recipe-driven operation, real-time thermal mapping visualization, and synchronized data acquisition at up to 100 Hz per sensor channel. All thermal profiles, setpoints, and alarm events are timestamped and stored in SQLite or SQL Server databases with configurable retention policies. Export formats include CSV, HDF5, and XML for traceability and integration with MES/ERP platforms such as Siemens Opcenter or Rockwell FactoryTalk. Optional validation packages include IQ/OQ documentation templates compliant with GMP/GLP frameworks, supporting qualification in semiconductor, medical device, and aerospace component manufacturing facilities.

Applications

• Rapid preheating of aluminum extrusion dies (reducing thermal shock and extending die life)
• Continuous annealing and tempering of copper and stainless-steel wire (diameter range: 0.05–3.0 mm)
• In-line recrystallization and stress-relief annealing of cold-rolled metal strips prior to coating or further forming
• Diffusion bonding of dissimilar metals (e.g., Cu–Al, Ti–Ni) under controlled atmosphere
• Curing and cross-linking of polymer coatings (epoxy, PVDF, silicone) on flexible substrates
• High-vacuum thermal processing of display-grade glass substrates for OLED and LCD fabrication
• Thermoforming and softening of PVC sheets with precise surface temperature control
• Insulation curing and annealing of enameled magnet wire (MW-80, MW-100 grade)
• Controlled pyrolysis environment for catalytic CNT growth on metal-oxide-coated substrates

FAQ

Can the furnace be integrated into an existing PLC-controlled production line?
Yes—the system provides native Modbus TCP and EtherNet/IP communication protocols, with configurable digital I/O for start/stop, fault reset, and zone enable/disable signals.
What is the maximum operating temperature and ramp rate?
Standard configuration supports up to 1200 °C with ramp rates exceeding 100 °C/s depending on sample emissivity and mass flow; high-temp variants (to 1500 °C) are available upon request.
Is vacuum compatibility standard or optional?
Vacuum-rated versions (including CF-flanged ports and bake-out capability) are offered as configurable options; base models operate in ambient or purged atmospheres.
How is temperature uniformity verified and maintained across the heating zone?
Uniformity is characterized using NIST-traceable multi-point pyrometry during factory acceptance testing; in-situ verification is supported via embedded thermocouple arrays or calibrated IR camera integration.
Does Advance Riko provide installation support and process validation services?
Yes—on-site commissioning, FAT/SAT execution, and application-specific thermal profiling support are included in extended service agreements.
