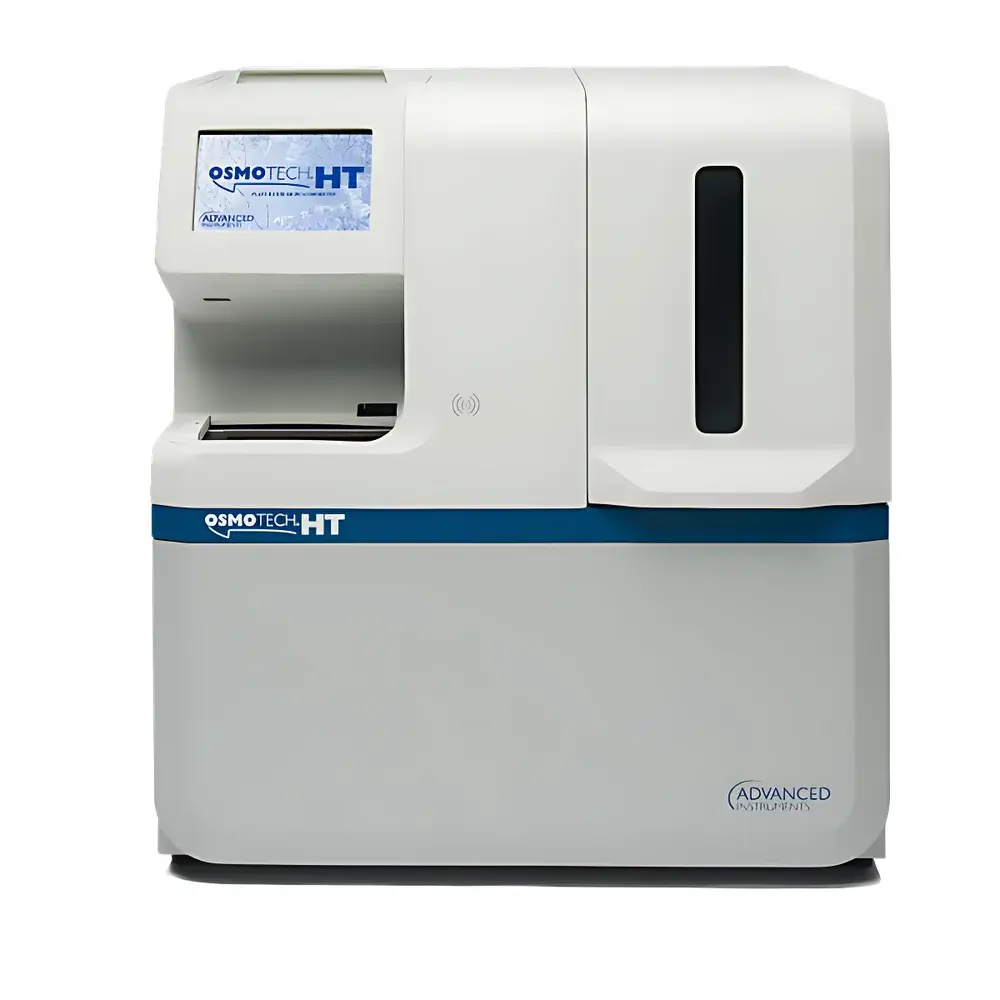

Advanced Instruments OsmoTECH HT High-Throughput Micro-Osmometer
| Brand | Advanced Instruments |
|---|---|
| Origin | USA |
| Manufacturer | Yes |
| Import Status | Imported |
| Model | OsmoTECH HT |
| Pricing | Upon Request |
Overview
The Advanced Instruments OsmoTECH HT is a high-throughput, micro-volume freezing point depression osmometer engineered for precision and scalability in biopharmaceutical development laboratories. It operates on the fundamental thermodynamic principle of freezing point depression—a colligative property directly proportional to the total solute concentration in aqueous solutions. By measuring the precise temperature at which a sample transitions from liquid to solid phase (typically within ±0.001 °C resolution), the instrument calculates osmolality in milliosmoles per kilogram of water (mOsm/kg H₂O). Designed specifically for 96-well microplates, the OsmoTECH HT eliminates manual pipetting and single-sample processing bottlenecks, enabling parallel analysis of up to 96 samples per run with minimal sample volume requirements (as low as 10 µL per well). Its architecture integrates thermal stabilization, calibrated platinum resistance thermometry, and proprietary cryogenic detection algorithms to ensure traceable, repeatable results across diverse biological matrices—including monoclonal antibodies, viral vectors, cell culture supernatants, and formulation buffers.
Key Features
- 96-well microplate–based platform for true high-throughput osmolality screening without sample transfer or dilution
- Micro-volume capability: supports analysis of 10–50 µL samples per well, conserving precious bioprocess intermediates
- GMP-compliant hardware design with integrated audit trail, electronic signatures, and user access controls aligned with FDA 21 CFR Part 11 requirements
- Automated calibration verification using NIST-traceable reference standards before each plate run
- Thermally isolated measurement chamber with active temperature regulation (±0.01 °C stability) to minimize environmental drift
- Real-time workflow visualization via touchscreen interface, including plate mapping, run status, and error diagnostics
Sample Compatibility & Compliance
The OsmoTECH HT accommodates a broad range of biopharmaceutical sample types—including clarified harvests, purified proteins, lipid nanoparticles (LNPs), mRNA formulations, and cell therapy media—without requiring pre-dilution or filtration under standard operating conditions. Sample viscosity limits are consistent with typical mammalian cell culture supernatants (< 20 cP), and particulate tolerance is optimized for clarified lysates and low-turbidity formulations. The system complies with ISO 17025–accredited calibration practices and supports validation protocols per ICH Q5C (stability testing), USP <785> (osmolality), and ASTM D1141 (standard practice for seawater simulation—adapted for pharmaceutical relevance). All firmware and software modules undergo periodic requalification per GAMP 5 guidelines, and raw data files are stored in vendor-neutral .csv and .osm formats with embedded metadata for GLP/GMP traceability.
Software & Data Management
OsmoTECH HT is operated through OsmoControl™ v3.x software, a Windows-based application validated for regulated environments. The software enforces role-based permissions (Administrator, Analyst, Reviewer), maintains immutable audit trails for all user actions (including parameter changes, result overrides, and report generation), and logs timestamps with UTC synchronization. Data export supports direct integration into LIMS and ELN systems via secure FTP/SFTP or OPC UA interfaces. Batch reports include full plate heatmaps, statistical summaries (mean, SD, CV%), outlier flags based on user-defined thresholds, and compliance-ready PDF certificates containing instrument ID, calibration history, and analyst signature fields. Electronic signatures adhere to ALCOA+ principles (Attributable, Legible, Contemporaneous, Original, Accurate, Complete, Consistent, Enduring, Available).
Applications
- Cell line development: rapid osmolality profiling of hundreds of clones during selection and expansion phases
- Upstream process optimization: monitoring osmotic pressure shifts in fed-batch and perfusion cultures to inform feed strategies
- Downstream formulation screening: evaluating excipient compatibility and buffer robustness across pH and ionic strength gradients
- Stability studies: tracking osmolality drift in real-time accelerated and long-term storage conditions per ICH Q1 guidelines
- Quality control release testing: supporting comparability assessments for biosimilars and platform process changes
- Viral vector and gene therapy workflows: verifying isotonicity prior to fill-finish and cryopreservation steps
FAQ
What sample volume is required per well on the OsmoTECH HT?
Minimum recommended volume is 10 µL; optimal performance is achieved between 20–40 µL per well.
Does the system require daily recalibration?
No—automated calibration verification using dual-point NIST-traceable standards occurs before each 96-well plate run.
Can the OsmoTECH HT be integrated into an automated liquid handling workflow?
Yes, it supports ANSI/SLAS microplate footprint and offers API-driven control via Ethernet-connected command protocol for third-party robotic integration.
Is raw data export compliant with 21 CFR Part 11?
Yes—raw measurement files (.osm) contain digitally signed metadata, and the software enforces electronic signature enforcement for all critical actions.
What maintenance is required beyond routine cleaning?
Annual performance qualification (PQ) by certified Advanced Instruments field service engineers is recommended; no user-serviceable optical or thermal components exist.
