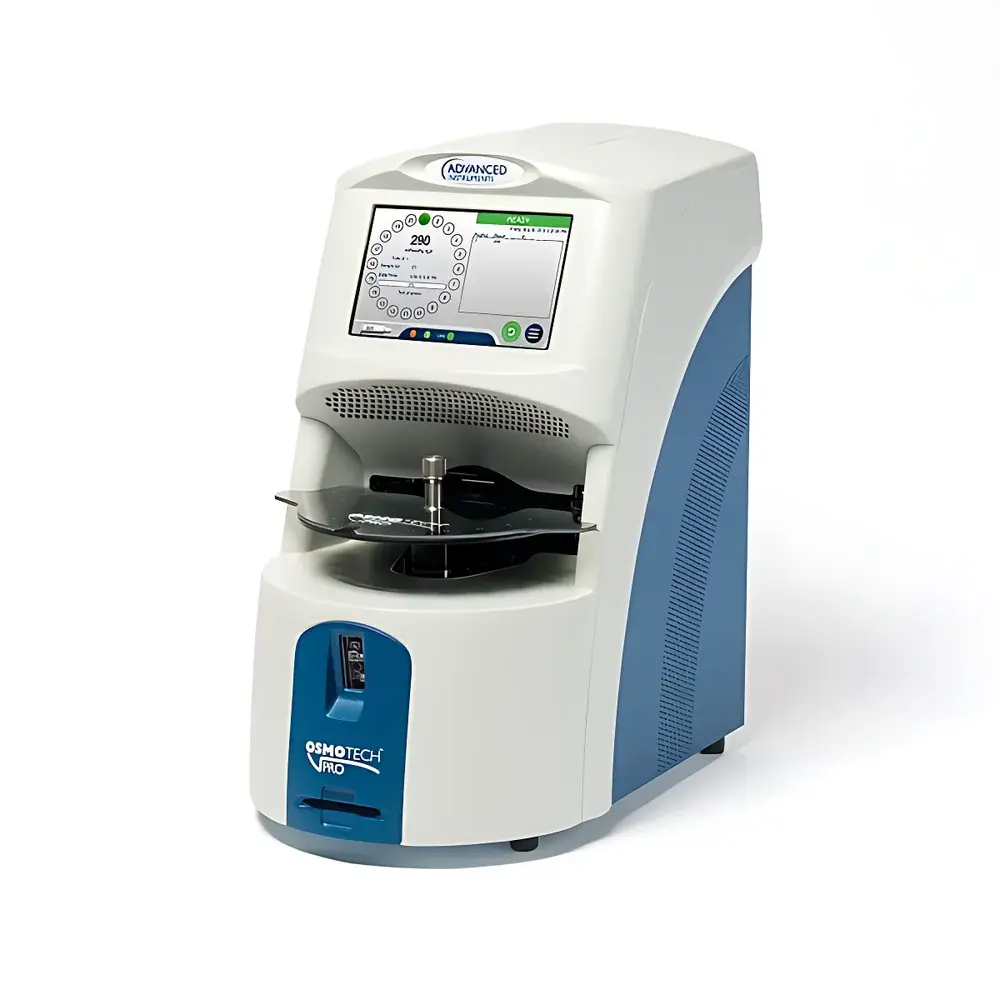

Advanced Instruments OsmoTECH PRO Multi-Channel Cryoscopic Osmometer

Overview

The Advanced Instruments OsmoTECH PRO Multi-Channel Cryoscopic Osmometer is a laboratory-grade instrument engineered for precise, high-throughput measurement of osmolality in aqueous solutions using the cryoscopic (freezing point depression) principle. Based on the thermodynamic relationship between solute concentration and the depression of the freezing point, the system quantifies osmolality in milliosmoles per kilogram of water (mOsm/kg H₂O) with traceable accuracy and long-term stability. Designed specifically for pharmaceutical development, biologics manufacturing, cell therapy QC, and clinical research laboratories, the OsmoTECH PRO delivers reproducible results across diverse sample matrices—including monoclonal antibodies, viral vectors, lyophilized reconstitutes, small-molecule formulations, and IV admixtures—without requiring dilution or calibration drift correction.

Key Features

• Multi-channel architecture supporting up to 4 independent measurement cells, enabling concurrent analysis of samples and standards to maximize throughput and minimize inter-run variability.
• Cryoscopic detection module with Peltier-controlled thermal regulation, high-resolution platinum resistance thermometer (Pt1000), and proprietary ice nucleation induction algorithm ensuring consistent crystal formation and measurement repeatability ≤ ±1.5 mOsm/kg (CV < 1.0% at 300 mOsm/kg).
• Automated sample aspiration, temperature equilibration, freezing cycle execution, and melt-point verification—all under microprocessor control with real-time thermal profile logging.
• Integrated barcode reader and RFID-compatible sample rack recognition for full sample traceability and audit-ready workflow execution.
• Rugged benchtop design compliant with IEC 61010-1 safety standards; CE-marked and FDA-listed as a Class I medical device (21 CFR 892.1550).

Sample Compatibility & Compliance

The OsmoTECH PRO accepts standard 0.5 mL microcentrifuge tubes and 2 mL vials, accommodating volumes from 30–150 µL per test. It demonstrates robust performance across viscous, protein-rich, and low-volume biological samples—including CAR-T cell suspensions, AAV preparations, and concentrated antibody-drug conjugates—without clogging or carryover. Method validation data support compliance with pharmacopeial requirements including USP , EP 2.2.35, and JP 17 General Test 4.05. Instrument qualification documentation (IQ/OQ/PQ protocols), electronic signature capability, and 21 CFR Part 11–compliant audit trails are available as optional software modules for GMP-regulated environments.

Software & Data Management

OsmoTECH Connect™ software (v4.2+) provides centralized control, method library management, automated report generation (PDF/CSV/XLSX), and secure database archiving. The platform supports role-based user access control, electronic signatures, and configurable alert thresholds for out-of-specification (OOS) results. Data export conforms to ASTM E1461 and ISO/IEC 17025 reporting conventions. Integration with LIMS via HL7 or RESTful API is supported, enabling bidirectional sample assignment and result ingestion without manual transcription. All raw thermal curves, metadata timestamps, and environmental logs are retained with SHA-256 hash integrity verification.

Applications

• Final container release testing of parenteral drug products per ICH Q5C and Q5D guidelines.
• In-process monitoring of buffer exchange, ultrafiltration/diafiltration, and formulation steps during bioprocess development.
• Stability-indicating assay for freeze-thaw cycles and long-term storage evaluation of biologics.
• QC release of ophthalmic solutions, dialysate concentrates, and contrast media where osmotic balance directly impacts patient safety.
• Academic and translational research involving extracellular vesicles, exosomes, and stem cell culture media optimization.

FAQ

What principle does the OsmoTECH PRO use to determine osmolality?
It employs cryoscopy—the precise measurement of freezing point depression in aqueous solutions—correlated to total solute particle concentration.
Is calibration required before each run?
No. The system performs automatic zero-point verification using ultrapure water and two-point calibration with NIST-traceable osmotic standards (e.g., 0 and 1000 mOsm/kg) at user-defined intervals.
Can the instrument be validated for GMP use?
Yes. Full qualification packages—including documented IQ/OQ/PQ protocols, change control records, and 21 CFR Part 11 configuration settings—are provided upon request.
Does it support unattended overnight operation?
Yes. With scheduled run queues, auto-shutdown, and ambient temperature compensation, the system maintains metrological integrity over extended operational periods.
How is carryover prevented between samples?
A closed-loop, pressure-controlled rinse sequence with deionized water and ethanol flushes all fluidic pathways between measurements, verified by post-rinse blank testing.
