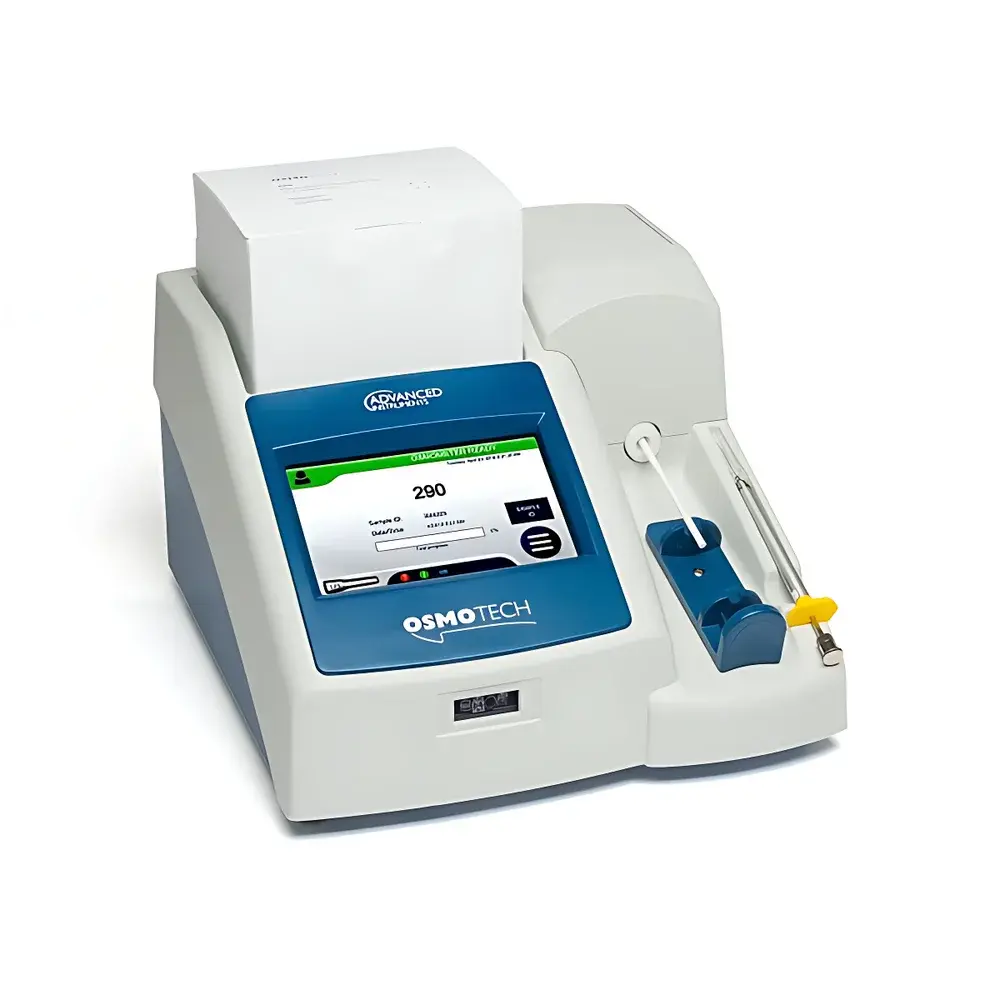

Advanced Instruments OsmoTECH Single-Channel Freezing Point Osmometer

Overview

The Advanced Instruments OsmoTECH Single-Channel Freezing Point Osmometer is a precision-engineered analytical instrument designed specifically for the quantitative determination of osmolality in biological and pharmaceutical solutions. It operates on the principle of cryoscopic depression—the measurable lowering of the freezing point of a solution relative to its pure solvent—providing a direct, thermodynamically grounded assessment of total solute concentration. Unlike vapor pressure or membrane-based methods, freezing point depression offers superior accuracy, reproducibility, and minimal interference from volatile or non-ionic components, making it the gold-standard technique endorsed by regulatory agencies including the United States Pharmacopeia (USP <785>), European Pharmacopoeia (Ph. Eur. 2.2.35), and ISO 15197 for clinical and biopharmaceutical applications.

Key Features

• Single-channel architecture optimized for high-throughput laboratories requiring consistent, operator-independent results with minimal hands-on time;
• Proprietary thermistor-based detection system delivering sub-milliosmole precision (±2 mOsm/kg typical accuracy) across the full 0–2,000 mOsm/kg measurement range;
• Automated sample aspiration, cooling, nucleation induction, and thermal equilibrium detection—eliminating manual intervention and reducing inter-operator variability;
• Integrated barcode reader support for traceable sample identification and LIMS-compatible workflow integration;
• Rugged, sealed optical path and temperature-controlled sample chamber engineered for long-term stability under ambient laboratory conditions (15–30°C);
• Self-calibrating reference system using certified standard solutions (e.g., 0, 200, 400, 1,000 mOsm/kg NaCl standards) to ensure ongoing metrological traceability to NIST-certified references.

Sample Compatibility & Compliance

The OsmoTECH accepts a broad spectrum of aqueous-based samples common in biologics development and quality control—including monoclonal antibodies, recombinant proteins, vaccines, cell culture media, buffer formulations, IV admixtures, and ophthalmic solutions. Sample volume requirement is only 10 µL per test, minimizing material consumption during early-stage formulation screening. All hardware and firmware comply with FDA 21 CFR Part 11 requirements for electronic records and signatures, supporting audit-ready data integrity through secure user authentication, role-based access control, and immutable audit trails. The instrument meets ISO/IEC 17025 calibration management expectations and supports GLP/GMP documentation packages required for regulatory submissions (e.g., IND, BLA, MAA).

Software & Data Management

OsmoTECH is operated via the validated OsmoControl software platform, which provides comprehensive data acquisition, real-time curve visualization, automated pass/fail reporting against configurable specification limits, and export capabilities in CSV, PDF, and XML formats. The software implements full ALCOA+ principles (Attributable, Legible, Contemporaneous, Original, Accurate, Complete, Consistent, Enduring, Available) and includes electronic signature functionality compliant with Annex 11 and ICH GCP guidelines. Data archiving is supported via networked storage with optional integration into enterprise systems such as LabVantage, Thermo Fisher SampleManager, or Siemens Teamcenter through standard ODBC and HL7 interfaces.

Applications

• Final product release testing of parenteral biologics and sterile drug products;
• In-process monitoring of cell culture harvests and purification intermediates;
• Formulation optimization studies involving tonicity adjustment and excipient screening;
• Stability-indicating assay for detecting degradation-induced solute changes (e.g., aggregation, hydrolysis);
• Quality control of dialysate, irrigation fluids, and contact lens solutions per USP <788> and AAMI standards;
• Supporting comparability protocols during process changes or manufacturing site transfers in accordance with ICH Q5E.

FAQ

What sample types are compatible with the OsmoTECH?
Aqueous solutions containing proteins, peptides, carbohydrates, salts, and small-molecule APIs—excluding highly viscous (>100 cP), volatile, or strongly non-aqueous matrices.
Does the OsmoTECH require daily calibration verification?
Yes—per USP <785> and internal SOPs, a minimum of two-point calibration verification (e.g., 0 and 400 mOsm/kg standards) must be performed before each analytical run sequence.
Can the instrument interface with our existing LIMS?
Yes—via configurable ASCII/CSV export, ODBC connectivity, or optional HL7 v2.x messaging modules.
Is training and IQ/OQ/PQ documentation available?
Advanced Instruments provides vendor-qualified installation qualification (IQ), operational qualification (OQ), and performance qualification (PQ) protocols, along with on-site or virtual user training programs accredited under ISO 9001:2015.
What maintenance intervals are recommended?
Routine cleaning of the sample probe and thermistor sensor every 500 tests; annual preventive maintenance service includes thermistor recalibration, cooling system inspection, and firmware validation.
