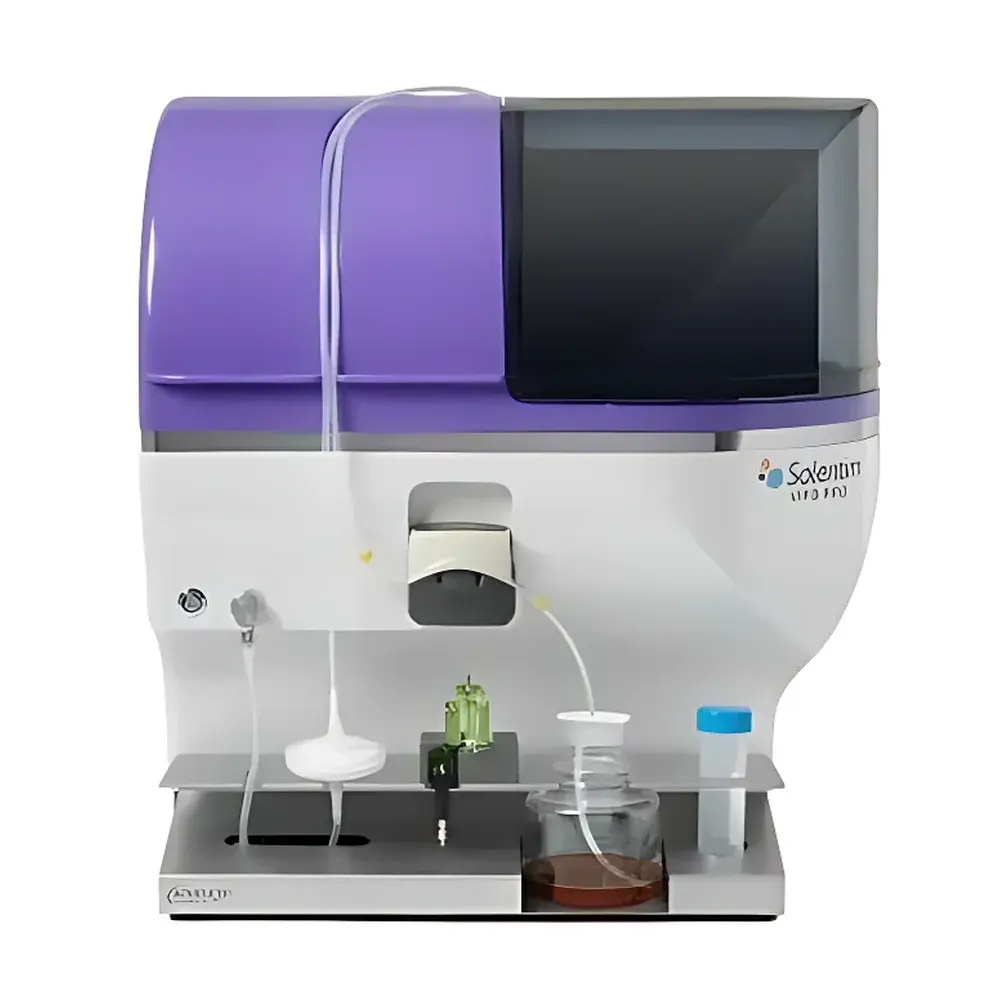

Advanced Instruments VIPS® PRO Single-Cell Dispensing Instrument

Overview

The Advanced Instruments VIPS® PRO Single-Cell Dispensing Instrument is an engineered solution for high-fidelity, image-guided single-cell isolation and deposition into microtiter plates—designed specifically to meet the stringent requirements of therapeutic antibody development, cell line development (CLD), and regulatory-compliant bioproduction. Unlike stochastic or probabilistic single-cell sorting methods (e.g., FACS-based dilution or droplet encapsulation), the VIPS® PRO employs a deterministic, vision-based dispensing architecture grounded in high-resolution brightfield and fluorescence imaging coupled with real-time AI-assisted cell detection. Each deposited cell is individually imaged pre- and post-dispensing, generating auditable, timestamped image evidence that satisfies ICH Q5D and USP expectations for monoclonality assurance. The system operates under a closed, sterile workflow using disposable, gamma-irradiated dispensing cassettes—eliminating cross-contamination risk and enabling seamless integration into GMP-aligned environments.

Key Features

• Deterministic single-cell dispensing with ≥99.9% confidence in monoclonal origin—validated per ISO 20387:2018 (Biobanking) and aligned with EMA/CHMP/BWP/555765/2018 guidance on clonality demonstration.
• GMP-ready hardware platform: fully traceable instrument logs, electronic signatures, and audit trail functionality compliant with FDA 21 CFR Part 11 and EU Annex 11 requirements.
• Integrated STUDIOUS™ Data Management Suite: a validated, secure software environment supporting ALCOA+ data integrity principles—including attributable, legible, contemporaneous, original, and accurate recordkeeping.
• Ergonomically redesigned benchtop footprint with intuitive touchscreen interface, reduced manual handling steps, and automated calibration routines for daily operational readiness.
• Proprietary optical module delivering sub-5 µm lateral resolution across 96-, 384-, and 1536-well plate formats—enabling clear morphological discrimination of viable, non-aggregated, and non-apoptotic cells prior to deposition.
• Disposable cassette architecture: pre-sterilized, single-use fluidic pathways with integrated pressure-sensing and flow monitoring—ensuring lot-to-lot consistency and eliminating cleaning validation burdens.

Sample Compatibility & Compliance

The VIPS® PRO accommodates suspension-adapted mammalian cell lines (e.g., CHO-K1, HEK293, SP2/0), hybridomas, and primary lymphocytes within viscosity ranges of 1–15 cP and cell diameters of 8–25 µm. It supports both unlabeled and fluorescently stained samples (e.g., Hoechst 33342, Calcein AM). All consumables are manufactured under ISO 13485-certified conditions and supplied with full CoA and CoC documentation. The instrument’s design and software validation packages support compliance with ICH Q5D, USP , and WHO TRS No. 1025 Annex 2 for cell banking and monoclonal antibody manufacturing.

Software & Data Management

STUDIOUS™ serves as the central command and archival layer for all VIPS® PRO operations. It provides role-based access control (RBAC), configurable electronic signatures, and immutable audit trails for every image capture, dispensing event, and user action. Raw image datasets (TIFF/OME-TIFF) are stored with embedded metadata (plate ID, well coordinates, timestamp, operator ID, environmental sensor logs). The software includes built-in tools for image review, clone confirmation annotation, and export of PDF-based monoclonality reports suitable for regulatory submissions. Full compatibility with LIMS and ELN systems is achieved via ASTM E1578-compliant API interfaces.

Applications

• Regulatory-grade cell line development (CLD) for mAb, bispecific, and ADC programs requiring documented monoclonality.
• Single-cell cloning workflows in CRISPR-edited cell pools where genotype–phenotype linkage must be preserved.
• Stem cell subcloning with morphology-based selection criteria under defined culture conditions.
• Microbial single-cell isolation for strain improvement in non-mammalian expression platforms.
• Supporting GLP-compliant toxicology studies requiring traceable, image-backed cellular origin records.

FAQ

How does the VIPS® PRO satisfy FDA 21 CFR Part 11 requirements?
It implements electronic signatures with identity verification, maintains complete audit trails for all data modifications, and enforces system access controls—all validated during IQ/OQ/PQ and documented in the URS and DQ packages.
Can the system be integrated into an existing cleanroom environment?
Yes—the VIPS® PRO meets ISO 14644-1 Class 5 (at point-of-use) when operated inside laminar flow hoods or isolators; its footprint and cable management are optimized for Grade A/B classified spaces.
Is STUDIOUS™ qualified for use in GMP production environments?
Yes—STUDIOUS™ is delivered with a comprehensive validation toolkit including test scripts, traceability matrices, and summary reports aligned with GAMP 5 principles.
What types of image analysis algorithms are embedded in the AI engine?
The system uses convolutional neural networks (CNNs) trained on >50,000 manually annotated cell images to classify viability, aggregation state, and morphological integrity—without requiring user-defined thresholds.
Are consumables supplied with lot-specific sterility and endotoxin testing data?
Yes—each cassette batch includes CoA with bioburden ≤1 CFU/unit, endotoxin levels <0.03 EU/mL, and sterility testing per USP .
