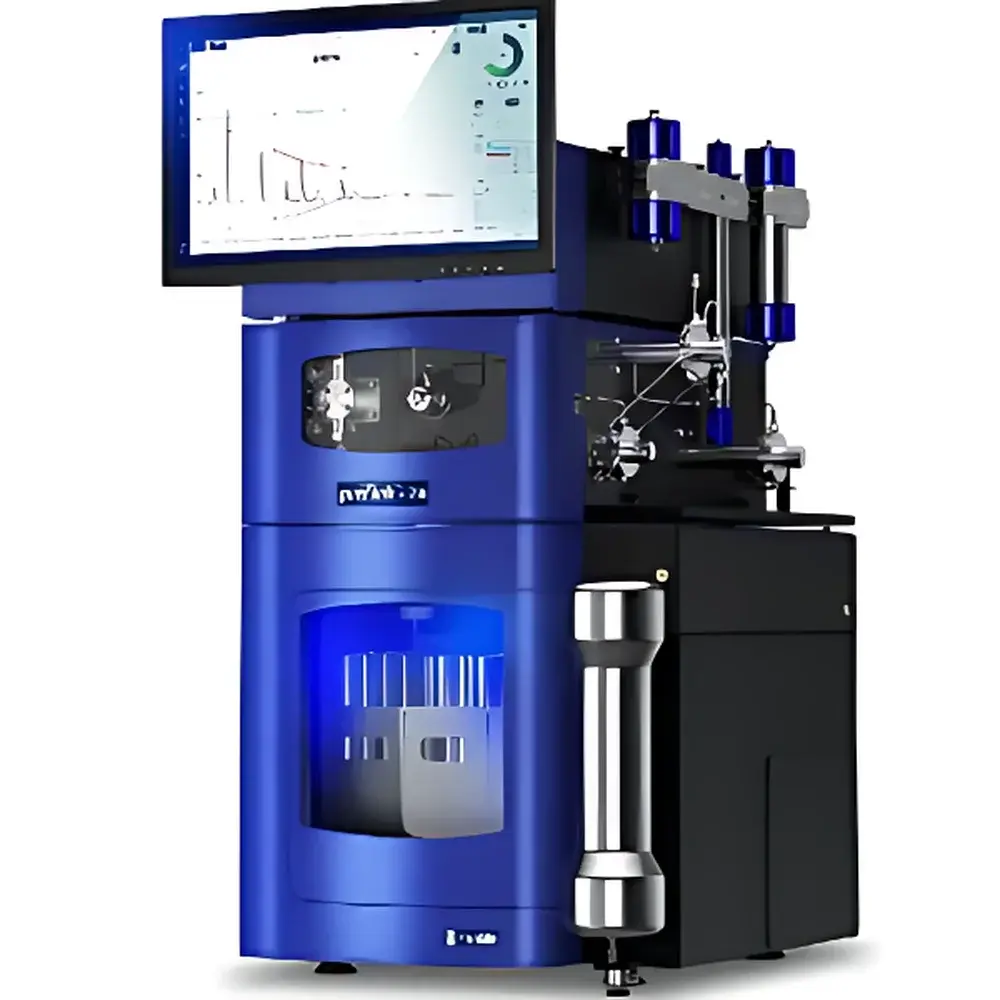

Advion Interchim Scientific puriFlash 5.250 High-Pressure Preparative Liquid Chromatography System

Overview

The Advion Interchim Scientific puriFlash 5.250 is a modular, high-pressure preparative liquid chromatography (prep LC) system engineered for robust, reproducible purification across diverse chemical and biomolecular workflows. Built upon the proven puriFlash platform architecture, it operates within a pressure envelope of up to 250 bar—bridging the functional gap between traditional flash chromatography and analytical-scale prep LC. Its design leverages gradient-capable dual-piston high-pressure pumps, low-dead-volume fluidic pathways, and a full-spectrum UV-Vis detector (200–800 nm) to support method development, fraction collection, and scalable isolation of target compounds from complex mixtures. Unlike conventional flash systems limited by low resolution and poor peak capacity, the puriFlash 5.250 enables separation of closely eluting species—including regioisomers, diastereomers, and post-translational variants—through precise control of mobile phase composition, flow dynamics, and column backpressure. It is routinely deployed in synthetic chemistry labs for intermediate purification, in natural product research for compound library generation, and in early-stage biopharmaceutical development for peptide and oligonucleotide desalting or buffer exchange.

Key Features

• Modular architecture supporting seamless integration of solvent delivery, sample injection, column switching, UV-Vis detection, and fraction collection modules
• High-pressure binary gradient pump with pulseless flow delivery across 0.1–250 mL/min, calibrated for consistent retention time reproducibility
• UV-Vis spectrophotometric detector with real-time spectral acquisition (200–800 nm), enabling peak purity assessment and wavelength-specific triggering of fraction collection
• Intelligent fraction collector with programmable tube rack recognition, timed/peak-triggered collection, and optional mass-directed triggering when coupled with Advion expression® CMS
• Touchscreen-driven user interface with embedded method templates, audit-trail logging, and password-protected access levels compliant with GLP documentation requirements
• Column compatibility spanning 4.6 mm to 50 mm i.d. (including stacked columns), accommodating silica, C18, amino, cyano, and specialized HILIC or ion-exchange media

Sample Compatibility & Compliance

The puriFlash 5.250 accommodates a broad range of sample matrices—including crude reaction mixtures, fermentation broths, plant extracts, and partially purified protein fractions—without requiring extensive pre-filtration or dilution. Its inert fluidic path (316L stainless steel, PEEK, and sapphire components) ensures compatibility with aggressive solvents (e.g., DCM, THF, TFA, HFIP) and acidic/basic mobile phases. The system conforms to ISO 9001 manufacturing standards and supports compliance with regulatory frameworks applicable to pharmaceutical development: data integrity features align with FDA 21 CFR Part 11 (electronic signatures, audit trails, user role management), while its traceable calibration logs and method version control meet ICH Q5A/Q5B and USP chromatographic system suitability expectations. Routine operation adheres to ASTM E2656 (Standard Guide for Validation of Prep LC Systems) and EP 2.2.46 (Chromatographic Separation Techniques).

Software & Data Management

Control and data handling are managed via puriFlash® Software v5.x—a Windows-based application supporting method creation, real-time chromatogram visualization, spectral overlay, and automated fraction annotation. Raw data files (.pfd) are stored in a structured, timestamped hierarchy with embedded metadata (operator ID, instrument serial number, column lot, mobile phase composition). Export options include CSV, PDF reports, and AIA/ANDI-compliant formats for LIMS integration. Audit trail records capture all critical events—including parameter changes, run starts/stops, and fraction collection actions—with immutable timestamps and user attribution. Optional connectivity to enterprise networks allows centralized backup and remote monitoring via secure HTTPS endpoints, facilitating multi-site method transfer and cross-laboratory data harmonization.

Applications

• Purification of synthetic organic intermediates and final APIs under cGMP-aligned lab practices
• Isolation of bioactive natural products (alkaloids, flavonoids, terpenes) from botanical extracts with minimal degradation
• Desalting and buffer exchange of synthetic peptides (up to 50 residues) and antisense oligonucleotides prior to lyophilization
• Separation of diastereomeric mixtures using chiral stationary phases under elevated backpressure conditions
• Scalable purification of monoclonal antibody fragments (Fab, scFv) and ADC linker-payload conjugates
• Rapid method scouting for reversed-phase, normal-phase, and hydrophilic interaction chromatography (HILIC)

FAQ

What is the maximum column internal diameter supported by the puriFlash 5.250?

The system is validated for columns up to 50 mm i.d. with appropriate flow rate and pressure compensation; larger-bore columns require external pressure regulation.
Can the UV-Vis detector perform real-time peak purity analysis?

Yes—the detector acquires full spectra at user-defined acquisition rates (up to 10 Hz) and supports peak purity algorithms based on spectral correlation across the peak apex and shoulders.
Is the system compatible with mass-directed purification?

When interfaced with an Advion expression® CMS or third-party mass spectrometer via analog/digital trigger outputs, it supports real-time mass-triggered fraction collection.
Does the software support electronic signatures for regulated environments?

Yes—puriFlash Software v5.x implements role-based electronic signatures, audit trail review functionality, and 21 CFR Part 11-compliant user authentication protocols.
What maintenance intervals are recommended for the high-pressure pump seals?

Under standard use with acetonitrile/water gradients, seal replacement is recommended every 12–18 months or after 2,000 hours of operation, per manufacturer service guidelines.
