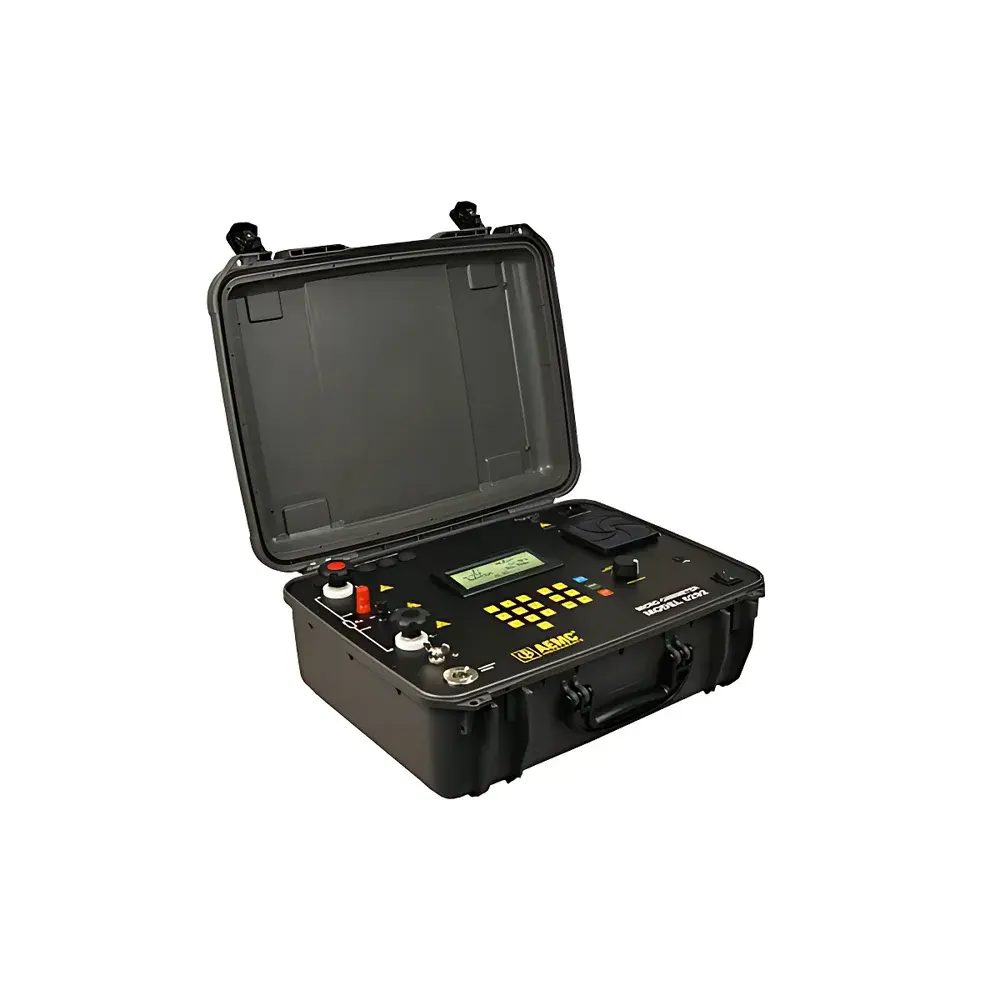

AEMC Model 6292 High-Current Micro-Ohmmeter
| Brand | AEMC |
|---|---|
| Origin | USA |
| Manufacturer Type | Authorized Distributor |
| Product Category | Imported |
| Model | Model 6292 |
| Pricing | Available Upon Request |
Overview
The AEMC Model 6292 High-Current Micro-Ohmmeter is a portable, microprocessor-controlled resistance measurement instrument engineered for precision low-resistance testing in high-voltage power infrastructure environments. It operates on the four-terminal (Kelvin) measurement principle—eliminating lead and contact resistance errors—to deliver traceable, repeatable DC resistance values down to 0.1 µΩ. Designed specifically for substation commissioning, maintenance, and compliance verification, the Model 6292 applies true DC test currents ranging from 5 A to 200 A with <2% ripple, ensuring stable polarization-free measurements critical for evaluating contact integrity in circuit breakers, busbar joints, grounding connections, and switchgear assemblies. Its robust architecture supports operation under demanding field conditions—including ambient temperatures up to 50 °C—and meets IEC 61010-1 safety requirements for CAT III 1000 V environments.
Key Features
- True DC high-current source: Adjustable output from 5 A to 200 A with regulated current stability and minimal voltage ripple (<2% of full scale)
- Four-wire Kelvin measurement topology with dual-ground (BSG) capability—enabling accurate resistance assessment of components where both terminals are earth-referenced
- 4½-digit alphanumeric LCD display with backlight for clear visibility in low-light or outdoor substation settings
- Programmable test duration: 5 s to 120 s, optimized for thermal management during extended high-current cycles
- Integrated forced-air cooling system to sustain repeated measurements at 200 A without thermal drift or duty-cycle interruption
- Onboard memory capacity: Up to 8,000 timestamped measurement records with automatic storage triggered upon test completion
- IP54-rated enclosure (when lid closed), providing protection against dust ingress and water splashing during field deployment
- Comprehensive accessory kit: Includes two 25-ft (7.6 m) 200 A Kelvin clamps (Hippo series), grounding lead, USB 2.0 cable, 110 V AC power cord, quick-start guide, and USB drive preloaded with DataView® software and full user manual
Sample Compatibility & Compliance
The Model 6292 is validated for use across utility-grade power equipment requiring low-resistance verification per IEEE C37.09, IEC 62271-1, and ANSI/NETA ATS standards. It supports measurement of metallic conductive paths including copper/aluminum busbars, bolted joints, isolator contacts, grounding grid interconnections, and HV circuit breaker main contacts. Its BSG (Body-to-Ground) mode accommodates configurations where conventional floating measurements are impractical—such as grounded switchgear enclosures or transformer tank-mounted disconnects. The instrument complies with IEC 61010-1 Edition 3 for electrical safety and meets EMC requirements per IEC 61326-1 for industrial environments. While not inherently 21 CFR Part 11 compliant, audit-ready data export via DataView® enables integration into GLP/GMP-aligned QA workflows when paired with controlled documentation practices.
Software & Data Management
DataView® software (included) provides secure USB 2.0 communication for bidirectional data transfer, report generation, and trend analysis. Users can export measurement logs in CSV, PDF, or XML formats; apply custom templates for client-specific reporting; and generate calibration-certified test certificates with operator ID, timestamp, location tag, and pass/fail thresholds. The software supports automated firmware updates and configurable data validation rules—including min/max limits, deviation alerts, and statistical summaries (mean, standard deviation, Cp/Cpk). All exported files retain original measurement metadata (test current, duration, range, temperature compensation status), supporting traceability for internal audits or third-party inspection bodies.
Applications
- Pre-commissioning verification of circuit breaker contact resistance per IEEE C37.09 Clause 6.3.2
- Routine maintenance testing of busbar splices and compression joints in transmission substations
- Grounding system continuity validation—including mesh conductor interconnections and exothermic weld points
- Quality assurance of high-current bus duct installations prior to energization
- Troubleshooting elevated resistance in HV disconnect switches and load-break devices
- Baseline resistance profiling for predictive maintenance programs using historical trend analysis
FAQ
What is the minimum measurable resistance and its corresponding resolution?
The instrument resolves down to 0.1 µΩ in the 0.1 µΩ–2 mΩ range, with accuracy specified as ±1% of reading + 50 µΩ (for currents ≥50 A).
Can the Model 6292 perform measurements on grounded systems without isolation?
Yes—it features Body-to-Ground (BSG) measurement mode, allowing valid resistance acquisition even when both test points share a common earth reference.
Is the test current truly DC, and how is ripple managed?
Yes—the unit employs regulated true DC current generation with active filtering; output ripple remains below 2% of full-scale current amplitude across all settings.
How many measurements can be stored internally, and is time-stamping supported?
Up to 8,000 measurements may be stored with automatic UTC-synchronized timestamps, test current value, range selection, and pass/fail status.
Does the device support external calibration traceability?
Yes—calibration is performed using NIST-traceable shunts; the instrument accepts user-defined calibration factors and stores calibration history with date, technician ID, and standard reference data.
