Aerospace ZJC-50KV AC/DC Dielectric Breakdown Tester

Overview

The Aerospace ZJC-50KV AC/DC Dielectric Breakdown Tester is a precision-engineered high-voltage testing system designed for the quantitative evaluation of dielectric strength and electrical insulation integrity in solid and semi-solid insulating materials. Operating on the principle of controlled voltage escalation until electrical breakdown occurs, the instrument measures the maximum electric field (kV/mm) a material can withstand before catastrophic failure—defined as dielectric breakdown under standardized conditions. It supports both sinusoidal AC (48–62 Hz) and steady-state DC excitation, enabling full compliance with international test methodologies for electrical safety validation and material qualification. The system is engineered for laboratory-grade reproducibility, traceable calibration, and long-term stability in R&D, QC, and regulatory testing environments—including those governed by ISO/IEC 17025-accredited protocols.

Key Features

• Full-range programmable voltage output: 0–50 kV AC or DC, with digital resolution and closed-loop feedback control.
• Continuous, stepless ramp rate adjustment from 0.1 kV/s to 3 kV/s—meeting both ultra-slow (e.g., GB/T 1408.1 Annex C) and rapid-rise (ASTM D149 Method A) test requirements.
• Dual-mode operation: automated breakdown detection with instantaneous voltage collapse and hold-mode withstand testing (0–6 hours, software-defined duration).
• Optically isolated data acquisition architecture eliminates electromagnetic interference during high-voltage transients, ensuring signal fidelity and measurement integrity.
• Integrated nine-level hardware and firmware safety interlock system—including door position sensing, overcurrent cutoff (<0.1 s response), automatic post-test discharge, and independent earth-ground monitoring.
• Modular electrode configuration support: interchangeable 25 mm and 75 mm flat disc electrodes per IEC 60243-1; optional 6 mm spherical, plate, or custom geometries for specialized applications (e.g., thin films, coatings, wire insulation).

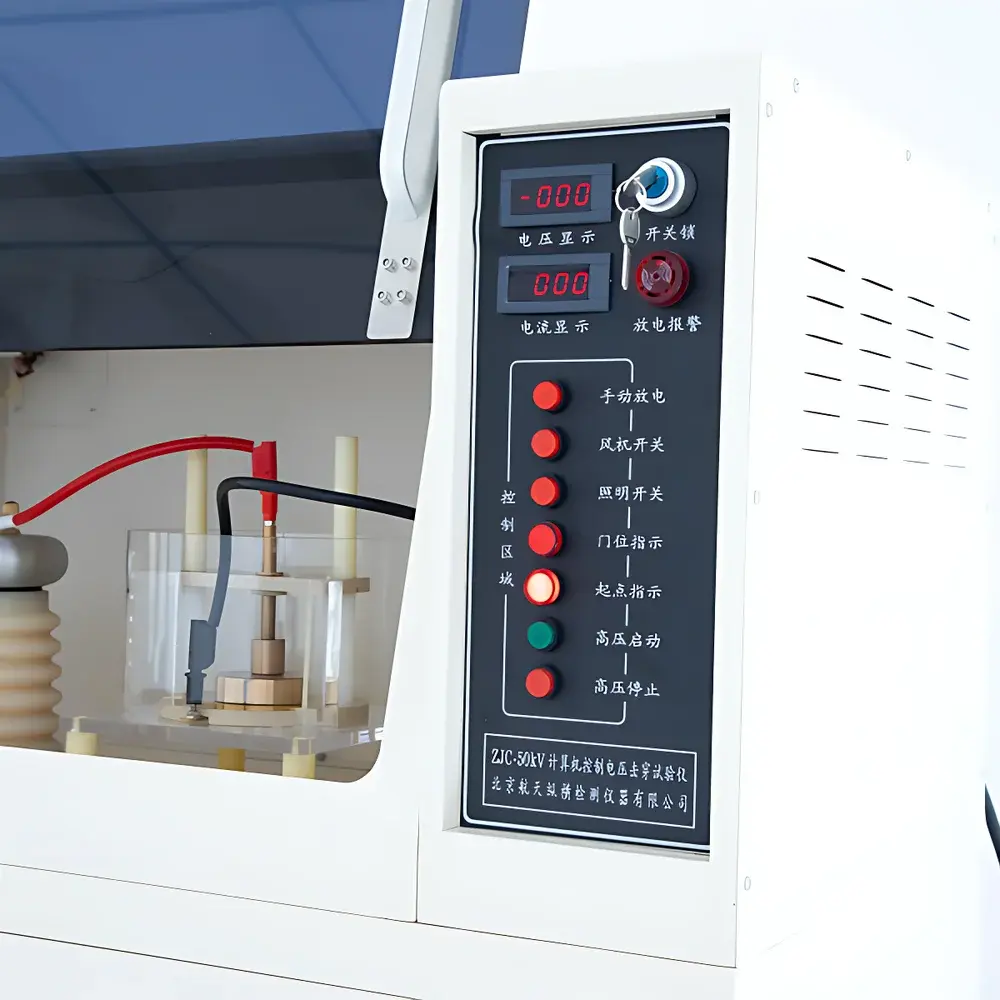

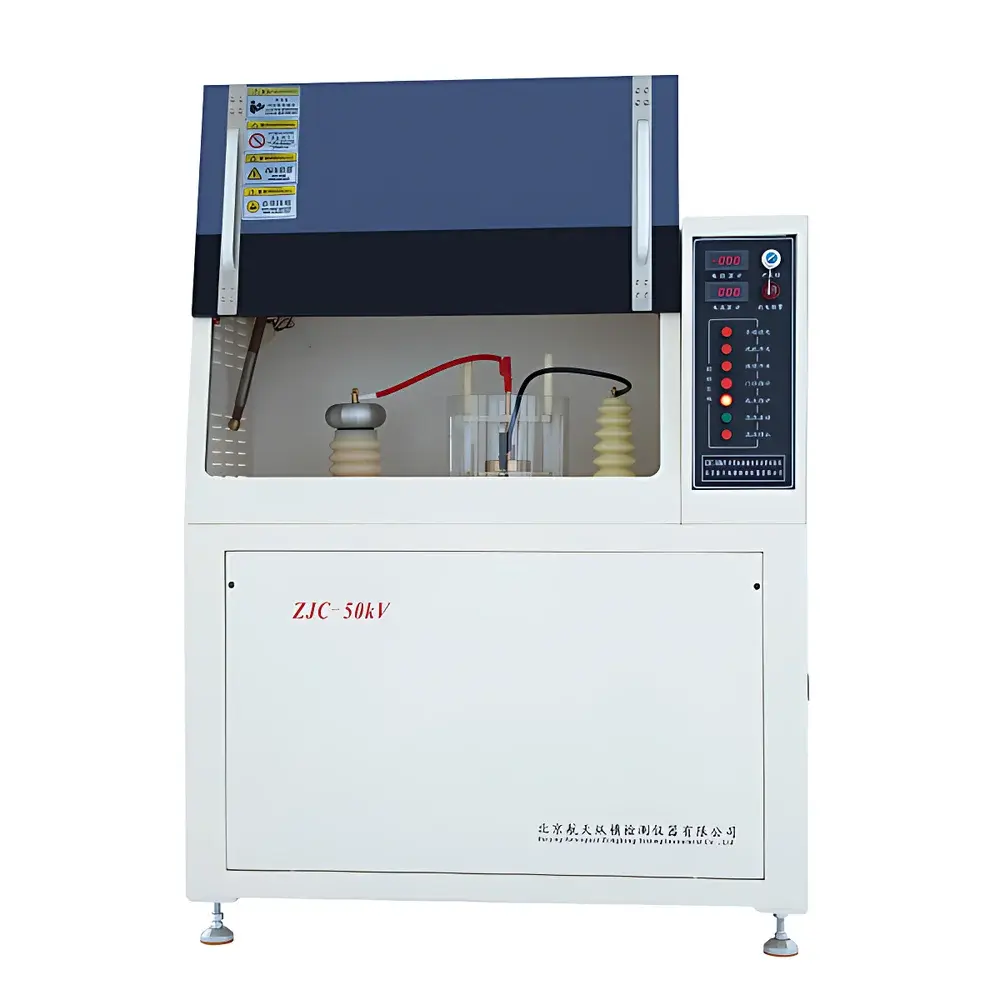

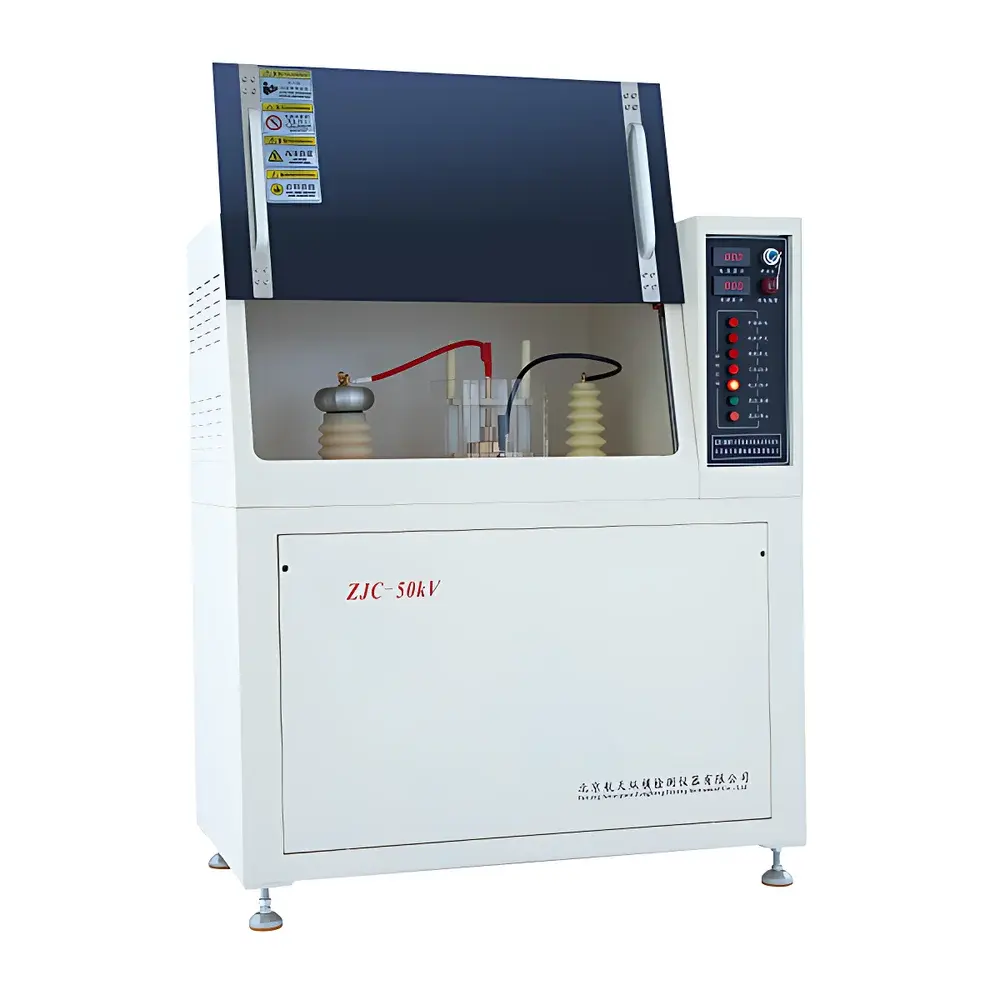

• Vertical cabinet design with castor-mounted base—optimized for space-constrained laboratories without sacrificing accessibility or serviceability.

Sample Compatibility & Compliance

The ZJC-50KV accommodates a broad spectrum of insulating media, including thermoplastics, thermosets, elastomers, ceramics, glass, laminates, paper, polymer films, enamel-coated wires, and liquid dielectrics (e.g., transformer oil). Testing may be conducted in ambient air or immersed in insulating oil per GB/T 1408.1 Clause 6.2 and ASTM D149 Section 7. All mechanical, electrical, and procedural specifications align with national and international standards: GB/T 1408.1–2016 (equivalent to IEC 60243-1), GB/T 1695–2005 (rubber), GB/T 3333–1999 (cable paper), HG/T 3330 (insulating varnish), ASTM D149 (dielectric breakdown voltage), and ASTM D3755 (polymer film). The system supports GLP/GMP-aligned workflows via time-stamped audit trails, user authentication, and electronic signature-ready reporting.

Software & Data Management

The proprietary Windows-based test software provides deterministic, repeatable control over all operational parameters—including voltage ramp profile, dwell time, pass/fail criteria, and electrode configuration. Real-time graphical display plots voltage vs. time and leakage current vs. time simultaneously, with color-coded overlays for comparative analysis across multiple specimens. Each test session generates a timestamped binary data file (.dat) containing raw sensor outputs, event markers (e.g., breakdown trigger, discharge initiation), and environmental metadata. Export functions support CSV, Excel (.xlsx), and Word (.docx) formats; reports are customizable per client or regulatory template (e.g., FDA 21 CFR Part 11–ready when deployed with validated IT infrastructure). The software enforces role-based access control, configurable password policies, and immutable log files—ensuring data integrity and compliance with ISO 17025 clause 7.7 and ICH GCP principles.

Applications

This tester serves critical roles across materials science, electrical manufacturing, aerospace component certification, and regulatory compliance labs. Typical use cases include: qualification of encapsulation resins for power electronics modules; verification of dielectric performance in EV battery separator films; evaluation of arc resistance in PCB substrate laminates; screening of insulating coatings for medical device leads; validation of ceramic substrates used in high-frequency RF packages; and routine QC of cable jacketing compounds per UL 1581 or ICEA T-28. Its dual AC/DC capability enables cross-platform correlation studies essential for failure mode analysis—particularly where partial discharge inception or space charge accumulation must be differentiated from bulk breakdown mechanisms.

FAQ

What standards does the ZJC-50KV explicitly support?
It is fully compliant with GB/T 1408.1–2016, GB/T 1695–2005, ASTM D149, and ASTM D3755, with hardware and software preconfigured to execute all mandatory procedural steps—including voltage ramp linearity verification, electrode conditioning, and environmental conditioning intervals.
Can the system perform both breakdown and withstand testing in a single session?
Yes. The software allows sequential execution of breakdown mode followed immediately by a timed withstand test at a user-defined sub-breakdown voltage level—enabling comprehensive dielectric endurance profiling.
Is third-party calibration and certification available?
Calibration certificates traceable to NIM (China National Institute of Metrology) or CNAS-accredited laboratories (e.g., No. 514 Institute, No. 304 Institute) can be provided upon request; full metrological validation documentation is included with each delivery.
How is data security and audit readiness ensured?
All test records include embedded digital signatures, immutable timestamps, operator ID tags, and version-controlled software logs—satisfying minimum ALCOA+ (Attributable, Legible, Contemporaneous, Original, Accurate, Complete, Consistent, Enduring, Available) requirements for regulated industries.
What maintenance and support services are included?
Three-year comprehensive warranty covering parts and labor; lifetime technical support; on-site installation, commissioning, and operator training by certified field engineers; and remote diagnostics via secure TLS-encrypted connection.
