AGC NovaCHROM 1000 DID Helium Ionization Gas Chromatograph

Overview

The AGC NovaCHROM 1000 DID Helium Ionization Gas Chromatograph is a purpose-built online analytical system engineered for ultra-trace impurity detection in high-purity industrial and electronic-grade gases. It employs a helium-based discharge ionization detector (DID), operating on the principle of vacuum ultraviolet (VUV) photoionization—where 24.8 eV photons generated by helium plasma directly ionize analyte molecules, including traditionally non-ionizable species such as Ne, H₂, and noble gases. This physical ionization mechanism enables universal, ppb-level sensitivity without chemical selectivity bias, making it uniquely suited for compliance-driven applications in semiconductor manufacturing, specialty gas production, and cryogenic supply chain QA/QC.

Key Features

• Helium ionization detector (DID) with sub-ppb detection limits for permanent gases, hydrocarbons, and reactive impurities (e.g., H₂O, O₂, CO, CO₂, CH₄, N₂, Ar, Kr, Xe, Ne)
• Response time ≤ 0.5 s (90% rise), enabling real-time process monitoring in continuous online operation

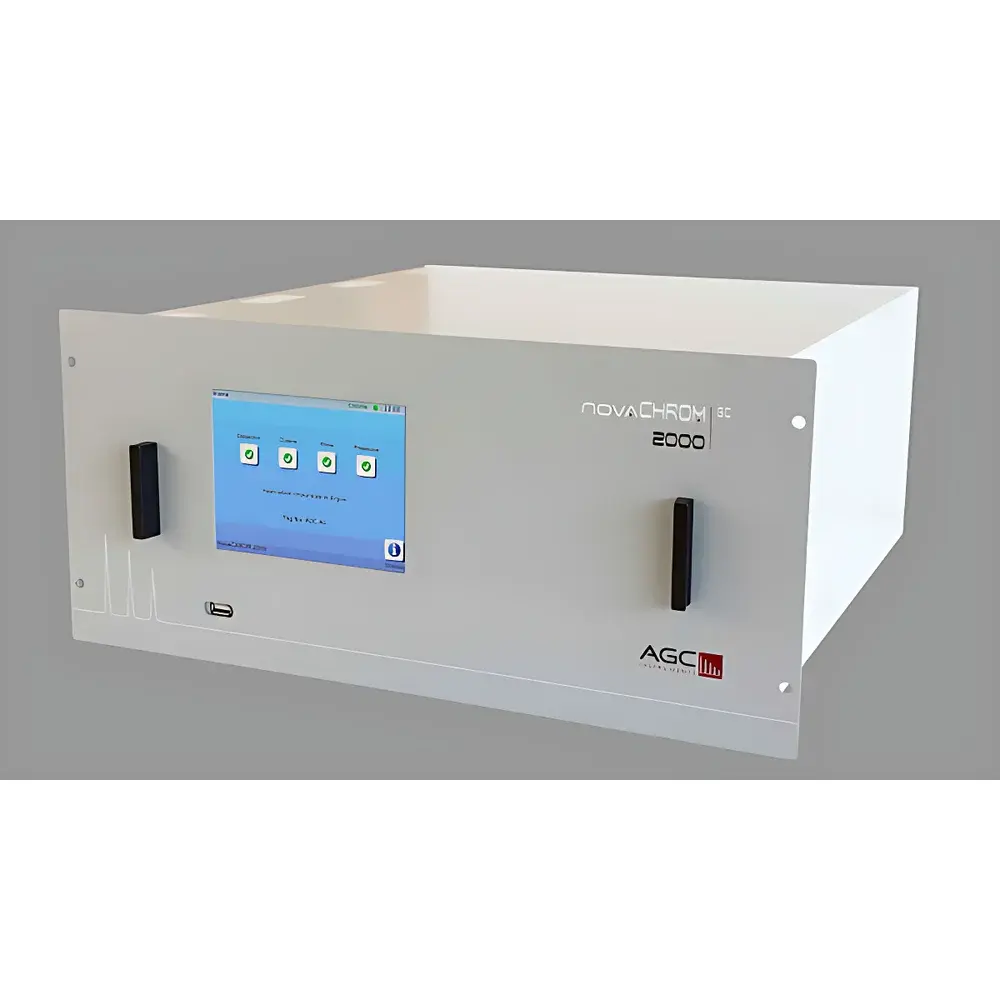

• 6.5-inch full-color capacitive touchscreen interface with guided workflow navigation—designed for operator independence and minimal training overhead
• Electronically controlled pneumatic (EPC) modules for carrier gas, make-up gas, and detector gas with digital pressure/flow feedback loops
• Dual-zone independently heated column oven (4 °C–450 °C) with < ±0.05 °C/h thermal stability post-equilibration
• Electropolished stainless-steel fluidic path compliant with ASTM E2129 and SEMI F57 standards for low-particulate, low-outgassing performance
• Integrated diagnostic subsystem with real-time sensor health monitoring, leak detection alerts, and automated calibration status logging

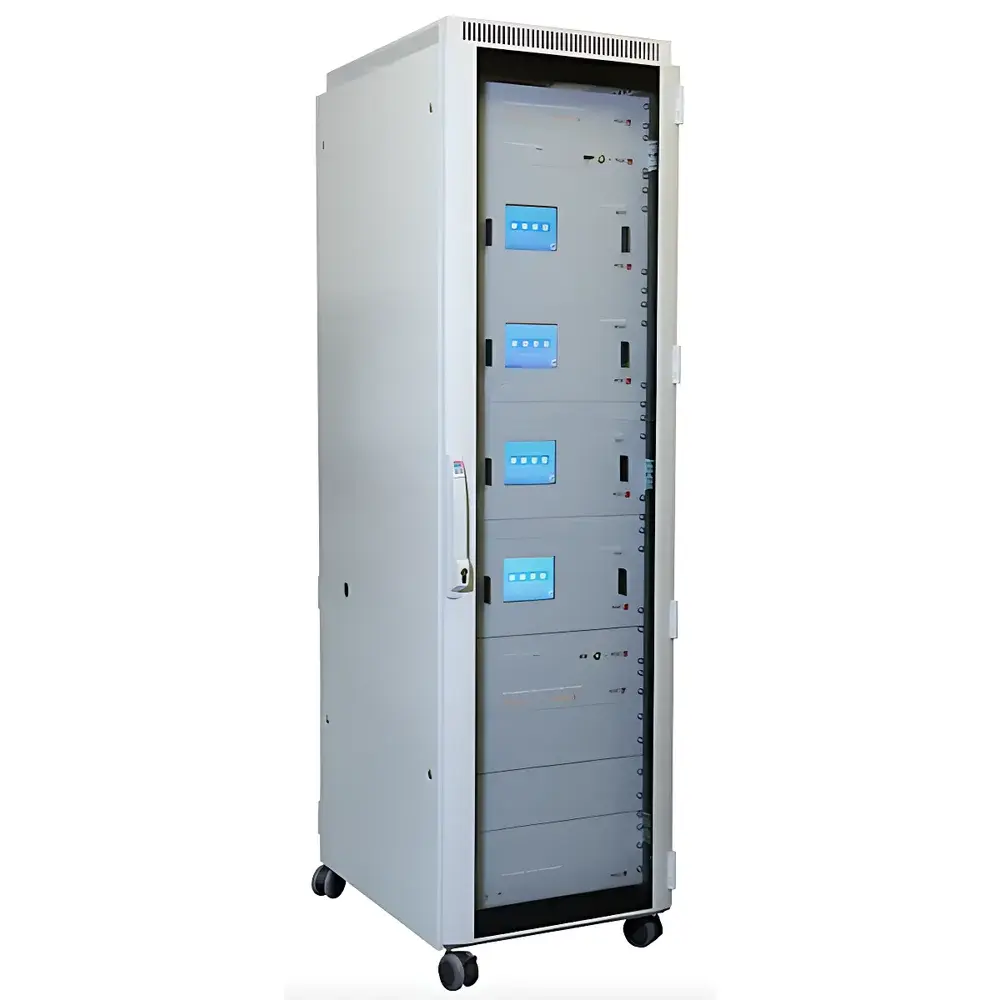

• 19-inch rack-mountable chassis with downward-access front panel for field serviceability and modular component replacement

Sample Compatibility & Compliance

The NovaCHROM 1000 meets stringent regulatory and industry requirements for high-purity gas certification. Its analytical methodology aligns with ISO 8573-5 (compressed air purity), ASTM D1945 (gas analysis by GC), and multiple Chinese national standards referenced in GB/T and HG/T series—including GB/T 8979-2008 (high-purity N₂), GB/T 14599-2008 (O₂), GB/T 4842-2006 (Ar), GB/T 16945-2009 (electronic-grade Ar), and GB/T 21287-2007 (NF₃). The system supports GLP-compliant audit trails when operated with Trend-Vision software under 21 CFR Part 11 configuration (electronic signatures, user access controls, immutable data archiving). All wetted materials conform to USP Class VI biocompatibility and ASTM A269 TP316L surface finish specifications.

Software & Data Management

Trend-Vision workstation software provides full bidirectional control of the NovaCHROM 1000, including method sequencing, valve timing, temperature ramping, EPC setpoint management, and real-time chromatogram overlay. It supports automated peak integration per ASTM D3606 and ICH Q2(R2) guidelines, with customizable reporting templates for certificate-of-analysis generation. Data files are stored in vendor-neutral .cdf format (compatible with OpenLab CDS and Chromeleon), and raw acquisition metadata includes instrument configuration snapshots, environmental sensor logs (ambient T/RH), and detector voltage histories. Communication interfaces include dual RS-232/RS-485 ports for PLC integration and two USB 2.0 host ports for external storage or peripheral devices. Remote diagnostics and firmware updates are supported via secure TLS-encrypted Ethernet connection.

Applications

• Ultra-high-purity (UHP) bulk gas certification (N₂, Ar, He, O₂, H₂, Ne, Kr, Xe) at 6.0–7.5 N purity levels
• In-line monitoring of hydrogen purification trains (PSA, membrane separation) for CO, CO₂, CH₄, and H₂O breakthrough
• Electronic specialty gas QC for NF₃, SiH₄, BCl₃, PH₃, HCl, and NH₃ per SEMI C11 and JIS K1413
• Residual moisture and oxygen analysis in cryogenic liquid storage systems (LOX, LIN, LAR)
• Leak detection validation in vacuum chamber purge cycles using tracer gas (He, H₂) quantification
• Gas purity verification prior to wafer fab tool installation (per SEMI F21 and ISO 14644-8 Annex D)

FAQ

What makes the DID superior to other detectors for high-purity gas analysis?
Unlike FID (hydrocarbon-selective) or TCD (low-sensitivity), the DID delivers uniform ionization efficiency across all elements due to its fixed 24.8 eV photon energy—enabling quantitative detection of Ne, He, H₂, and reactive species at sub-ppb levels without derivatization or preconcentration.

Can the NovaCHROM 1000 operate unattended for extended periods?
Yes. With integrated EPC, self-diagnostics, scheduled auto-calibration routines, and optional CGDP-01 dual-cylinder carrier gas switchover, the system supports >30-day unattended operation while maintaining ASTM E260-compliant retention time reproducibility (RSD < 0.15%).

Is the column oven capable of cryogenic temperature programming?
No. The oven operates from 4 °C to 450 °C; sub-ambient separation requires external chiller coupling or dedicated cryo-focusing modules—not part of the base NovaCHROM 1000 configuration.

Does the system support multi-detector configurations?
The NovaCHROM platform architecture permits parallel detector deployment (e.g., DID + TCD); however, the NovaCHROM 1000 model is factory-configured with a single DID. Dual-detector variants (e.g., NovaCHROM 1000-DID/TCD) require custom engineering and separate validation documentation.

How is carrier gas purity maintained during long-term operation?
When paired with the optional AGC 75-802 regenerable purifier, helium carrier gas is upgraded from 99.999% (5N) to ≥99.99999% (7.5N), reducing baseline noise and extending detector lifetime—critical for achieving sustained ppb sensitivity over 12-month intervals.
